Camera User Guide
The serial number of this product is given on the bottom face of the camera.

Basic Operations

If you are using the camera for the
first time, read this section.
This section provides a basic overview of
how to turn on the camera, take pictures
and play back pictures.
Note
Do not connect the USB cable yet!
If you connect the camera to a computer through the USB
cable before installing the provided software on the
computer, the software required for connection between
camera and computer may not be installed correctly. Be
sure to connect the camera to your computer after
installing the provided software. (GP.164)

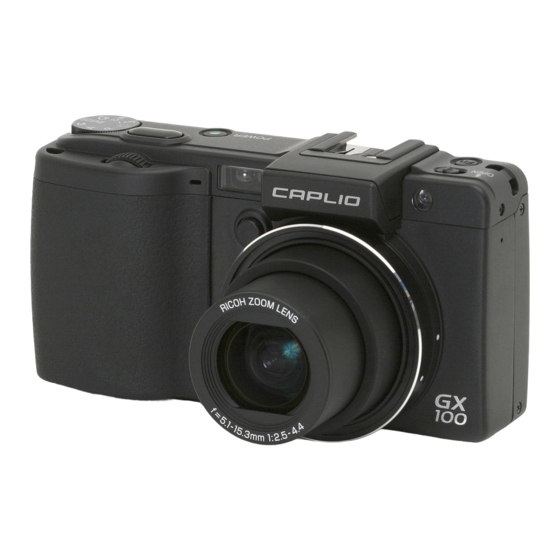

This manual is for Caplio GX100 and
Caplio GX100 VF KIT. Caplio GX100
VF KIT is supplied with an LCD
viewfinder (VF-1).

Advanced Operations

Read this section when you want
to learn more about the different
camera functions.
This section provides more detailed
information about the functions used to
take pictures and play back pictures, as
well as information on how to customize
the camera settings, print pictures, and
use the camera with a computer.
