IN00369 (rev C)
Half Frame Radius Bath Screen
• Instruction suitable for both Right and Left Hand fixing variations.
• This product is designed to open outwards.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aqua 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for AQUALUX Aqua 3

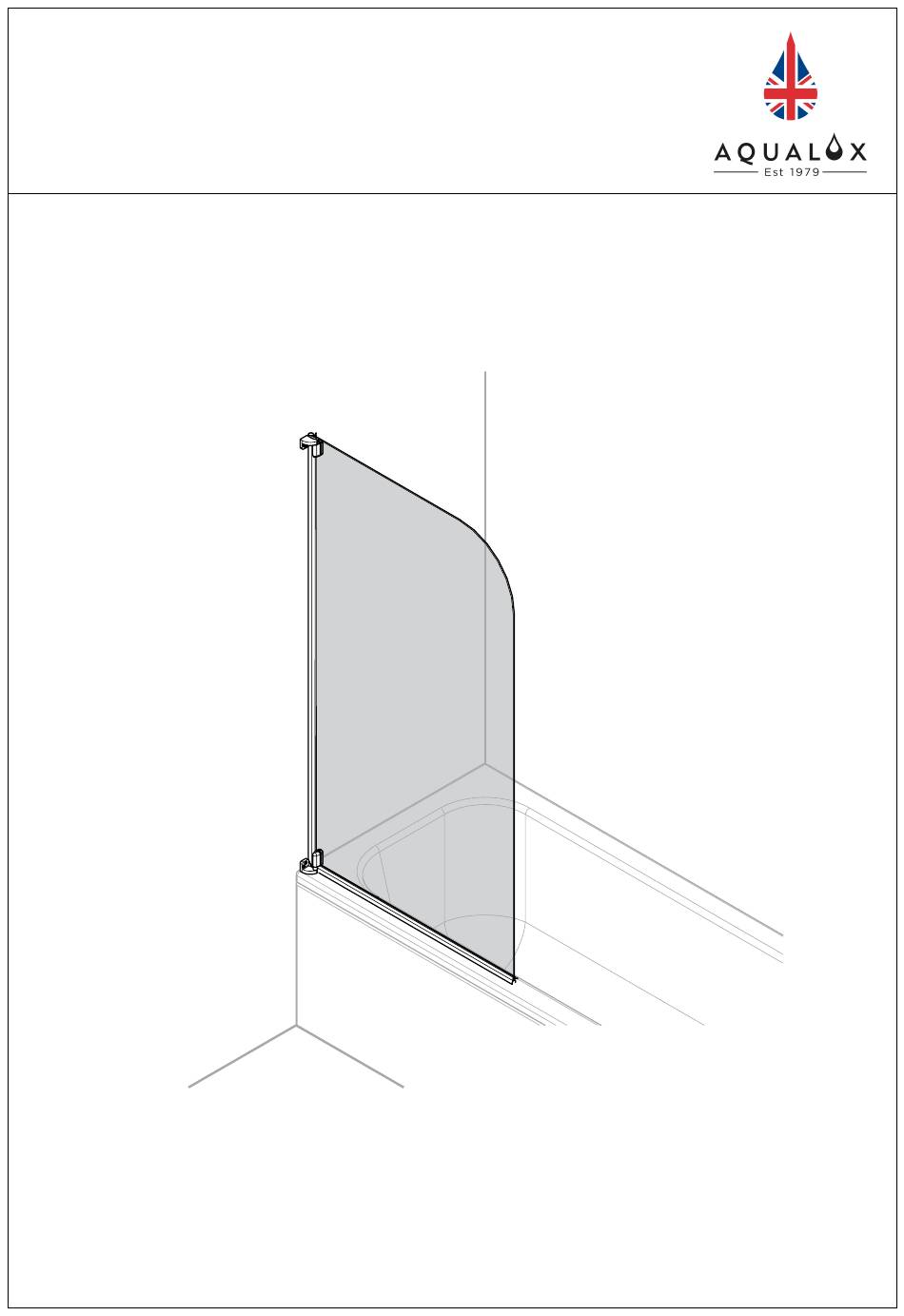

  • Page 1 IN00369 (rev C) Half Frame Radius Bath Screen • Instruction suitable for both Right and Left Hand fixing variations. • This product is designed to open outwards.
  • Page 2 Before You Start • Check that the bath has been installed correctly  and that it is level (Fig. A), tiled down onto and  Fig.A. sealed to the manufacturer’s guidelines. Please Note: All product supplied without bath. • Check that there is sufficient space on the bath  for the product and that the screen movement  does not foul other items such as sinks and  taps. • Please Note: This product is outward opening  only. • Ensure the product is fitted to a non-porous  surface ie. tiled. Check that the wall surface is  flat. • Unpack and check the product is complete and  undamaged. • Fixings are supplied for solid walls only. Ensure  that the correct fixings are used for the wall type  – if in doubt seek professional advice • Ensure the area is clean, dry and dust free. • Read the instructions in full. • Have the correct tools available, (as shown  below, see ‘Tools Required’). Safety • Handle all glass with care - support on cardboard to avoid risk of breakage. • This product is heavy and requires 2 people to carry and install it. • When drilling walls check first for hidden pipes and cables. • All glass is toughened – it cannot be reworked or replaced by ordinary glass. • Use safety eyewear when drilling. • Use safety eyewear when handling glass. • Keep all small parts away from children. Disclaimer • Please notify the retailer immediately of any damage or faults. The manufacturer cannot be held  responsible for any installation costs that may arise from damaged or faulty product being installed. • Please dispose of all packaging with due regard to the environment. Tools Required (not supplied) Spirit Level Screwdriver...
  • Page 3 Parts & Fittings Supplied Please notify the retailer immediately Keep small parts away from children of any damage or faults. The manufacturer cannot be held responsible for any installation costs that may arise from a damaged or faulty product being installed. Glass Screen Assembly Horizontal Seal...
  • Page 4 Right Hand Bracket Vertical Seal (Longer of the two Seal lengths) Hinge Holder Hinge Holder Backplate Collar Left Hand Bracket...
  • Page 5 Loose Screws & Fittings Supplied No.8 x 1¾” Pan Head Pozi Screws (actual size) Wall Plugs (actual size) No.8 x 11mm Pan Head Pozi Screws (actual size) No.8 x ¾” Pan Head Pozi Screws (actual size)
  • Page 6 Mark position of holes in (Left/ Right Hand) Bottom Bracket. Observe correct orientation of Wall plugs supplied are for solid the pin feature. walls only. Ensure correct wall plug for wall type is used. If in doubt seek professional advice. Tip: When drilling tiles apply 6mm dia.
  • Page 7: Important Note

    Inside View Inside View Ensure Hinge Holder is on the OUTSIDE FACE. Inside View Ensure Hinge Holder is on the OUTSIDE FACE. IMPORTANT NOTE: Ensure correct screws are used. Ensure correct Bath Screen Assembly orientation to suit required handing. Hinge Holder must be positioned onto the OUTSIDE face of the Bath Screen Assembly.
  • Page 8 Inside View ‘Click’ Inside View Inside View ‘Click’...
  • Page 9 Inside View Please Note: INSIDE Ensure seal deflector faces INWARDS. IMPORTANT NOTE: Prior to cutting, ensure both Horizontal and Vertical Seals are Cut Vertical correctly positioned, mitre joint as Seal to suit shown, adjust to suit. Inside View Inside View Cut Horizontal Seal to suit Tip:...
  • Page 11 IMPORTANT NOTE: Mark position of Ensure Top and Bottom Brackets line holes in (Left/ Right up level and straight. Hand) Top Bracket. Ensure bracket is fully inserted Ensure Glass down into the Screen is level. hinge holder. IMPORTANT NOTE: Prior to marking Top Bracket position, ensure Top Bracket and Bottom Brackets line up level and straight.
  • Page 12 Notes:...
