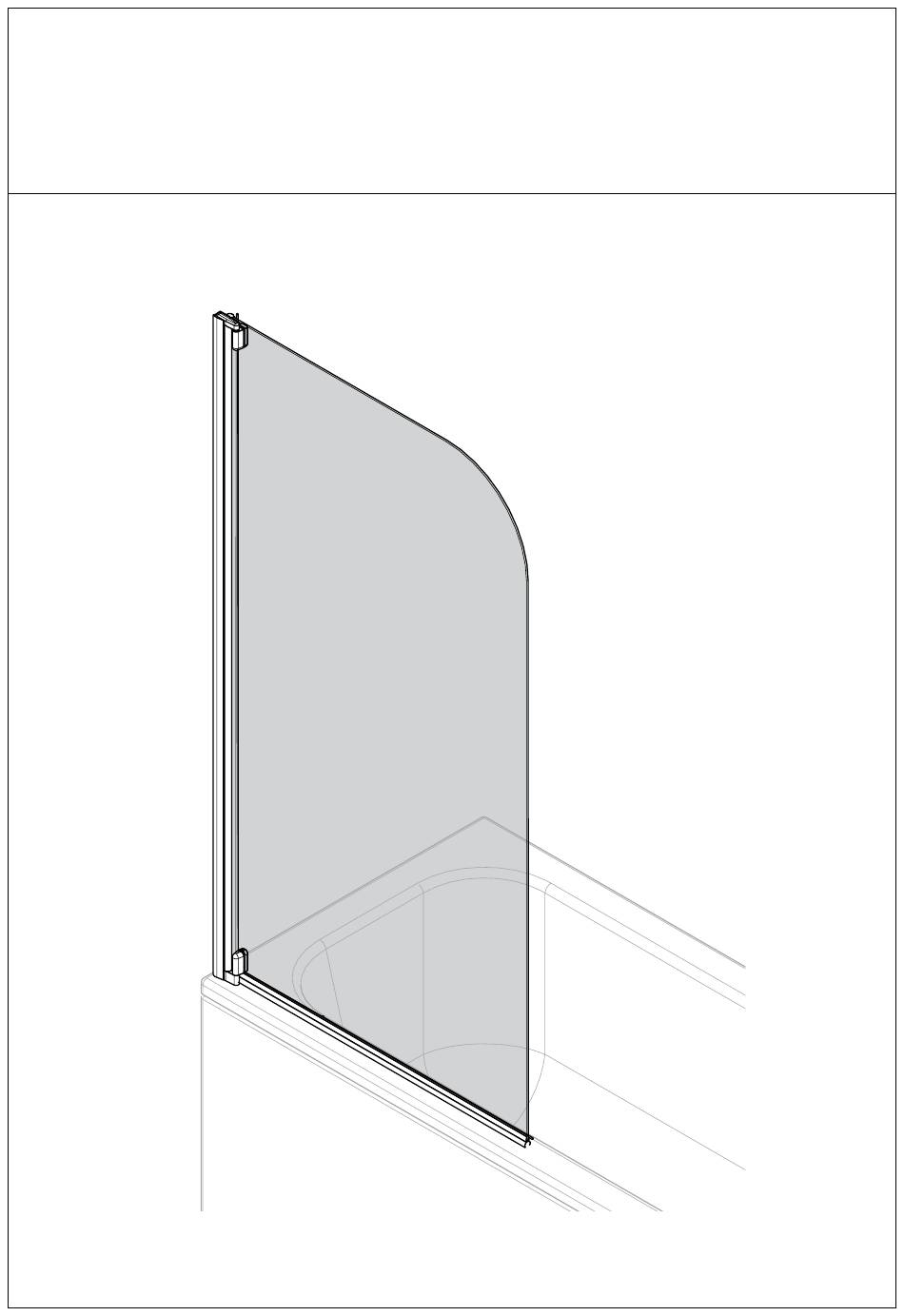

- Page 1 IN00362 (rev D) Half Framed Bath Screen • Instruction suitable for both Right and Left Hand Fixing • Instruction suitable for Square, Sail, Oval and Radius Variants • This product is designed to open outwards.
- Page 2 Before You Start • Check that the bath has been installed correctly and that it is level (Fig. A), tiled down onto and Fig.A. sealed to the manufacturer’s guidelines. Please Note: All product supplied without bath. • Check that there is sufficient space on the bath for the product and that the screen movement does not foul other items such as sinks and taps.
- Page 3 Parts & Fittings Supplied Please notify the retailer immediately of any damage or faults. The manufacturer cannot be held responsible for any installation costs that may arise from a damaged or Keep small parts away from children faulty product being installed. Bath Screen Assembly Horizontal Seal...
- Page 4 Hinge End Vertical Seal (Longer of the two Top Hinge Seal lengths) Wall Stile Hinge Holder Hinge Holder Backplate Wall Channel Bottom Hinge...
- Page 5 Loose Screws & Fittings Supplied No.6 x 1” Pan Head Pozi Screws (actual size) No.8 x 11mm Pan Head Pozi Screws (actual size) No.8 x ¾” Pan Head Pozi Screws (actual size) No.8 x 1½” Pan Head Pozi Screws (actual size) Wall Plugs (actual size) No.8 x ⅜”...
-
Page 6: Important Note
Inside View Inside View Ensure Hinge Holder is on the OUTSIDE FACE. Inside View Ensure Hinge Holder is on the OUTSIDE FACE. IMPORTANT NOTE: Ensure correct screws are used. Ensure correct Bath Screen Assembly orientation to suit required handing. Hinge Holder must be positioned onto the OUTSIDE face of the Bath Screen Assembly. - Page 7 Inside View Fix Bottom Hinge to Wall Stile. Position Bottom Hinge Holder on the Bath Screen Assembly on to Bottom Hinge. Position Top Hinge in to Hinge Holder on the Bath Screen Assembly and Fix to Wall Stile.
- Page 8 Inside View ‘Click’ Inside View ‘Click’ Inside View ‘Click’...
- Page 9 Inside View Please Note: Rotate Bath Screen into INSIDE Ensure seal open position in order to deflector faces gain suitable access for INWARDS. Vertical Seal fixing. IMPORTANT NOTE: Prior to cutting, ensure both Horizontal and Vertical Seals are Cut Vertical correctly positioned, mitre joint as Seal to suit shown, adjust to suit.
- Page 10 Tip: When drilling tiles apply masking tape to surface to stop drill bit slipping. Mark position pre-drilled Wall Channel holes Wall plugs supplied are for solid walls only. Ensure correct wall plug for wall type is used. If in doubt seek professional advice. Position wall channel on wall.
- Page 11 IMPORTANT NOTE: DO NOT Push Bath Screen Assembly fully in to Wall Channel to ensure adjustment when fixing. Observe correct Bath Screen orientation with Hinge Holder on the OUTSIDE face of the Bath Screen Assembly. Ensure compression of Horizontal seal on the Bath. Ensure Bath screen is level at this stage.
- Page 12 Inside View Apply Silicone Sealant, (not supplied). Apply Silicone Sealant vertically between Wall Channel and wall only. Apply Silicone Sealant, (not supplied). Product Care: Use a non abrasive cleaner. 150mm Water marks may be removed with a proprietary limescale remover or household vinegar.
