American Signature WA-8213-QB Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts
that may have come loose inside the carton during shipment.

STEP 1

Open the zipper stitched on the back of
Headboard (A) and take out the Footboard (D)
from the storage space of Headboard (A).
Tear open the Velcro on the back of Footboard (D)
and take out the Side Rail (F) & (G) from the storage
space of Footboard (D).
A
Back
D
Back
ASSEMBLY INSTRUCTIONS
ITEM NO:WA-8213-QB

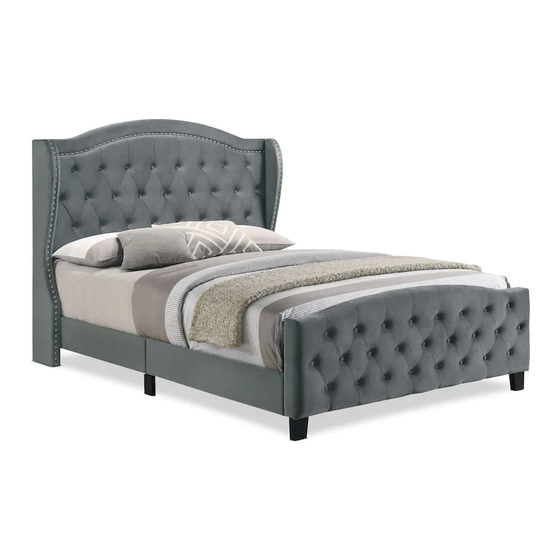

DESCRIPTION:QUEEN UPH
BED-AUDREY GRAY VELVET
TOOL REQUIRED (NOT PROVIDED):
PHILLIPS SCREW DRIVER

PARTS LIST:

No. Description
Headboard
A
Right Headboard Leg
B
(WITH "R" LABEL)
Left Headboard Leg
C
(WITH "L" LABEL)
D Footboard
E Footboard Leg
Side Rail with
F
Hole on Right
Side Rail with
G
Hole on Left
Right Wing
H
Left Wing
I
Side Rail
J
Support Leg
K Slat
Support Leg
L

HARDWARE LIST:

No. Description
M
JCBB SCREW
N
JCBC SCREW
O
JCBC SCREW
P
JCBC SCREW
Q
WOOD DOWEL
R
SPRING WASHER
S
FLAT WASHER
T
SCREW
U
SCREW
V
ALLEN KEY
W
ALLEN KEY
STRAIGHT
X
ALLEN KEY
STRAIGHT
Y
ALLEN KEY
Note: Straight Allen Key (X) & (Y) are for use with a power drill.
F
F
Sketch Quantity
1PC
1PC
1PC
1PC
2PCS
2PCS
2PCS
1PC
1PC
2PCS
4PCS
1542mm x 45mm x 18mm
4PCS
167mm x 30mm x 30mm
Sketch Size Quantity
M8 x 20mm 8PCS
M6 x 25mm 8PCS
16PCS
M6 x 35mm
2PCS
M6 x 70mm
2PCS
M8 x 30mm
20PCS
M6 x 13mm
M6 x 19mm
20PCS
8PCS
M4 x 32mm
M4 x 38mm 4PCS
1PC
M4 x 100mm
1PC
M5 x 65mm
M4 x 100mm 1PC
M5 x 100mm 1PC
G
G
MADE IN MALAYSIA
PAGE 1 OF 4
