Thank you for purchasing this quality product.
Be sure to check all packing material carefully
for small parts that may have come loose inside
the carton during shipment.

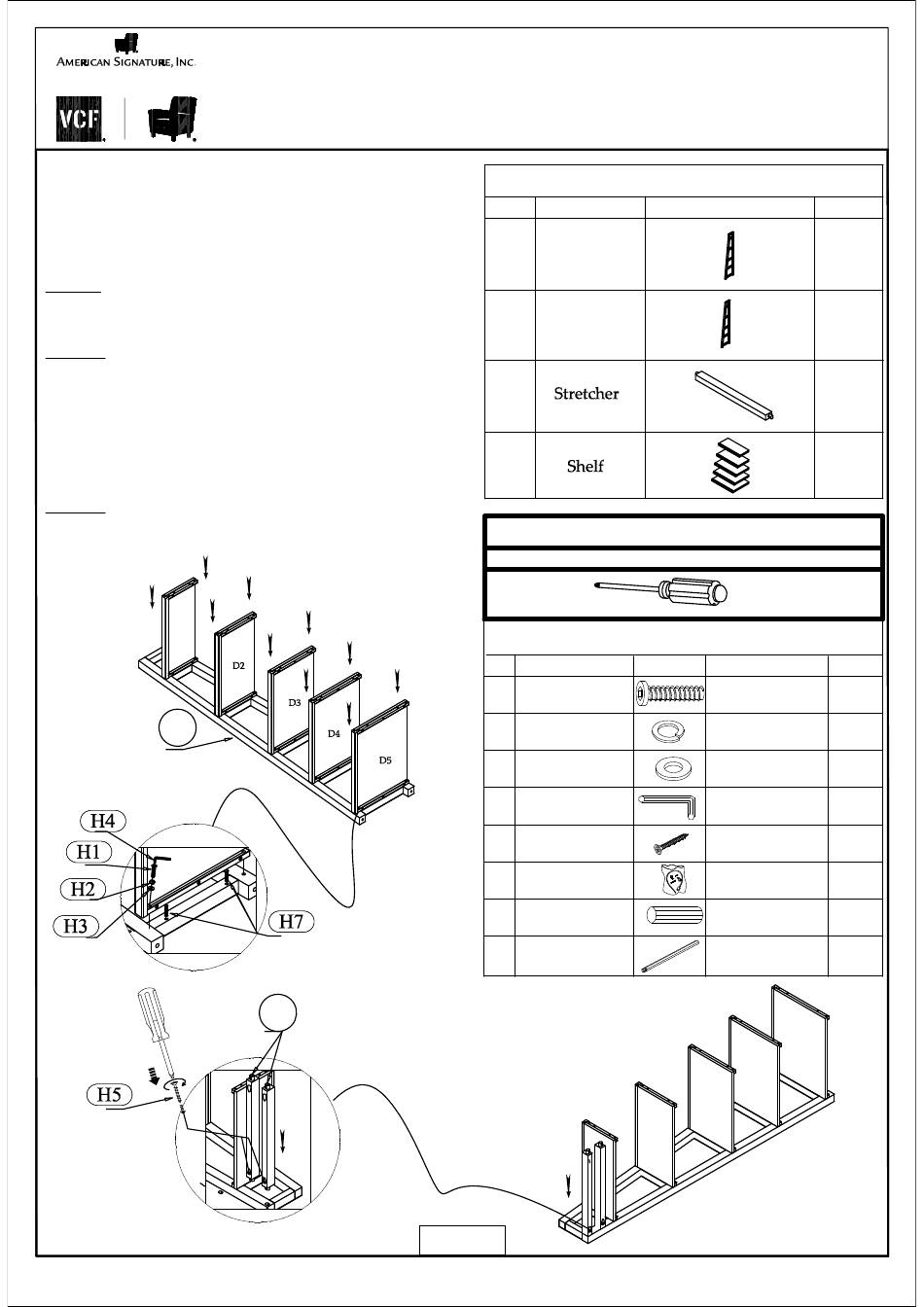

ASSEMBLY PROCEDURE:
Step 1:
Lay the Side Frame (A or B) on a carpeted or
scratch‐free work surface
Step 2: Insert the Wood Dowels (H7) in the
pre‐drilled holes on the Side Frame, attach the
proper width of Shelf (D) to the correct location of
the Side Frame by aligning the pre‐drilled holes on
the Shelf with the Wood Dowel of the Side Frame.
And secure by using Allen head bolt (H1), Spring
washer (H2) and Flat washer (H3)
Step 3: Assemble the Stretchers (C) to the Side Frame
by using Wood Screws (H5) and your Phillips
Screwdriver.
D1
A
Step1 :
Step 2 :
Step3 :
EXCLUSIVE AMERICAN SIGNATURE DESIGN DO NOT REPRODUCE WITHOUT WRITTEN PERMISSION
ASSEMBLY INSTRUCTIONS
Item No:57227
Description : LEANING BOOKCASE ‐ CARLTON BLACK
C
Page 1 of 2
PARTS LIST:
No.
Description
A
Left Side Frame
B
Right Side Frame
C
D
TOOLS REQUIRED (NOT PROVIDED)
Phillips Screw Driver
HARDWARE LIST:
No.
Description
Sketch
H1
Allen Head Bolt
H2
Spring Washer
H3
Flat Washer
H4
Allen Key
H5
Wood Screw
Furniture Tipping
H6
Restraint Kit
H7
Wood Dowel
Straight Allen
H8
Key
Sketch
Quantity
1
1
2
D1
5
D2
D3
D4
D5
Size
Quantity
20
Ø1/4ʺ x 38mm
20
Ø1/4"
20
Ø1/4ʺ x 16 x 2mm
4mm
1
Ø4 x 38mm
4
1
Ø 8 x L30mm
20
4mm x 100mm
1
MADE IN VIET NAM
Advertisement
Table of Contents
Related Manuals for American Signature VCF 57227
Summary of Contents for American Signature VCF 57227
- Page 1 Step1 : Ø1/4ʺ x 16 x 2mm Flat Washer Allen Key Ø4 x 38mm Wood Screw Furniture Tipping Restraint Kit Ø 8 x L30mm Wood Dowel Straight Allen Step 2 : 4mm x 100mm Step3 : MADE IN VIET NAM Page 1 of 2 EXCLUSIVE AMERICAN SIGNATURE DESIGN DO NOT REPRODUCE WITHOUT WRITTEN PERMISSION...
- Page 2 ASSEMBLY INSTRUCTIONS Item No:57227 Description: LEANING BOOKCASE ‐ CARLTON BLACK Step 4: Assemble the other Side Frame to the Shelves and Stretchers that were previously assembled. Step 5: Carefully set the Bookcase to its upright position. Step 4 : Furniture Tipping Restraint Hardware Kit (H6) (Inside White Plastic Bag) For product and personal safety, an Furniture Tipping Restraint kit has been included with this cabinet which can help to minimize the risk of the cabinet accidentally tipping forward, if used and properly installed. There are levelers underneath the Bookcase which can be adjusted to compensate for uneven flooring. If the furniture wobbles, determine which corner does not touch the floor correctly. With two people follow these steps: 1. Carefully elevate the item slightly to provide access to the levelers attached to the bottom. 2. Turn the levelers until adequate contact will be made with the floor. Gently set down the piece and check stability. Repeat steps until furniture sits firmly on the floor. Adjustable Leveler MADE IN VIET NAM Page 2 of 2...
