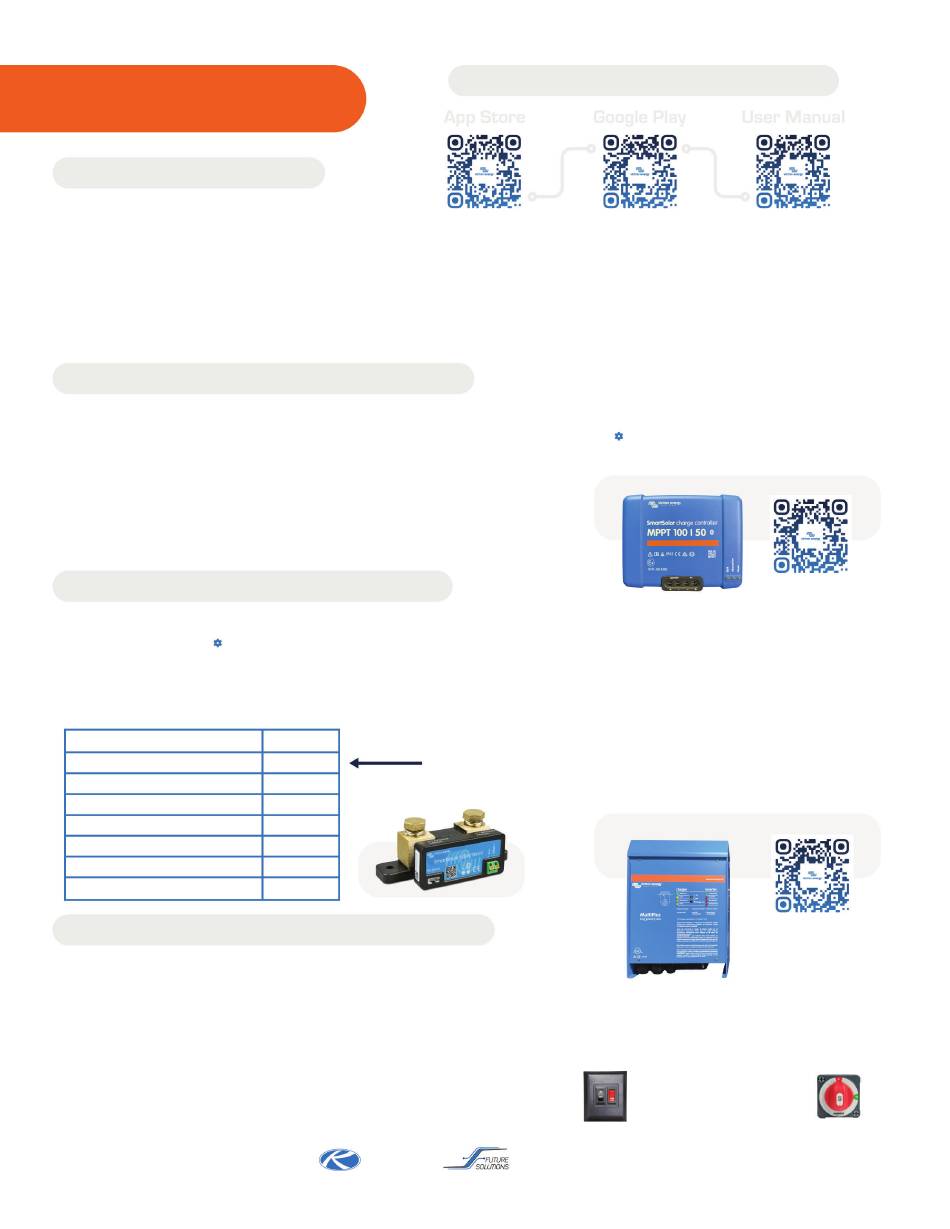

QUICK START GUIDE:
SolarFlex 600i-L Package

TO CONNECT- Victron Product:

Enable Bluetooth on your phone.
1)
Open VictronConnect and your Controller will appear, tap on the controller.
2)
The first time you connect, the app will ask to pair with a Victron product. Enter your PIN code or
3)
enter the default PIN code: 000000.
If prompted to update, install the update. This is normal and updates to the app or firmware should
4)
always be done.
Once complete, you will reach the home screen for your Victron device.
5)

SOLAR CONTROLLER SETTINGS- VictronConnect:

Once paired to your Maximum Power Point Tracking (MPPT) Smart Solar Controller, you will be taken
1)
to the home screen. The settings page is accessed by clicking on the ( ) icon in the top right. This page
provides access to view or change the charger settings and other features.
The MPPT Smart Solar Controllers are configured with preset
2)
battery charge algorithms and can easily be modified via Victron
Connect App. The 600i-L comes with Lithium, please refer to the
Smart Controller Manual to confirm or change the setting.

BATTERY MONITORING- SmartShunt Settings:

Once paired with the SmartShunt, you will be brought to a home screen. The settings are accessed
1)
by clicking on the ( ) icon at the top right of the home page. The settings page provides access to view
or change the settings of the Battery Monitor.
This process is very important for accurate app readings and good battery life. Make sure when
2)
installing batteries, the following items are correct and comply with the battery manufacturer's settings:
RECOMMENDED SETTINGS
Battery Capacity
Charged Voltage (V)
Discharge Floor
Tail Current
Peukert Exponent
Charge Efficiency
Battery Starts Synchronized

INVERTER/BATTERY DISCONNECT INFORMATION:

Coach disconnect (if equipped) can be turned off any time you wish
to shut off all 12v power inside of coach. Inverter disconnect should
only be turned off when placing the coach into dry storage or servicing the inverted circuit outlets. Next
to the black coach disconnect switch is the "Red" Battery Heat switch. When the outside temperature is
at or below 35°F it is necessary to use the battery heat.
To maintain charge to the battery(s) turn this switch
to ON (Illuminated). The battery heat will then
automatically turn on at 35°F and off at 45°F.
KEYSTONE RV
KEYSTONERV.COM
Lithium
Add up
value into Battery Capacity Total Ah column.
Total Ah
13.6
To convert
RC (Reserve Capacity)
25%
3.5%
1.05
99%
Uncheck
REV 1

TO START: Download the VictronConnect App.

total Amp hours (Ah)
to
Ah:
Victron
Coach
Battery
Disconnect
Heat Switch
FUTURE SOLUTIONS FSI-SOLUTIONS.COM
User Manual
for battery(s) installed and insert
Divide the
RC
by 2.4 Ah=RC/2.4
User Manual
Inverter
Disconnect
