Programming - DMX dip switches
Dip Switches

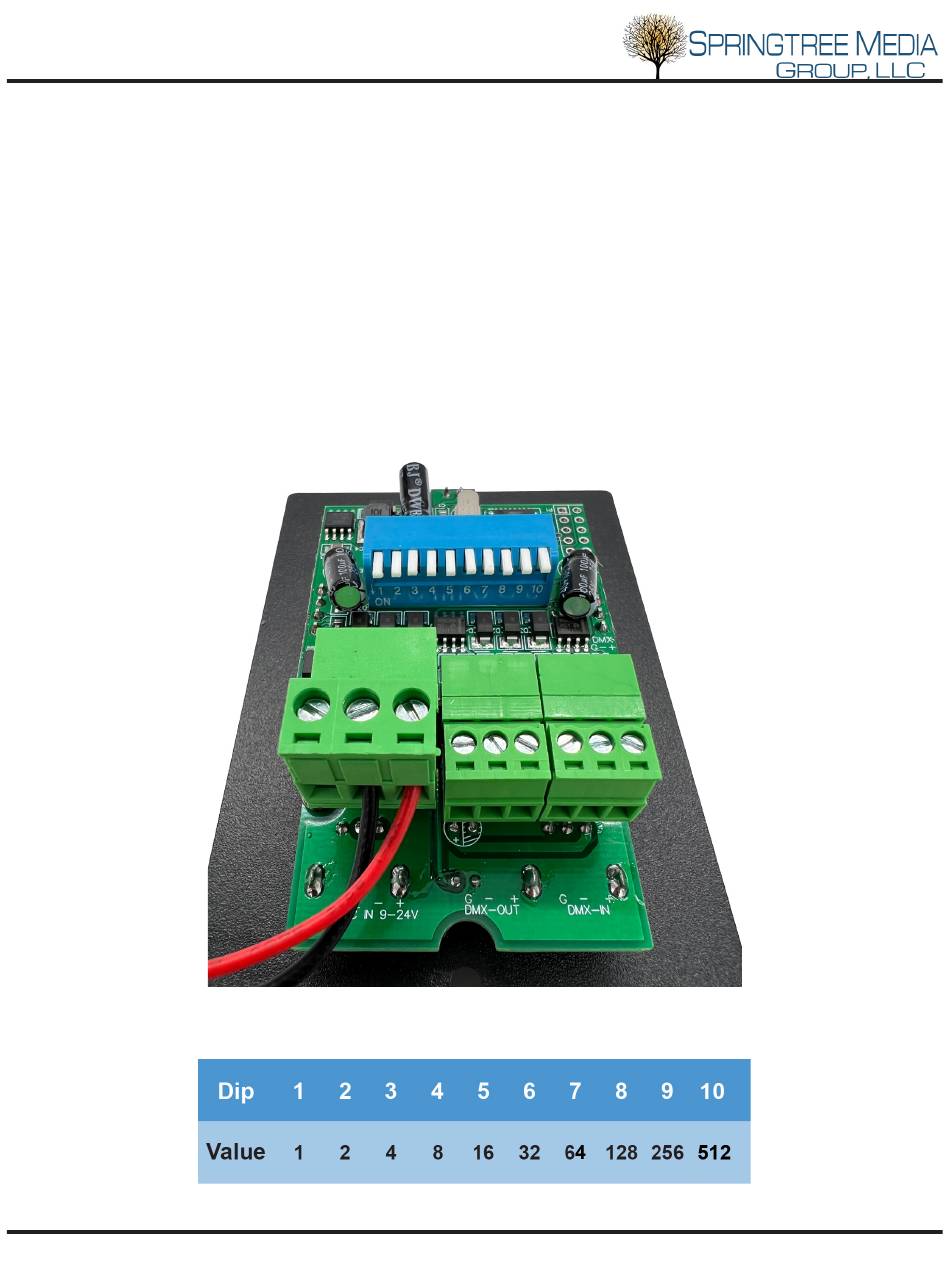

The WallDim1 and WallDim 5 DMX addressing is done via dip switches on the back. The
WallDim unit should be addressed to whatever DMX channel you would like to control. For example
to control DMX address 001 the dip switch #1 should be turned on. For DMX address 005 the dip
switches #1 and #3 should be on. Refer to the dip switch chart on the following pages for more ad-
dressing.
6
(615) 599-1505
www.springtree.net
