Installation - cont.

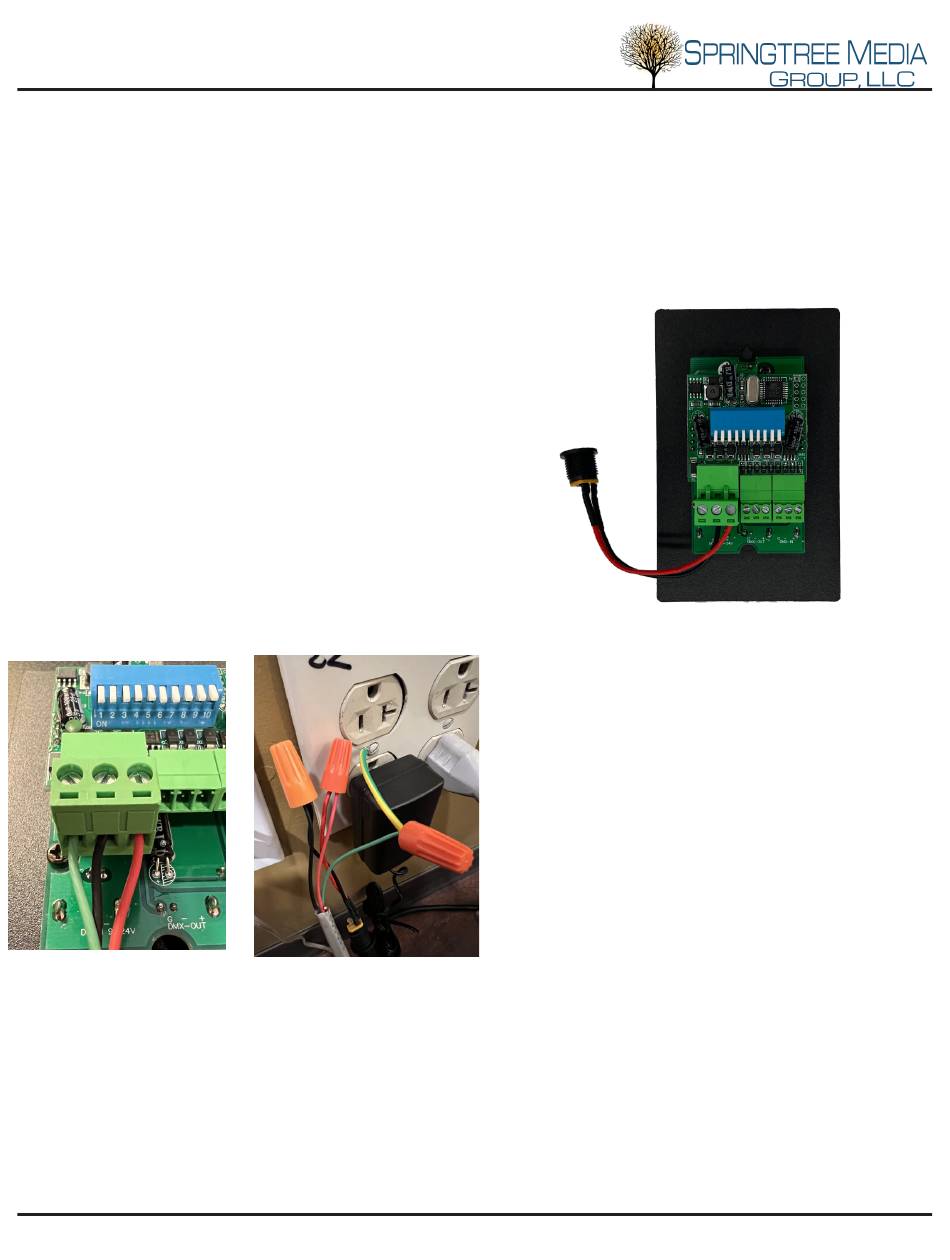

Connecting Power and
Grounding
The WallDim1 and WallDim5 comes with
a short power whip that connects to the 12v pow-
er supply that is provided. If there is power close
simply connect the WallDim1 or WallDim5 to the
power supply. If power is not nearby, power can be
extended with 18 gauge low voltage cable.
G
-
+
5
The Springtree WallDim1 and Wall-
Dim5 should be grounded in order to prevent
static shock damage. Using a short 18 gauge
whip the WallDim units can be grounded to
the outlet that is providing power.
