Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture, Customer Service Free Call
1800 351 084
ASSEMBLY INSTRUCTION

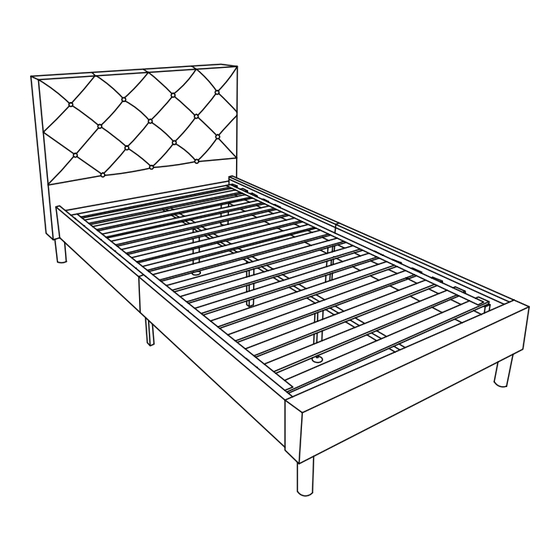

RAYNA KING SINGLE BED
ITEM CODE 75825
Imported by Amart Furnityre Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart furniture, Customer Service Free call 1800 351 084
1
75825
Advertisement
Table of Contents
Related Manuals for Amart Furniture RAYNA 75825
Summary of Contents for Amart Furniture RAYNA 75825
- Page 1 Imported by Amart Furnityre Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia. For any assistance with assembly or for missing parts please...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST 1PCS 1PCS 1PCS 1PCS 1PCS 1PCS Footboard Headboard Rail Rail Rail Rail 2PCS 1PCS 2PCS 2PCS 1PCS 4PCS Center slat rail Support leg Support leg Support leg Slat M8X19mm x10pcs M5X100mm x1pcs M12mm x1pcs M8x12mm x6pcs M4X30mm x8pcs M8X40mm x6pcs Screw Wrench...
- Page 4 STEP 1 Lay the Headboard(1) down, bottom facing up.Fasten the Feet(12) to the Headboard(1). STEP 2 Lay the Footboard(6) down, bottom facing up.Fasten the Feet(12) to the Footboard(6). 75825...
- Page 5 STEP 3 Connect the side rails together by attaching the support leg (10) with bolts (G) and washers (I) and tighten with Allen key (H). Attach support legs (8/9) to centre rail (7) using Bolt STEP (F) washer (A) and nut (D) as shown. Hold nut (D) in place with wrench (C) and tighten bolt (F) with allen key (B).
- Page 6 Loosen bolts in Headboard / Footboard (1/6), place STEP 5 brackets of side rails (2/3) and (4/5) over the bolts and tighten bolts using Allen key (B). Attach centre rail (7) to Headboard and Footboard (1/6) with bolt (J) and washer (A) and tighten with allen key STEP (B).
- Page 7 Attach slats (11) to side rails (2/3) (4/5) using screws (E). STEP 7 ASSEMBLY IS COMPLETE CAUTION: ALWAYS LIFT YOUR BED WHEN MOVING/ RELOCATING - DO NOT DRAG. DRAGGING CAN CAUSE THE SUPPORT LEGS TO BEND/BREAK. 75825...
- Page 8 Fabric Care and Maintenance REGULAR CARE: • Protect from direct sunlight • Vacuum regularly using low suction • Rotate reversible cushions regularly CLEANING: • Do not remove cushion covers for separate cleaning even though they may have zippers • Do not wash, Do not dry clean, Do not shampoo clean •...
