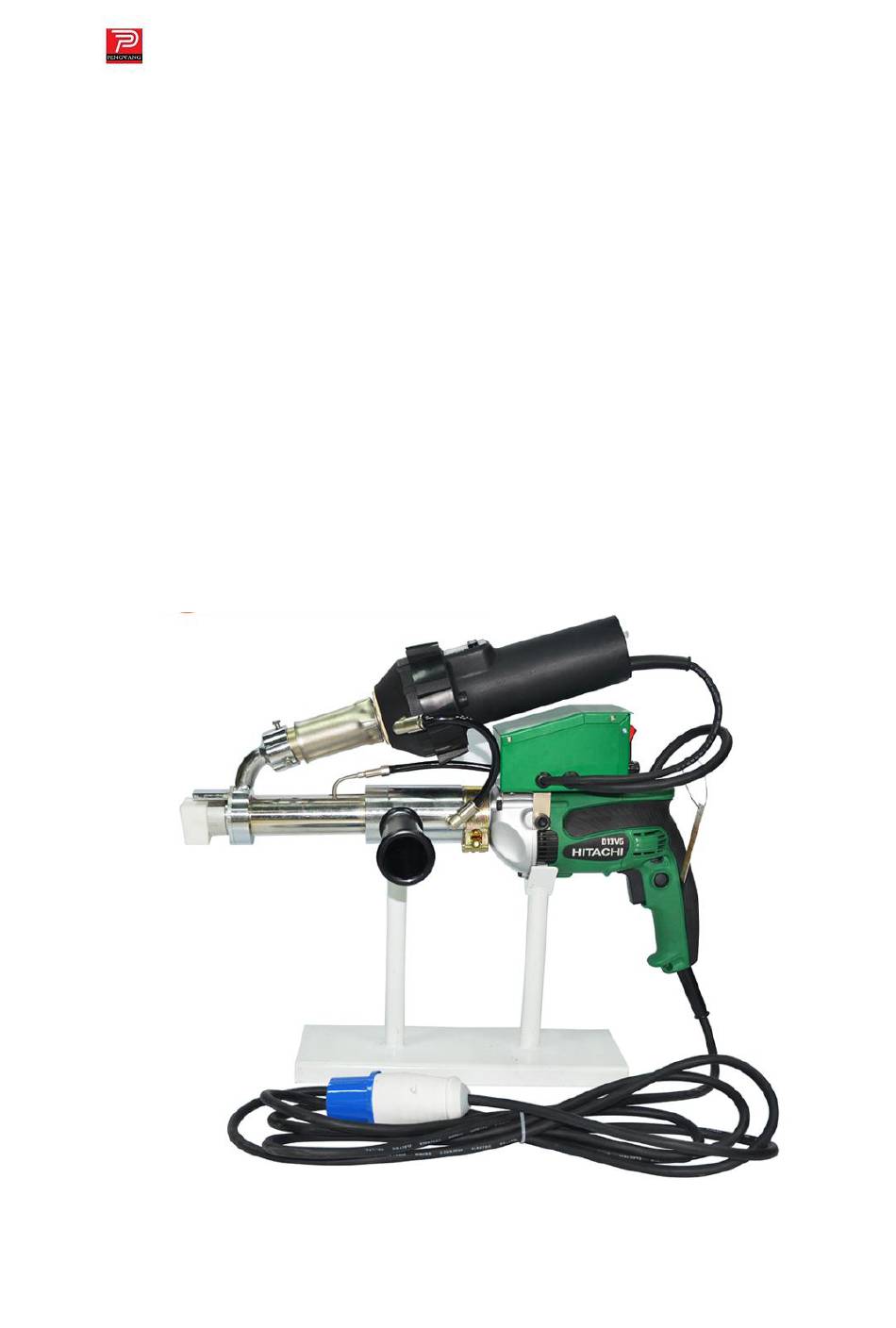

- Page 1 Shanghai Pengwang Machinery Co., Ltd. Address：Building 8, No.1098, Chuansha road, Pudong New Area, Shanghai Sales phone: +86 15801732387 PW604 HITACHI Double Heating Extruder Manual...
- Page 2 General Please read this manual carefully before using this machine, and retain it for future reference. This plastic extrusion welding machine pioneered using of the function of double independent heating systems, digital display controller, 360-degree rotating welding head, motor cold start protection, which is applicable to welding HDPE,PE,PP and other hot melt materials.
- Page 3 Ⅱ. Technical Parameter Voltage 220V Frequency 50/60Hz Motor Power 800W Spiral Heating Tube Power 900W Hot Air Power 1600W Hot Air Temperature. 20-550℃ Extruding Temperature 300-420℃ Adjustable Rod DIA Φ3.5-4.5mm Welding Speed 1.8-3.6kg/h Material HDPE/PP/PVC/PVDF Main Components and Name Ⅲ. 1.
-
Page 4: Operation
Operation Ⅳ. 1. Put the extruder on the shelf and install the handle, connect the power supply. 2. Press the “POWER” button to start the green control box, press “▲” and “▼” button to set a wanted temperature value (temperature is adjustable from 300 ℃ to 420 ℃ when welding the HDPE). -
Page 5: Product Warranty
11. The service life of carbon brush is around 1600 hours, please note and replace it in advance. 12. Flat welding shoe and 90-degree welding shoe are suitable for different welding ways. Please rotate then pull the welding shoe when you need to replace it, do not pull directly. 13. - Page 6 No warranty shall be imposed on the damage caused by the following circumstances. a. User did not promptly give us the feedback of problems encountered in the use of the product, or they did not comply with prompt action to prevent machine from serious damage.
- Page 7 General Troubles and Eliminations Ⅶ. The fault The possibility caused reasons Solved ways performance The motor of hot air gun was stop. Check the rotor, stator and switch of hot air gun, replace them if broken. No hot air wind Hot air gun heating element was Replace the heating element.
- Page 8 Attentions: Press the “ON/OFF” (1) to start the green control box, press (2) “ ” and “ ” button to adjust the temperature SV (3) ( the heating temperature could be set to 380 ℃ when welding the HDPE). 1. Meanwhile press the “O/Ⅰ”(5) to start the heat gun, adjust the knob (6) to set heat gun temperature and air volume ( for PVC rod welding: 5-6 grade, for HDPE rod welding 6-7 grade).
- Page 9 3. After finish work, please adjust knob (6) to lower grade, using cold air to cold down the hot air gun and extruder for few minutes before turn off the hot air gun. 4. Finally, turn off the green box (1). Notice: Faster welding speed need to higher heating temperature.
