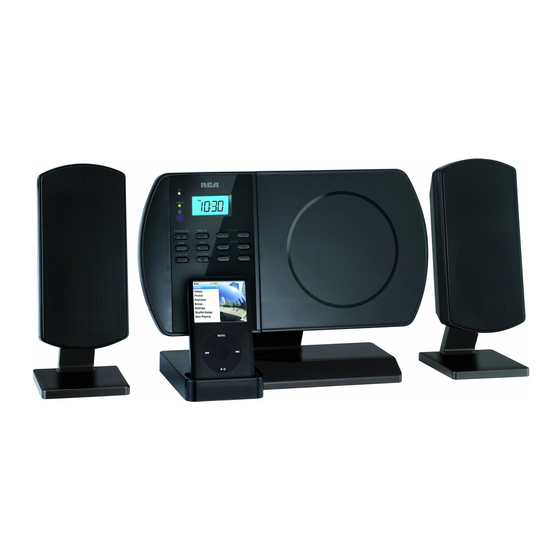

RCA RS27116I User Manual

USER MANUAL
Digital Music Studio
with universal dock for iPod
RS27116i
It's important to read this instruction prior to using your new product
for the first time.
Volume Adjustment
To Adjust the Volume
Adjust the VOLUME levels to obtain the desired
volume.
For Personal Listening
Connect headphones (Ø3.5mm stereo mini plug) to the PHONES jack.
Adjust the VOLUME level to the desired level.
When headphones are connected, the speakers are automatically
muted.
Remote Control
1
1. PRESET EQ Button
2. ON/STANDBY Button
8
2 3. SLEEP Button
9
4. PROG/MEM/ Button
3 10
5. RANDOM Button
4 11 6. MEM.UP / Button
7. BAND / STOP Button
5
8. FUNCTION Button
12
6
9. TIMER Button
10. DISPLAY Button
7 13
11. / Button
12. VOLUME +/- Buttons
13. PLAY/PAUSE Button
Using the Remote Control Correctly
• Point the remote control at the REMOTE SENSOR located on the
unit.
• When there is a strong ambient light source, the performance of
the infrared REMOTE SENSOR may be degraded, causing unreliable
operation.
• The effective maximum distance for remote operation is approx. 19
feet (6 meters).
To Change Battery
ATTENTION 1. Open the battery door.
Remove the plastic sheet
before operating the
remote control.
2. Insert one CR2025 (3V) size battery.
- 4 -
811-711691W062 ENG RCA.indd 1
Safety Precautions
FCC Information
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user's authority to operate
the equipment.
This product contains a low
This Audio System has
power laser device.
earned the ENERGY STAR.
WARNINGS:
• TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO
RAIN OR MOISTURE.
• TO AVOID ELECTRICAL SHOCK, DO NOT OPEN THE CABINET. REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
• THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR
SPLASHING AND THAT NO OBjECTS FILLED WITH LIQUID, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
For Customers in Canada
This apparatus complies with the Class B limits for radio noise emission set out
in radio interference regulations.
- 1 -
Remote Control
Battery Replacement
When the battery becomes weak, the operating distance of the remote
control is greatly reduced and you will need to replace it.
Note: If the remote control is not going to be used for a long time, remove
the battery to avoid damage caused by battery leakage corrosion.
WARNINGS:
• Do not dispose of battery in fire; battery may explode or leak.
• Battery shall not be exposed to excessive heat such as sunshine, fire
or the like.
• Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
CAUTION: When discarding batteries, environmental problems must
be considered and local rules or laws governing the disposal of these
batteries must be strictly followed.
Location of Controls
Unit (Front View)
14 15 16 17
18
1
2
3
4
5
6
19
7
8
9
10
11
12
13
1. LCD Display 11. DISPLAY Button
2. STANDBY Indicator 12. SLEEP Button
3. TIMER Indicator 13. iPod Docking
4. Remote Sensor 14. VOLUME - Button
5. STANDBY/ON Button 15. VOLUME + Button
6. MEM.UP/ Button 16. / TUNING + Button
7. BAND/ STOP Button 17. / TUNING - Button
8. FUNCTION Button 18. OPEN Knob
9. PLAY/PAUSE Button 19. CD Door
10. PROG/MEM/ Button
- 5 -
Safety Precautions
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
Warnings:
• The AC adapter is used as disconnect device and it should remain readily
operable during intended used. In order to disconnect the apparatus from
the mains completely, the AC adapter should be disconnected from the
mains socket outlet completely.
• Minimum 10 cm (4 inches) distances around the apparatus for sufficient ventilations.
• The ventilation should not be impeded by covering the ventilation openings
with items such as newspaper, table-cloths, curtains, etc.
• No naked flame sources such as lighted candles should be placed on the
apparatus.
On Safety
As the laser beam used in this compact disc player could be harmful to the
eyes, do not attempt to disassemble the casing. Refer servicing to qualified
personnel only.
• Do not put any foreign objects in the disc compartment. If you do so, the
laser beam interlock may be defeated allowing the laser to remain on when
the lid is opened.
• Do not put any foreign objects in the DC IN jack. Should any objects or
liquids fall into the unit, disconnect the power supply and have the unit
checked by qualified personnel before any further operation.
On Operation
Since the CD system offers a wide dynamic range, the peaks of the high level
inputs are recorded with high fidelity, and the noise level is very low. Do not
turn up the volume while listening to a part of the disc with no audio signals
or very low level inputs. If you do so, the speakers may be damaged when the
peak level of the sound is played. The lens of the laser should be kept clean.
Do not touch the lens. If you do so, the lens may be damaged and the unit will
not operate correctly.
On Use
Never use the unit where it would be subject to:
- Heat sources such as radiators or air ducts.
- Direct sunlight.
- Excessive dust.
- Moisture or rain.
- Mechanical vibration or shock.
- Uneven surface.
• Do not place any heavy objects on top of the unit.
• When the unit is used with an AC power adapter, do not wrap the unit in a
cloth, blanket, etc. If you do so, the temperature inside and outside the unit
may rise considerably, resulting in malfunctioning of the unit.
• If the unit is brought directly from a cold to a warm location, or is placed
in a very damp room, the moisture may condense on the lens inside the
unit. Should this occur, the unit will not operate. In this case, remove the
disc and leave the unit in a warm place for several hours until the moisture
evaporates.
• For the unit to operate at its best, it should not be subject to temperatures
below 41°F (5°C) or above 95°F (35°C).
- 2 -
Location of Controls
Unit (Rear View)
20
21
22
23
24
20. AUX IN jack 23. Earphone Jack
21. DC IN 12V Jack 24. FM Antenna
22. Right & Left Speaker Terminals
Clock Setting
Setting the clock can only be done in STANDBY mode.
• If the unit is plugged in with the supplied AC adapter and the unit is
in standby mode, the standby indicator illuminates.
1. Press and hold the PROG/MEM/ ( ) button
AM
until the hour digits blink.
2. Press the or button to adjust the desired
hours then press the PROG/MEM/
( ) button
once to confirm. The minute digits will begin to
AM
blink.
3. Press the or button to adjust the desired
minutes then press the PROG/MEM/ ( )
button once to start clock.
AM
Notes:
• 12:00 PM = NOON time, "PM" will be display for
times between Noon and Midnight.
• Tap the DISPLAY button once to display the
current time.
AM
- 6 -
System Connections
Speaker Connections
Connect the right speaker to the R terminal and the left speaker to the
L terminal.
NOTE: Connecting speakers other than the speakers supplied with the
unit may damage the unit.
RIGHT SPEAKER BOX LEFT SPEAKER BOX
To "DC IN 12V" jack
AC adapter
Using the AC Adapter
Using an AC adapter other than the one supplied with the unit may
damage the unit. This AC adapter operates on AC 100-240V~50/60Hz.
CAUTIONS:
• Before use, ensure the rated voltage of the adapter matches your
local voltage.
• The included AC adapter is for use with this unit only. Do not use it
with other equipment.
• If you are not going to use the unit for a long time, disconnect the
AC adapter from the wall outlet.
• Whenever the AC adapter is plugged in to a wall outlet, electricity is
running through the unit, even when the power switch is turned off.
FM ANTENNA
• Do not connect the FM antenna to an outside antenna.
- 3 -
Listening to the Radio
1. Press the STANDBY/ON button to turn the unit
on.
2. Press the FUNCTION button repeatedly to select
radio mode.
3. Press the BAND/ STOP button to select a band
(AM/FM).
4. Press the or button to tune in to a station.
5. Adjust the volume levels
Searching for a Station Automatically
• Press and hold the or button until the tuner starts
searching for a station, then release. After tuning in a station, the
search stops.
• The search may not stop at a station with a very weak signal.
Presetting Stations
The unit can store a total of 20 stations in memory (10FM, 10AM).
Presetting allows you to tune in to a station directly.
1. Tune in to a desired station.
2. Press the PROG/MEM/ ( ) button. The preset number will blink
and the "MEMORY" indicator will flash on the display.
3. Press the MEM.UP/ button to select the preset number.
4. Press the PROG/MEM/ ( ) button again to store it in memory.
5. Repeat steps 1-4 to store other stations.
Tuning in to a Preset Station
Press the BAND/ STOP button to select AM or FM band, then press the
MEM.UP/
button to select a preset number.
For Better Reception
FM: Fully unwind the antenna wire. Extend the antenna wire and place it
in the position that sounds best.
Note: Do not connect the FM antenna to an outside antenna.
AM: Reposition the unit to get better AM reception.
Notes:
• When the reception is good, the " ((STEREO))" indicator will appear on
the display.
• To prevent interference to AM radio signals, please keep the AC adapter
at least 3 feet (approx. 1 meter) away from the main unit.
- 7 -
2009-05-22 15:05:33
To AC
outlet
