Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION

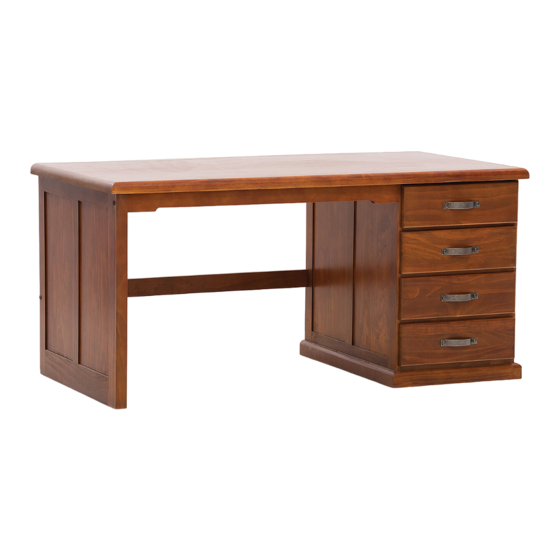

SETTLER 4 DRAWER OFFICE DESK
ITEM CODE
63444
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1
63444
Advertisement
Table of Contents
Related Manuals for Amart Furniture SETTLER 63444
Summary of Contents for Amart Furniture SETTLER 63444
- Page 1 SETTLER 4 DRAWER OFFICE DESK ITEM CODE 63444 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST 63444...
- Page 4 STEP 1:Flip the desk top① upside down on the carton carefully. Put 1 pc wooden dowel onto pedestal② right top.Put another 1 pc wooden dowel onto gable④ top.Remove the first drawer from the right hand side pedestal②. STEP 2: Carefully lift the pedestal② upside down on the desk top①...
- Page 5 STEP 3:Put furniture connector on both side of the front rail,Fasten the front rail ③to the pedestal② with the allen bolt(b). STEP 4: Flip the gable④ upside down on the desk top ① carefully. Fasten the gable ④ to the front rail③ with allen bolt (b).
- Page 6 STEP 5: Mount the gable and the front rail with holes. Fasten down screws(a) with screwdriver. ASSEMBLY IS COMPLETE 63444...
- Page 7 SAFETY BRACKETS INSTRUCTIONS NOTE- This product must be fixed to a wall. It is important to ensure the correct wall fixings are used. Failure to do so may result in personal injury or property damage caused by the item toppling over. As wall materials vary greatly, the fastener required to fix this product to a wall is not included.
- Page 8 CARE AND MAINTENANCE Timber As our timber is supplied from sustainable forests there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique Our furniture is built to last.
