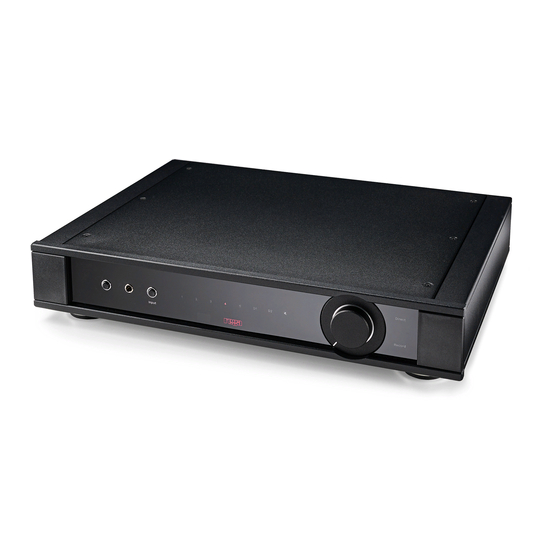

Rega ELICIT MK5 User Manual

Integrated amplifier
Hide thumbs Also See for ELICIT MK5:
Table of Contents

Advertisement

Quick Links

ELICIT
MK5
INTEGRATED AMPLIFIER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELICIT MK5 and is the answer not in the manual?

Questions and answers

Related Manuals for Rega ELICIT MK5

Summary of Contents for Rega ELICIT MK5

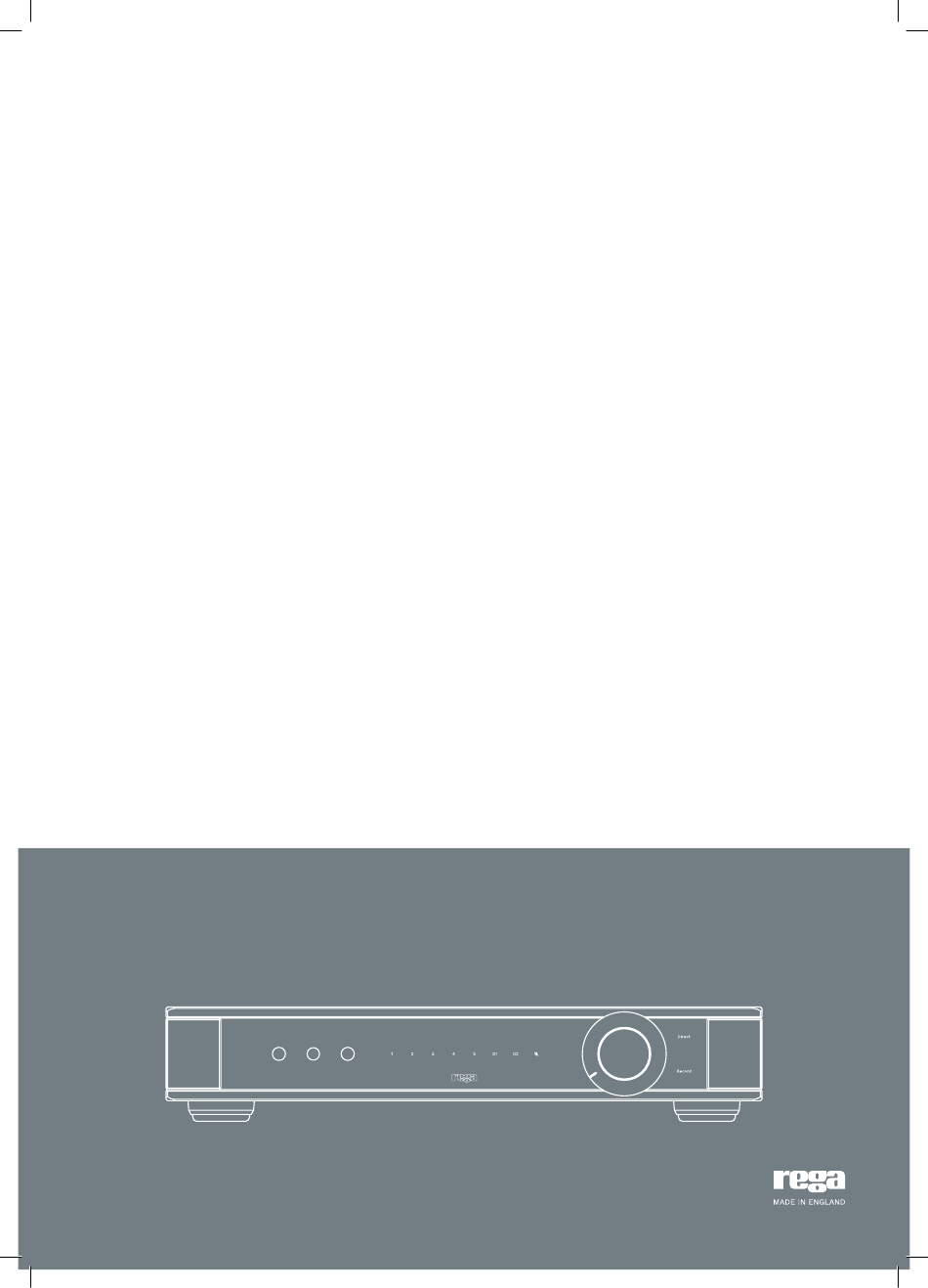

  • Page 1 ELICIT INTEGRATED AMPLIFIER...

  • Page 2: Safety Precautions

    Garantie Tous les produits Rega sont couverts par une garantie à vie contre les vices de fabrication. Cette garantie ne couvre pas l’usure normale. Si vous effectuez des modifications non autorisées ou si vous ne respectez pas les lignes directrices de Rega, vous risquez de perdre votre garantie.
  • Page 3 Rega. Indien u het apparatuur terugstuurt naar de verkopende partij, dient u de oorspronke- lijke verpakking te gebruiken om de garantie te behouden. Schade die tijdens transport wordt veroorzaakt door onjuiste verpakking, kan uw garantie ongeldig maken.

  • Page 4: Compliance Information

    COMPLIANCE INFORMATION English Rücknahmepflichtig sind Geschäfte mit einer Verkaufsfläche von mindestens 400 m² für Elektro- und Elek- tronikgeräte sowie diejenigen Lebensmittelgeschäfte mit einer Gesamtverkaufsfläche von mindestens 800 This symbol indicates that the electronic equipment bearing it should not be disposed of as m², die mehrmals pro Jahr oder dauerhaft Elektro- und Elektronikgeräte anbieten und auf dem Markt bereit- general household waste at the end of its life.

  • Page 5: Installation & Ventilation

    Thank you for purchasing the Rega Elicit MK5. The Elicit is a stereo integrated amplifier designed to deliver the purest musical performance. Housed in a brand new custom designed case to match the rest of the Rega range, the new MK5 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 105W per channel into 8Ω...

  • Page 6: Rear Panel Connectivity

    CONNECTIVITY REAR PANEL CONNECTIVITY 1. Phono Input 1 - Enables connection of a turntable with a moving magnet cartridge. Loading will be suitable for most MM cartridge designs on the market, and a dedicated grounding point is provided directly below the input sockets for tonearms with a separate ground wire.

  • Page 7: Front Panel Controls

    11. On/Off Switch - The power switch to the left of the control panel turns the amplifier on and off. The Elicit is on when the switch is depressed and off when it is out. The Rega logo will illuminate red when the switch is on and the product is supplied with power, indicating that the power supply is operational.
  • Page 8 The Solaris system remote (supplied) is a system remote handset. It allows you to operate all the various remote controllable functions of this and many other Rega products. (Batteries included: 2 x AAA Alkaline) RC CODE: Phillips RC5 system number 16 audio pre-amplifier.

  • Page 9: Operation

    The thermal cutout should only occur with continuous over-driving of a difficult load. If it occurs under normal conditions, there could be a problem with insufficient airflow around the heat sinks or a fault with the loudspeakers. In this case it is advisable to contact your Rega dealer.

  • Page 10: Specifications

    SPECIFICATIONS AMPLIFIER OUTPUT Power Amplifier Output (at rated 230/115V supply voltage) 105W per channel into 8Ω 127W per channel into 6Ω 162W per channel into 4Ω Note: Continued high level use into loads of 6Ω or less may cause the case to exceed 40°C above ambient temperature and activate the thermal shut down.
  • Page 12 Rega Research Ltd. 6 Coopers Way Temple Farm Industrial Estate Southend-on-Sea SS2 5TE www.rega.co.uk ELICIT MK5 / Version 1...
