Casio EXILIM EX-Z650 User Manual

Casio digital camera user's guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

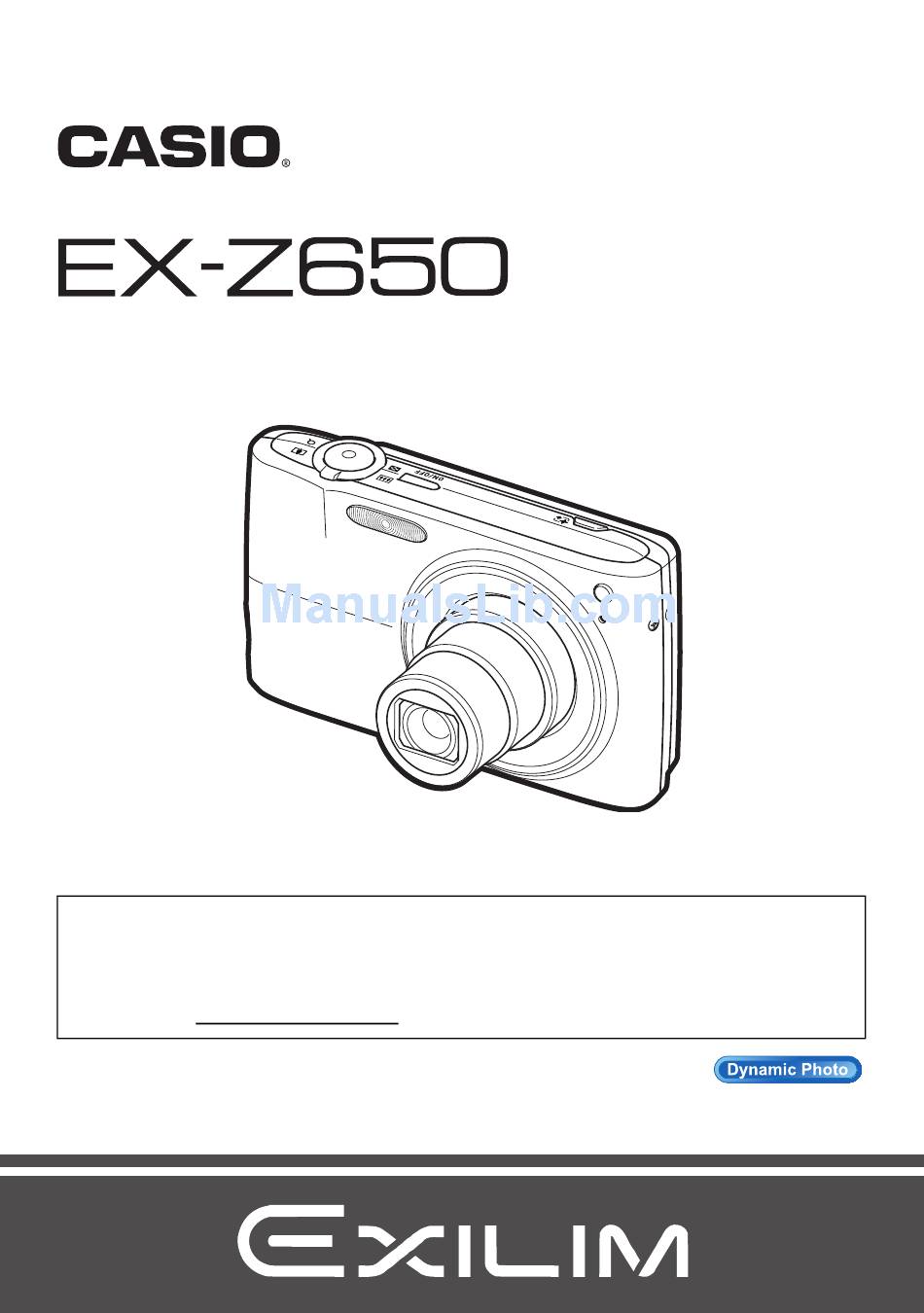

E

Digital Camera

User's Guide
Thank you for purchasing this CASIO product.
• Before using it, be sure to read the precautions contained in this User's Guide.
• Keep the User's Guide in a safe place for future reference.
• For the most up-to-date information about this product, visit the official EXILIM
Website at http://www.exilim.com/
To go to "Getting the Most Out of Dynamic Photo" click here!
1

Advertisement

Table of Contents
loading

Related Manuals for Casio EXILIM EX-Z650

Summary of Contents for Casio EXILIM EX-Z650

  • Page 1: Digital Camera

    Digital Camera User’s Guide Thank you for purchasing this CASIO product. • Before using it, be sure to read the precautions contained in this User’s Guide. • Keep the User’s Guide in a safe place for future reference. • For the most up-to-date information about this product, visit the official EXILIM Website at http://www.exilim.com/...

  • Page 2: Unpacking

    Unpacking As you unpack your camera, check to make sure that all items shown below are included. If anything is missing, contact your original retailer. Digital camera * The shape of the power cord plug varies according to country or geographic area.

  • Page 3: Read This First

    CASIO COMPUTER CO., LTD. is forbidden under copyright laws. • CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost profits suffered by you or any third party due to the use or malfunction of this product.

  • Page 4: Table Of Contents

    What is a digital camera? ........12 What you can do with your CASIO camera ......13 First, charge the battery prior to use..
  • Page 5 Recording Movie Images and Audio To record a movie ..........49 Using Prerecord Movie .
  • Page 6 Controlling Image Sharpness ......(Sharpness) . . . 84 Controlling Color Saturation ......(Saturation) . . . 84 Adjusting Image Contrast .
  • Page 7 Printing Printing Snapshots..........113 Connecting Directly to a PictBridge Compatible Printer .
  • Page 8 Configuring Monitor Screen Settings Using the On-screen Histogram to Check Exposure ....149 How to Use the Histogram ........150 Appendix Precautions during Use .

  • Page 9: General Guide

    General Guide The numbers in parentheses indicate the pages where each item is explained. . Camera Front Shutter button (page 22) [ON/OFF] (Power) (page 21) Flash (page 34) ½ (Make-up) (page 48) Front lamp (pages 25, 69, 75) Microphone (pages 50, 107) Lens Zoom controller (pages 22, 45, 89, 90)

  • Page 10: Monitor Screen Contents

    Monitor Screen Contents The monitor screen uses various indicators, icons, and values to keep you informed of the camera’s status. • The sample screens in this section are intended to show you the locations of all the indicators and figures that can appear on the monitor screen in various modes. They do not represent screens that actually appear on the camera.

  • Page 11: Movie Recording

    . Movie Recording 1 2 3 . Snapshot Viewing blbk . Movie Playback Flash (page 34) Recording mode (page 49) White balance setting (page 82) Remaining movie memory capacity (page 49) Movie recording time (page 49) Exposure compensation (page 44) Battery level indicator (page 16) Histogram (page 149) File type...

  • Page 12: Quick Start Basics

    Quick Start Basics What is a digital camera? A digital camera stores images on a memory card, so you can record and delete images a countless number of times. Record Delete Play You can use the images you record in a variety of different ways.

  • Page 13: What You Can Do With Your Casio Camera

    What you can do with your CASIO camera Your CASIO camera is packed with a powerful selection of features and functions to make recording of digital images easier, including the following three main functions. Dynamic Photo Extract a moving subject out of a series of Continuous Shutter images you have shot and insert them into another image to create a Dynamic Photo image that features the moving subject.

  • Page 14: First, Charge The Battery Prior To Use

    Note that the battery of a newly purchased camera is not charged. Perform the steps under “To charge the battery” to bring the battery to a full charge. • Your camera requires a special CASIO rechargeable lithium ion battery (NP-40) for power. Never try to use any other type of battery.

  • Page 15: To Load The Battery

    Other Charging Precautions • Use the special charger (BC-31L) to charge the special lithium ion battery (NP-40). Never use any other type of charger device. Attempting to use a different charger can result in unexpected accident. • A battery that is still warm due to normal use may not charge fully. Give the battery time to cool before charging it.
  • Page 16 Checking Remaining Battery Power As battery power is consumed, a battery indicator on the monitor screen indicates remaining power as shown below. Remaining Power Battery Indicator Indicator Color indicates battery power is low. Charge the battery as soon as possible. Recording is not possible when •...

  • Page 17: Configuring Basic Settings The First Time You Turn On The Camera

    Configuring Basic Settings the First Time You Turn On the Camera The first time you load a battery into the camera, a screen appears for configuring the display language, date, and time settings. Failure to set the date and time correctly will cause the wrong date and time data to be recorded with images.

  • Page 18: Preparing A Memory Card

    If you make a mistake configuring display language, date, or time settings with the above procedure, refer to the following pages for information about how to correct the settings. – Display language: Page 145 – Date and time: Page 144 NOTE •...

  • Page 19: To Load A Memory Card

    • Never insert anything besides a supported memory card (page 18) into the memory card slot. • Should water or any foreign object ever get into the card slot, immediately turn off the camera, remove the battery, and contact your retailer or nearest CASIO authorized service center. Front...

  • Page 20: To Format (Initialize) A New Memory Card

    To format (initialize) a new memory card You need to format a new memory card before using it for the first time. Turn on the camera and press [MENU]. Select the “Set Up” tab, select “Format” and then press [6]. Use [8] and [2] to select “Format”...

  • Page 21: Turning The Camera On And Off

    Turning the Camera On and Off To turn power on To enter the REC Mode, press [ON/OFF] (Power) or [r] (REC). To enter the PLAY mode, press [p] (PLAY). The back lamp will light (green) momentarily and the camera will turn on. If you are entering the REC mode, the lens will extend from the camera at this time.

  • Page 22: To Shoot A Snapshot

    To shoot a snapshot Press [r] (REC) to turn on the camera. Make sure R is on the display. If it isn’t, see page 54. Snapshot mode icon Remaining Snapshot Memory Capacity (page 174) Point the camera at the subject. You can zoom the image, if you want.
  • Page 23 Half-press the shutter button to focus the image. When focus is complete, the camera will beep, the back lamp will light green, and the focus frame will turn green. Half-press Press lightly until the button stops. Beep, beep (Image is in focus.) Continuing to keep the camera still, press the shutter button the rest of the way down.

  • Page 24: Using Quick Shutter

    IMPORTANT! • While the “Anti Shake” setting is “D Auto” or “A Camera AS”, half pressing the shutter will cause the camera to vibrate and emit an operation sound. This is normal and does not indicate malfunction (page 74). . Using Quick Shutter Fully pressing the shutting button without waiting for Auto Focus to operate will record using Quick Shutter (page 77).

  • Page 25: Holding The Camera Correctly

    Holding the Camera Correctly Your images will not come out clearly if you move the camera when you press the shutter button. When pressing the shutter button, be sure to hold the camera as shown in the illustration below, and keep it still by pressing your arms firmly against your sides as you shoot.

  • Page 26: Viewing Snapshots

    Viewing Snapshots Use the following procedure to view snapshots on the camera’s monitor screen. • For information about how to play back movies, see page 85. Press [p] (PLAY) to enter the PLAY mode. • This will display one of the snapshots currently stored in memory.

  • Page 27: Deleting Images

    Deleting Images If memory becomes full, you can delete images you no longer need to free up storage and record more images. IMPORTANT! • Remember that a file (image) delete operation cannot be undone. • Deleting an audio snapshot (page 108) deletes both the snapshot and the audio file.

  • Page 28: Snapshot Shooting Precautions

    Snapshot Shooting Precautions Operation • Never open the battery cover while the back lamp is flashing green. Doing so can result in the image you just shot being saved incorrectly, damage to other images stored in memory, malfunction of the camera, etc. •...

  • Page 29: Snapshot Tutorial

    Snapshot Tutorial Using the Control Panel The Control Panel can be used to configure camera settings. In the REC mode, press [SET]. This will select one of the Control Panel icons and display its settings. [8] [2] [4] [6] [SET] Use [8] and [2] to select the setting you want to change.

  • Page 30: Specifying Control Panel Items

    Specifying Control Panel Items You can use the following procedure to specify the eight items you want on the Control Panel. While the Control Panel is displayed, press [MENU]. • This will display a menu of Control Panel items, with the items currently selected for display shown in green.

  • Page 31: Changing The Image Size

    Changing the Image Size (Size) . Pixels A digital camera image is a collection of small dots called “pixels”. The more pixels there are in an image, the more detail there will be. However, you generally can do with fewer...
  • Page 32 Image Size Selection Tips Note that larger images have more pixels, so they take up more memory space. More detail, but takes up more memory. Best Large Number when you plan to print large-size prints (such of Pixels as A3 size). Small Number Less detail, but takes up less memory.
  • Page 33 . To select the image size In the REC mode, press [SET]. Use [8] and [2] to select the top Control Panel option (Image Size). Use [ ] and [6] to select an image size and then press [SET]. Suggested Image Size Print Size and (Pixels)

  • Page 34: Using Flash

    Using Flash (Flash) In the REC mode, press [2] ( Use [4] and [6] to select the flash setting you want and then press [SET]. When the “R Panel” menu item (page 139) is “Hide” (so the Control Panel is not displayed), pressing [2] ( through the available flash settings.
  • Page 35 NOTE • Take care so your fingers and the strap do not block the flash. • The desired effect may not be obtained when the subject is too far away or too close. • Flash charging time (page 177) depends on operating conditions (battery condition, ambient temperature, etc.).

  • Page 36: Specifying The Auto Focus Area

    Specifying the Auto Focus Area (AF Area) This mode takes readings of a small area in the center of the Spot Í image. This setting works well with focus lock (page 68). When you half-press the shutter button while this setting selected, the camera will select the optimum Auto Focus area from among Multi È...

  • Page 37: Optimizing Image Brightness

    IMPORTANT! • “È Multi” cannot be selected for the Auto Focus area while you are using Face Detection (page 42). • When “Ë Tracking” is selected, simply press [4] or [6]. The focus frame will track the movement of the subject, even if you do not half-press the shutter button. •...

  • Page 38: Specifying Iso Sensitivity

    Specifying ISO Sensitivity (ISO) ISO sensitivity is a measure of sensitivity to light. In the REC mode, press [SET]. Use [8] and [2] to select the fifth Control Panel option from the top (ISO Sensitivity). Use [4] and [6] to select the setting you want and then press [SET]. AUTO Adjusts sensitivity automatically according to conditions ISO 64...

  • Page 39: Using Continuous Shutter

    Using Continuous Shutter (CS) Your camera has four continuous shutter modes. CS speed Depends on Normal memory card Speed CS capacity 4 images per CS: 4 fps second images CS: 10 fps per second 3 images per CS: Flash second To turn off a continuous shutter mode, select “Off”.

  • Page 40: Specifying The Method For Saving Continuous Shutter Images

    Specifying the Method for Saving Continuous Shutter Images Specify the method to use for saving images recorded with the following continuous shutter (CS) modes. CS: 4 fps/10 fps After continuous shutter shooting is finished, use [8] and [2] to select the save method you want and then press [SET]. Save Selected The shot images are played back at slow speed so you can select the images you want to save.
  • Page 41 IMPORTANT! • If there is not enough available capacity on the memory card, you may not be able to record the number of CS images indicated on the monitor screen. Make sure your memory card has sufficient remaining capacity before shooting with using continuous shutter.

  • Page 42: Using Face Detection

    Using Face Detection (Face Detection) When shooting people, the face detection feature detects the faces of up to ten individuals and adjusts focus and brightness accordingly. In the REC mode, press [SET]. Use [8] and [2] to select the seventh Control Panel option from the top (Face Detection).
  • Page 43 Tips for Best Face Detection Results • The camera performs center focus if it cannot detect a face. • Always make sure that Auto Focus (AF) is selected as the focus mode when shooting with face detection. • Face detection may take a bit longer when you hold the camera sideways. •...

  • Page 44: Correcting Image Brightness

    Correcting Image Brightness (EV Shift) You can manually adjust an image’s exposure value (EV value) before shooting it. • Exposure Compensation Range: –2.0EV to +2.0EV • Unit: 1/3EV In the REC mode, press [SET]. Use [8] and [2] to select the second Control Panel option from the bottom (EV Shift).

  • Page 45: Changing The Control Panel Date/Time Style

    Changing the Control Panel Date/Time Style In the REC mode, press [SET]. Use [8] and [2] to select the bottom Control Panel option (Date/Time). Use [4] and [6] to select the date or time. NOTE • You can select either of two display style (page 144) for the date: Month/Day or Day/Month.

  • Page 46: Optical Zoom And Digital Zoom Switch Point

    NOTE • The higher the digital zoom factor, the coarser the recorded image. Note that the camera also has a function that lets you record using digital zoom without image deterioration (page 47). • Use of a tripod is recommended to protect against image blur due to camera movement when shooting with telephoto.
  • Page 47 • The image deterioration point depends on the image size (page 31). The smaller the image size, the higher the zoom factor you can use before reaching the image deterioration point. • Though digital zoom generally causes a deterioration of image quality, some digital zoom without image deterioration is possible with image sizes of “7M”...

  • Page 48: Shooting With The Make-Up Mode

    Shooting with the Make-up Mode (Make-up) The Make-up Mode smoothes the skin texture of the subject and softens facial shadows caused by harsh sunlight for better looking portraits. In the REC mode, press ½. • This will enter the Make-up Mode, which is indicated by ± on the Control Panel.

  • Page 49: Recording Movie Images And Audio

    Recording Movie Images and Audio To record a movie Configure the quality setting for the movie (page 81). The length of the movie you can record will depend on the quality setting you select. In the REC mode, press [0] (Movie).
  • Page 50 NOTE • Spending a long time using movie recording will cause the camera to become slightly warm to the touch. This is normal and does not indicate malfunction. • The camera also records audio. Note the following points when shooting a movie. –...

  • Page 51: Using Prerecord Movie

    Using Prerecord Movie With this feature, the camera prerecords up to four seconds of whatever is happening in front of the lens in a buffer that is continually updated. Pressing [0] saves the prerecorded action (buffer contents) followed by real-time recording. Real-time recording continues until you stop it.

  • Page 52: Shooting A Snapshot While Shooting A Movie

    Shooting a Snapshot while Shooting a Movie While a movie is being recorded, press the shutter button. Movie recording continues after the snapshot is recorded. NOTE • You can use [2] ( • Movie recording is interrupted for a few seconds at the point where a snapshot is recorded.

  • Page 53: To Play Back An Audio Recording

    NOTE • You can use [8] (DISP) during audio recording to toggle the monitor screen on and off. • When monitor screen contents are turned off, selecting the “Voice Recording” scene will cause the monitor screen to turn off immediately (page 149). About audio data •...

  • Page 54: Using Best Shot

    Using BEST SHOT What is BEST SHOT? BEST SHOT provides you with a collection of sample “scenes” that show a variety of different types of shooting conditions. When you need to change the setup of the camera, simply find the scene that matches what you are trying to achieve, and the camera sets up for it automatically.
  • Page 55 Press [SET] to configure the camera with the settings for the currently selected scene. This returns to the REC mode. • The settings of the scene you selected remain in effect until you select a different scene. • To select a different BEST SHOT scene, repeat the above procedure from step 1.
  • Page 56 . BEST SHOT Precautions • The following BEST SHOT scenes cannot be used while recording a movie: Dynamic Photo, Multi-motion Image, ID Photo, Business cards and documents, White board, etc., Self-portrait (1 person), Self-portrait (2 people) • The following BEST SHOT scenes cannot be used while shooting a snapshot: Prerecord (Movie), For YouTube.

  • Page 57: Creating Your Own Best Shot Setups

    Creating Your Own BEST SHOT Setups You can save up to 999 camera setups as user BEST SHOT scenes for instant recall whenever you need them. On the BEST SHOT scene menu, select the scene named BEST SHOT (Register User Scene). Use [4] and [6] to select the snapshot or movie whose setup you want to save.

  • Page 58: Shooting With Auto Best Shot

    Shooting with AUTO BEST SHOT With AUTO BEST SHOT, the camera automatically selects the BEST SHOT scene that suits your subject and shooting conditions, and configures its settings accordingly. The following are the scenes selected automatically by AUTO BEST SHOT. Portrait, Scenery, Night Scene, Night Scene Portrait, Macro, Sports, etc.

  • Page 59: Shooting Id Photographs

    Shooting ID Photographs You can use this procedure to shoot a portrait and then print it out in the following standard ID photo sizes: 30 Press [BS] and then select the “ID Photo” scene. Press the shutter button to shoot a portrait of the person for whom you want to create an ID photo.

  • Page 60: Shooting Images Of Business Cards And Documents

    Shooting Images of Business Cards and Documents A process called “keystone correction” makes lines straight and natural, even if rectangular subjects are shot from an angle. BEST SHOT has two scenes. Press [BS] and then select the “Business cards and documents” or “White board, etc.”...

  • Page 61: Recording A Self-Portrait

    NOTE • When composing an image like the ones shown above, make sure that the entire outline of the object you are trying to shoot is enclosed within the monitor screen. • Make sure the object is against a background that allows its outline to stand out. •...

  • Page 62: Isolating Moving Subjects

    NOTE • You can shoot with the self-portrait feature in combination with a continuous shutter (CS) mode (page 39). Operation is the same as that when a continuous shutter (CS) mode is used in combination with Auto Shutter. See page 72 for more information.

  • Page 63: Advanced Settings

    Advanced Settings The following are menu operations you can use to configure various camera settings. • You also can use the Control Panel (page 29) to configure some of the settings that appear on the menu screen. Refer to the page references provided in this section for information about configuring settings using the Control Panel.
  • Page 64 Use [8] and [2] to select the menu item you want, and then press [6]. Use [8] and [2] to change the setting. After the setting is the way you want, press [SET]. • Pressing [ ] registers the selected setting and returns to the menu.

  • Page 65: Rec Mode Settings

    REC Mode Settings (REC) Selecting a Focus Mode (Focus) Procedure [r] (REC) * [MENU] * REC Tab * Focus Settings Type of Shot Q Auto General Focus recording ´ Close ups Macro Shooting with a E Pan relatively wide Focus focus range Scenery and other distant...
  • Page 66 Zoom Steps Z1 (Wide) Approx. 0.70 (2.3 Approx. 0.90 (3.0') Approx. 1.10 (3.6') Approx. 1.25 (4.1') Approx. 1.60 (5.2') Approx. 2.00 (6.6') Approx. 2.50 (8.2') Approx. 3.00 (9.8') 9 (Tele) Approx. 3.60 (11.8') NOTE • Above values are for reference only. For movie macro, the focus range is a few centimeters within the center distance.
  • Page 67 To focus with manual focus On the monitor screen, compose the image so the subject you want to focus on is within the yellow boundary. Watching the image on the monitor screen use [4] and [6] to adjust focus. • At this time the image that is within the boundary will enlarge and fill the monitor screen, which aids in focusing.

  • Page 68: Using Continuous Shutter

    Using Focus Lock “Focus lock” is a technique you can use when you want to compose an image in which the subject you want to focus on is not within the focus frame in the center of the screen. • To use focus lock, select “Í Spot” or “Ë Tracking” for the Auto Focus area (page 36).

  • Page 69: Using The Self-Timer

    Using the Self-timer (Self-timer) Procedure [r] (REC) * [MENU] * REC Tab * Self-timer With the Self-timer, pressing the shutter button starts a timer. The shutter is released and the image is shot after a fixed amount of time. 10 sec 10-second Self-timer „...

  • Page 70: Using Auto Shutter

    Using Auto Shutter (Auto Shutter) Procedure [r] (REC) * [MENU] * REC Tab * Auto Shutter With Auto Shutter, the camera releases the shutter automatically when it detects that certain conditions are present. Camera releases the shutter automatically when it detects Detect Blur image blur to camera and subject movement are ¸...
  • Page 71 . To use Detect Panning to minimize image blur (Detect Panning) Point the camera at location where the subject will pass and then half- press the shutter button to adjust exposure and focus. Press the shutter button the rest of the way down.
  • Page 72 . To change Auto Shutter trigger sensitivity (Sensitivity) Use [8] and [2] to select “Sensitivity” and then press [6]. Use [4] and [6] to select the sensitivity setting you want, and then press [SET]. • You can select any one of three sensitivity levels, from ø (Lowest) to œ...
  • Page 73 Tips for Better Auto Shutter Snapshots • Using Auto Shutter in combination with Anti Shake (page 74) reduces the chance of image blur even more. • While recording with Detect Blur or Detect Smile, keep the camera as still as possible until the recording operation is complete.

  • Page 74: Shooting With Face Detection

    Your digital camera is equipped with a CCD shift type camera shake correction feature and a high-sensitivity anti image blur feature. These two features work in concert to minimize the effects of hand and subject movement.

  • Page 75: Specifying The Auto Focus Area

    NOTE • Only Camera Stabilizer can be used during movie recording. • ISO sensitivity, aperture, and shutter speed do not appear on the monitor screen when you half-press the shutter button while “D Auto” or “S Image AS” is selected. These values will appear briefly, however, in the preview image that is displayed immediately after you shoot a snapshot.

  • Page 76: Changing The Focus Frame Shape

    Changing the Focus Frame Shape (Focus Frame) Procedure [r] (REC) * [MENU] * REC Tab * Focus Frame You can use this procedure to select from among five different shapes, including a heart shape, for the focus frame. Settings NOTE •...

  • Page 77: Assigning Functions To The [4] And [6] Keys

    Assigning Functions to the [ Procedure [r] (REC) * [MENU] * REC Tab * L/R Key You can assign one of the five functions listed below to the [ Setting ] key operation Metering Changes the Metering Mode (page 83) EV Shift Adjusts the EV shift value (page 44) White Balance Changes the white balance setting (page 82)

  • Page 78: Displaying The On-Screen Grid

    Displaying the On-screen Grid (Grid) Procedure [r] (REC) * [MENU] * REC Tab * Grid The on-screen grid can be displayed on the REC mode monitor screen for easy vertical and horizontal alignment when composing images. Turning on Image Review (Review) Procedure [r] (REC) * [MENU] * REC Tab * Review While Review is turned on, the camera will display a image for about one second...

  • Page 79: Configuring Power On Default Settings

    Configuring Power On Default Settings (Memory) Procedure [r] (REC) * [MENU] * REC Tab * Memory When you turn off the camera, it remembers the current settings of all enabled memory items and restores them when you turn it back on. Any memory item that is disabled will be returned to its initial default setting whenever you turn off the camera.

  • Page 80: Image Quality Settings

    Image Quality Settings (Quality) Specifying Snapshot Size (Size) Procedure [r] (REC) * [MENU] * Quality Tab * Size For details, see the Control Panel procedure on page 33. Specifying Snapshot Image Quality (Quality (Snapshot)) Procedure [r] (REC) * [MENU] * Quality Tab * T Quality (Snapshot) Fine Gives image quality priority Normal...

  • Page 81: Specifying Movie Image Quality

    Specifying Movie Image Quality (Quality (Movie)) Procedure [r] (REC) * [MENU] * Quality Tab * » Quality (Movie) Movie image quality is a standard that determines the detail, smoothness, and clarity of a movie during playback. Shooting with the high-quality (HD) setting will result in better image quality, but it also shortens the amount of time you can shoot.

  • Page 82: Controlling White Balance

    Controlling White Balance (White Balance) Procedure [r] (REC) * [MENU] * Quality Tab * White Balance You can adjust white balance to match the source of light available where you are shooting and avoid the blue cast that results when shooting outdoors when it is cloudy, and the green cast that results when shooting under fluorescent lighting.

  • Page 83: Specifying Iso Sensitivity

    Specifying ISO Sensitivity (ISO) Procedure [r] (REC) * [MENU] * Quality Tab * ISO For details, see the Control Panel procedure on page 38. Specifying the Metering Mode (Metering) Procedure [r] (REC) * [MENU] * Quality Tab * Metering The metering mode determines what part of the subject is metered for exposure. Multi-pattern metering divides the image into sections and measures the light in each section for a balanced exposure reading.

  • Page 84: Using Built-In Color Filters

    Using Built-in Color Filters (Color Filter) Procedure [r] (REC) * [MENU] * Quality Tab * Color Filter Settings: Off, B/W, Sepia, Red, Green, Blue, Yellow, Pink, and Purple Controlling Image Sharpness (Sharpness) Procedure [r] (REC) * [MENU] * Quality Tab * Sharpness You can specify one of five sharpness settings from +2 (sharpest) to –2 (least sharp).

  • Page 85: Viewing Snapshots And Movies

    Viewing Snapshots and Movies Viewing Snapshots See page 26 for the procedure for viewing snapshots. Viewing a Movie Press [p] (PLAY) and then use [4] and [6] to display the movie you want to view. Press [SET] to start playback. Movie Playback Controls [4] [6] Fast forward/...

  • Page 86: Viewing Continuous Shutter Images

    Viewing Continuous Shutter Images Each time you perform a continuous shutter (CS) operation, the camera creates a CS group that includes all of the images for that particular CS session. You can use the following procedure to play back the images in a particular CS group. Press [ ] (PLAY) and then use [ to display the CS group whose images you...

  • Page 87: Deleting Continuous Shutter Images

    Playback Controls During playback, changes the playback direction and playback speed. While playback is paused, scrolls forward or back. [4] [6] • Playback speed cannot be adjusted while the displayed image is zoomed. [SET] Toggles between pause and play. Zooms the image. Zoom •...

  • Page 88: Dividing Up A Cs Group

    . Deleting All Files in a CS Group While CS image playback is in progress or paused, press [ Use [ ] and [ ] to select “Del Group Images” and then press [SET]. Use [ ] and [ ] to select “Yes”, and then press [SET]. Dividing Up a CS Group Use the following to divide up a CS Group into individual images.

  • Page 89: Zooming An On-Screen Image

    . Dividing Up All CS Groups While a CS group folder is displayed, press [MENU]. Use [ ] and [ ] to select “PLAY” tab. Use [ ] and [ ] to select “Divide Group” and then press [ Use [ ] and [ ] to select “Divide All Groups”...

  • Page 90: Displaying The Image Menu

    Displaying the Image Menu In the PLAY Mode, slide the zoom controller towards w (]). Use [8], [2], [4] and [6] to move the selection boundary around the image menu. To view a particular image, use [8], [2], [4], or [6] to move the selection boundary to the image you want and then press [SET].

  • Page 91: Viewing Snapshots And Movies On A Tv Screen

    Viewing Snapshots and Movies on a TV Screen Use the AV cable that comes with the camera to connect it to the TV. Yellow Video Audio AUDIO IN jacks (white) VIDEO IN jack (yellow) Making sure that the 6 mark on the camera is aligned with the 4 mark of the AV cable connector, connect the cable to the camera.
  • Page 92 Now you can display images and play back movies as you normally do. IMPORTANT! • Before connecting to a TV to display images, be sure to configure the camera’s [r] (REC) and [p] (PLAY) buttons for “Power On” or “Power On/Off” (page 146). •...

  • Page 93: Other Playback Functions (Play)

    Other Playback Functions (PLAY) This section explains menu items that you can use to configure settings and perform other playback operations. For information about menu operations, see page 63. Playing a Slideshow on the Camera (Slideshow) Procedure [p] (PLAY) * [MENU] * PLAY Tab * Slideshow Start Starts the slideshow Images...

  • Page 94: Saving Music From Your Computer To Camera Memory

    Effect Select the effect you want. Pattern 1 to 5: Plays background music and applies an image change effect. • Patterns 1 through 4 have different background music, but they all use the same image change effect. • Pattern 5 can be used for playback of snapshots only, and the “Interval” setting is ignored.
  • Page 95 Connect the camera to your computer (pages 121, 130). If you plan to save the music files to the camera’s memory card, make sure the card is loaded in the camera. Perform one of the following operations to open the memory card or built-in memory.

  • Page 96: Laying Out Snapshots With Layout Print

    Laying Out Snapshots with Layout Print (Layout Print) Procedure [p] (PLAY) * Spnapshot Screen * [MENU] * PLAY Tab * Layout Print You can use the following procedure to insert existing snapshots into the frames of a layout and produce a new image that contains multiple snapshots.

  • Page 97: Creating A Snapshot Of Movie Frames

    Creating a Snapshot of Movie Frames (MOTION PRINT) Procedure [p] (PLAY) * Movie Screen to be Used * [MENU] * PLAY Tab * MOTION PRINT Use [4] and [6] to scroll through the movie frames and display the one you want to use as the image of the MOTION PRINT image.

  • Page 98: Editing A Movie On The Camera

    Editing a Movie on the Camera (Movie Editing) Procedure [p] (PLAY) * Movie Screen of Movie to be Edited * [MENU] * PLAY Tab * Movie Editing The Movie Editing feature lets you use one of the following procedures to edit out a specific part of a movie.
  • Page 99 Use [8] and [2] to select “Yes” and then press [SET]. The selected cut operation will take considerable time to complete. Don’t try to perform any camera operation until the “Busy... Please wait...” message disappears from the monitor screen. Note that a cut operation can take a long time if the movie being edited is long.

  • Page 100: Optimizing Image Brightness

    Optimizing Image Brightness (Lighting) Procedure [p] (PLAY) * Snapshot Screen * [MENU] * PLAY Tab * Lighting You can use this setting to optimize the balance between bright areas and dark areas in existing images. Performs a higher level of brightness correction than the “+1” setting. Performs brightness correction.

  • Page 101: Adjusting White Balance

    Adjusting White Balance (White Balance) Procedure [p] (PLAY) * Snapshot Screen * [MENU] * PLAY Tab * White Balance You can use the white balance setting to select a light source type for a recorded image, which will affect the colors of the image. Daylight Outdoors, fair weather ¤...

  • Page 102: Adjusting The Brightness Of An Existing Snapshot

    Adjusting the Brightness of an Existing Snapshot (Brightness) Procedure [p] (PLAY) * Snapshot Screen * [MENU] * PLAY Tab * Brightness You can select one of five brightness levels, from +2 (brightest) to –2 (least bright). NOTE • The original snapshot is retained in memory and not deleted. •...

  • Page 103: Using Color Correction To Correct The Color Of

    Using Color Correction to Correct the Color of an Old Photograph (Color Correction) Procedure [p] (PLAY) * Snapshot Screen * [MENU] * PLAY Tab * Color Correction Color Correction lets you correct the color of an old photograph. The corrected image is saved as 2M (1600 1200 pixels) size.

  • Page 104: Selecting Images For Printing

    Selecting Images for Printing (DPOF Printing) Procedure [p] (PLAY) * Snapshot Screen * [MENU] * PLAY Tab * DPOF Printing See page 116 for details. Protecting a File Against Deletion (Protect) Procedure [p] (PLAY) * [MENU] * PLAY Tab * Protect Protects specific files.

  • Page 105: Editing The Date And Time Of An Image

    Editing the Date and Time of an Image (Date/Time) Procedure [p] (PLAY) * Snapshot Screen * [MENU] * PLAY Tab * Date/Time [8] [2] Changes the setting at the cursor location [4] [6] Moves the cursor between settings [BS] Toggles between 12-hour and 24-hour format When the date and time settings are what you want, press [SET] to apply them.

  • Page 106: Resizing A Snapshot

    Resizing a Snapshot (Resize) Procedure [p] (PLAY) * Snapshot Screen * [MENU] * PLAY Tab * Resize You can reduce the size of a snapshot and save the result as a separate snapshot. The original snapshot is also retained. You can select resize an image to one of three image sizes: 7M, 4M, VGA.

  • Page 107: Adding Audio To A Snapshot

    Adding Audio to a Snapshot (Dubbing) Procedure [p] (PLAY) * Snapshot Screen * [MENU] * PLAY Tab * Dubbing You can add audio to a snapshot after you shoot it. You can re-record a snapshot’s audio whenever you want. You can record up to about 30 seconds of audio for a single snapshot.

  • Page 108: To Play Snapshot Audio

    To play snapshot audio In the PLAY mode, use [4] and [6] to scroll through the images until the Audio Snapshot you want is displayed. An audio snapshot is one that has a ˆ icon. Press [SET] to start playback. Voice Recording Playback Controls Fast forward/fast reverse Play/pause...

  • Page 109: Copying Files

    Copying Files (Copy) Procedure [p] (PLAY) * Snapshot Screen * [MENU] * PLAY Tab * Copy Files can be copied from the camera’s built-in memory to a memory card or from a memory card to built-in memory. Copies all files from built-in camera memory to a memory card. Built-in * Card This option copies all the files in built-in camera memory.

  • Page 110: Dynamic Photo

    Dynamic Photo You can use the procedures in this section to crop either a moving subject or a still subject out of a snapshot and then insert it into another snapshot. Moving Subject To create a subject image to be inserted (Dynamic Photo) Press [BS] and then select the “Dynamic Photo”...
  • Page 111 First, shoot an image that includes the subject you want to extract. • Shoot an image in which the subject is as large as possible. Also, the image should include some easily identifiable reference point that you can use for later alignment in step 4, below.

  • Page 112: Inserting A Subject Into A Background Image

    Inserting a Subject into a Background Image (Dynamic Photo) Use the following procedure to insert a subject into a background image. A Dynamic Photo with a moving subject is saved as a 2M (1600 image. A Dynamic Photo with a still subject is saved as a 6M (2816 smaller size image.

  • Page 113: Printing

    Printing Printing Snapshots Professional Print Service You can take a memory card that contains the images you want to print to a professional print service and have them printed. Printing on a Home Printer Printing Images on a Printer with Memory Card Slot You can use a printer equipped with a memory card slot to print images directly from a memory card.

  • Page 114: Connecting Directly To A Pictbridge Compatible Printer

    Connecting Directly to a PictBridge Compatible Printer You can connect the camera directly to a printer that supports PictBridge and print images without going through a computer. . To set up the camera before connecting to a printer Turn on the camera and press [MENU]. On the “Set Up”...
  • Page 115 . To print Turn on the printer and load paper. Turn on the camera. This will display the print menu screen. Use [8] and [2] to select “Paper Size”, and then press [6]. Use [8] and [2] to select a paper size and then press [SET].

  • Page 116: Using Dpof To Specify Images To Be Printed And The Number Of Copies

    Using DPOF to Specify Images to be Printed and the Number of Copies . Digital Print Order Format (DPOF) DPOF is a standard that allows you to include image type, number of copy, and time stamp on/off information on the memory card with the images. After configuring settings, you can use the memory card to print on a home printer that supports DPOF or take the memory card to a professional print service.
  • Page 117 . Configuring the Same DPOF Settings for All the Images Procedure [p] (PLAY) * Snapshot Screen * [MENU] * PLAY Tab * DPOF Printing * All images Use [8] and [2] to specify the number of copies. You can specify a value up to 99. Specify 00 if you do not want to print the image. •...

  • Page 118: Date Stamping

    . Date Stamping You can use one of the following three methods to include the recording date in the printout of an image. Configure DPOF settings (page 116). You can turn date stamping on and off each time you print. You can configure settings so some images include the date stamp and some don’t.

  • Page 119: Using The Camera With A Computer

    Using the Camera with a Computer Things you can do using a computer... You can perform the operations described below while the camera is connected to a computer. Save images to a computer and view them there Transfer images stored on your computer to camera memory Playback and...

  • Page 120: Using The Camera With A Windows Computer

    DirectX from the Microsoft DirectX site and install it on your computer. – • Use commercial software as required. YouTube Uploader for CASIO Photo Transport 1.0 Adobe Reader 8 (Not required if already installed.) Using the Camera with a Computer page:...

  • Page 121: Viewing And Storing Images On A Computer

    Requirements for Bundled Software” on page 163 of this manual. . Precautions for Windows Users • Photo Transport and YouTube Uploader for CASIO will not run under 64-bit versions of Windows Vista. • Except for Adobe Reader, the bundled software requires Administrator privileges to run.

  • Page 122: Your Computer

    Turn off the camera and then use the USB cable that comes with the camera to connect it to your computer. • The camera does not draw power over the USB cable. Make sure the camera’s battery is sufficiently charged before connecting.
  • Page 123 Double-click “Removable Disk”. • Your computer recognizes the memory card loaded in the camera (or built-in memory if there is no card) as a removable disk. Right-click the “DCIM” folder. On the shortcut menu that appears, click “Copy”. Windows Vista users: Click “Start” and then “Documents”. Windows XP users: Click “Start”...

  • Page 124: To View Images You Copied To Your Computer

    . To view images you copied to your computer Double-click the copied “DCIM” folder to open it. Double-click the folder that contains the images you want to view. Double-click the image file you want to view. • For information about file names, see “Memory Folder Structure” on page 137. •...

  • Page 125: Playing Movies

    Uploading Movie Files to YouTube Installing YouTube Uploader for CASIO from the CD-ROM that comes with your camera simplifies uploading of movie files you recorded with the “For YouTube” BEST SHOT scene to YouTube.
  • Page 126 . To upload a movie file to YouTube • Before you can use YouTube Uploader for CASIO, you need to go to the YouTube website (http://www.youtube.com/) and register as a user there. • Do not upload any video that is copyrighted (including neighboring copyrights) unless you yourself own the copyright or you have obtained the permission of the applicable copyright holder(s).

  • Page 127: Transferring Images From Your Computer To Camera Memory

    . To transfer images to the camera Connect the camera to your computer (page 121). On your computer, click the following: Start * All Programs * CASIO * Photo Transport. This starts up Photo Transport. Drag the file(s) you want to transfer to the [Transfer] button.
  • Page 128 . To transfer computer screen captures to the camera Connect the camera to your computer (page 121). On your computer, click the following: Start * All Programs * CASIO * Photo Transport. This starts up Photo Transport. Display the screen whose screen capture you want to transfer.

  • Page 129: Viewing User Documentation

    On the menu screen, click the “Language” down arrow button and then select the language you want. Click “Manual” to select it and then click “Digital Camera”. IMPORTANT! • You must have Adobe Reader or Adobe Acrobat Reader installed on your computer in order to view the contents of a PDF file.

  • Page 130: Using The Camera With A Macintosh

    Using the Camera with a Macintosh Install the required software in accordance with what version of the Macintosh OS you are running and what you want to do. Operating When you want to System do this: Version Save images to your Mac OS 9 Macintosh and view Mac OS X...

  • Page 131: Your Macintosh

    Turn off the camera and then use the USB cable that comes with the camera to connect it to your Macintosh. • The camera does not draw power over the USB cable. Make sure the camera’s battery is sufficiently charged before connecting.

  • Page 132: To View Copied Images

    After the copy operation is complete, drag the drive icon to Trash. On the camera, press [ON/OFF] to turn off the camera. After making sure that the green back lamp is unlit, disconnect the camera from the computer. . To view copied images Double-click the camera’s drive icon.

  • Page 133: Transferring Images Automatically And Managing Them On Your Macintosh

    Transferring Images Automatically and Managing Them on Your Macintosh If you are running Mac OS X, you can use the iPhoto application that comes bundled with the operating system to manage your images. If you are running Mac OS 9, you will need to use commercially available software.

  • Page 134: Viewing User Documentation

    Open the file named “camera_xx.pdf”. • “xx” is the language code (Example: camera_e.pdf is for English.) User Registration Internet registration only is supported. Visit the following CASIO website to register: http://world.casio.com/qv/register/ Using an Eye-Fi Wireless SD Memory Card to Transfer Images...
  • Page 135 IMPORTANT! • Recorded images are transferred over wireless LAN. Do not use the Eye-Fi card or turn off Eye-Fi card communication (page 140) when on an aircraft or in any other location where use of wireless communication is limited or prohibited. •...

  • Page 136: Files And Folders

    Files and Folders The camera creates a file and saves it each time you shoot a snapshot, record a movie, or perform any other operation that stores data. Files are grouped by storing them in folders. Each file and folder has its own unique name. •...

  • Page 137: Memory Card Data

    Memory Card Data The camera stores images you shoot in accordance with the Design Rule for Camera File System (DCF). . About DCF DCF is a standard that makes it possible to view and print images recorded on one manufacturer’s camera on DCF-compliant devices produced by other manufacturers. You can transfer DCF-compliant images recorded with another camera to this camera and view them on this camera’s monitor screen.

  • Page 138: Supported Image Files

    . Supported Image Files • Image files shot with this camera • DCF-compliant image files This camera may not be able to display an image, even if it is DCF-compliant. When displaying an image recorded on another camera, it may take a long time for the image to appear on this camera’s monitor screen.

  • Page 139: Other Settings (Set Up)

    Other Settings (Set Up) This section explains menu items that you can use to configure settings and perform other operations in both the REC mode and PLAY mode. For information about menu operations, see page 63. REC Mode Control Panel Display (R Panel) Procedure [MENU] * Set Up Tab * R Panel Use the settings below to show or hide the Control Panel, and to select the icons to...

  • Page 140: Adjusting Monitor Screen Brightness

    Adjusting Monitor Screen Brightness (Screen) Procedure [MENU] * Set Up Tab * Screen You can change the brightness of the monitor screen. With this setting, the camera detects available light levels and Auto 1 or automatically adjusts the brightness of the monitor screen accordingly. Auto 2 •...

  • Page 141: Configuring Camera Sound Settings

    Configuring Camera Sound Settings (Sounds) Procedure [MENU] * Set Up Tab * Sounds Startup Specifies the startup sound Half Shutter Sound 1 - 5: Built-in sounds (1 through 5) Shutter Off: Sound off Operation Specifies the sound volume. This setting is also used as the Operation ( audio level during video output (page 91).

  • Page 142: Specifying The File Name Serial Number Generation Rule

    Specifying the File Name Serial Number Generation Rule (File No.) Procedure [MENU] * Set Up Tab * File No. Use the following procedure to specify the rule that governs generation of the serial number used in file names (page 136). Tells the camera to remember the last used file number.
  • Page 143 Use [8], [2], [4], and [6] to select the geographic area you want and then press [SET]. Use [8] and [2] to select the city you want and then press [SET]. Press [SET]. IMPORTANT! • Before configuring World Time settings, make sure that the Home City setting is the place where you live or normally use the camera.

  • Page 144: Configuring World Time Settings

    Setting the Camera’s Clock (Adjust) Procedure [MENU] * Set Up Tab * Adjust [8] [2] Change the setting at the cursor location [4] [6] Move the cursor between settings [BS] Toggles between 12-hour and 24-hour format When the date and time settings are what you want, press [SET] to apply them. •...

  • Page 145: Specifying The Display Language

    Specifying the Display Language (Language) Procedure [MENU] * Set Up Tab * Language . Specify the display language you want. Select the tab on the right. Select “Language”. Select the language you want. Configuring Sleep State Settings (Sleep) Procedure [MENU] * Set Up Tab * Sleep This feature turns off the monitor screen whenever no camera operation is performed for a preset amount of time.

  • Page 146: Configuring Auto Power Settings

    Configuring Auto Power Settings (Auto Power Off) Procedure [MENU] * Set Up Tab * Auto Power Off Auto Power Off turns off the camera whenever no camera operation is performed for a preset amount of time. Trigger Time Settings: 1 min, 2 min, 5 min (The trigger time is always 5 minutes in the PLAY mode.) •...

  • Page 147: Configuring Usb Protocol Settings

    Configuring USB Protocol Settings (USB) Procedure [MENU] * Set Up Tab * USB You can use the procedure below to select the USB communication protocol, which is used when exchanging data with a computer, printer, or other external device. Select this setting when connecting to a computer (pages 121, Mass 130).

  • Page 148: Formatting Built-In Memory Or A Memory Card

    Formatting Built-in Memory or a Memory Card (Format) Procedure [MENU] * Set Up Tab * Format If a memory card is loaded in the camera, this operation will format the memory card. It will format built-in memory if no memory card is loaded. •...

  • Page 149: Configuring Monitor Screen Settings

    Configuring Monitor Screen Settings You can turn display information on and off by pressing [8] (DISP). You can configure separate settings for the REC mode and PLAY mode. Information display on Information display + Histogram on Information display off Using the On-screen Histogram to Check Exposure Displays a histogram on the monitor screen which you can use to check the exposure of an image before you shoot it.

  • Page 150: How To Use The Histogram

    How to Use the Histogram A histogram is a graph that represents the lightness of an image in terms of the number of pixels. The vertical axis indicates the number of pixels, while the horizontal axis indicates lightness. If the histogram appears too lopsided for some reason, you can use EV shift to move it left or right in order to achieve better balance.

  • Page 151: Appendix

    Appendix Precautions during Use . Avoid Use While In Motion • Never use the camera to record or play back images while operating an automobile or other vehicle, or while walking. Looking at the monitor while in motion creates the risk of serious accident. .
  • Page 152 • Never try to take the camera apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, and other personal injury. Be sure to leave all internal inspection, maintenance, and repair up to your dealer or nearest CASIO authorized service center.
  • Page 153 • The battery is intended for use with a CASIO Digital Camera only. Use with any other device creates the risk of the battery damage, or deterioration of battery performance and service life.

  • Page 154: Battery Life

    • If battery charging does not end normally within the specified charging time, stop charging anyway and contact your local CASIO authorized service center. Continued charging creates the risk of battery overheating, fire, and explosion.

  • Page 155: Data Error Precautions

    . Data Error Precautions Your digital camera is manufactured using precision digital components. Any of the following creates the risk of corruption of data in camera memory. – Removing the battery or memory card while the camera is performing some operation –...

  • Page 156: Caring For Your Camera

    0 Should the power cord ever become damaged (to the point that internal wires are exposed or cut), immediately contact your original retailer or authorized CASIO authorized service center to request repair. Continued use of a damaged power cord creates the risk of fire, malfunction, and electric shock.
  • Page 157 Note that CASIO COMPUTER CO., LTD. shall not be held liable for use of this product in any way that infringes on the copyrights of others or that violates copyright laws.
  • Page 158 Any and all unauthorized commercial copying, distribution, and copying of the bundled software over a network are prohibited. This product contains PrKERNELv4 Real-time OS of eSOL Co., Ltd. Copyright 2007 eSOL Co., Ltd. © PrKERNELv4 is a registered trademark of eSOL Co., Ltd. in Japan.

  • Page 159: Power Supply

    If problems continue to occur after you perform the above steps, it could mean that the battery is faulty. Contact your nearest CASIO authorized service center. To replace the battery Open the battery cover and remove the current battery.

  • Page 160: Battery Precautions

    Battery Precautions . Precautions during Use • Operation provided by a battery under cold conditions is always less than operation under normal temperatures. This is due to the characteristics of the battery, not the camera. • Charge the battery in an area where the temperature is within the range of 5°C to 35°C (41°F to 95°F).

  • Page 161: Using A Memory Card

    Using a Memory Card See page 18 for information about supported memory cards and how to load a memory card. To replace the memory card Press the memory card and then release it. This will cause it to pop out of the memory card slot slightly. Pull the card out the rest of the way and then insert another one.
  • Page 162 . Memory Card Handling Precautions Certain types of cards can slow down processing speeds. In particular, you may experience problems saving high-quality (HD and STD) movies. Use of certain types of memory cards increase the time it takes to record movies, which can cause movie frames to be lost.

  • Page 163: Computer System Requirements For Bundled Software

    Hard Disk Drive Space :At least 180MB Other :Internet Explorer 6.0 or higher installed For details about the minimum system requirements for each software application, see the “Read me” files on the CASIO Digital Camera Software CD-ROM that comes bundled with the camera. Appendix...

  • Page 164: Reset Initial Default Settings

    Reset Initial Default Settings The tables in this section show the initial default settings that are configured for menu items (displayed when you press [MENU]) after you reset the camera (page 148). Menu items depend on whether the camera is in the REC mode or PLAY mode. •...
  • Page 165 “Quality” Tab Size 10M (3648 Quality Normal (Snapshots) Quality » (Movies) EV Shift White Balance Auto Auto “Set Up” Tab Panel Show Screen Auto 2 Eye-Fi Startup: Sound 1 / Half Shutter: Sound 1 / Shutter: Sound 1 / Sounds Operation: Sound 1 / = Operation: ...//// /...

  • Page 166: Play Mode

    . PLAY Mode “PLAY” Tab Images: All images / Time: 30 min / Slideshow Interval: 3 sec / Effect: Pattern 1 Dynamic Photo – Layout Print – MOTION PRINT 9 frames Movie Editing – Lighting – Red Eye – White Balance –...

  • Page 167: When Things Don't Go Right

    2)The battery may be dead. Charge the battery (page 14). If the battery goes dead soon after being charged, it means the battery has reached the end of its life and needs to be replaced. Purchase a separately available CASIO NP-40 rechargeable lithium ion battery. The camera 1)Auto Power Off may have activated (page 146).
  • Page 168 (page 34) or select a different BEST SHOT scene (page 54). The ? (Flash Off) The flash unit may be malfunctioning. Contact a CASIO service icon flashes red on center or your original retailer. Note that though the flash will not the monitor screen fire, you still can use the camera for non-flash shots.
  • Page 169 Problem Possible Cause and Recommended Action A recorded image 1)Camera power may have been turned off before the save was not saved. operation was complete, which will result in the image not being saved. If the battery indicator shows battery as soon as possible (page 16). 2)You may have removed the memory card from the camera before the save operation was complete, which will result in the image not being saved.
  • Page 170 Images are not This camera cannot display non-DCF images recorded onto a displayed. memory card using another digital camera. Images cannot be 1)Note that you cannot edit the following types of snapshots. edited (with Layout • Snapshots created using MOTION PRINT Print, resizing, •...

  • Page 171: Display Messages

    If the same message appears after you turn power back on, contact your retailer or a CASIO authorized service center. when you remove the battery after it has been loaded for more than 24 hours, it could mean that the camera’s setting memory is defective.
  • Page 172 If the same LENS ERROR message appears after you turn power back on, contact a CASIO authorized service center or your original retailer. The Camera Shake unit may be malfunctioning. If the same LENS ERROR 2 message appears after you turn power back on, contact your retailer or a CASIO service center.
  • Page 173 Your camera system is corrupted. Contact your retailer or an SYSTEM ERROR authorized CASIO authorized service center. The LOCK switch of the SD or SDHC memory card loaded in the camera is in the locked The card is position. You cannot store images to or delete locked.

  • Page 174: Number Of Snapshots/Movie Recording Time/Voice Recording Time

    Number of Snapshots/Movie Recording Time/ Voice Recording Time Snapshot Image Size Image (Pixels) Quality Fine (3648 2736) Normal Economy Fine (3648 2432) Normal Economy 16:9 Fine (3648 2048) Normal Economy Fine (3072 2304) Normal Economy Fine (2304 1728) Normal Economy Fine (1600 1200)

  • Page 175: Voice Recording

    Movies Image Approximate Data Quality Rate (Frame Rate) (Pixels) 24 Megabits/second 1280 (24 frames/second) 10 Megabits/second (30 frames/second) 2.7 Megabits/second (15 frames/second) YouTube 10 Megabits/second (30 frames/second) Voice Recording Maximum File Format File Size 4 GB IMA-ADPCM * Snapshot, movie recording capacity, and voice recording capacity values are approximate and intended for reference only.

  • Page 176: Specifications

    Specifications File Format Snapshots: JPEG (Exif Version 2.2); DCF 1.0 standard; DPOF Movies: Motion JPEG AVI, IMA-ADPCM audio (monaural) Audio (Voice Recording): WAV (monaural) Recording Media Built-in Memory (Image Storage Area: 35.7MB) SD/SDHC Recorded Image Sizes Snapshot: 10M (3648 Movies: HD (1280 Delete 1 file;...
  • Page 177 White Balance Sensitivity (Standard Output Sensitivity, Recommended Exposure Index) Self-timer Flash Modes Flash Range (ISO Sensitivity: Auto) Flash Charging Time Recording Approximate Maximum Audio Recording Times Monitor Screen Viewfinder Timekeeping Function World Time Input/Output Terminals Microphone Speaker Power Requirements Auto, Daylight, Overcast, Shade, Day White Fluorescent, Daylight Fluorescent, Tungsten, Manual WB Snapshots: Auto, ISO 64, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200 equivalent...
  • Page 178 Approximate Battery Life All of the values provided below represent the approximate amount of time under normal temperature (23°C (73°F)) before the camera turns off. These values are not guaranteed. Low temperatures shorten battery life. Number of Shots (CIPA) (Operating Time)* Continuous Playback (Snapshots)* Approximate continuous movie recording time Continuous Voice Recording*...
  • Page 179 . Rechargeable lithium ion battery (NP-40) Rated Voltage Rated Capacitance Operating Temperature Dimensions Weight . Charger unit (BC-31L) Input Power Output Power Operating Temperature Supported Battery Type Charging Time Dimensions Weight • Power cord precautions for use in Singapore The power cord set is not supplied. The power cord used must comply with relevant national and/or international standards.
  • Page 180 CASIO COMPUTER CO.,LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan MA0903-A...
  • Page 181 Dynamic hoto Getting the Most Out of Dynamic Photo For a wealth of information Dynamic Photo including sample images, explanations about how you can use Dynamic Photo images, and more, visit the special Dynamic Photo website at: http://exilim.com/dp/ This manual provides an introduction to Dynamic Photo, which creates a whole new way to enjoy digital imaging.
  • Page 182 Dynamic Photo! A totally new way to enjoy digital photography! ...2 Dynamic Photo Technology... 3 Creating a Dynamic Photo Image...4 Step 1: Shoot the subject..4 Step 2: Create the Dynamic Photo image..6 . Four Tips for Good Subject Cropping ...7 .
  • Page 183 Dynamic Photo Technology Dynamic Photo lets you extract a moving subject from a series of Continuous Shutter (CS) images and insert it into another image. This makes it possible to combine images in ways that create exciting, totally unbelievable scenes. Moving CS Images Extract the subject.

  • Page 184: Creating A Dynamic Photo Image

    Creating a Dynamic Photo Image Step 1: Shoot the subject. Dynamic Photo images are created by extracting the subject out of one image, and inserting it into another image. The term “subject” as used here refers to what you extract or crop out of the first image. Perform the following steps to shoot and extract the subject.
  • Page 185 First, shoot the subject. Best results can be obtained with the camera secured on a tripod. With the camera pointed at the moving subject, press the shutter button to record. If you selected “Moving Subject”, the camera will record a series of Continuous Shutter (CS) images over a few seconds.

  • Page 186: Step 2: Create The Dynamic Photo Image

    Step 2: Create the Dynamic Photo image. Use the following procedure to insert the subject you extracted in Step 1 above into a photograph and create the final Dynamic Photo image. Press [p] to enter the PLAY mode. Perform the following operation on the camera [MENU] * PLAY tab * “Dynamic Photo”.

  • Page 187: Four Tips For Good Subject Cropping

    After creation of the Dynamic Photo image is complete, the finished image with the moving subject will appear on the monitor screen. • Inserting a moving subject will resize it to one-fourth the size of the background image you are inserting into.
  • Page 188 Recommended!! Shooting Technique Look for a flat wall that has no markings. Best cropping results are obtained when the background is a wall that is completely free of visible markings like the one shown above. In this case, it is not necessary to take pains to position the camera correctly when shooting the second (background only) image...
  • Page 189 Move the subject away from the wall to avoid shadows! The camera may mistake shadows on the wall or floor caused by strong sunlight, illumination, or other light sources as part of the subject. Shadows tend to form when the subject is too close to a wall.

  • Page 190: Specifying The Subject Type And Cs Speed

    Specifying the Subject Type and CS Speed Pressing [SET] during step 1 of “3. First, shoot the subject.” will display a screen for specifying the subject type and CS speed. You can select from among the four subject types listed below.

  • Page 191: Step 3: Have Fun With Dynamic Photo

    Step 3: Have fun with Dynamic Photo. You can use the Dynamic Photo image you created in Step 2 in a variety of fun ways. Step 4: Use Dynamic Studio to expand use of Dynamic Photo images to other applications. The 20 Continuous Shutter images you record when you shoot a Dynamic Photo image are stored in camera memory.

  • Page 192: Create Original Movies With Dynamic Studio

    This makes it possible to view Dynamic Photo images you created with a CASIO EXILIM digital camera to a format that can be played back as a movie on a PC, digital photo frame, cell phone or other device.
  • Page 193 Copy the Dynamic Photo images to your computer. The best way to keep track of images is to create a new folder and copy the 20 Continuous Shutter images that make up each set to their own unique folder. The following are the types of files you can upload to Dynamic Studio.
  • Page 194 Step 1. Upload Your Photos Click [Select Photos...] and select the images you want to upload. You can upload up to 20 successive images at one time. After upload is complete, click [Next]. Step 2. Review Your Uploaded Photos You can delete any of the images you uploaded and delete any that are wrong or that you don’t need.
  • Page 195 Step 4. Preview Your Photos with the Background Check the images and background, and confirm the movement is correct. After you are finished reviewing the images and background, click [Next]. Step 5. Create Your Movie Configure the settings required for movie conversion.
  • Page 196 Step 6. Your Movie Has Been Created! In this step you can check your movie and download it if you want. The “Online Movie” box shows a URL where your movie will be stored for 30 days, where you can stream it with your web browser as many times as you like. Click here to add the URL to the favorites of your web browser so you can view the movie whenever you want.
  • Page 197 On the “Step 6. Your Movie Has Been Created!” page, click “MyMovie.zip”. Click here to download your movie. Check the contents of the confirmation dialog box that appears and then click [Save] to download. Double-click the “MyMovie.zip” file on your computer to extract the movie file.

  • Page 198: Movie Conversion Settings

    Movie Conversion Settings This section provides details about the movie conversion settings in Step 5 of the conversion procedure. . Camera frames per second (fps) Select the frame rate that you used when shooting a Dynamic Photo moving subject (or Continuous Shutter images) with the camera. If you are unsure about what you should specify here, select one of the presets and check the results in the movie that results.
  • Page 199 . Movie Format and Quality Settings The “Movie Format” setting is configured automatically in accordance with the “Intended Use” setting you select. Use “Movie Format” to select a different setting, if you want. Converting to a Movie for Cell Phone Use The initial default movie format setting is always “3GPP2”.

  • Page 200: Optional Settings

    . Optional Settings You can use the optional settings to specify whether or not playback of the movie should be repeated, and the number of times to repeat it. Selecting the “Reverse” check box first plays back the movie forward and then back in reverse. * Select the “Reverse”...

  • Page 201: Download Movie Page

    This section provides details about the “Your Movie Has Been Created!” page in Step 6 of the conversion procedure. . Playback Preview This shows the finished movie. You can start playback by clicking 6. . Download • Clicking “MyMovie.zip” will display a dialog box for downloading the finished movie to your computer.
  • Page 202 Cell Phone Use Movie Conversion Precautions • There is no guarantee that a movie converted for cell phone use will be able to play on all cell phone models. • When sending a movie by e-mail from a computer to a cell phone, always extract from the compressed (zip) file to a movie file (mymovie.3g2 or mymovie.3gp) before attaching it to the e-mail.

Table of Contents
