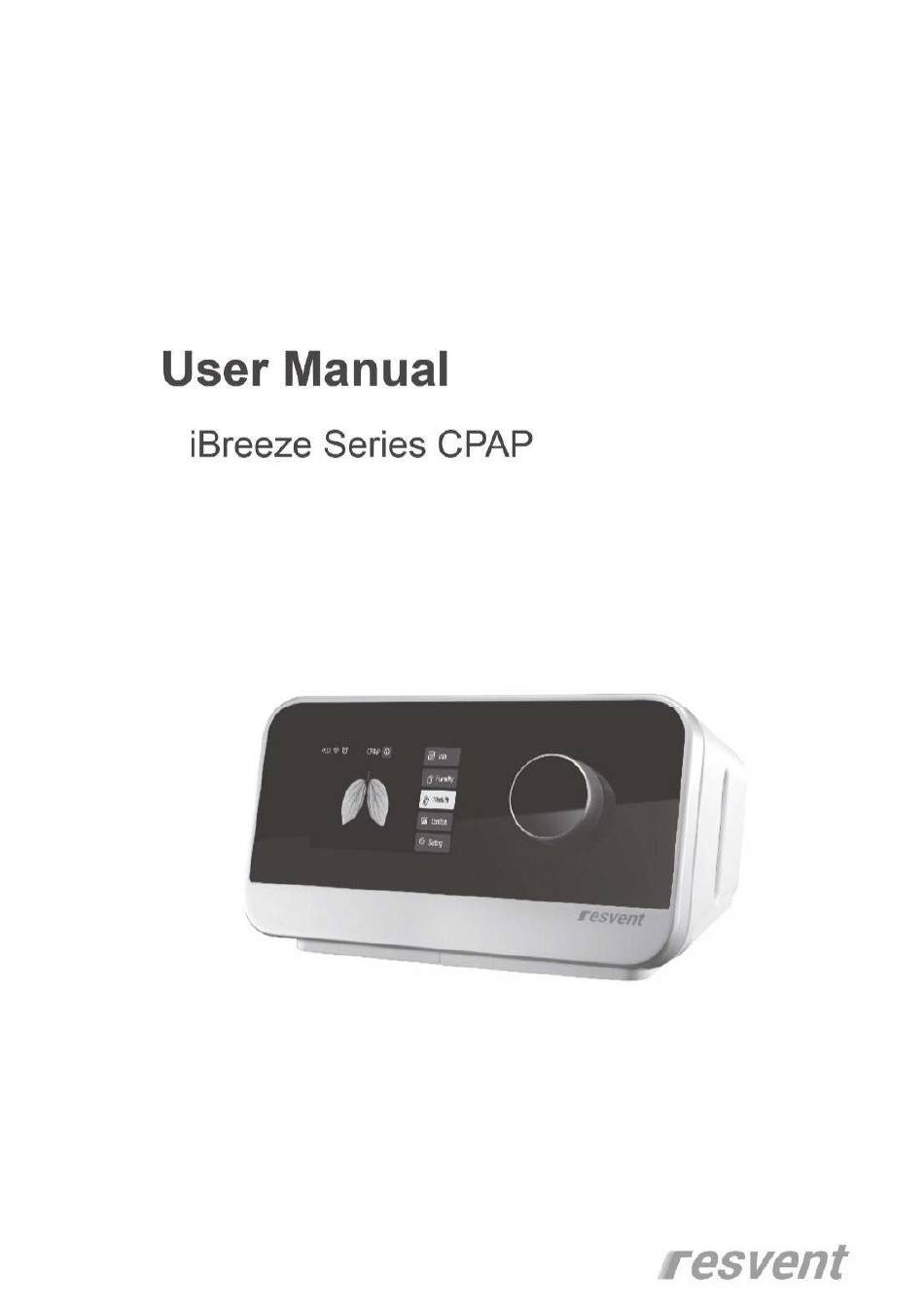

Resvent iBreeze Series User Manual

Cpap
Hide thumbs Also See for iBreeze Series:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBreeze Series and is the answer not in the manual?

Questions and answers

Сергей
March 15, 2025

Можно ли взять временно перед покупкой в аппарат в аренду?

0

Subscribe to Our Youtube Channel

Related Manuals for Resvent iBreeze Series

Summary of Contents for Resvent iBreeze Series

  • Page 2 Contents...
  • Page 3 20C Breeze 20C Pro iBreeze 20A iBreeze 20A Pro. Responsibility on the Manufacturer Party Resvent is responsible for the effects on safety, reliability and performance of this product, only if: All installation operations, expansions, changes, modifications and repairs of this product are conducted by Resvent authorized personnel.
  • Page 4 The device must be used only with the masks and accessories recommended by Resvent. The masks and accessories are validated for use with Resvent devices. The exhalation port(s) associated with the mask should never be blocked. The device is intended to be used with special masks or connectors that have exhalation ports to allow continuous flow of air out of the mask.
  • Page 5 16cm be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker. Use only power cords supplied by Resvent for this device. Use of power cords not supplied by Resvent may cause overheating or damage to the device and may result in increased emissions or decreased immunity of the equipment or system.
  • Page 6 DC cord for your specific therapy device. When DC power is obtained from a vehicle battery, the device should not be used Only use a Resvent DC Power Cord and Adapter Cable. Use of any other system may cause damage to the device.
  • Page 7 iBreeze CPAP Systems User Manual When change the pressure setting, please consult your doctor. Do not position next to a curtain that blocks the flow of cooling air, thereby causing the equipment to overheat. Do not block the gas INTAKE PORT, thereby interfering with therapy. Please follow the local regulation when disposal the device The proper placement and positioning of the MASK on the face is critical to the consistent operation of this equipment.
  • Page 8 iBreeze CPAP Systems User Manual 5 Symbol The following symbols may appear on the device, power supply and accessories. Symbol Definition Manufacturer. Date of Manufacture. Serial number. DC Power. Temperature limitations at transport and storage. Humidity limitations at transport and storage. Atmospheric pressure at transport and storage.
  • Page 9 iBreeze CPAP Systems User Manual The device is not suitable for use in MRI environment. Respiratory air humidifier is heated. Do not touch the element. Therapy On/Off Button (Starts and stops the airflow for therapy). This way up at transport and storage. Fragile, handle with care.
  • Page 10 iBreeze CPAP Systems User Manual 7 System Overview Device Feature Description Therapy On/Off Starts and stops the airflow for therapy. Button Ramp Key Activate the ramp feature during therapy. LCD Display screen This is the User interface for the therapy device. Control Dial Turn the dial to scroll between options on the screen.
  • Page 11 iBreeze CPAP Systems User Manual Do not place the device in or on any container that can collect or hold water. Do not contact the metal surface of the heater when pull out the water tank. 7.2 Supplying AC Power Complete the following steps to operate the device using AC power: 1.
  • Page 12 To use the system, you need the following accessories in order to assemble the recommended breathing circuit: Resvent interface (nasal mask or full face mask) with integrated exhalation port. Resvent flexible tubing, 1.8 m. To connect your breathing circuit to the device, please follow the below steps:...
  • Page 13 iBreeze CPAP Systems User Manual 7.4 Water-filling Operation 2. Open the water tank lid, fill it with water up to the maximum fill line. 3. Lock the water tank lid. 4. Install the water tank on the device. The fill line indicates 1/3 water level for safe operation. The fill line indicates 2/3 water level for safe operation.
  • Page 14 9.1 Starting the Device 1. Ensure power is supplied to the device. The first screen to display will be the Resvent logo, within 5 second followed by the patient standby screen (See Figure 1). Note: Boot buzzer sh and then contact the supplier for inspection.
  • Page 15 iBreeze CPAP Systems User Manual Figure1 Patient Standby Interface Feature Description Mode Display the current mode. Enabled features Depending on setup, certain enabled therapy features will display here. Time Display the current time. Patient Sleep Quality Displays the patient sleep quality report and the options Report for period of the report are: daily (recent 6 days) / 7 days / 14 days / 1 month / 3 months / 6 months / 1...
  • Page 16 iBreeze CPAP Systems User Manual 9.2.2 Patient Therapy Interface When the therapy starts, the screen will switch to the Patient Therapy Interface, which displays the therapy parameters monitoring during therapy (See Figure2). The displayed parameters depend on the current therapy mode. Figure2 Patient Therapy Interface Description The current therapy mode.
  • Page 17 iBreeze CPAP Systems User Manual 9.2.3 Patient Comfort Setting Press key in the Patient Standby interface to enter Patient Comfort Setting Interface. Figure3 Patient Comfort Setting Interface Icon Text Description Turn Preheat function on or off. When the Preheat is on, the humidifier starts preheating in the standby mode and the maximum preheating time is 30 minutes.
  • Page 18 iBreeze CPAP Systems User Manual Icon Text Description Option: On / OFF Default: ON Set IPR (Intelligence Pressure Release) level. Option: OFF / 1-3 Default: 2 Set the Tube type. Tube Option: 15 mm / 19 mm Default: 15 mm Type Set the Mask type.
  • Page 19 iBreeze CPAP Systems User Manual 9.2.4 Patient System Setting Press key in the Patient Standby interface to enter Patient Setting interface. Figure4 Patient Setting Interface Icon Text Description Set the pressure unit. Option: hPa / cmH Default: cmH Pressure Unit Adjust the Screen Brightness.
  • Page 20 iBreeze CPAP Systems User Manual Icon Text Description Set the system date format. Option: YYYYMMDD / MMDDYYYY / DDMMYYYY Date Format Default: YYYYMMDD Set the system time. Time report in the device. Set the Alarm clock on or off, and the alarm time. Option: ON / OFF Default: OFF Alarm Clock...
  • Page 21 iBreeze CPAP Systems User Manual 9.2.5 Patient Report Menu Press info key in Patient Standby Interface to enter Patient Report Interface. Figure5 Patient Report Interface Item Description Set the time interval covered by the report. Period Options: daily (for recent 6 days) / 7 days / 14 days / 1 month / 3 months / 6 months / 1 year.
  • Page 22 iBreeze CPAP Systems User Manual 9.2.6 SD Card To remove the SD card: 1. Stop therapy and open the SD card cover. 2. Push in the SD card to release it. Remove the SD card from the device. Place the SD card in the protective folder and send it to your care provider. Note 2.
  • Page 23 Use the Power the wrong type, abnormal, please Alert 2 Adapter provided by resulting in voltage is check! Resvent. too high or too low 1. Insert SD card SD card write/read during data underway, do not synchronization; remove the SD Notification No action.
  • Page 24 iBreeze CPAP Systems User Manual Alert Type Possible Cause Action contact the supplier therapy state; 2. Power if repeat. board short-circuit 3. Humidifier heating circuit short-circuit In standby state, the The respiration usage time exceed the tube expired, Notification replace the respiration tube setting please replace.
  • Page 25 iBreeze CPAP Systems User Manual Alert Type Possible Cause Action 2. The water tank is the connection of the not plugged in. water tank. During breath cycle Check the respiration High Inspiration monitored pressure is Alert 0 tube or adjust therapy Pressure.
  • Page 26 iBreeze CPAP Systems User Manual 11 Troubleshooting If your device has the following problems in the usage, please try the following Problem Possible Cause Action Check the outlet and verify that the device is properly plugged in. Make sure there is power available at the outlet.
  • Page 27 iBreeze CPAP Systems User Manual Problem Possible Cause Action Air pressure in my Ramp may be mask seems too high Use the Ramp Time option. (it feels like I am turned off. getting too much air). Air pressure in my mask seems too low Ramp may be in Wait for air pressure to build up or...
  • Page 28 iBreeze CPAP Systems User Manual 12.Cleaning and Maintaining To avoid prolonged exposure to dusty and humid environment, resulting in impaired performance and reliability, the user must clean the device regularly. The clean interval of the device and accessories, please refer the below table: Interval Action Weekly...
  • Page 29 13 Maintenance RESVENT CPAP therapy device is designed to have a useful service life of 10 years. If the therapy device is used as intended in accordance with the instructions for use, it does not require any maintenance within this period. If the therapy device is used beyond this period, we recommend having it checked by an authorized dealer.
  • Page 30 iBreeze CPAP Systems User Manual 14 Storage and Disposal 14.1 Storage 14.1.1 Storage Information Store the device under the prescribed ambient conditions. 14.1.2 Storing the therapy device. Switch off the therapy device. Disconnect the therapy device from the power supply. Clean the therapy device, components, and accessories.
  • Page 31 Collateral Standard: Requirements for medical electrical equipment and medical Electrical Specified power supply: Resvent Medical Technology Co., Ltd. Model: DA60-220S24-W1 AC Input: 100-240V 1.18-0.56A 50/60Hz 2A Max DC Output: 24 V 2.5 A Specified power supply: SHANGHAI BIAOJUN ELECTRONICS TECHNOLOGY Co., Ltd.
  • Page 32 iBreeze CPAP Systems User Manual DC Output: 24V 2.5 A Safety Specifications Class II Type BF Ingress Protection: IP22 Air filter Air filter: Filter Efficiency: >75% (7 micron dust) Pressure Setting Range: 4-20 cmH Max Single Fault Steady Pressure: 40 cmH Static Pressure Accuracy: ±0.5 cmH O (Expanded uncertainty:1.87%) Dynamic Pressure Accuracy: ±1cmH...
  • Page 33 iBreeze CPAP Systems User Manual Note: refer the user manual (version: Ver1.0w314B4) for more details. Model: SONOSAT-W01LT SpO2 Range: 0%~100% SpO2 Accuracy: 70%~100%: ±2%; Pulse Rate Range: 18~250 bpm Pulse Rate Accuracy: 18~250 bpm: ±3 bpm; Note: refer the user manual (version: 1.1) for more details. Model: iPOM, iPOM Lite SpO2 Range: 70%~100% SpO2 Accuracy: 80%~100%: ±2%;...
  • Page 34 iBreeze CPAP Systems User Manual 16 EMC Declaration Essential Performance CPAP mode: work pressure 10 cmH2O. The CPAP system is intended for use in the specified electromagnetic environment listed in form A-1, A-2 and A-3. The customer or the user of CPAP system should assure that it is used in such an environment as described below.
  • Page 35 iBreeze CPAP Systems User Manual Form A-2 Guidance and Declaration - Electromagnetic Immunity IEC60601test Compliance Electromagnetic Immunity test level level environment - guidance Floors should be wood concrete or Electrostatic ceramic tile. If floors are Contact ±8kV Contact ±8 kV discharge ESD covered with synthetic Air ±15 kV...
  • Page 36 iBreeze CPAP Systems User Manual IEC60601test Compliance Electromagnetic Immunity test level level environment - guidance calculated from the equation appropriate for the frequency of the transmitter. Recommended separation distances: 80MHz to 800MHz 80MHz to 800MHzto 2.5GHz 2700MHz 10V/m (rms) Where, P is the 385MHz 27V/m maximum output power 10V/m, 80% Am...
  • Page 37 iBreeze CPAP Systems User Manual Form A-3.Recommended Separation Distance between Portable/Mobile RF Communications Equipment and the CPAP system. Rated maximum output Separation distance in meters (m) according to power of transmitter(W) frequency of the transmitter 150kHz~80MHz 80MHz- 800MHz-2.5GHz 800MHz 0.01 0.12 0.12 0.23...
  • Page 38 Resvent is strictly forbidden. All information contained in this manual is believed to be correct. Resvent shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual.
  • Page 39 Registration / Factory address: Room- 602, Building B&C, Gaoxinqi Industrial Park, Liuxian No.1 Road, Xingdong Issue date: Mar., 2019 Community, Bao'an, 518100 Shenzhen, PEOPLE'S REPUBLIC OF CHINA © Resvent Medical Technology Co., Ltd. Tel: 0086-755-23027370 Fax: 0086-755-23027370 All rights reserved http://www.resvent.com H-4000-000002-00 V4.0...
