Summary of Contents for Resvent iBreeze Series
-
Page 2: Table Of Contents
Contents 1 Welcome ................................1 2 Intended Uses ..............................1 3 Contraindications ............................1 4 Safety Information ............................2 5 Symbol ................................6 6 System Contents ............................7 7 System Overview ............................7 8 Navigating the Device Screens ......................11 9 Operation............................... -
Page 3: Welcome

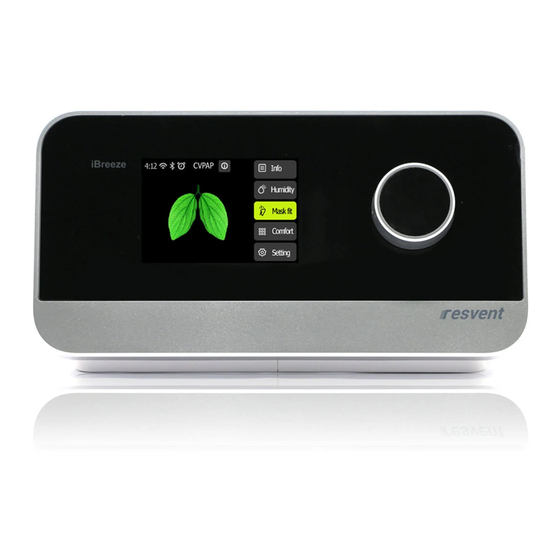

The iBreeze BPAP Systems include the following models: iBreeze 25S, iBreeze 25A, iBreeze 25ST, iBreeze 25STA. Responsibility on the Manufacturer Party Resvent is responsible for the effects on safety, reliability and performance of this product, only if: • All installation operations, expansions, changes, modifications and repairs of this product are conducted by Resvent authorized personnel. -
Page 4: Safety Information
The device must be used only with the masks and accessories recommended by Resvent. The masks and accessories are validated for use with Resvent devices. The exhalation port(s) associated with the mask should never be blocked. The device is intended to be used with special masks or connectors that have exhalation ports to allow continuous flow of air out of the mask. - Page 5 16cm be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker. Use only power cords supplied by Resvent for this device. Use of power cords not supplied by Resvent may cause overheating or damage to the device and may result in increased emissions or decreased immunity of the equipment or system.
- Page 6 When DC power is obtained from a vehicle battery, the device should not be used while the vehicle’s engine is running. Damage to the device may occur. Only use a Resvent DC Power Cord and Adapter Cable. Use of any other system may cause damage to the device.
- Page 7 iBreeze BPAP Systems User Manual Ensure that the therapeutic pressure settings were determined for the patient individually with the configuration of the equipment to be used, including accessories. For multiple patients use, please use personal breathing tube and mask, do not use other.
-
Page 8: Symbol
iBreeze BPAP Systems User Manual 5 Symbol The following symbols may appear on the device, power supply and accessories. Symbol Definition Manufacturer. Date of Manufacture. Serial number. DC Power. Temperature limitations at transport and storage. Humidity limitations at transport and storage. Atmospheric pressure at transport and storage. -
Page 9: System Contents
iBreeze BPAP Systems User Manual Therapy On/Off Button (Starts and stops the airflow for therapy). This way up at transport and storage. Fragile, handle with care. Keep dry at transport and storage. Stacking limitations. Recyclable materials. 6 System Contents Your BPAP system may include the following items: ... - Page 10 iBreeze BPAP Systems User Manual Device Feature Description LCD Display screen This is the User interface for the therapy device. Control Dial Turn the dial to scroll between options on the screen. Press the dial to choose the option. Water Tank Lock Press the water tank lock to remove the water tank.
- Page 11 To use the system, you need the following accessories in order to assemble the recommended breathing circuit: Resvent interface (nasal mask or full face mask) with integrated exhalation port. Resvent flexible tubing, 1.8 m. To connect your breathing circuit to the device, please follow the below steps: 1.
- Page 12 iBreeze BPAP Systems User Manual 2. Connect the tubing to the mask. For specific parameters and the correct use of the method, please refer to the breathing hose manual. WARNING: Do not pull or stretch the tubing, this could result in circuit leaks. Inspect the tubing for damage or wear.
-
Page 13: Navigating The Device Screens
iBreeze BPAP Systems User Manual ❶The fill line indicates 1/3 water level for safe operation. ❷The fill line indicates 2/3 water level for safe operation. ❸The fill line indicates the maximum water level for safe operation. CAUTION: Use only room temperature distilled water or purified water. ... -
Page 14: Operation
Each time you turn on the device, it will automatically run set by the user. 9.1 Starting the Device 1. Ensure power is supplied to the device. The first screen to display will be the Resvent logo, within 5 second followed by the patient standby screen (See Figure 1). - Page 15 iBreeze BPAP Systems User Manual Feature Description Mode Display the current mode. Enabled Features Depending on setup, certain enabled therapy features will display here. Time Display the current time. Patient Sleep Quality Displays the patient sleep quality report and the Report options for period of the report are: daily (recent 6 days) / 7 days / 14 days / 1 month / 3 months / 6...
- Page 16 iBreeze BPAP Systems User Manual Figure2 Patient Therapy Clean Interface Description The current therapy mode. Display the alarm messages. Humidity adjustment shortcut key and humidity level. Note：The humidity level is available when the humidity function is on. Background breathing dynamic diagram. The current therapy pressure.
- Page 17 iBreeze BPAP Systems User Manual Patient Therapy Detail Interface Figure3 Patient Therapy Detail Interface Description Current therapy mode. Real-time monitoring parameters. Switch to the patient therapy clean interface. Flow real-time waveform. Pressure real-time waveform. Work status icon bar. Display the alarm messages. 9.2.3 Patient Comfort Setting Press key in the Patient Standby interface to enter Patient Comfort Setting...
- Page 18 iBreeze BPAP Systems User Manual Icon Text Description Preheat Turn Preheat function on or off. When the Preheat is on, the humidifier starts preheating in the standby mode and the maximum preheating time is 30 minutes. In the therapy mode, the preheating stops. Option: On / OFF Default: OFF Note:...
- Page 19 iBreeze BPAP Systems User Manual 9.2.4 Patient System Setting Press key in the Patient Standby interface to enter Patient Setting Interface. Figure5 Patient Setting Interface Icon Text Description Set the pressure unit. Option: hPa / cmH Default: cmH Pressure Unit Adjust the Screen Brightness.
- Page 20 iBreeze BPAP Systems User Manual Icon Text Description Set the system date format. Option: YYYY-MM-DD / MM-DD-YYYY / DD-MM-YYYY Date Format Default: YYYY-MM-DD Set the system time. Note: time setting can’t be earlier than the latest time of Time the report in the device. Set the Alarm clock on or off, and the alarm time.
- Page 21 iBreeze BPAP Systems User Manual 9.2.5 Patient Report Menu Press info key in Patient Standby Interface to enter Patient Report Interface. Figure6 Patient Report Interface Item Description Period Set the time interval covered by the report. Options: daily (for recent 6 days) / 7 days / 14 days / 1 month / 3 months / 6 months / 1 year.
- Page 22 iBreeze BPAP Systems User Manual 9.2.6 SD Card The iBreeze system comes with an SD card already inserted in the device to store therapy information for the home care provider. Your home care provider may ask you to send the SD card to them for evaluation. To remove the SD card: 1.
-
Page 23: Device Alert
Use the Power wrong type, resulting in abnormal, please Alert 2 Adapter provided by voltage is too high or too check! Resvent. SD card write/read 1. Insert SD card during underway, do not data synchronization; remove the SD card, Notification 2. - Page 24 iBreeze BPAP Systems User Manual Alert Type Possible Cause Action Water level is too low, During the heating Remove the water please add to the process, the water level tank and add to the Alert 0 appropriate water is below the defined appropriate water level.
- Page 25 iBreeze BPAP Systems User Manual Alert Type Possible Cause Action setting. Check the respiration An apnea is detected tube or adjust Apnea. Alert 1 and exceeds the setting therapy parameter duration. setting. Check the 1. Inappropriate connection of the connection of mask and High Leakage mask or respiration Alert 1...
-
Page 26: Troubleshooting
iBreeze BPAP Systems User Manual 11 Troubleshooting If your device has the following problems in the usage, please try the following measures. If it can’t be resolved, please contact the maintenance provider. Problem Possible Cause Action Check the outlet and verify that the device is properly plugged in. -
Page 27: Cleaning And Maintaining
iBreeze BPAP Systems User Manual Problem Possible Cause Action Water tank may not be Check for damage and reassemble the My water tank is assembled correctly. water tank correctly. Contact your care leaking. Water tank may be provider for a replacement. damaged or cracked. - Page 28 If replacing, remove the old filter cotton and then place a new one. 12.4 Traveling with the Device Use the Resvent travel bag to carry the device and accessories when traveling. Please follow the below steps for packing: 1. Remove the water tank from the device and pour out all water.
-
Page 29: Maintenance
BPAP Systems User Manual 13 Maintenance RESVENT BPAP therapy device is designed to have a useful service life of 10 years. If the therapy device is used as intended in accordance with the instructions for use, it does not require any maintenance within this period. If the therapy device is used beyond this period, we recommend having it checked by an authorized dealer. -
Page 30: Specification
iBreeze BPAP Systems User Manual 15 Specification Physical Dimension (L*W*H): 235*148*125 mm Weight: Approximately 1.55 kg Operating Environmental Temperature:5℃~35 ℃ Relative Humidity: 10%~95% (non-condensing) Atmospheric Pressure: 70 kPa~106 kPa Storage Environmental Temperature: -25℃~70℃ Relative Humidity: 5%~95% (non-condensing) Atmospheric Pressure: 70 kPa~106 kPa Noise Value A-weighted sound pressure level: ≤... - Page 31 iBreeze BPAP Systems User Manual Air filter Air filter: Filter Efficiency: >75% (7 micron dust) Pressure Setting Range: 4-30 cmH Max Single Fault Steady Pressure: 40 cmH Pressure Control Accuracy: ± 0.5 cmH Dynamic Pressure Variation: < 1 cmH Pressure monitoring Accuracy: ± (2%*full scale reading + 4%*actual reading) Flow Flow: >120 L/min Humidifier...
-
Page 32: Emc Declaration
iBreeze BPAP Systems User Manual 16 EMC Declaration Essential Performance： BPAP mode: IPAP 12 cmH2O, EPAP 10 cmH2O. The BPAP system is intended for use in the specified electromagnetic environment listed in form B-1, B-2 and B-3. The customer or the user of BPAP system should assure that it is used in such an environment as described below. - Page 33 iBreeze BPAP Systems User Manual Form B-2 Guidance and Declaration - Electromagnetic Immunity Immunity test IEC60601test Compliance Electromagnetic level level environment - guidance Electrostatic Contact：± 8kV Contact：± 8 kV Floors should be wood、 discharge（ESD） Air：± 15 kV Air：± 15V concrete or ceramic tile. IEC61000-4-2 If floors are covered with synthetic material, the...
- Page 34 iBreeze BPAP Systems User Manual Immunity test IEC60601test Compliance Electromagnetic level level environment - guidance Radiated RF 80MHz to 10V/m, 80% Am 80MHz to 800MHz： d=1.2√p IEC61000-4-3 2700MHz 10V/m at 1kHz 27V/m (rms) PM at 18Hz 800MHzto2.5GHz： d=2.3√p 28V/m FM ± 5 385MHz 27V/m kHz deviation at Where, P is the...
- Page 35 Resvent is strictly forbidden. All information contained in this manual is believed to be correct. Resvent shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual Contents of this manual are subject to change without prior notice.
- Page 37 Contact information Manufacturer： Resvent Medical Technology Co., Ltd. Registration Address: Room A602, Building 1, Gaoxinqi Industrial Park Phase II, Liuxian No.1 Road, Xinan Street, Baoan District, Shenzhen 518100, P.R.China Issue date: July, 2017 Factory Address： Room 802, Building 2, Gaoxinqi Industrial Park phase II, Liuxian No.1 Road, Xinanstreet, Baoan...
