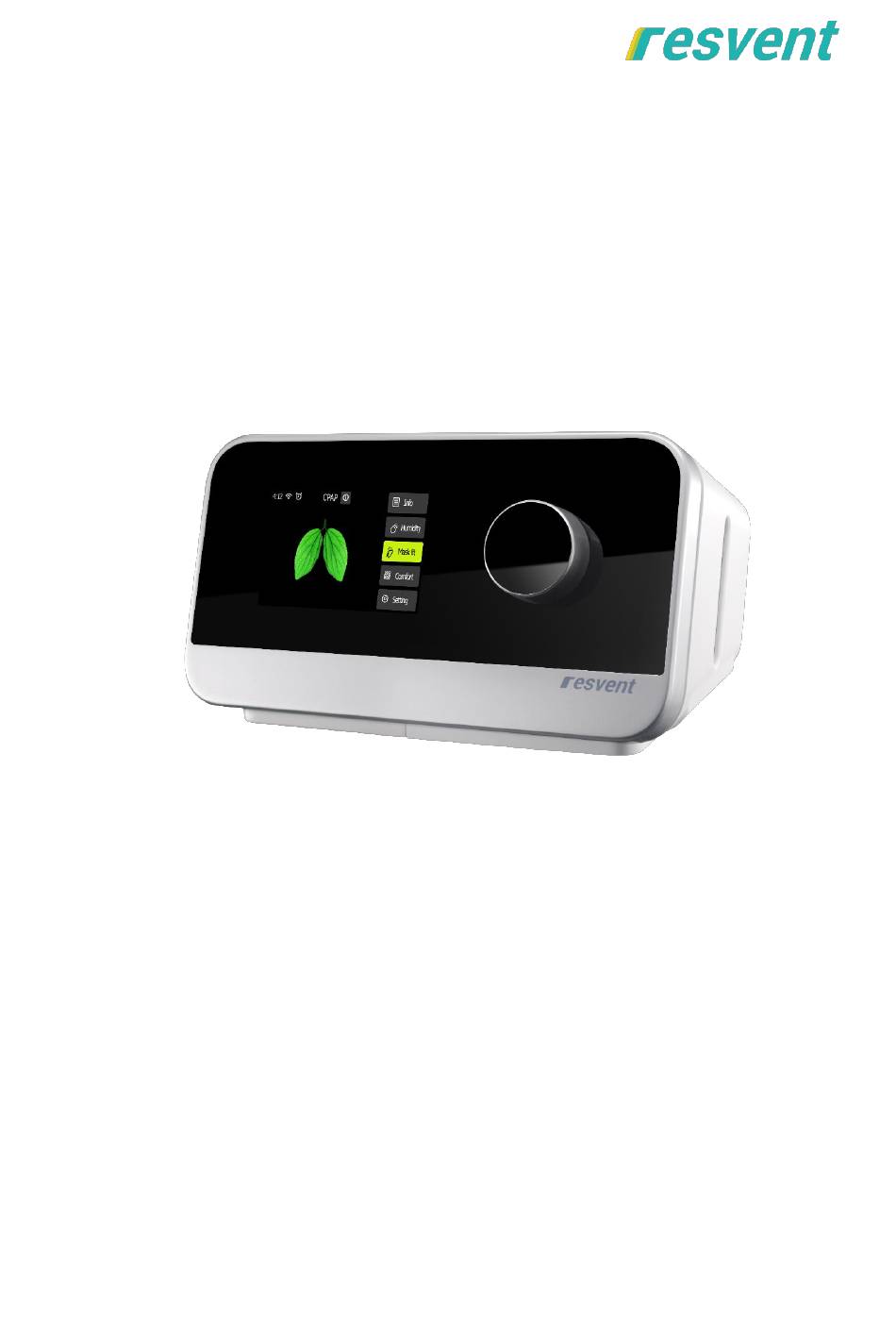

- Page 1 CPAP Clinical Guide iBreeze 20C / 20C Pro iBreeze 20A / 20A Pro...
-
Page 2: Table Of Contents
Contents 1 Welcome .................................. 1 2 Intended use ................................1 3 Contraindications ..............................1 4 Symbol Key................................2 5 System Overview ..............................4 6 Operation ................................. 5 7 Therapy Information ............................14 8 Device Alert ................................. 20 9 Troubleshooting ..............................22 10 Cleaning and Maintaining .......................... -
Page 3: Welcome
Refer to the User Manual for more information on using the Resvent therapy devices. Responsibility on the Manufacturer Party Resvent is responsible for the effects on safety, reliability and performance of this product, only All installation operations, expansions, changes, modifications and repairs of this product are conducted by Resvent authorized personnel. -
Page 4: Symbol Key
iBreeze CPAP Clinical Guide 4 Symbol Key The following symbols may appear on the device, power supply and accessories. Symbol Definition Manufacturer Date of Manufacture Serial number DC Power Temperature limitations at transport and storage Humidity limitations at transport and storage Atmospheric pressure at transport and storage Follow instruction for use. - Page 5 iBreeze CPAP Clinical Guide Therapy On/Off Button(Starts and stops the airflow for therapy) This way up at transport and storage Fragile, handle with care Keep dry at transport and storage Stacking limitations Recyclable materials About the control panel Symbol Definition Press to start/stop therapy.
-
Page 6: System Overview

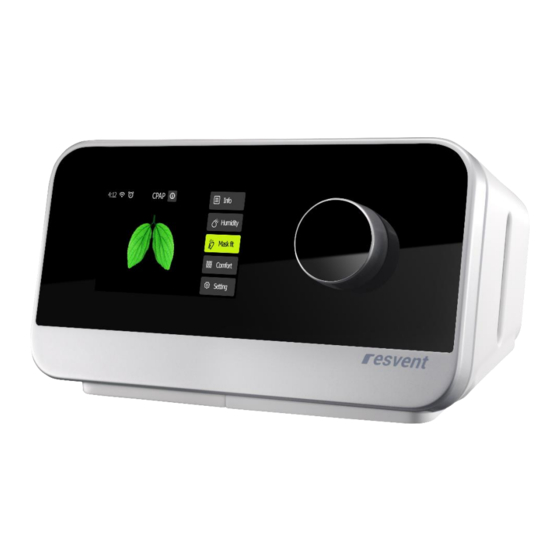

iBreeze CPAP Clinical Guide 5 System Overview Device Feature Description Therapy On/Off Key Starts and stops the airflow for therapy. Ramp Key Activate the ramp feature during therapy. LCD Display screen This is the User interface for the therapy device. Control Dial Turn the dial to scroll between options on the screen. -
Page 7: Operation
iBreeze CPAP Clinical Guide 6 Operation This chapter describes basic operation and precautions associated with this device. 6.1 Accessing Clinical Mode You can access, view and set parameters relating to a patient's therapy and device configuration in the Clinical Mode. To access the Clinical Mode: ... - Page 8 iBreeze CPAP Clinical Guide Feature Description Displays the current mode and you can click here to set the Therapy Mode Therapy Mode. Please refer Chapter7 “Therapy Information” for more details. Displays the patient sleep quality report and the options for Patient Sleep period of the report are: daily (recent 6 days) / 7 days / 14 days / Quality Report...
- Page 9 iBreeze CPAP Clinical Guide Description The background breathing dynamic diagram. The current therapy mode. Display the alarm messages. Please refer Chapter7 “Therapy Information” for more details. Please refer Chapter7 “Therapy Information” for more details. Humidity adjustment shortcut key and Humidity level. Note：Only the humidity function is turned on for humidity level display Comfort key, enter Clinical comfort setting interface.
- Page 10 iBreeze CPAP Clinical Guide Ramp Ramp is designed to deliver the pressure in a gentle increasing manner at the beginning of therapy, affording enough time for the patient to adapt to the treatment pressure. The ramp process brings more comfortable and easier to get to sleep for the user, especially in cases when treatment pressure is high.
- Page 11 2. If humidifier function is turned off, Preheat function will be disable. 3. Preheat function is not available in the iBreeze 20C. Turn Auto Ramp function on or off. Auto Ramp When Auto Ramp is on, Sleep state can be identified automatically, sleep begins to start Ramp function, awake do not start ramp function.
- Page 12 iBreeze CPAP Clinical Guide Text Icon Description Setting the mask fit testing pressure P Mask Test Setting Range: 6cmH2O-18, 2cmH2O increment Default: 10 cmH2O 6.5 Clinical System Settings Select key in the clinical standby interface to enter the clinical system settings interface. Clinical Settings Interface Icon Text...
- Page 13 iBreeze CPAP Clinical Guide Icon Text Description Set the system time. Note: time setting can’t be earlier than the latest time of the report Time in the device. Set the switch key tone volume on or off. Key Tone Option: ON / OFF Default: OFF Set the WiFi function on or off.
- Page 14 iBreeze CPAP Clinical Guide 6.6 Clinical Alert Settings Select Alert menu in the system settings screen to enter the alert settings menu. Clinical Alert Settings Interface Feature Description Alert level: Alert1 Leakage high Setting leakage high alert Option: OFF / 15S / 30S / 45S / 60S Default: OFF Alert limit: Total velocity-base velocity>100L/min, trigger time is the set time.
- Page 15 iBreeze CPAP Clinical Guide Parameter Description Users can choose the date of the last 6 days to review the Time and date corresponding date of the device use, also can choose 7 days, 14 selection days, 1 month, 3 months, 6 months, 1 year to review. Apnea-Hypopnea Index—average AHI during the selected period.
-
Page 16: Therapy Information
iBreeze CPAP Clinical Guide 7 Therapy Information To set the therapy mode, click the Therapy Mode button on the clinical standby interface to enter the therapy mode menu. Therapy Mode Setting Interface Uni-Level therapy mode In Uni-Level therapy mode, the treatment pressures in inspiration and expiration are equal. The following modes are Uni-level therapy mode: CPAP, CPAP-V, APAP and APAPW. - Page 17 iBreeze CPAP Clinical Guide 7.2 CPAP-V Mode The CPAP-V mode is a combination of CPAP mode and APAP mode with limited trial days, which is used to titrate the patient. The device operates in APAP mode with R-Care off in the preset titration time, during which a P95 pressure is generated, when the titration time expires, the device operates in CPAP mode, with P95 as suggested prescribed pressure.
- Page 18 iBreeze CPAP Clinical Guide 7.3 APAP Mode In APAP mode, the pressures delivered to the patient in both inspiration and expiration are equal. The treatment pressure is adapted automatically according to the patient’s status, to maintain an average lower pressure while keeping the upper airway open. A fuzzy adaptive algorithm is applied to regulate the pressure by detecting four types of sleep disorders, obstructive Apnea, Hypopnea, Snore and Flow Limitation (refer to chapter 7.5 Events).
- Page 19 iBreeze CPAP Clinical Guide 7.4 APAPW Mode The APAPW (APAP Women) mode is an APAP mode specified for female patients, with increased sensitivity on sleep disorders detection and moderate pressure regulations compared with the APAP mode. The APAPW mode treats apnea and hypopnea up to 15 cmH2O and continues to respond to snore and flow limitation up to 20 cmH2O.
- Page 20 iBreeze CPAP Clinical Guide 7.5 Events Automatically pressure regulation rules The treatment pressure required for the patient to keep the upper airway clear may vary with body position and sleep state of the patient throughout the night. To avoid uncomfortable feelings resulting from high-level mask pressure, the adequate treatment pressure is expected to be the lowest pressure that is enough to keep patency of the upper airway.
- Page 21 iBreeze CPAP Clinical Guide Once the device identifies a hypopnea, the treatment pressure increases in an adaptive way. When the breathing becomes normal again, pressure reduces gradually. Snore In cases the upper airway has collapsed to certain extent, vibration of the walls of the airway may appear along with the inspiration, accompanied by unpleasant sound.
-
Page 22: Device Alert
Power Adapter with the Input voltage is wrong type, resulting in Use the Power Adapter abnormal, please Alert 2 voltage is too high or too provided by Resvent. check! SD card write/read 1. Insert SD card during underway, do not data synchronization; Notification No action. - Page 23 iBreeze CPAP Clinical Guide Alert Type Possible Cause Action Notification In standby state, the Click “Confirm”, The respiration tube usage time exceed the replace the respiration expired, please replace. respiration tube setting tube. service life. Notification In standby state, the Click “Confirm”, The water tank expired, usage time exceed the...
-
Page 24: Troubleshooting
iBreeze CPAP Clinical Guide 9 Troubleshooting If your device has the following problems in the usage, please try the following measures. If it can’t be resolved, please contact the maintenance provider. Problem Possible Cause Action Check the outlet and verify that the device is properly plugged in. -
Page 25: Cleaning And Maintaining
iBreeze CPAP Clinical Guide 10 Cleaning and Maintaining To avoid prolonged exposure to dusty and humid environment, resulting in impaired performance and reliability, the user must clean the device regularly. The clean interval of the device and accessories, please refer the below table: Interval Action Weekly... -
Page 26: Maintenance
11 Maintenance RESVENT CPAP therapy device is designed to have a useful service life of 10 years. If the therapy device is used as intended in accordance with the instructions for use, it does not require any maintenance within this period. -
Page 27: Specification
iBreeze CPAP Clinical Guide 13 Specification Physical Dimension (L*W*H): 235*148*125 mm Weight: Approximately 1.55 kg Operating Environmental Temperature: 5℃~35 ℃ Relative Humidity: 10%~95% (non-condensing) Atmospheric Pressure: 70 kPa~106 kPa Storage Environmental Temperature: -25℃~70℃ Relative Humidity: 5%~95% (non-condensing) Atmospheric Pressure: 70 kPa~106 kPa Noise Value A-weighted sound pressure level: ≤... - Page 28 If the product fails to perform in accordance with the product specifications, Resvent, Inc.will repair or replace – at its option – the defective material or part. Resvent, Inc. will pay customary freight charges from Resvent, Inc. to the dealer location only. This warranty does not cover damage caused by accident, misuse, abuse, alteration, water ingress, and other defects not related to material or workmanship.
- Page 29 Xinan street, Baoan District, Shenzhen 518100, P.R.China. Issue date：Sept., 2017 Factory Address：Room 802, Building 2, Gaoxinqi Industrial Park phase II, Liuxian No.1 Road, Xinan ©2016 Resvent Medical Technology Co.,Ltd. All street, Baoan District, Shenzhen 518100, P.R.China Tel：0755-23027370 rights reserved Fax：0755-23027370 http://www.resvent.com...
