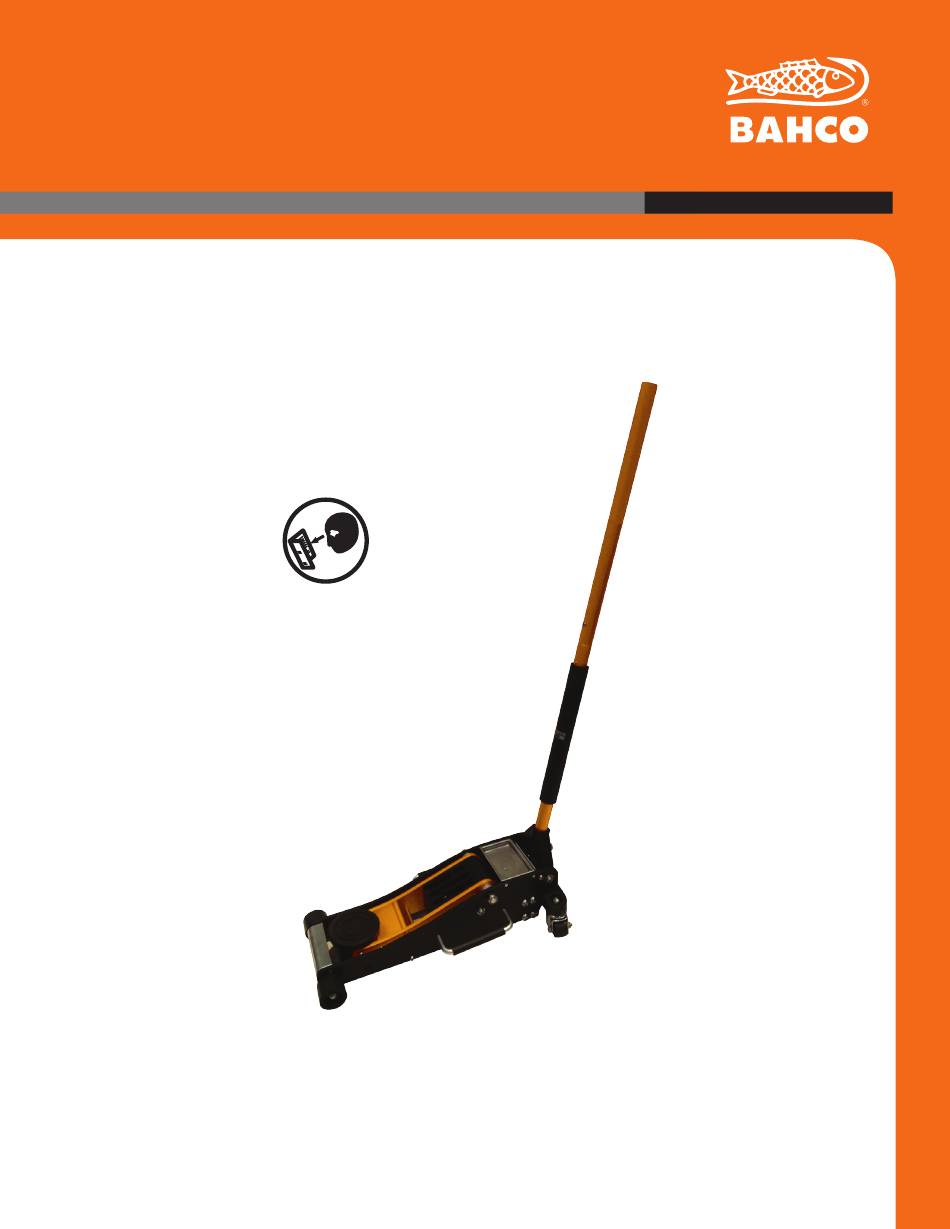

- Page 1 BH1AOZ2000A www.bahco.com.au Consult the vehicles manufacturer’s manual prior to lifting the vehicle. Conduct a pre-operational check of the equipment. AS 2615:2016 ORIGINAL INSTRUCTIONS BH1AOZ2000A Rev. 012919...
- Page 2 Do not use any adaptors that replace the stock lifting saddle unless approved or supplied by the manufacturer. • Do not use (or modify) this product for any other purpose than that for which it was designed. REFER TO VEHICLE MANUFACTURER’S MANUAL FOR INSTRUCTIONS SAVE THESE INSTRUCTIONS BH1AOZ2000A Rev. 012919...
-
Page 3: Preventative Maintenance
2. Lubricate all linkages and pivot points. (Use white lithium spray grease only.) 3. Remove handle; lubricate handle receptacle and handle end. (Use white lithium spray grease only.) 4. Lubricate both rear casters, bearing and both front wheels. (Use white lithium spray grease only.) 5. Tighten all accessible hardware. BH1AOZ2000A Rev. 012919... -
Page 4: Fluid Level
4. Reinstall the fill screw in the jack’s reservoir and the #7 metal cover on the jack and follow the Gas Purging iinstructions on page 6. FILL SCREW CYLINDER FLUID LEVEL RESERVOIR TUBE BH1AOZ2000A Rev. 012919... - Page 5 ITEM# PART CODE DESCRIPTION BH1AOZ2000-01 SADDLE PAD BH1AOZ2000-02 SADDLE BH1A2500-03 2 FRONT FIX WHEELS BH1AOZ2000A-04 2 REAR ROTATING WHEELS BH1AOZ2000-05 PUMP BH1A2500-06 LATERAL U-SHAPED HANDLE BH1A2500-07 METAL COVER BH1A2500-08 HANDLE YOKE BH1A2500-09 PUMP ACTION BAR BH1AOZ2000A Rev. 012919...
-
Page 6: Handle Assembly
Turn the handle completely close the least 5 times. counter clockwise to completely release valve. close the release valve to purge all gas inside the oil BH1AOZ2000A Rev. 012919... -
Page 7: Lifting And Lowering
2.Lift vehicle 1.Turn off release valve Clockwise turn the handle Pumping the handle up to completely close and down to lift the vehicle. the release valve. 3.Lower vehicle Counter-clockwise and slowly rotate the handle to lower the vehicle. BH1AOZ2000A Rev. 012919... - Page 8 GHES450 WORKING LOAD LIMIT (kg) BH1AOZ2000A 2000 Handle length:1210mm Cap diameter:120mm 2000 > Personal protection equipment Loading can not No person should remain in a vehicle is required before operation. that is being lifted. No person should exceed maximum capacity.
- Page 9 BH1AOZ2000A Rev. 012919...
