Summary of Contents for Benchmark 5044-035

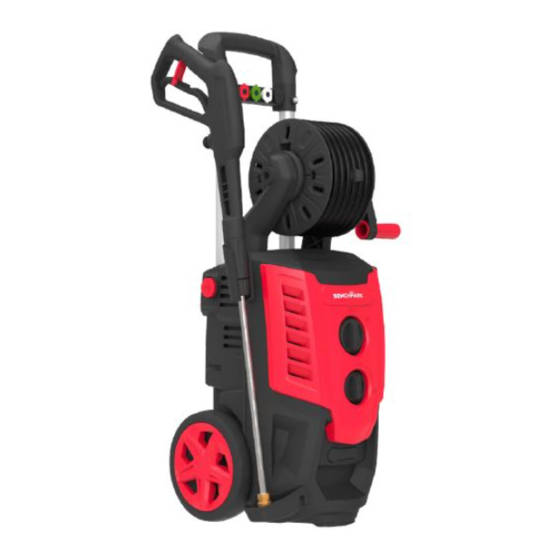

- Page 1 ELECTRIC PRESSURE WASHER 2100 PSI 3 Year Limited Warranty on tool READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. WEAR CSA APPROVED WEAR EAR WEAR A EYE PROTECTION PROTECTION FACE MASK...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS ELECTRIC POWER WASHER Model 5044-035 Rated voltage AC 120V Rated frequency 60 Hz Rated current Rated pressure 1600 psi Maximum pressure 2100 psi Maximum water inlet pressure 170 psi Maximum water inlet temperature 122°F / 50°C Rated flow 1.4 GPM... -
Page 3: Table Of Contents
5044-035 ELECTRIC PRESSURE WASHER 2100 PSI TABLE OF CONTENTS Product Specifications .................. 1 Table of Contents ..................2 General Safety Instructions ................ 3-7 Unpacking ....................8 Preparation before Operation ..............9-10 Operation ....................10-13 Maintenance ..................13-14 Troubleshooting and FAQs ..............14-15 Exploded View .................... -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS IMPORTANT SAFETY PRECAUTIONS RETAIN FOR FUTURE REFERENCE AND READ CAREFULLY! Do not attempt to install or operate this machine until you have read the safety instructions in this manual. Safety items throughout this manual are labeled with a Danger Warning, or Caution depending on the risk type. - Page 5 5044-035 ELECTRIC PRESSURE WASHER 2100 PSI SYMBOL MEANING DANGER To reduce the risk of fire, electric shock, explosion or injury to people, read the following: • This product is intended for domestic outdoor use only. • The water spray must never be directed towards any electric wiring, devices, or directly towards the pressure washer itself, or fatal electric shock may occur.
- Page 6 SYMBOL MEANING CAUTION - WATER CONNECTIONS • For use with fresh and clean water only. Do not use this product with other liquids. • The water supply system must be protected against back flow. • Never use this product with water contaminated with solvents (e.g.
- Page 7 5044-035 ELECTRIC PRESSURE WASHER 2100 PSI INTENDED APPLICATION This product is designed for specific residential applications. Do not modify or use this product for any application other than the one it was designed for. This equipment was not designed for industrial use. Please refer to the icons below for suggested applications.
- Page 8 of the product (15 A). • Do not use damaged extension cords. Examine the extension cord before using and replace it if damaged. Do not abuse extension cords and do not pull on any cord to disconnect the device. • Keep cord away from heat and sharp edges. •...
-
Page 9: Unpacking
5044-035 ELECTRIC PRESSURE WASHER 2100 PSI UNPACKING When unpacking this product, check to make sure parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing and damaged, do not attempt to assemble or use the product. -
Page 10: Preparation Before Operation
PREPARATION BEFORE OPERATION HOW TO SET UP YOUR UNIT 1. Push and press the telescopic handle release button, then pull upward the telescopic handle for moving the machine easily. 2. Push out the hose reel crank from the left to the right for easily rewinding and winding the hose to proper use or storage. -
Page 11: Operation
5044-035 ELECTRIC PRESSURE WASHER 2100 PSI 6. Attach the garden hose - Connect one end of the home garden hose (not supplied) to the water inlet connector and another end to water source. WARNING The appliance is INTENDED to be used at a temperature above 32°F (0°C). - Page 12 2. RELEASE THE TRIGGER AND TURN THE SWITCH TO “OFF/0” POSITION Turn off the water supply tap. NOTE: When not in use, make sure Lock-off switch is in “Lock” position. UNLOCK LOCK 3. SELECT THE RIGHT NOZZLES Attach nozzle into the end of the lance by pressing selected nozzle into place, it will make a click sound when firmly in place.
- Page 13 5044-035 ELECTRIC PRESSURE WASHER 2100 PSI 4. CLEANING Begin with the nozzle 1-2ft (0.3m-0.6m) away from the surface and approach with caution until it reaches the - desired position for overly close spray may do harm to surface. WARNING Do not connect the machine to water supplies that are dirty, rusty, muddy, or corrosive.
-
Page 14: Maintenance
This machine is equipped with live hose reel. To unwind the hose, turn hose reel handle counterclockwise. To wind the hose, turn hose reel handle clockwise. There is a hose clip on the end of hose which is used to clamp onto the winded hose for storage. -
Page 15: Troubleshooting And Faqs
5044-035 ELECTRIC PRESSURE WASHER 2100 PSI TIPS FOR EXTENDING THE LIFE OF YOUR PRESSURE WASHER 1. Never operate machine without water. 2. Pressure washer is not meant to pump hot water. Never connect to hot water supply this will significantly reduce life of the pump. -
Page 16: Exploded View
It sounds like your power washer is working just fine. When the water is connected, the accessories are assembled properly, and the power switch is turned on, the power washer may turn on for 1-2 seconds to prime the The power washer turns pump. -
Page 17: Parts List
5044-035 ELECTRIC PRESSURE WASHER 2100 PSI PARTS LIST Key # Part Code Part Name Quantity BUAK031001 Rear Housing BUAK031002 Tire BUAK031003 Wheel Hub BUAK031004 Axle BUAK031005 Flat Ring BUAK031006 Axis Elastic Ring BUAK031007 Wheel Cover BUAK031008 Cord Hook BUAK031009 Power Cord Cover... - Page 18 BUAK031036 Crank Handle BUAK031037 Right Hose Reel BUAK031038 Left Hose Reel BUAK031039 Left Hose Frame BUAK031040 Screw M6*8 BUAK031041 Shaft Connector BUAK031042 Bayonet BUAK031043 O-Ring 7.5x2 BUAK031044 O-Ring 6.3x1.8 BUAK031045 Detergent Tank Sleeve Connector BUAK031046 Open Retaining Ring BUAK031047 Screw M6*10 BUAK031048 High Pressure Hose Clip BUAK031049...
-
Page 19: Warranty
WARRANTY BENCHMARK HIGH PRESSURE CLEANER WARRANTY If this Benchmark tool fails due to a defect in material or workmanship within three years from the date of purchase, it has a 3-year repair warranty with the original bill of sale. This warranty does not include expendable parts including but not limited to blades, brushes, belts, light bulbs and/or batteries. - Page 20 ELECTRIC PRESSURE WASHER 2100 PSI 3 Year Limited Warranty on tool 5044-035 BENCHMARK TOOLS CANADA Made in China ST. JACOBS, ONTARIO N0B 2N0 © 2021 Home Hardware Stores Limited CUSTOMER SERVICE/TECH SUPPORT 1-866-206-0888 * This Benchmark product carries a three (3) year LIMITED warranty against defects in workmanship and materials.
