Summary of Contents for CASO DESIGN Crema One

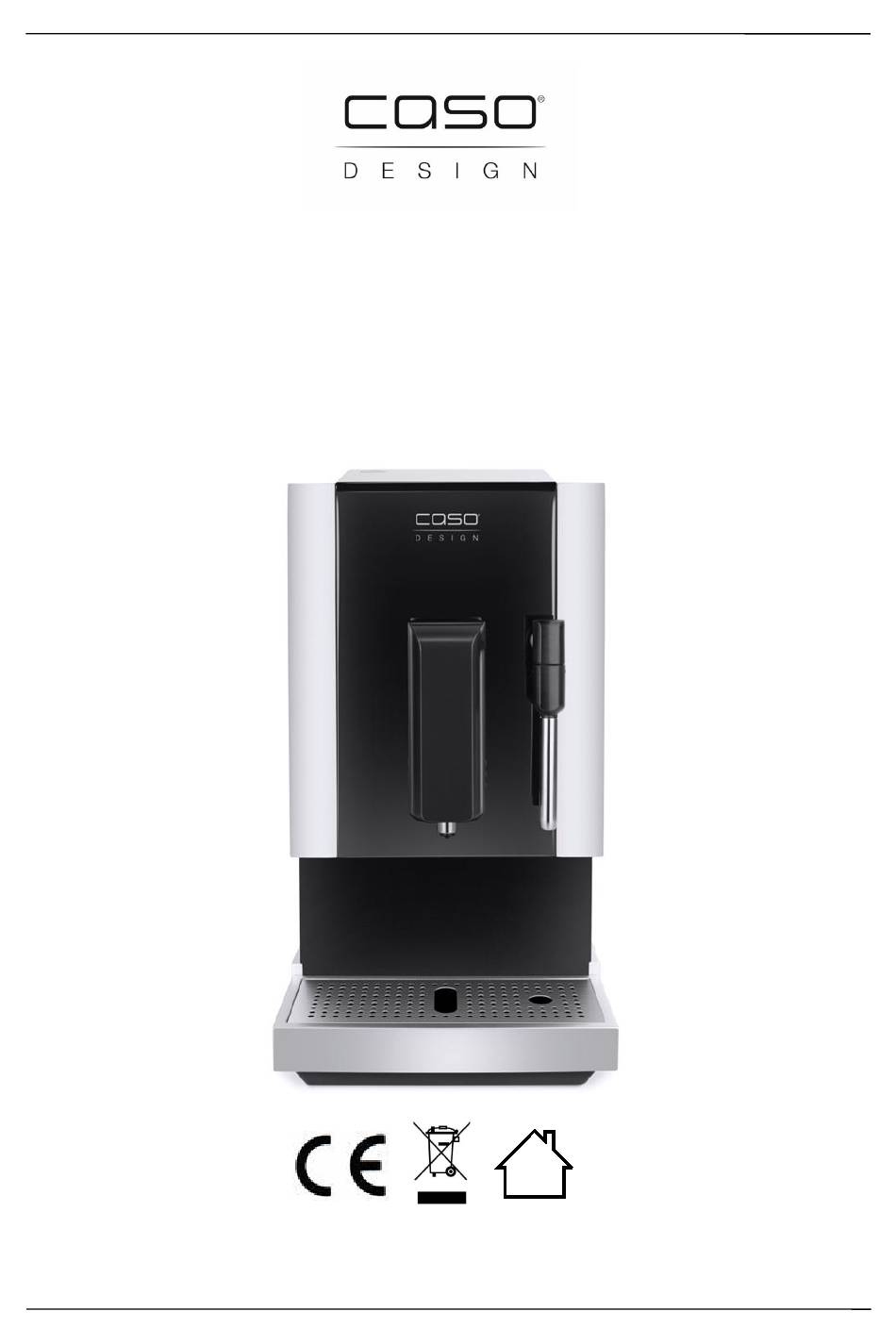

- Page 1 Original instruction manual Fully automatic coffee machine Crema One (11881)
- Page 2 USA Branch CASO Design USA LLC Info@CasoDesignUSA.com www.CasoDesignUSA.com Document-Number: 11881 01-30-2019 Printing and typographical errors reserved. © 2019 CASO Design USA LLC...
-
Page 3: Table Of Contents
Operating Manual ..............5 General ......................5 Information on this manual ................5 Warning notices ....................5 Limitation of liability ..................6 Copyright protection ..................6 Safety ..................6 Intended use ....................6 General Safety information ................7 Sources of danger ..................9 2.3.1 Danger of injury .................... - Page 4 Cleaning ......................21 Rinsing programme for the outlet ............... 22 Cleaning the coffee chamber ............... 22 Descaling & the cleaning programme ............22 Emptying the appliance ................24 Troubleshooting ..............24 Causes and rectification of faults ............... 24 Disposal of the Old Device ..........25 Guarantee ................
-
Page 5: Operating Manual
Your Crema One will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it! 1.2 Information on this manual... -
Page 6: Limitation Of Liability
The original German text remains solely binding. 1.5 Copyright protection This document is copyright protected. CASO Design USA LLC reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. -
Page 7: General Safety Information
► Do not leave the device unsupervised when it is in operation. ► Do not operate the Crema One if it is empty. This could damage the device. ► Never fill the water tank beyond max-marking. Do ot use the device in case of overflowing. - Page 8 Do not put any other liquids (other than cold water) into the water tank or other foods (other than coffee beans) into the Crema One appliance. ► Do not leave the power cord hanging within children's reach.
-
Page 9: Sources Of Danger
Please note ► Device is not intended to be operated by means of an external timer or separate remote-control system. ► The device is not intended for grinding liquid or hot ingredients. ► Switch off the device before pulling the plug. ►... -
Page 10: Risk Of Burning And Scalding
2.3.2 Risk of burning and scalding Warning The water heated in this appliance, the coffee and the frothy milk can get very hot. Please observe the following safety notices in order not to burn or scald yourself or others. ► Do not keep any body parts under the spout / steam nozzle while the appliance is in operation. -
Page 11: Dangers Due To Electrical Power
2.3.3 Dangers due to electrical power Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician. -
Page 12: Commissioning
Transport, unpack and use two persons to set down the device because of the heavy weight of the device. 3.2 Delivery scope and transport inspection As a rule, the Crema One is delivered with the following components: • Crema One Drip tray with drip grid ... -
Page 13: Setup Location Requirements
3.5 Setup location requirements: In order to ensure the safe and trouble- free operation of the device, the setup location must fulfil the following prerequisites: • Only use this device on a flat, stable, heat-resistant surface away from water splashes and any heat sources. -
Page 14: Operation And Handing
4 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers. -
Page 15: Assembly
Warning ► Do not touch the inside of the grinder - risk of injury! Warning ► Warning symbol: hot steam. Caution hot steam can escape at device. Risk of burns. 4.2 Assembly Place the coffee grounds container on to the inner drip tray and push it into the appliance. -
Page 16: Control Panel
4.3 Control panel Buttons: On/off switch Latte macchiato function, two portions of strong espresso are prepared Steam for the generation of milk foam Dispensing of hot water Selection for espresso Selection for coffee LED displays Flashing: Water has to be added or the water tank is not positioned correctly. Bean container is empty, beans must be refilled constantly illuminated: Coffee grounds container is full, empty the container Flashing: The container is not correctly inserted... -
Page 17: Preparation Of Espressos And Coffee
3. Move the extension tube down and remove it. Clean the protective cap and extension under running and thoroughly dry them afterwards. 4. Insert the extension tube with the protective cap upwards again. 5. Turn the protective cap to the right (look at drawing). -
Page 18: Save The Coffee Quantity
Press to turn on the device. The appliance rinses and water is dispensed from the coffee outlet. Then pour the rinse water away. Clean your vessel and place it under the coffee outlet once more. Press the espresso or coffee button and espresso or coffee are dispensed. Please note ►... -
Page 19: Latte Macchiato
The indicator ring shines permanently following the completion of the rinsing process. Pour the rinse water away and clean your vessel. Place a vessel with milk under the steam nozzles ensuring that the extension tube is immersed 2" into the milk.. Wait until the device beeps. -
Page 20: Save The Hot Water Quantity
4.12 Save the hot water quantity Press the once, press again and leave your finger on the button until the desired amount of water is dispensed. Release the button. The quantity is saved. Please note ► Please ensure that the water does not overflow. You can stop the flow by pressing the button once more. -
Page 21: Safety Information
5.1 Safety information Attention Please observe the following safety notices, before you commence with cleaning the device: ► The device must be cleaned at regular intervals and calcium deposits should be removed. ► Switch the device off prior to cleaning it and unplug the plug from the wall power outlet. ►... -
Page 22: Rinsing Programme For The Outlet
5.3 Rinsing programme for the outlet Perform the rinsing programme for the coffee outlet every day. Place a vessel under the outlet. Press at the same time for 5 seconds and the outlet is rinsed. Empty and clean the vessel. 5.4 Cleaning the coffee chamber Clean the coffee chamber at least once a month, more often if you use it very frequently. - Page 23 The fact that descaling is required becomes most noticeable, for instance, by the following signs: • The noise level increases when making coffee. • The brewing process takes longer. • The appliance switches itself off before the water container is empty. Please note ►...
-
Page 24: Emptying The Appliance
5.6 Emptying the appliance An appliance that is not used for a long time, stored or sent to our customer service for repair must be completely emptied. Press and the coffee button together for approx. 5 seconds. The LED flashes. Remove the water tank The LED now flashes constantly. -
Page 25: Disposal Of The Old Device
The coffee grounds container is not correctly inserted. Place the container correctly. The LED flashes Brewing unit is not correctly inserted. Place the brewing unit correctly. constantly illuminated Cover cap of the brewing unit is not correctly closed. Close the cover cap correctly. The LED flashes The appliance cannot be switched... -
Page 26: Guarantee
8 Guarantee 12 Months Limited Warranty Caso Design USA warrants that for a period of 12 months from the date of purchase, this product will be free from defects in material and workmanship. Caso Design USA at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. -
Page 27: Technical Data
9 Technical Data Device Fully automatic coffee machine Name Crema One Item No.: 11881 Mains data 110 V; 60 Hz Power consumption 1350W External measurements 7.3 x 13.4 x 16.5 inches Capacity 40.6 fl oz Net weight 18.3 lbs...
