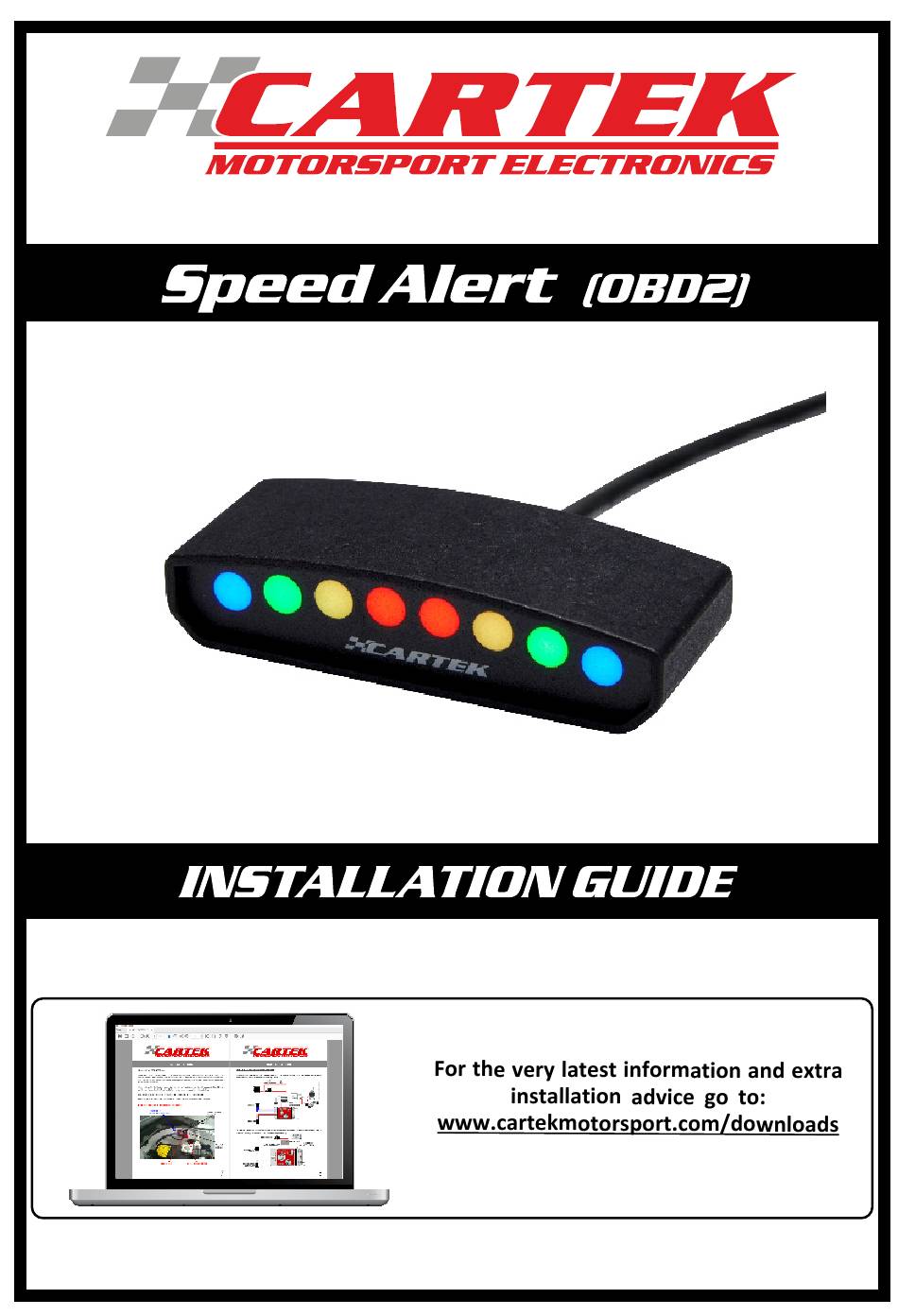

- Page 1 For off-road use only Made in UK...

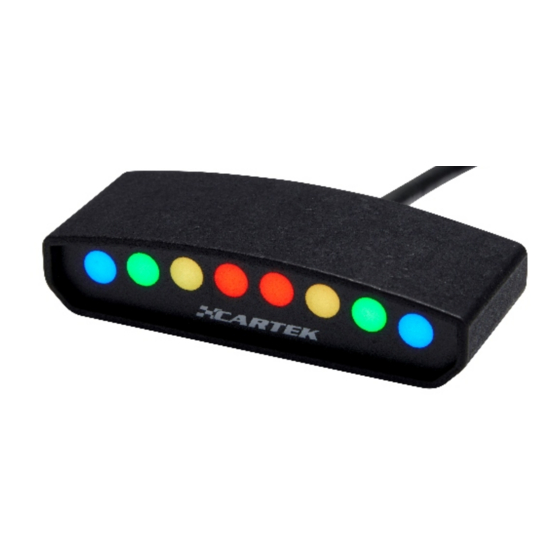

- Page 2 The Speed Alert should be mounted securely on the dashboard where the LEDs can be clearly seen by the driver. Mounting can be by two M3 screws from the underside or two M3 screws from the rear of the unit.
- Page 3 After installing the Speed Alert, and with the OBD2 cable plugged in, Configuration Mode can then be entered where the following four settings can be checked or adjusted: Configuration Menu LEDs Displayed Description LED Brightness Level LED Speed Alert Pattern...
- Page 4 Pattern 3 - Linear Pattern 4 - Linear Pattern 5 - Converging Pattern 6 - Converging Once you have chosen your Speed Alert Pattern then refer back to Note 1 to either exit configuration or move onto the next Configuration Menu.
- Page 5 Configuration 3 - Speed Alert START SPEED: There are two methods available for setting the Speed Alert Pattern START SPEED. This can be done by either using the pushbutton to enter an exact SPEED value required, or driving the car at the precise speed.
- Page 6 Make sure this operation is performed in a safe and legal manner. To indicate that the Speed Alert is waiting to measure and store the road speed for the pattern START SPEED, the four LEDs on the left side will flash Green. At this point the driver needs to drive the car at the precise speed they wish the LED sequence to begin.
- Page 7 (Engine must be stationary) This procedure is identical to Menu 3.1 but the LEDs are now displayed on the right side of the Speed Alert. Follow the same instructions as Configuration Menu 3.1 to check or adjust the END SPEED value.
- Page 8 THIS PRODUCT IS DESIGNED FOR MOTORSPORT USE ONLY AND SHOULD NOT BE USED ON ROAD/STREET VEHICLES OR ON PUBLIC HIGHWAYS. NO WARRANTY IS MADE OR IMPLIED REGARDING ANY CARTEK PRODUCTS TO PROTECT USERS FROM INJURY OR DEATH. USER ASSUMES ALL RISKS.
