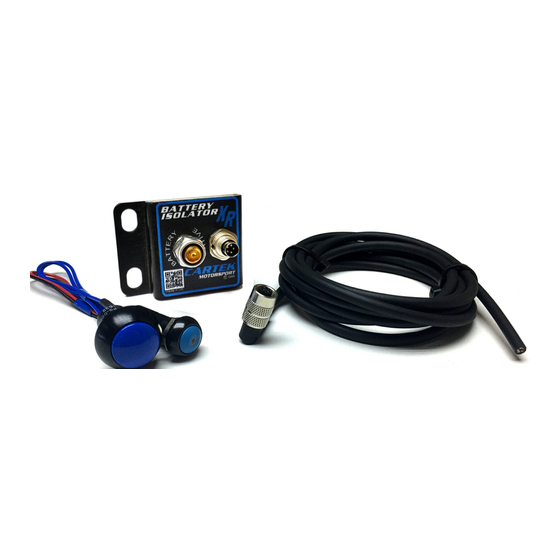

Cartek Battery Isolator XR User Manual And Instructions
  1. Manuals
  2. Brands
  3. Cartek Manuals
  4. Automobile Accessories
  5. Battery Isolator XR
  6. User manual and instructions

Cartek Battery Isolator XR User Manual And Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER GUIDE AND INSTRUCTIONS
JAN 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Battery Isolator XR and is the answer not in the manual?

Questions and answers

Related Manuals for Cartek Battery Isolator XR

Summary of Contents for Cartek Battery Isolator XR

  • Page 1 USER GUIDE AND INSTRUCTIONS JAN 2017...

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION PAGE 1 SPECIFICATION PAGE 2 SAFETY NOTES PAGE 3 INSTALLATION PAGE 4 FITTING PAGE 5 SWITCH CONNECTIONS PAGE 6 ENGINE KILL CONNECTION PAGE 7 FINAL CONNECTION PAGE 8 MULTILINGUAL WIRING DIAGRAMS FAULT DIAGNOSIS PAGE 9 CONTACT INFORMATION Unit 25, Mitchell Point Ensign Way, Hamble Southampton SO31 4RF...

  • Page 3: Introduction

    All race and rally master switches must perform two functions, (1) disconnect the battery from all electrical circuits and (2) kill the engine. The Battery Isolator XR performs the battery disconnection function by breaking the connection between the NEGATIVE battery terminal and CHASSIS/EARTH. The Battery Isolator XR performs the engine kill function by outputting a signal which can be used to enable/disable ECUs or PDMs or used to control an engine relay.

  • Page 4: Specification

    SPECIFICATION Typical installation BODY ELECTRICAL SYSTEMS. ALTERNATOR. STARTER MOTOR. CAR BATTERY ENGINE KILL SIGNAL TO ECU, PDM or ENGINE RELAY. START BATTERY (Optional) INTERNAL ON/OFF BUTTON (2 wires) CHASSIS MOUNTED CLOSE TO BATTERY. EXTERNAL KILL BUTTON (Now with chassis connection) Technical Details Size: L = 60mm, W = 45mm.

  • Page 5: Safety Notes

    THIS PRODUCT IS DESIGNED FOR MOTORSPORT USE ONLY AND SHOULD NOT BE USED ON ROAD/STREET VEHICLES OR ON PUBLIC HIGHWAYS. NO WARRANTY IS MADE OR IMPLIED REGARDING ANY CARTEK PRODUCTS TO PROTECT USERS FROM INJURY OR DEATH. USER ASSUMES ALL RISKS.

  • Page 6: Installation

    INSTALLATION Step 2. FITTING The Battery Isolator should be mounted directly to the vehicle’s metal chassis close to the vehicle’s battery but away from any high temperature sources. The Battery Isolator should be mounted securely with unpainted screws/bolts to provide good electrical contact with the chassis.

  • Page 7: Switch Connections

    INSTALLATION Step 2. SWITCH CONNECTIONS The Isolator can be controlled by any number of on-off/kill switches although the usual configuration is one internal on-off button and one external kill button. The internal switch needs to be of a latching type, either toggle or pushbutton, such that the ON position makes the circuit while the OFF position breaks the circuit.

  • Page 8: Engine Kill Connection

    INSTALLATION Step 3. ENGINE KILL CONNECTION For cars equipped with an alternator, the Battery Isolator needs to kill the engine by sending a signal to the engine ECU or electronic Power Distribution Module (PDM) or by shutting down the main engine relay. The engine kill output signal has two states: Battery Isolator ON - 12V (0.5A max).

  • Page 9: Final Connection

    INSTALLATION Step 4. FINAL CONNECTION Once Steps 1,2 & 3 are completed a final connection should be made from the negative terminal of the vehicle battery to the Battery Isolator terminal marked BATTERY NEGATIVE. This connection should be made with cable of 100-200Amp capacity and by keeping as short as possible will offer maximum weight saving of the complete installation.

  • Page 10: Multilingual Wiring Diagrams

    INSTALLATION - MULTILINGUAL (GB) Installation diagram (IT) Collegamenti per installazione (ES) Conexiones de instalación (GB) ALTERNATOR. (GB) STARTER MOTOR. (GB) BODY ELECTRICAL SYSTEMS. (IT) ALTERNATORE. (IT) MOTORINO D'AVVIAMENTO. (IT) SISTEMI PER VEICOLI ELETTRICI. (ES) ALTERNADOR. (ES) MOTOR DE ARRANQUE. (ES) SISTEMAS ELÉCTRICOS DEL VEHÍCULO. (GB) CAR BATTERY (IT) BATTERIA AUTO...

  • Page 11: Fault Diagnosis

    FAULT DIAGNOSIS FAULT DIAGNOSIS Once fully installed, the Isolator is switched ON by activating the internal ON-OFF switch/button. On activation the Isolator performs a system check before electrical power is switched on. If any fault is detected then the Isolator will remain in the OFF state and display the fault status via the LED in a sequence of flashes: 1 flash - External Kill Button pressed or External Kill Button circuit broken.
