- Page 1 GEAR INDICATOR (Club) INSTALLATION GUIDE For off-road use only Made in UK...

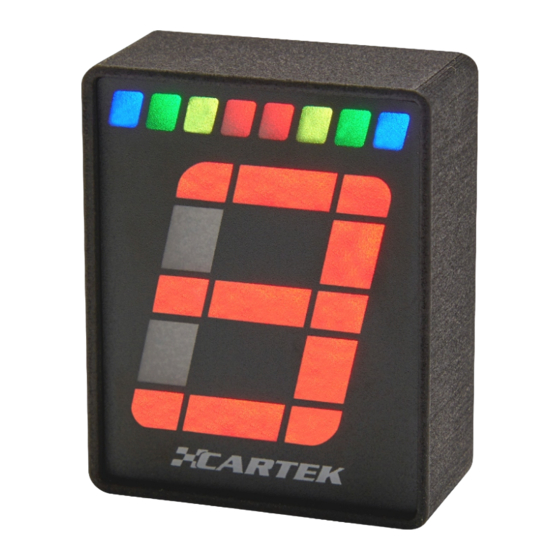

- Page 2 GEAR INDICATOR INTRODUCTION (Club) The GEAR INDICATOR from CARTEK is a dashboard mounted device that is designed to indicate to a driver the current selected transmission gear and also incorporates a gear shift-light display which can indicate to a driver the optimum time to shift up a gear. The selected gear is indicated by a large, multi-coloured, 7 segment numerical display while the shift-light function is displayed at the upper part of the unit by 8 multi-coloured LEDs.
- Page 3 CONFIGURATION GEAR INDICATOR Club After installing the Gear Indicator, and with the ignition switched ON, Configuration Mode can then be entered where various settings can be checked or adjusted. Configuration Mode is entered by pressing and holding the pushbutton on the rear of the unit. After 2 seconds the gear display will begin flashing ‘G’.
- Page 4 CONFIGURATION GEAR INDICATOR Club Configuration Menu 1 - Gear-Indicator Digit Brightness: Note: This configuration is for the Gear-Indicator digit only. Shift-Light display brightness is separate and described later. There are two adjustable brightness levels, Day brightness level or Night brightness level. During normal operation (not in configuration mode) a simple press of the rear button will switch between the two brightness levels.
- Page 5 CONFIGURATION GEAR INDICATOR Club Configuration Menu 3 - Gear-Indicator Number of Forward Gears: Before the Gear Indicator can learn the gear ratios from the car’s transmission, or voltage values from a sequential gearbox gear position sensor, it needs to know how many forward gears the transmission has. To adjust the Number of Forward Gears, select Configuration Menu 3 as described previously.
- Page 6 CONFIGURATION GEAR INDICATOR Club 4.2) Gear-Indicator Learning Mode (Sensor Voltage Method): When using the Sensor Voltage method, the Gear-Indicator needs to measure and learn the gear position sensor output voltage for each gear including Neutral and Reverse if available. Therefore, the Gear-Indicator must be connected to a suitable gear position sensor, as shown in the Connection Diagram on page 1.
- Page 7 CONFIGURATION GEAR INDICATOR Club SHIFT-LIGHT CONFIGURATION MENUS Configuration Mode is entered by pressing and holding the pushbutton on the rear of the unit. After 2 seconds the gear display will begin flashing ‘G’. To enter the Shift-Light configuration menus, continue to hold the pushbutton until the upper Shift-Light LEDs begin to flash and then release it.
- Page 8 CONFIGURATION GEAR INDICATOR Club Configuration 2 - Shift-Light Pattern: On entering Configuration Menu 2, the upper LEDs will demonstrate the current selected Shift-Light pattern. Subsequent quick presses of the pushbutton will cycle through each of the 6 available Shift-Light patterns...
- Page 9 CONFIGURATION GEAR INDICATOR Club Configuration 3 - Shift Light Pattern START RPM: There are two methods available for setting the Shift-Light Pattern START RPM. This can be done by using the pushbutton to enter an exact required RPM value, or running the engine at half the required engine speed.
- Page 10 CONFIGURATION GEAR INDICATOR Club 3.2) Shift-Light Pattern START RPM using tachometer (Engine must be running) This method of setting the display sequence START RPM will require the engine to be run at half the preferred speed. This means the engine does not need to be driven at high RPM but make sure the engine is up to normal running temperature before commencing this procedure.
- Page 11 CONFIGURATION GEAR INDICATOR Club Configuration Menu 5 - RPM Signal Input Filtering : There is a choice of two filters for the input RPM signal: Filter 1 is suited to clean, electronic / ECU RPM signals and suits modern, high revving engines.
-
Page 12: Rear View
49.6mm 11.0mm Pushbutton M3 threaded holes 7.5mm 7.5mm 9.0mm Connection Cable REAR VIEW 6.7mm M3 threaded holes 26.0mm BOTTOM VIEW...
