HEX Weston Assembly Manual

Vertical metal storage shed
Hide thumbs Also See for Weston:

Advertisement

Quick Links

Download this manual

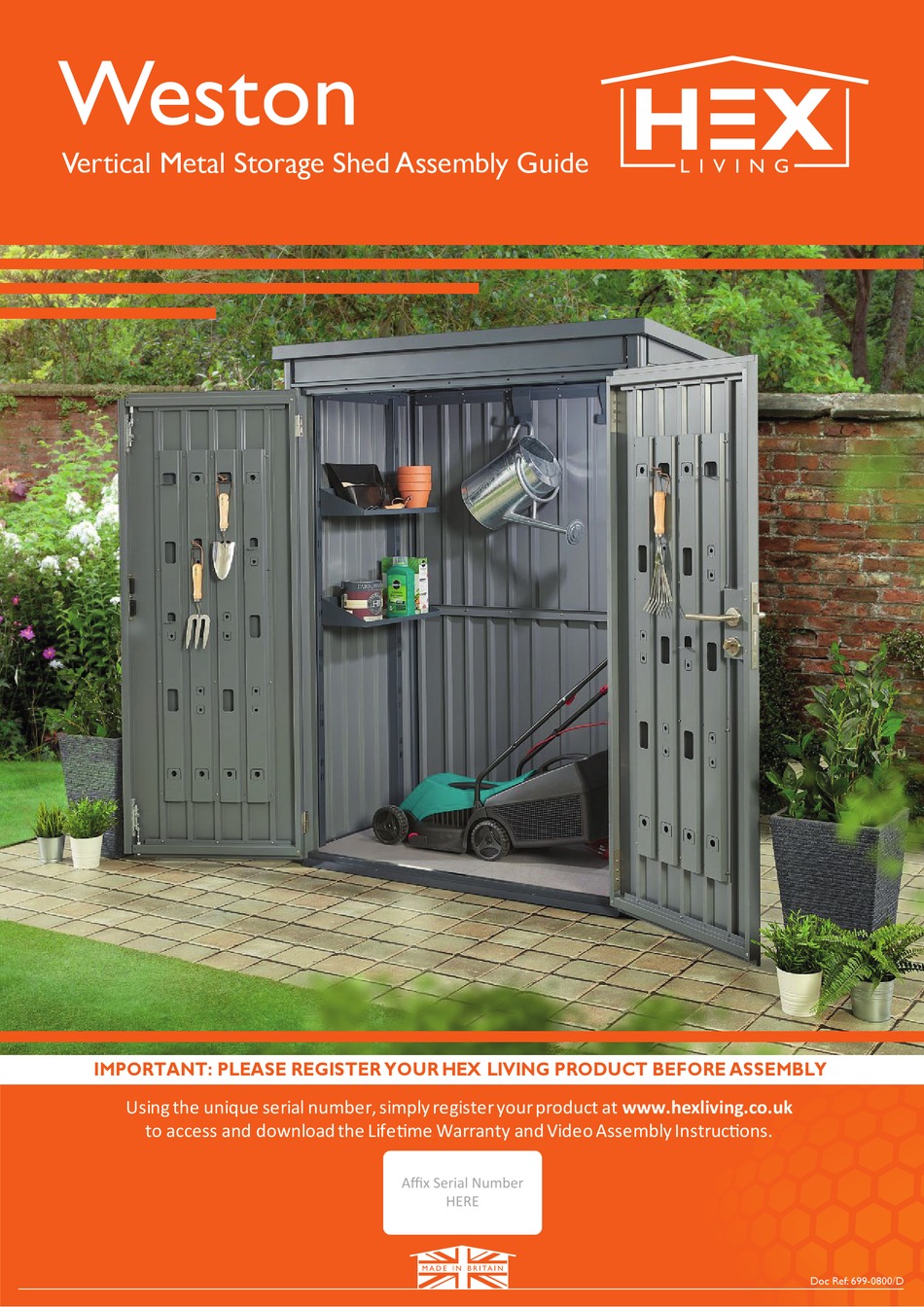

Weston
Vertical Metal Storage Shed Assembly Guide
IMPORTANT: PLEASE REGISTER YOUR HEX LIVING PRODUCT BEFORE ASSEMBLY
Using the unique serial number, simply register your product at www.hexliving.co.uk
to access and download the Life me Warranty and Video Assembly Instruc ons.
Affix Serial Number
HERE
Doc Ref: 699-0800/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the Weston and is the answer not in the manual?

Questions and answers

Related Manuals for HEX Weston

Summary of Contents for HEX Weston

  • Page 1 Weston Vertical Metal Storage Shed Assembly Guide IMPORTANT: PLEASE REGISTER YOUR HEX LIVING PRODUCT BEFORE ASSEMBLY Using the unique serial number, simply register your product at www.hexliving.co.uk to access and download the Life me Warranty and Video Assembly Instruc ons.
  • Page 2 CARING FOR YOUR HEX LIVING PRODUCT Your HEX Living product is designed to stand the test of me, which is why we’re happy to offer a Life me Warranty on our products. With zero maintenance required, simply assemble your HEX Living product and enjoy pu ng it to great use in your garden.
  • Page 3 Weston: Assembly Guide ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION Part Ref: 0203-01 Part Ref: 0203-07 Qty: x2 Qty: x2 Part Ref: 0203-02 Part Ref: 0203-08 Qty: x2...
  • Page 4 Weston: Assembly Guide ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION Part Ref: 0203-11 (1735mm Long) Part Ref: 0203-16 Qty: x2 Qty: x2 Part Ref: 0203-12 (1800mm Long)
  • Page 5 Weston: Assembly Guide ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION Part Ref: 0203-21 Part Ref: 0203-25 (Right-hand) Qty: x1 Qty: x1 Part Ref: 0203-22 Part Ref: 0203-26 (Le -hand)
  • Page 6 Weston: Assembly Guide ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION Part Ref: 0203-33 (Assembly) Part Ref: 0203-41 Qty: x1 Qty: x1 Part Ref: 0203-15 Qty: x4 Part Ref: 0203-34 (Assembly)
  • Page 7 Weston: Assembly Guide ASSEMBLY STAGE 1 LOCATE AND SECURE A CORNER BRACE 0203-03 AT EACH LOCATION INDICATED. 0203-02 0203-01 0203-03 (x4) 0203-01 0203-02 0203-03 SECURE EACH CORNER BRACE 0203-03 AS SHOWN ABOVE. PLEASE NOTE: SECTION VIEW OF TYPICAL FIXING METHOD.
  • Page 8 Weston: Assembly Guide ASSEMBLY STAGE 2 LOCATE AND SECURE A FLOOR BRACE 0203-04 AT EACH LOCATION INDICATED. 0203-04 (x3) 0203-04 SLOT EACH FLOOR BRACE 0203-04 INTO POSITION AS SHOWN ABOVE. PLEASE NOTE: ENSURE TOP OF FLOOR BRACE IS LEVEL WITH TOP OF FLOOR RAIL.
  • Page 9 Weston: Assembly Guide ASSEMBLY STAGE 3 LOCATE SIDE WALL PANEL 0203-09 (725mm WIDE), PLEASE NOTE EACH PANEL DOES NOT HAVE A SPECIFIC TOP OR BOTTOM SO CAN BE LOCATED EITHER WAY. 0203-09 (725mm) 0203-09 (725mm) LOCATE SIDE WALL PANEL 0203-09 INTO POSITION AS SHOWN ABOVE.
  • Page 10 Weston: Assembly Guide ASSEMBLY STAGE 4 LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0203-07 ONTO SIDE WALL. 0203-07 LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0203-07 AS SHOWN AT LOOSELY ATTACH AT x2 LOCATIONS INDICATED ONLY. x2 LOCATIONS INDICATED ABOVE.
  • Page 11 Weston: Assembly Guide ASSEMBLY STAGE 5 LOCATE AND LOOSELY ATTACH CORNER POSTS 0203-11 (1735mm) & 0203-12 (1800mm LONG) ONTO SIDE WALL. 0203-11 (1735mm LONG) 0203-12 (1800mm LONG) x2 HOLES AT TOP x3 HOLES AT TOP LOCATE CORNER POSTS 0203-11 & 0203-12 AS SHOWN AT x2 LOCATIONS ABOVE.
  • Page 12 Weston: Assembly Guide ASSEMBLY STAGE 6 LOCATE BACK WALL PANEL 0203-10 (675mm WIDE), PLEASE NOTE THE PANEL DOES NOT HAVE A SPECIFIC TOP OR BOTTOM SO CAN THEREFORE BE LOCATED EITHER WAY. 0203-11 (1735mm LONG) 0203-10 (675mm WIDE) LOCATE FIRST BACK WALL PANEL 0203-10 (675mm WIDE) AS SHOWN ABOVE.
  • Page 13 Weston: Assembly Guide ASSEMBLY STAGE 7 LOOSELY ATTACH BACK WALL PANELS 0203-10. 0203-10 (675mm WIDE) LOCATE SECOND BACK WALL PANEL 0203-10 INTO POSITION AS SHOWN ABOVE. LOOSELY ATTACH BACK WALL PANEL AT x3 LOCATIONS INDICATED ONLY. IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
  • Page 14 Weston: Assembly Guide ASSEMBLY STAGE 8 LOCATE AND LOOSELY ATTACH LONG CENTRE BRACE 0203-06 ONTO BACK WALL. 0203-06 LOOSELY ATTACH AT x6 LOCATIONS INDICATED ONLY. LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0203-07 AS SHOWN AT x2 LOCATIONS INDICATED ABOVE.
  • Page 15 Weston: Assembly Guide ASSEMBLY STAGE 9 LOCATE AND LOOSELY ATTACH CORNER POSTS 0203-11 (1735mm) ONTO SIDE WALL. x2 HOLES AT TOP 0203-11 (1735mm LONG) LOCATE CORNER POST 0203-12 (1735mm) AS SHOWN ABOVE. LOOSELY ATTACH CORNER POST AT x2 LOCATIONS INDICATED ONLY.
  • Page 16 Weston: Assembly Guide ASSEMBLY STAGE 10 LOCATE SIDE WALL PANEL 0203-09 (725mm WIDE), PLEASE NOTE THE PANEL DOES NOT HAVE A SPECIFIC TOP OR BOTTOM SO CAN BE LOCATED EITHER WAY. 0203-09 (725mm) LOCATE SIDE WALL PANEL 0203-09 INTO POSITION AS SHOWN ABOVE.
  • Page 17 Weston: Assembly Guide ASSEMBLY STAGE 11 LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0203-07 ONTO SIDE WALL. 0203-07 LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0203-07 AS SHOWN AT LOOSELY ATTACH AT x3 LOCATIONS INDICATED ONLY. x3 LOCATIONS INDICATED ABOVE.
  • Page 18 Weston: Assembly Guide ASSEMBLY STAGE 12 LOCATE AND LOOSELY ATTACH CORNER POST 0203-12 (1800mm LONG) ONTO SIDE WALL. 0203-12 (1800mm LONG) x3 HOLES AT TOP LOCATE CORNER POST 0203-12 (1800mm) AS SHOWN ABOVE. LOOSELY ATTACH CORNER POST AT x2 LOCATIONS INDICATED ONLY.
  • Page 19 Weston: Assembly Guide ASSEMBLY STAGE 13 LOCATE AND LOOSELY ATTACH SHORT TOP RAIL 0203-17. 0203-17 LOCATE SHORT TOP RAIL 0203-17 AS SHOWN ABOVE. LOOSELY ATTACH AT x4 LOCATIONS INDICATED.
  • Page 20 Weston: Assembly Guide ASSEMBLY STAGE 14 LOCATE AND LOOSELY ATTACH LONG TOP RAIL 0203-16. 0203-16 LOCATE LONG TOP RAIL 0203-16 AS SHOWN ABOVE. LOOSELY ATTACH AT x7 LOCATIONS INDICATED.
  • Page 21 Weston: Assembly Guide ASSEMBLY STAGE 15 LOCATE AND LOOSELY ATTACH SHORT TOP RAIL 0203-17. 0203-17 LOCATE SHORT TOP RAIL 0203-17 AS SHOWN ABOVE. LOOSELY ATTACH AT x4 LOCATIONS INDICATED.
  • Page 22 Weston: Assembly Guide ASSEMBLY STAGE 16 LOCATE AND SECURE LEFT-HAND DOOR POST 0203-14. 0203-14 LOCATE LEFT-HAND DOOR POST 0203-14 AS SHOWN ABOVE. SECURE DOOR POST AT x2 LOCATIONS INDICATED. IMPORTANT: DO NOT SECURE AT UPPER FIXING POINT AT THIS STAGE.
  • Page 23 Weston: Assembly Guide ASSEMBLY STAGE 17 LOCATE AND SECURE RIGHT-HAND DOOR POST 0203-13. 0203-13 LOCATE RIGHT-HAND DOOR POST 0203-13 AS SHOWN ABOVE. SECURE DOOR POST AT x2 LOCATIONS INDICATED. IMPORTANT: DO NOT SECURE AT UPPER FIXING POINT AT THIS STAGE.
  • Page 24 Weston: Assembly Guide ASSEMBLY STAGE 18 LOCATE AND LOOSELY ATTACH LONG TOP RAIL 0203-16. 0203-16 LOCATE LONG TOP RAIL 0203-16 AS SHOWN ABOVE. LOOSELY ATTACH AT x2 LOCATIONS INDICATED.
  • Page 25 Weston: Assembly Guide ASSEMBLY STAGE 19 LOCATE AND SECURE ROOF RIGHT-HAND SIDE INFILL 0203-23. 0203-23 LOCATE ROOF RIGHT-HAND SIDE INFILL 0203-23 AS SHOWN ABOVE. SECURE ROOF SIDE INFILL AT x4 LOCATIONS INDICATED AS SHOWN ABOVE.
  • Page 26 Weston: Assembly Guide ASSEMBLY STAGE 20 LOCATE AND SECURE ROOF REAR INFILL 0203-22. 0203-22 LOCATE ROOF REAR INFILL 0203-22 AS SHOWN ABOVE. SECURE ROOF REAR INFILL AT x7 LOCATIONS INDICATED AS SHOWN ABOVE.
  • Page 27 Weston: Assembly Guide ASSEMBLY STAGE 21 LOCATE AND SECURE ROOF LEFT-HAND SIDE INFILL 0203-24. 0203-24 LOCATE ROOF LEFT-HAND SIDE INFILL 0203-24 AS SHOWN ABOVE. SECURE ROOF SIDE INFILL AT x4 LOCATIONS INDICATED AS SHOWN ABOVE.
  • Page 28 Weston: Assembly Guide ASSEMBLY STAGE 22 LOCATE AND SECURE ROOF FRONT INFILL 0203-21 0203-21 LOCATE ROOF FRONT INFILL 0203-21 AS SHOWN ABOVE. SECURE ROOF FRONT INFILL AT x7 LOCATIONS INDICATED AS SHOWN ABOVE.
  • Page 29 Weston: Assembly Guide ASSEMBLY STAGE 23 LOCATE AND SECURE TOP RAIL CORNER BRACKETS 0203-15. 0203-15 (x2) LOCATE A TOP RAIL CORNER BRACKET 0203-15 AS SHOWN AT EACH LOCATION SECURE EACH CORNER BRACKET AND ROOF INFILL AS SHOWN ABOVE. INDICATED ABOVE.
  • Page 30 Weston: Assembly Guide ASSEMBLY STAGE 24 LOCATE AND SECURE TOP RAIL CORNER BRACKETS 0203-15. 0203-15 (x2) LOCATE A TOP RAIL CORNER BRACKET 0203-15 AS SHOWN AT EACH LOCATION SECURE EACH CORNER BRACKET AS SHOWN ABOVE. INDICATED ABOVE.
  • Page 31 Weston: Assembly Guide ASSEMBLY STAGE 25 BEND OPEN AIR BEND TABS ON ROOF FRONT AND REAR INFILLS. BEND OPEN AIR BEND TABS AT EACH LOCATION INDICATED ABOVE ON FRONT AND AIR BEND TABS SHOWN OPENED INTO CORRECT POSITION. REAR ROOF INFILLS.
  • Page 32 Weston: Assembly Guide ASSEMBLY STAGE 26 ASSEMBLE ROOF PANEL. 0203-18 (x3) 0203-20 ‘F’ ALL LOCATED THE SAME SIDE LOCATE EACH ROOF BRACE 0203-18 INTO ROOF 0203-20, ROTATE AND ALIGN PUSH AIR BEND TABS DOWN TO SECURE ROOF BRACE IN POSITION.
  • Page 33 Weston: Assembly Guide ASSEMBLY STAGE 27 LOCATE AND SECURE ROOF ASSEMBLY. 0203-18 / 0203-20 ‘F’ LOCATED AT FRONT UPON COMPLETION OF THIS PROCEDURE ENSURE STRUCTURE IS ALIGNED CORRECTLY AND TIGHTEN ALL FASTENERS ROOF PANEL NOT ILLUSTRATED FULLY FOR CLARITY PURPOSE ONLY...
  • Page 34 Weston: Assembly Guide ASSEMBLY STAGE 28 LOCATE EACH FLOOR PANEL 0203-42. 0203-42 0203-42 LOCATE EACH FLOOR PANEL 0203-42 INTO BASE OF STORAGE UNIT AS SHOWN. IMPORTANT: ENSURE THE HEXAGON PATTERN IS FACE UP.
  • Page 35 Weston: Assembly Guide ASSEMBLY STAGE 29 LOCATE AND SECURE DOOR STRIP 0203-08. 0203-08 LOCATE DOOR STRIP 0203-08 AS SHOWN. SECURE DOOR STRIP ONTO FLOOR PANELS AT x6 LOCATIONS INDICATED. IMPORTANT: ENSURE DOOR STRIP IS PUSHED AGAINST DOOR POST RETURN. PLEASE NOTE: THE FIXING USED IS A SELF DRILLING COMPONENT.
  • Page 36 Weston: Assembly Guide ASSEMBLY STAGE 30 LOCATE AND SECURE RIGHT-HAND DOOR ASSEMBLY 0203-25 FURNITURE. 0203-25 0203-32 LOCATE EURO MORTICE LOCK 0203-32 RIGHT-HAND DOOR APERTURE AS SHOWN. SECURE EURO MORTICE LOCK 0203-32 AT x2 LOCATIONS INDICATED ABOVE. SEE FOLLOWING DATA SHEET FOR COMPLETION OF MORTICE LOCK INSTALLATION...
  • Page 37 Weston: Assembly Guide ASSEMBLY STAGE 30 CONTINUED EURO MORTICE LOCK 0203-32 AND DOOR HANDLE 0203-33 INSTALLATION. 0203-34 LOCATE AND SECURE EURO ESCUTCHEON 0203-34 AS SHOWN. LOCATE EURO ESCUTCHEON COVER 0203-34 ONTO EURO CYLINDER AS SHOWN. PLEASE NOTE: THESE ARE PUSHED ON AND WILL CLICK INTO PLACE.
  • Page 38 Weston: Assembly Guide ASSEMBLY STAGE 31 LOCATE AND SECURE LEFT-HAND DOOR ASSEMBLY 0203-26 FURNITURE. 0203-35 0203-32 0203-26 0203-41 0203-35 0203-40 0203-35 LOCATED AS SHOWN 0203-40 ENSURE THE PLUNGER INDICATED IS FACING THE BOTTOM OF THE DOOR, LOCATE SECURE EACH FLUSH DOOR BOLT ENSURING PLATE PACKER 0203-40 IS LOCATED AS SHOWN ABOVE AND SECURE USING ADJACENT FIXING METHOD.
  • Page 39 Weston: Assembly Guide ASSEMBLY STAGE 31 CONTINUED LOCATE AND SECURE LEFT-HAND DOOR ASSEMBLY 0203-26 FURNITURE. 0203-35 FLUSH DOOR BOLT OPEN / CLOSE 0203-35 DOOR BOLT ATTACH DOOR BOLT ONTO FLUSH DOOR BOLT. ENSURE FLUSH DOOR BOLT OPENS AND CLOSES. REPEAT 33A / B / C FOR UPPER FLUSH DOOR BOLT...
  • Page 40 Weston: Assembly Guide ASSEMBLY STAGE 32 LOCATE AND SECURE DOOR HINGES ONTO DOOR ASSEMBLIES. 0203-27 0203-28 0203-37 0203-37 0203-27 0203-28 0203-37 0203-37 LOCATE DOOR HINGE PLATE 0203-37 WITHIN DOOR AS SHOWN. SECURE DOOR HINGE PLATE AND HINGE 0203-27 AND 0203-28 AS SHOWN.
  • Page 41 Weston: Assembly Guide ASSEMBLY STAGE 33 LOCATE AND SECURE DOOR PLATE 0203-39. 0203-27 0203-39 0203-27 0203-39 UPPER LOCATION LOCATE DOOR POST PLATE 0203-39 WITHIN DOOR FRAME AS SHOWN. SECURE DOOR POST PLATE AND LEFT-HAND HINGE 0203-27 AS SHOWN. PLEASE NOTE: REPEAT EACH PROCEDURE FOR UPPER LOCATION.
  • Page 42 Weston: Assembly Guide ASSEMBLY STAGE 34 LOCATE AND SECURE DOOR PLATE 0203-39. 0203-28 0203-39 0203-28 0203-39 UPPER LOCATION LOCATE DOOR POST PLATE 0203-39 WITHIN DOOR FRAME AS SHOWN. SECURE DOOR POST PLATE AND RIGHT-HAND HINGE 0203-28 AS SHOWN. PLEASE NOTE: REPEAT EACH PROCEDURE FOR UPPER LOCATION.
  • Page 43 Weston: Assembly Guide ASSEMBLY STAGE 35 LOCATE DOOR ASSEMBLIES ONTO HINGES. 0203-26 0203-25 SLIDE EACH DOOR ASSEMBLY ONTO EACH OF THEIR RESPECTIVE HINGES. ASSEMBLED DOOR HINGE.
  • Page 44 Weston: Assembly Guide ASSEMBLY STAGE 36 LOCATE AND SECURE DOOR HOOK ASSEMBLIES. 0203-50 0203-51 LOCATE EACH DOOR HOOK 0203-51 ONTO EACH CABIN HOOK BRACKET 0203-50. REMOVE EXISTING FASTENER FROM LOCATION SHOWN, ALIGN DOOR HOOK ASSEMBLY WITH FIXING POINT AND SECURE USING PREVIOUSLY REMOVED FASTENER.
  • Page 45 Weston: Assembly Guide ASSEMBLY STAGE 37 LOCATE AND SECURE SHELF ASSEMBLY 0203-38. 0203-38-01 SLIDE SHELF POST UP INTO ROOF FRAME, ONCE THERE IS ENOUGH CLEARANCE AT LOCATE EACH SHELF 0203-38-02 ONTO SHELF POST AS DESIRED. THE BOTTOM LOCATE SHELF POST OVER FLOOR FRAME AND LOWER.
  • Page 46 Weston: Assembly Guide ASSEMBLY STAGE 38 LOCATE TOOL HANGERS 0205-39. 0205-39 IMPORTANT ADJUST ALL COMPONENTS FOR BEST POSSIBLE FIT AND TIGHTEN ALL FASTENERS. ONCE ALL FASTENERS HAVE BEEN CHECKED AND ARE SECURE THE ASSEMBLY IS COMPLETE. WE RECOMMEND YOU ANCHOR YOUR SHED TO A SOLID CONCRETE BASE, GUIDANCE CAN BE FOUND ON PAGE ‘i’...
  • Page 47 Caring for your HEX Living product Your HEX Living product is designed to stand the test of me, which is why we’re happy to offer a Life me Warranty on our products. With zero maintenance required, simply assemble your HEX Living product,and enjoy pu ng it to great use in your garden.
