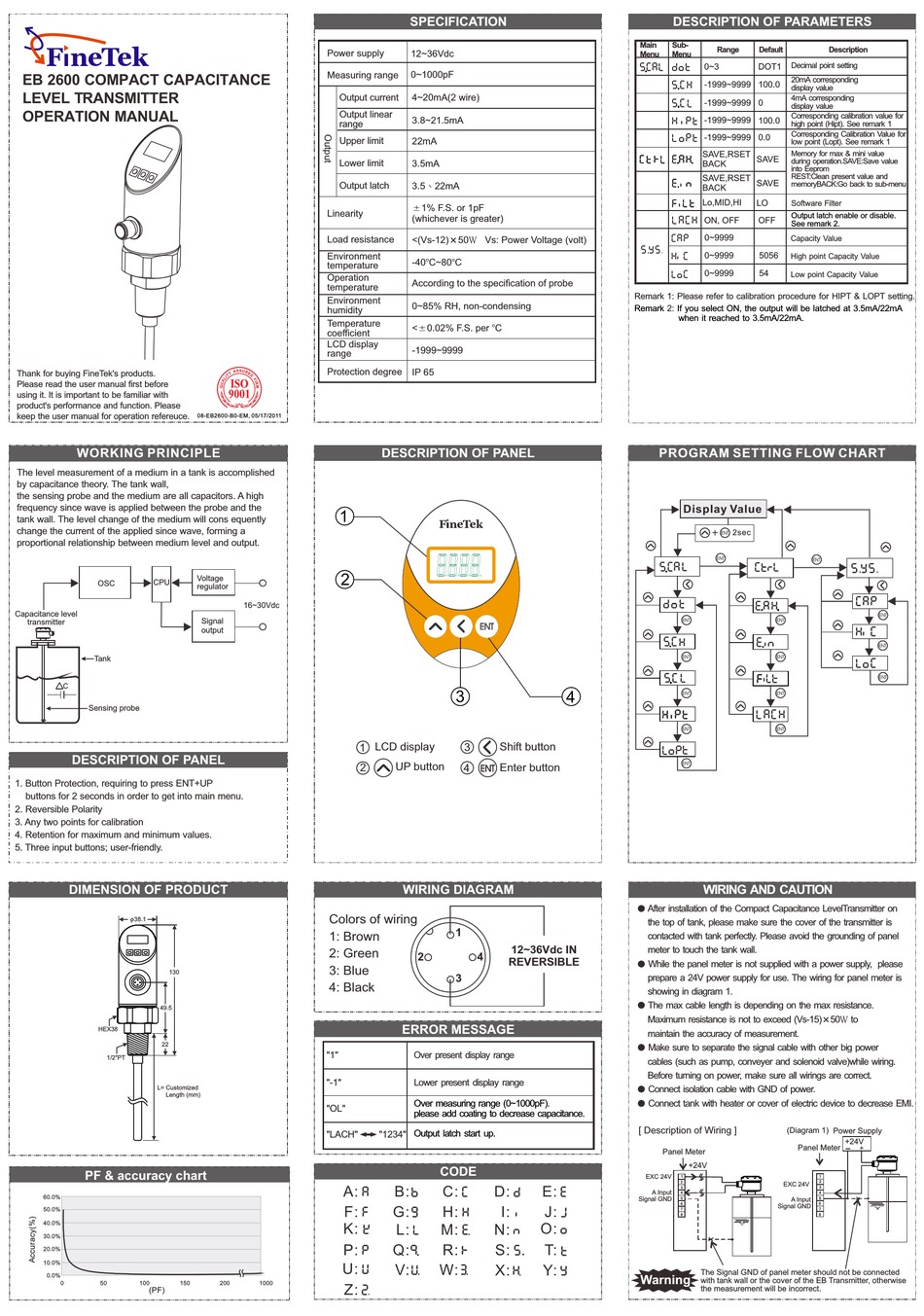

FineTek EB 2600 Operation Manual

EB 2600 COMPACT CAPACITANCE
LEVEL TRANSMITTER
OPERATION MANUAL
Thank for buying FineTek's products.
Please read the user manual first before
using it. It is important to be familiar with
product's performance and function. Please
keep the user manual for operation refereuce.
WORKING PRINCIPLE
The level measurement of a medium in a tank is accomplished
by capacitance theory. The tank wall,
the sensing probe and the medium are all capacitors. A high
frequency since wave is applied between the probe and the
tank wall. The level change of the medium will cons equently
change the current of the applied since wave, forming a
proportional relationship between medium level and output.
CPU
OSC
Capacitance level
transmitter
Tank
Sensing probe
DESCRIPTION OF PANEL
1. Button Protection, requiring to press ENT+UP
buttons for 2 seconds in order to get into main menu.
2. Reversible Polarity
3. Any two points for calibration
4. Retention for maximum and minimum values.
5. Three input buttons; user-friendly.
DIMENSION OF PRODUCT
f38.1
130
49.5
HEX38
22
1/2"PT
L= Customized
Length (mm)
PF & accuracy chart
60.0%
50.0%
40.0%
30.0%
20.0%
10.0%
0.0%
0 50 100 150
(PF)
Power supply
Measuring range
Output current
Output linear
range
Upper limit
Lower limit
Output latch
Linearity
Load resistance
Environment
temperature
Operation
temperature
Environment
humidity
Temperature
coefficient
LCD display
range
Protection degree
08-EB2600-B0-EM, 05/17/2011
1
2
Voltage
regulator
16~30Vdc
Signal
output
1
2
Colors of wiring
1: Brown
2: Green
3: Blue
4: Black
"1"
"-1"
"OL"
"LACH"
A:
F:
K:
P:
U:
200 1000
Z:
SPECIFICATION
12~36Vdc
0~1000pF
4~20mA( 2 wire )
3.8~21.5mA
22mA
3.5mA
3.5、22mA
A1% F.S. or 1pF
(whichever is greater)
<(Vs-12)H50W Vs: Power Voltage (volt)
-40BC~80BC
According to the specification of probe
0~85% RH, non-condensing
<A0.02% F.S. per BC
-1999~9999
IP 65
DESCRIPTION OF PANEL
ENT ENT
3
LCD display Shift button
3
UP button
4 Enter button
WIRING DIAGRAM
1
12~36Vdc IN
2 4
REVERSIBLE
3
ERROR MESSAGE
Over present display range
Lower present display range
Over measuring range (0~1000pF).
please add coating to decrease capacitance.
Output latch start up.
"1234"
CODE
B: C: D: E:
G: H: I: J:
O:
L: M: N:
Q: R: S: T:
V: W:
X: Y:
DESCRIPTION OF PARAMETERS
Main Sub-
Range
Menu Menu
0~3
-1999~9999
-1999~9999
-1999~9999
-1999~9999
SAVE,RSET
BACK
SAVE,RSET
BACK
Lo,MID,HI
ON, OFF
0~9999
0~9999
0~9999
Remark 1: Please refer to calibration procedure for HIPT & LOPT setting.
Remark 2: If you select ON, the output will be latched at 3.5mA/22mA
when it reached to 3.5mA/22mA.
PROGRAM SETTING FLOW CHART
Display Value
2sec
4
WIRING AND CAUTION
2 After installation of the Compact Capacitance LevelTransmitter on
the top of tank, please make sure the cover of the transmitter is
contacted with tank perfectly. Please avoid the grounding of panel
meter to touch the tank wall.
2 While the panel meter is not supplied with a power supply, please
prepare a 24V power supply for use. The wiring for panel meter is
showing in diagram 1.
2 The max cable length is depending on the max resistance.
Maximum resistance is not to exceed (Vs-15)H50W to
maintain the accuracy of measurement.
2 Make sure to separate the signal cable with other big power
cables (such as pump, conveyer and solenoid valve)while wiring.
Before turning on power, make sure all wirings are correct.
2 Connect isolation cable with GND of power.
2 Connect tank with heater or cover of electric device to decrease EMI.
[ Description of Wiring ]
Panel Meter
+24V
EXC 24V
1
2
3
A Input
4
Signal GND 5
6
7
8
The Signal GND of panel meter should not be connected
Warning
with tank wall or the cover of the EB Transmitter, otherwise
the measurement will be incorrect.
Default Description
Decimal point setting
DOT1
20mA corresponding
100.0
display value
4mA corresponding
0
display value
Corresponding calibration value for
100.0
high point (Hipt). See remark 1
Corresponding Calibration Value for
0.0
low point (Lopt). See remark 1
Memory for max & mini value
SAVE
during operation.SAVE:Save value
into Eeprom
REST:Clean present value and
SAVE
memoryBACK:Go back to sub-menu
LO
Software Filter
Output latch enable or disable.
OFF
See remark 2.
Capacity Value
5056
High point Capacity Value
54
Low point Capacity Value
(Diagram 1) Power Supply
+24V
Panel Meter
1
2
EXC 24V
3
4
A Input 5
6
Signal GND
7
8
