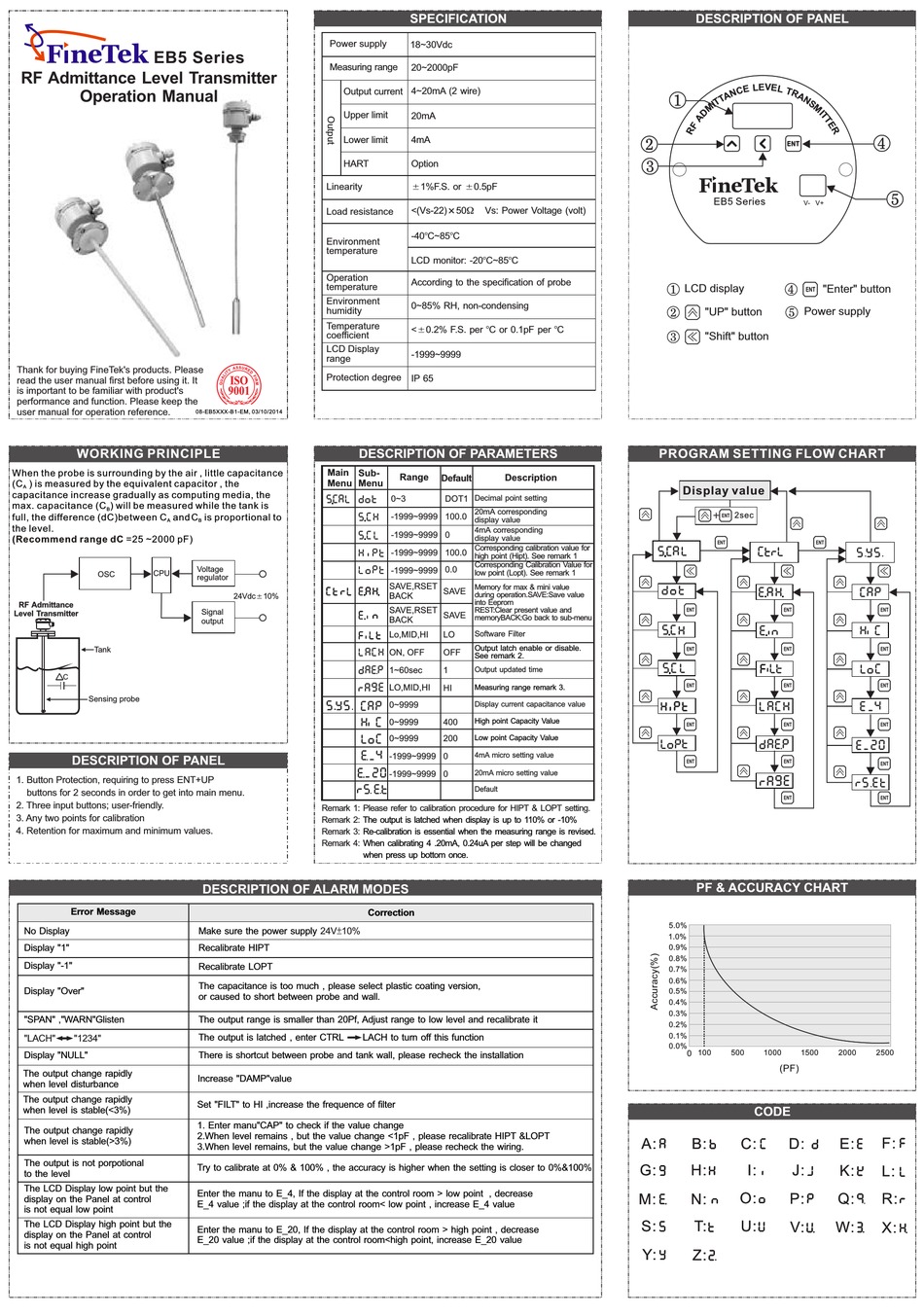

FineTek EB5 Series Operation Manual

EB5 Series
RF Admittance Level Transmitter
Operation Manual
Thank for buying FineTek's products. Please
read the user manual first before using it. It
is important to be familiar with product's
performance and function. Please keep the
user manual for operation reference.
WORKING PRINCIPLE
When the probe is surrounding by the air , little capacitance
(C ) is measured by the equivalent capacitor , the
A
capacitance increase gradually as computing media, the
max. capacitance (C ) will be measured while the tank is
B
full, the difference (dC)between C and C is proportional to
A
the level.
(Recommend range dC =25 ~2000 pF)
CPU
OSC
RF Admittance
Level Transmitter
Tank
Sensing probe
DESCRIPTION OF PANEL
1. Button Protection, requiring to press ENT+UP
buttons for 2 seconds in order to get into main menu.
2. Three input buttons; user-friendly.
3. Any two points for calibration
4. Retention for maximum and minimum values.
Error Message
No Display
Display "1"
Display "-1"
Display "Over"
"SPAN" ,"WARN"Glisten
"LACH" "1234"
Display "NULL"
The output change rapidly
when level disturbance
The output change rapidly
when level is stable(<3%)
The output change rapidly
when level is stable(>3%)
The output is not porpotional
to the level
The LCD Display low point but the
display on the Panel at control
is not equal low point
The LCD Display high point but the
display on the Panel at control
is not equal high point
Power supply
Measuring range
Output current
Upper limit
Lower limit
HART
Linearity
Load resistance
Environment
temperature
Operation
temperature
Environment
humidity
Temperature
coefficient
LCD Display
range
Protection degree
08-EB5XXX-B1-EM, 03/10/2014
DESCRIPTION OF PARAMETERS
Main Sub-
Menu Menu
B
Voltage
regulator
24VdcA10%
Signal
output
Remark 1: Please refer to calibration procedure for HIPT & LOPT setting.
Remark 2: The output is latched when display is up to 110% or -10%
Remark 3: Re-calibration is essential when the measuring range is revised.
Remark 4: When calibrating 4 .20mA, 0.24uA per step will be changed
when press up bottom once.
DESCRIPTION OF ALARM MODES
Correction
Make sure the power supply 24V±10%
Recalibrate HIPT
Recalibrate LOPT
The capacitance is too much , please select plastic coating version,
or caused to short between probe and wall.
The output range is smaller than 20Pf, Adjust range to low level and recalibrate it
The output is latched , enter CTRL LACH to turn off this function
There is shortcut between probe and tank wall, please recheck the installation
Increase "DAMP"value
Set "FILT" to HI ,increase the frequence of filter
1. Enter manu"CAP" to check if the value change
2.When level remains , but the value change <1pF , please recalibrate HIPT &LOPT
3.When level remains, but the value change >1pF , please recheck the wiring.
Try to calibrate at 0% & 100% , the accuracy is higher when the setting is closer to 0%&100%
Enter the manu to E_4, If the display at the control room >
E_4 value ;if the display at the control room< low point , increase E_4 value
Enter the manu to E_20, If the display at the control room >
E_20 value ;if the display at the control room<high point, increase E_20 value
SPECIFICATION
18~30Vdc
20~2000pF
4~20mA ( 2 wire )
20mA
4mA
Option
A1%F.S. or A 0.5pF
<(Vs-22)H50W Vs: Power Voltage (volt)
-40BC~85BC
LCD monitor: -20BC~85BC
According to the specification of probe
0~85% RH, non-condensing
<A0.2% F.S. per BC or 0.1pF per BC
-1999~9999
IP 65
Range Description
Default
Decimal point setting
0~3 DOT1
20mA corresponding
-1999~9999 100.0
display value
4mA corresponding
-1999~9999 0
display value
Corresponding calibration value for
-1999~9999 100.0
high point (Hipt). See remark 1
Corresponding Calibration Value for
0.0
-1999~9999
low point (Lopt). See remark 1
SAVE,RSET
Memory for max & mini value
SAVE
BACK during operation.SAVE:Save value
into Eeprom
SAVE,RSET
REST:Clear present value and
SAVE
memoryBACK:Go back to sub-menu
BACK
Lo,MID,HI LO Software Filter
Output latch enable or disable.
ON, OFF OFF
See remark 2.
1~60sec 1 Output updated time
LO,MID,HI HI Measuring range remark 3.
0~9999 Display current capacitance value
0~9999 400 High point Capacity Value
0~9999 200 Low point Capacity Value
-1999~9999 0 4mA micro setting value
-1999~9999 0 20mA micro setting value
Default
low point , decrease
high point , decrease
DESCRIPTION OF PANEL
LCD display
"UP" button Power supply
"Shift" button
PROGRAM SETTING FLOW CHART
Display value
2sec
PF & ACCURACY CHART
