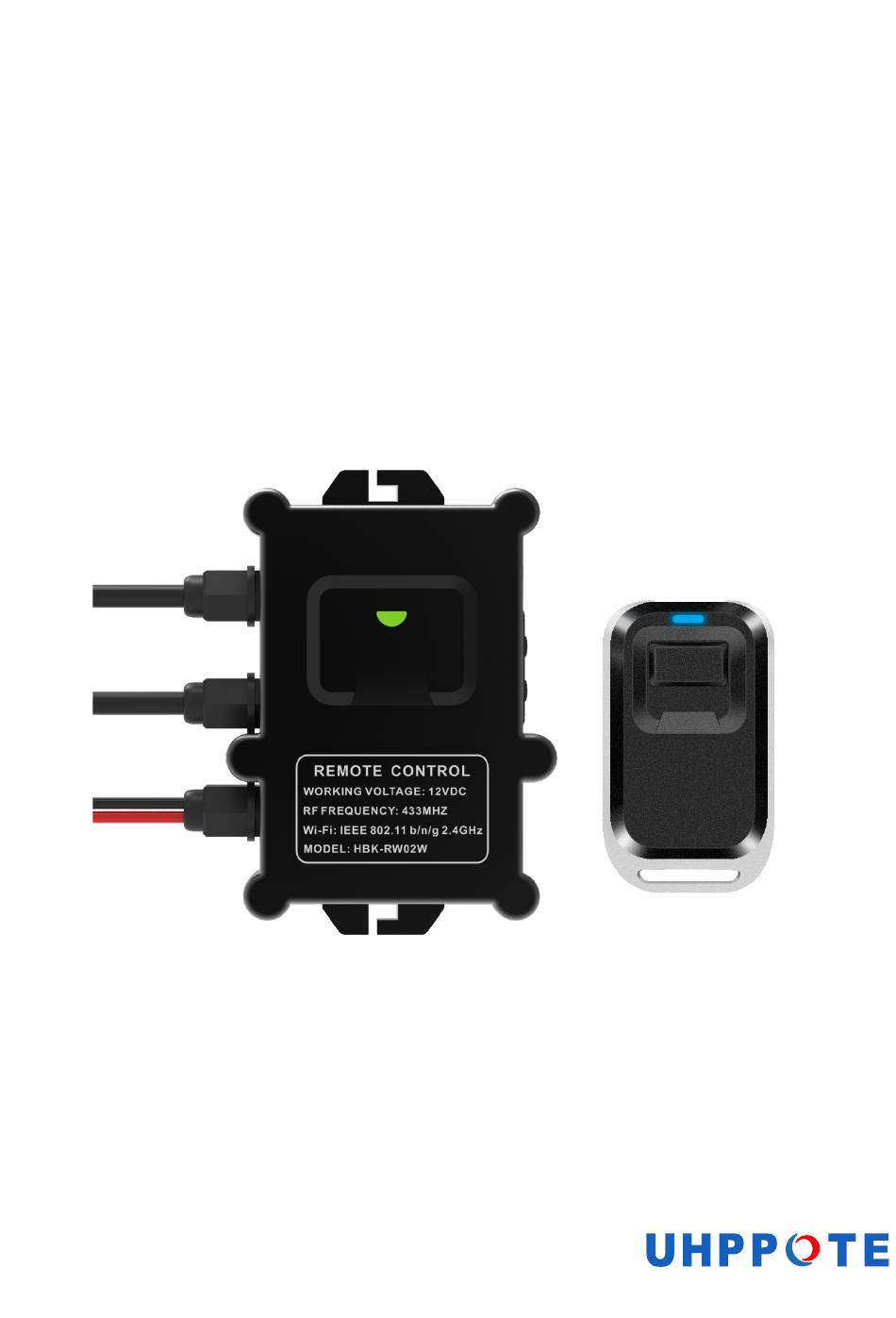

- Page 1 WIFI REMOTE CONTROL USER MANUAL HBK-RW02W...
-
Page 2: Main Features
Thank you for choosing the waterproof remote control switch provided by us. Our goal is to provide the best products and service to all of you! PRECAUTION For avoidance of damage to the product or injury to the people, please carefully read this manual before use and keep it for future reference. -
Page 3: Main Components
MAIN COMPONENTS Components Model Manufacturer STM8S003F3 Linear Regulator SPX117-3.3 SIPEX RF Transceiver Chip SYN500R SYNOXO Relay OMRON WiFi Module PSF-B ( FCC ID: 2AE2JPSF-B85 eWeLink WIRING DIAGRAM WHITE EXIT BUTTON BLUE REMOTE CONTROL GRAY FAIL-SAFE LOCK ORANGE PURPLE FAIL-SECURE LOCK WHITE: INPUT:100-240VAC BLUE:... -
Page 4: Operating Settings
OPERATING SETTINGS 1.Transmitter Pairing Press the RF-KEY on the remote receiver once, the indicator on it will flash green quickly. Then press the button on the remote transmitter within 20 seconds, the LED indicator on the receiver will flash green three times to indicate the paring is successful. WIFI Remote Control Remote Transmitter 2.Working Mode Setting... -
Page 5: Verification Code
eWeLink APP OPERATION GUIDE 1.D ownload eWeLink APP APP Store eWeLink Search for eWeLink Search for “eWeLink” Search "eWeLink" in APP Store for iOS version or Google Play for Android version. Android eWeLink iOS eWeLink 2.Registration and Login Select your country/region code and click "Next", and then input a valid email address and click "Verification Code". - Page 6 3.W iFi Pairing Step 1. Power up the remote control receiver with 12VDC power. Step 2. Click the "+" device icon or "Add" on the home page and then choose "Quick Pairing" to enter pairing mode via the smartphone. China Mobile 4G China Mobile 4G 17:07 17:06...
-
Page 7: Add Device
Step 5. The eWeLink APP will auto-search and Step 4. Press and hold the WIFI-KEY on the Remote receiver for 5 seconds until the indicator connect to the receiver. flashes red quickly. China Mobile 4G 17:06 87﹪ My Home Connecting Please set the device in pairing mode based the user manual. -
Page 8: Device Settings
4. About Inching (If you need this function, please activate it and then set the inching duration according to your needs.) Click "…" in the top right corner and you can see the inching function as shown in the picture below. China Mobile 4G 17:07 87﹪... -
Page 9: Troubleshooting
TROUBLE SHOOTING 1. Q: Why does not the transmitter’s LED light up when I press the button on it? A: The battery power may be exhausted. Please replace the battery. 2. Q: Why can’t the lock be unlocked after pressing the transmitter? A: Please check the issue by the following steps: a: Check whether the remote control receiver and transmitter are paired successfully. - Page 10 We Create Security Focus on the access control system industry, making home security within reach.
