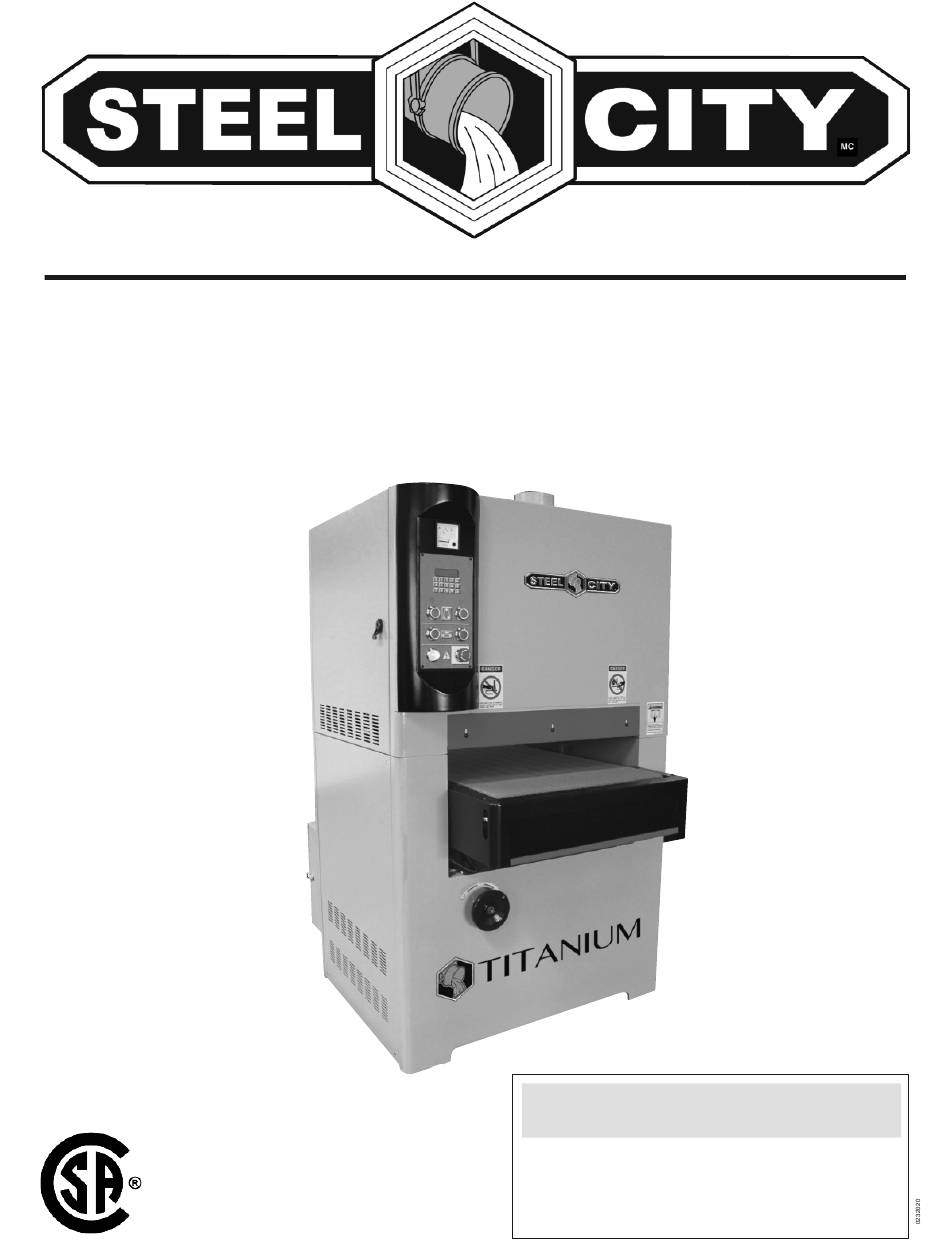

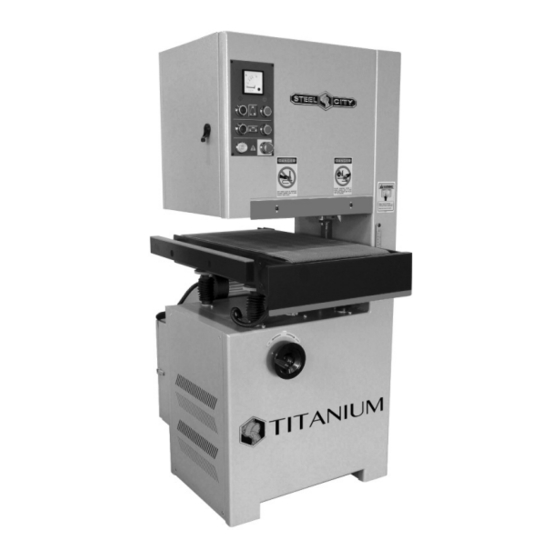

- Page 1 OWNER’S MANUAL TITANIUM SERIES 25” WIDE BELT SANDER 50-510 For technical support, provide the following model and serial numbers: Model No: ______________________ Serial No: ______________________...
- Page 2 The manufacturer warrants its machines to be free from defects in workmanship and materials for a period of 2 years from the date of the original purchase for Steel City shop machines or for a period of 1 year for Titanium production machines;...
-
Page 3: Table Of Contents
The drawings, illustrations, photographs, and specifications in this user manual represent your machine at time of print. However, changes may be made to your machine or this manual at any time with no obligation to Steel City. PRODUCT SPECIFICATIONS Main motor... -
Page 4: Safety
SAFETY This manual is not totally comprehensive. It does not and can not convey every possible safety and operational problem which may arise while using this machine. The manual will cover many of the basic and specific safety procedures needed in an industrial environment. WARNING All federal and state laws and any regulations having jurisdiction covering the safety requirements for use of this... - Page 5 4. Prevent electrical shock. Follow all electrical and safety Keep floor clear of debris, grease, and wax. codes, including the National Electrical Code (NEC) and 22. DO NOT operate any machine or tool if under the the Occupational Safety and Health Regulations influence of drugs, alcohol, or medication.
-
Page 6: Product Safety
PRODUCT SAFETY ◊ ADDITIONAL SAFETY – WIDE .. ◊ Minimum dimensions BELT SANDERS Never sand pieces that are below the minimum dimensions to avoid kickback. WARNING ◊ Material The use of a wide belt sander is a source of serious Do not sand any material other than wood. -
Page 7: Electrical And Grounding Instructions
ELECTRICAL AND GROUNDING INSTRUCTIONS WARNING IMPROPER ELECTRICAL CONNECTION equipment-grounding conductor can result in risk of electric To reduce the risk of electric shock, follow all shock. The conductor with the green insulation (with or electrical and safety codes, including the without yellow stripes) is the equipment-grounding National Electric Code (NEC) and the conductor. -
Page 8: Feature Identification
FEATURE IDENTIFICATION A. Control panel B. Dust outlet ports FRONT VIEW C. Access door D. Electrical cubicle E. Table height handwheel F. Conveyor variable speed (in the back) G. Air pressure regulator (in the back) H. Emergency stop push bar A. -
Page 9: Unpacking And Inventory
UNPACKING AND INVENTORY ◊ MOVING THE MACHINE ◊ CLEANING WARNING Anti-corrosive oil is applied to the machine before shipment. After unpacking, clean the anti-corrosive oil with soft cloths and appropriate cleaning product. Do This machine is heavy and not use lacquer thinner, acetone or other volatile should be moved to its solvents, as they can damage painted surfaces. -
Page 10: Installation
INSTALLATION ◊ DUST COLLECTION ◊ CLEANING CAUTION: Anticorrosive oil is applied to the machine before This machine creates a lot of dust during operation. shipment. It can be removed by using WD40 on the Make sure to use adequate dust collector and coated parts and wipe it off with a soft cloth. - Page 11 ◊ INSTALLING / REPLACING SANDING BELT 1. Disconnect machine from power source. 2. Open the left access door; turn the belt tension knob (A) to the ‘OFF’ position (left) to release pressure. 3. Remove the pad lock lever (B) by turning it counterclockwise and pull it up.
-
Page 12: Adjustments
ADJUSTMENTS ◊ SANDING BELT TENSION ◊ TABLE MOVEMENT The height of the table can be manually adjusted by mean of the handwheel (F) located below the table, The tension of the sanding belt is controlled by an air cylinder. Turn the belt tension knob to put or remove tension on the belt. - Page 13 ◊ SANDING PLATEN The oscillation timing is the time it takes for the sanding belt to oscillate from right-to-left and from left-to-right. This The combi head has an adjustable felt platen with a oscillation should take the same amount of time. If graphite pad.
- Page 14 ◊ FEED SPEED The conveyor belt has variable speed , controlled by the speed selector dial (O) of the worm gear reducer mounted on the conveyor, in the back of the sander. ◊ V-BELT TENSION Turn the dial clockwise to decrease the speed, counter-clockwise to increase it.
- Page 15 ◊ BRAKE SYSTEM If any of the safety components did not work, it is mandatory to have them repaired prior to using the The sander will automatically stop if any of the following sander, to avoid serious injuries. occurs: - No air supply to the machine - No sanding belt installed - Improper belt tension - Sanding belt runs out of track...
-
Page 16: Operation
OPERATION ◊ OVERVIEW ◊ USING THE PLATEN This section is only to provide a basic understanding on The sander is equipped with a platen with a graphite how the sander is used. This supposes that the sander pad. It is used during finish sanding to create a buffed is carefully checked, adjusted and in ready-to-run like look and prepare the piece for final hand sanding condition. -
Page 17: Maintenance
MAINTENANCE ◊ LUBRICATION AND MAINTENANCE 1. The machine interior should be thoroughly cleaned every day after work. Remove the sanding belts before cleaning and replace them afterwards. 2. The bearings should be greased after every 100 hrs of use. 3. The water should be drained from the filter cups regularly. -
Page 18: Electrical Schematic
ELECTRICAL SCHEMATIC Page 18... -
Page 19: Parts List
PARTS LIST S50510A007-2 S50510A008 S50510A009 S50510A001 S50510A010 S50510A002 S50510A011 S50510A003 S50510A012 S50510A004 S50510A013 S50510A005 S50510A006 S50510A007-1 Page 19... - Page 20 Page 20...
- Page 21 S50510B101 S50510B129 S50510B132 S50510B102 S50510B103 S50510B133 S50510B104 S50510B201 S50510B105 S50510B202 S50510B106 S50510B203 S50510B107 S50510B204 S50510B108 S50510B205 S50510B109 S50510B206 S50510B109-1 S50510B208 S50510B109-2 S50510B209 S50510B110 S50510B210 S50510B111 S50510B211 S50510B112 S50510B212 S50510B113 S50510B213 S50510B114 S50510B301 S50510B115 S50510B301-1 S50510B116 S50510B302-1 S50510B117 S50510B302-2 S50510B118 S50510B303 S50510B119 S50510B304 S50510B121...
- Page 22 Page 22...
- Page 23 S50510C101 S50510C317 S50510C102 S50510C318 S50510C103 S50510C319 S50510C104 S50510C320 S50510C105 S50510C321 S50510C106 S50510C322 S50510C107 S50510C323 S50510C108 S50510C324 S50510C109 S50510C325 S50510C110 S50510C326 S50510C111 S50510C327 S50510C328 S50510C201 S50510C331 S50510C202 S50510C332 S50510C203 S50510C333 S50510C204 S50510C334 S50510C206 S50510C335 S50510C336 S50510C301 S50510C337 S50510C302 S50510C338 S50510C303 S50510C339 S50510C304 S50510C340 S50510C305...
- Page 24 Page 24...
- Page 25 S50510D132 S50510D101 S50510D133 S50510D102 S50510D103 S50510D135 S50510D136 S50510D104 S50510D137 S50510D105 S50510D138 S50510D106 S50510D140 S50510D107 S50510D141 S50510D108 S50510D142 S50510D109 S50510D143 S50510D110 S50510D144 S50510D111 S50510D145 S50510D112 S50510D146 S50510D113 S50510D114 S50510D201 S50510D115 S50510D202 S50510D116 S50510D203 S50510D117 S50510D204 S50510D118 S50510D205 S50510D119 S50510D206 S50510D120 S50510D121 S50510D301 S50510D123 S50510D302...
- Page 26 Page 26...
- Page 27 S50510E101 S50510E102 S50510E103 S50510E104 S50510E105 S50510E106 S50510E107 S50510E108 S50510E109 S50510E201 S50510E202 S50510E203 S50510E204 S50510E205 Page 27...
- Page 28 Page 28...
- Page 29 S50510F101 S50510F306 S50510F102 S50510F307 S50510F103 S50510F308 S50510F104 S50510F309 S50510F105 S50510F310 S50510F106 S50510F311 S50510F107 S50510F312 S50510F108 S50510F313 S50510F109 S50510F314 S50510F110 S50510F315 S50510F111 S50510F316 S50510F112 S50510F317 S50510F113 S50510F318 S50510F114/115 S50510F319 S50510F116 S50510F320 S50510F117 S50510F321 S50510F118 S50510F322 S50510F119 S50510F323 S50510F201 S50510F401 S50510F202 S50510F402 S50510F203 S50510F403 S50510F204...
- Page 30 Page 30...
- Page 31 S50510G101 S50510G101-1 S50510G102 S50510G102-1 S50510G103 S50510G103-1 S50510G104 S50510G104-1 S50510G105 S50510G106 S50510G107 S50510G108 S50510G109 S50510G110 S50510G111 S50510G112 S50510G113 S50510G114 S50510G115 S50510G116 S50510G117 S50510G118 S50510G119 S50510G120 S50510G121 S50510G122 S50510G123 S50510G124 S50510G125 S50510G125-1 S50510G126 S50510G127 S50510G128 S50510G129 S50510G130 Page 31...
- Page 32 Page 32...
- Page 33 Page 33...
- Page 34 Page 34...
- Page 35 Page 35...
- Page 36 Page 36...
- Page 37 Page 37...
- Page 38 S50510J101 S50510J120 S50510J102 S50510J121 S50510J103 S50510J122 S50510J104 S50510J123 S50510J105 S50510J124 S50510J106 S50510J125 S50510J107 S50510J126 S50510J108 S50510J127 S50510J109 S50510J128 S50510J110 S50510J129 S50510J111 S50510J131 S50510J112 S50510J132 S50510J113 S50510J133 S50510J114 S50510J134 S50510J115 S50510J135 S50510J116 S50510J136 S50510J117 S50510J137 S50510J118 S50510J138 S50510J119 Page 38...
- Page 39 Page 39...
- Page 40 NOTES Page 40...
