PZ 69E Operating Manual
E-663
Release: 2.1.0
Date: 2004-01-09
LVPZT Amplifier
This document describes the
following product(s):
E-663.00
Three-Channel Amplifier for Low Voltage PZTs
© Physik Instrumente (PI) GmbH & Co. KG
Auf der Römerstr. 1 ⋅ 76228 Karlsruhe, Germany
Tel. +49 721 4846-0 ⋅ Fax: +49 721 4846-299
s ⋅ www.pi.ws
info@pi.w
Advertisement
Table of Contents
Related Manuals for Physik Instrumente E-663
Summary of Contents for Physik Instrumente E-663
- Page 1 This document describes the following product(s): E-663.00 Three-Channel Amplifier for Low Voltage PZTs © Physik Instrumente (PI) GmbH & Co. KG Auf der Römerstr. 1 ⋅ 76228 Karlsruhe, Germany Tel. +49 721 4846-0 ⋅ Fax: +49 721 4846-299 s ⋅ www.pi.ws...
- Page 2 Line Power and Fuses ..............6 3. Modes of Operation 4. Starting Operation 5. E-663 Technical Data 6. Frequency Response Curves © Copyright 1996-2005 by Physik Instrumente (PI) GmbH & Co. KG Release: 2.1.0 File:E-663_User_PZ69E210.doc, 360960 Bytes Release 2.1.0 www.pi.ws Page 2...
- Page 3 0.2. Quality and Warranty Clauses Certification Physik Instrumente (PI) certifies that this product met its published specifications at the time of shipment. The device was calibrated and tested with the PZT actuators specified in the product identification table (see below).
- Page 4 Three 3½-digit LEDs display the output voltage. E-663 LVPZT amplifiers can be used for static and dynamic applications. The excellent output stability and linearity allow the device to be used with high- resolution positioning systems.

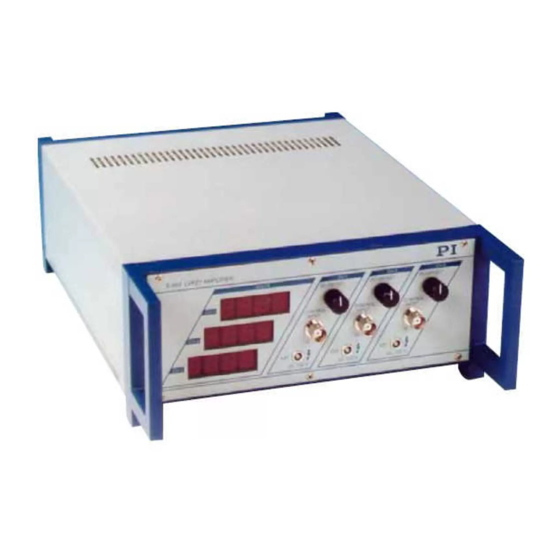

- Page 5 E-663.00 LVPZT Amplifier User Manual PZ 69E E-663 General Description E-663 PZT drivers have three individual amplifier channels to drive three LVPZTs. Each channel is equipped with a 10-turn potentiometer for manual control of the output voltage (DC-offset setting). External analog control signals can be connected to the BNC sockets on the front panel.
- Page 6 E-663.00 LVPZT Amplifier User Manual PZ 69E 2.2. Line Power and Fuses The power connection, input voltage selection and line fuses are located on the rear panel. Unless you request a specific setting, the unit will be set up for the line voltage we believe predominant in your country.
- Page 7 Be aware of the risk of injury if not following general accident prevention regulations! Before you power up the E-663, check whether the AC operating voltage is set to the right value (verify the specified line voltage at the rear panel).
- Page 8 E-663.00 LVPZT Amplifier User Manual PZ 69E E-663 Technical Data Function: Amplifier for low-voltage PZTs Channels: Output voltage range -20 to +120 V Control signal input range: -2 to +12 V Voltage Gain: 10 (+/- 0.1) Peak output current (< 5 ms): 140 mA / channel Average output current (>...
