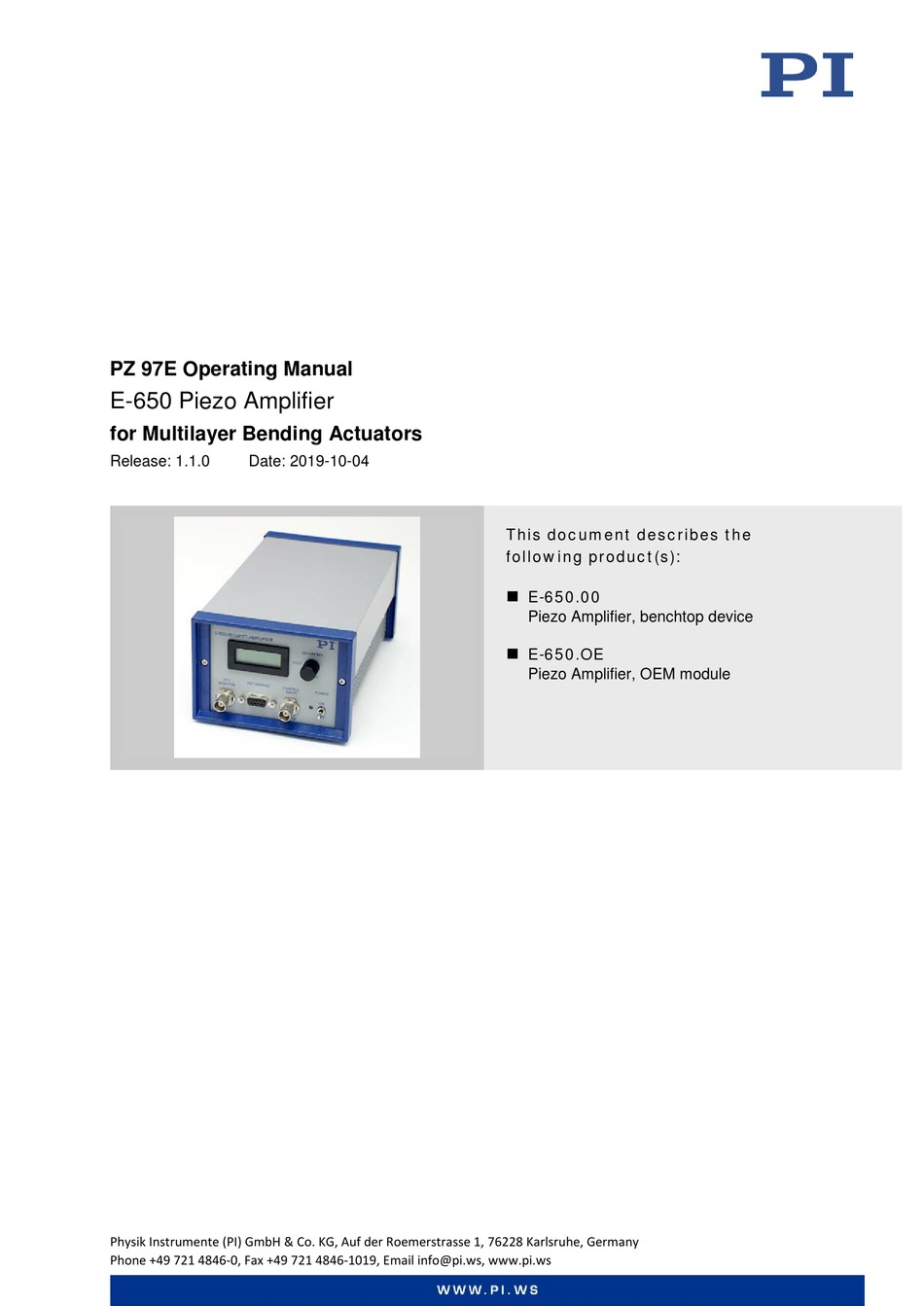

PZ 97E Operating Manual
E-650 Piezo Amplifier
for Multilayer Bending Actuators
Release: 1.1.0
Date: 2019-10-04
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws
This document describes the
following product(s):
E-650.00
Piezo Amplifier, benchtop device
E-650.OE
Piezo Amplifier, OEM module
Advertisement
Table of Contents
Related Manuals for Physik Instrumente E-650 Series
Summary of Contents for Physik Instrumente E-650 Series
- Page 1 This document describes the following product(s): E-650.00 Piezo Amplifier, benchtop device E-650.OE Piezo Amplifier, OEM module Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws...
- Page 2 With regard thereto, Physik Instrumente (PI) GmbH & Co. KG retains all the rights. The use of any text, images and drawings is permitted only in part and only when indicating the source.
-
Page 3: Table Of Contents
Contents Safety Intended Use ................2 General Safety Instructions ............2 Organizational Measures ............3 Personnel Qualification ............. 4 Introduction Model Overview ................ 6 Scope of Delivery ..............6 E-650.00 Benchtop Device Front Panel Elements..............7 Rear Panel Elements ..............7 Operation .................. -
Page 4: Safety
Safety Safety Intended Use The E-650 is a laboratory device according to DIN EN 61010-1. It is intended to be used in interior spaces and in an environment which is free of dirt, oil and lubricants. The E-650 is designed and intended for driving capacitive loads (e. -
Page 5: Organizational Measures
Safety If an E-650 OEM module is operated without a housing, live parts will be accessible. Touching the live parts can result in minor injury. Electrical, magnetic and electromagnetic fields emitted by live parts can disturb the E-650 OEM module and/or the environment. -
Page 6: Personnel Qualification
Safety Only use the device on the basis of the complete user documentation. Missing information due to an incomplete user documentation can result in minor injury as well as property damage. Only install and operate the E-650 after having read and understood this user manual. -
Page 7: Introduction
Introduction Introduction E-650.00 is a benchtop amplifier especially designed for ® PICMA multilayer bender actuators from PI such as the PL-112 to PL-140. It contains one amplifier that can output and sink a peak current of 300 mA. An OEM version is also available (E-650.OE, see p. 10). Features: ... -
Page 8: Model Overview
Introduction Model Overview E-650.00 Piezo amplifier for multilayer bender actuators, benchtop device E-650.OE Piezo OEM amplifier for multilayer bender actuators, OEM module Scope of Delivery PZ97E User manual for E-650, this document E-650.00 benchtop device only: C-501.15050H Wide-range, 15 V power supply, 50 W, with power cord (#3763) E-650.90 OEM cable for PZT connection, D-sub... -
Page 9: 650.00 Benchtop Device
E-650.00 Benchtop Device E-650.00 Benchtop Device Front Panel Elements A 3 1/2 digit LCD display reads the output voltage. Marking Element "DC-Offset" 10-turn potentiometer for DC bias 0 to +60 Volts "PZT Monitor" Piezo voltage monitor, 0 …+10 V, BNC connector "PZT Output"... -
Page 10: Block Diagram
E-650.00 Benchtop Device Block Diagram Fig. 2: Block Diagram Pin Assignment "PZT Output" connector Fig. 3: Pin Assignment Pin 1 is internally connected to pin 2 and pin 4 is internally connected to pin 5, so that the appropriate output voltages are present on both pins of such a "pair"... -
Page 11: C-501.15050H Power Supply
E-650.00 Benchtop Device C-501.15050H Power Supply 3.34A @+15VCD output, 100-240 VAC input Center pin, +15VDC, 2.1 mm diameter Specifications TECHNICAL DATA: E-650.00 Function Power amplifier Channels Maximum output power 18 W Average output power Peak output current < 5 ms 300 mA Average output current >... -
Page 12: 650.Oe Oem Module
E-650.OE OEM Module E-650.OE OEM Module Fig. 4: E-650.OE OEM Amplifier for Piezo Bender Actuators Operation Output voltage is controlled by an analog signal ranging from 0 to 10 V. Multiplying by the gain factor of 6, an output voltage range of 0 to 60 V results. -
Page 13: Block Diagram
E-650.OE OEM Module Block Diagram Fig. 5: E-650.OE Block diagram Specifications TECHNICAL DATA: E-650.OE Function Power amplifier Channels Maximum output power Average output power Peak output current < 5 ms 140 mA Average output current > 5 ms 60 mA per channel Current limitation Short-circuit proof Control input voltage... -
Page 14: Pin Assignment
E-650.OE OEM Module Pin Assignment Fig. 6: E-650.OE Pin Assignment www.pi.ws E-650 Piezo Amplifier PZ 97E Release 1.1.0 Page 12... -
Page 15: Maximum Ratings
Maximum Ratings Maximum Ratings The E-650 is designed for the following operating data: Maximum Operating Maximum Power Operating Voltage Frequency Consumption 15 V E-650.00: 24 W E-650.OE: 4.5 W www.pi.ws E-650 Piezo Amplifier PZ 97E Release 1.1.0 Page 13... -
Page 16: Ambient Conditions And Classifications
Ambient Conditions and Classifications Ambient Conditions and Classifications The following ambient conditions and classifications must be observed for the E-650: Area of application For indoor use only Maximum altitude 2000 m Relative humidity Highest relative humidity 80% for temperatures up to 31°C Decreasing linearly to 50% relative humidity at 40°C Operating temperature... -
Page 17: Cleaning
Cleaning 7 Cleaning E-650.00 bench-top units only: Disconnect the E-650.00 from the power source. Wait a minute to be sure that any residual voltage has dissipated. Clean the housing surfaces of the E-650.00 using mild detergents or disinfectant solutions. Prevent cleaning fluid from penetrating the housing. -
Page 18: Customer Service
Customer Service 8 Customer Service For inquiries and orders, contact your PI sales engineer or send us an email (mailto:service@pi.de). If you have any questions concerning your system, provide the following information: − Product and serial numbers of all products in the system −... -
Page 19: Old Equipment Disposal
In order to fulfil its responsibility as the product manufacturer, Physik Instrumente (PI) GmbH & Co. KG undertakes environmentally correct disposal of all old PI equipment made available on the market after 13 August 2005 without charge.
