Summary of Contents for ENERGY SISTEM tower7
-
Page 1: Table Of Contents
ENGLISH Introduction ..................................Care and maintenance ..............................Technical specifications ..............................AUDIO ..................................BLUETOOTH CONNECTIVITY ............................TWS COMPATIBLE WITH ............................... ANALOGUE INPUTS ..............................ANALOGUE OUTPUTS ..............................MEMORY CARD AND USB DECODER ..........................FM RADIO ..................................POWER SUPPLY ................................OTHER FEATURES ................................ Product content ................................ - Page 2 2/10 energysistem.com...
-
Page 3: Introduction

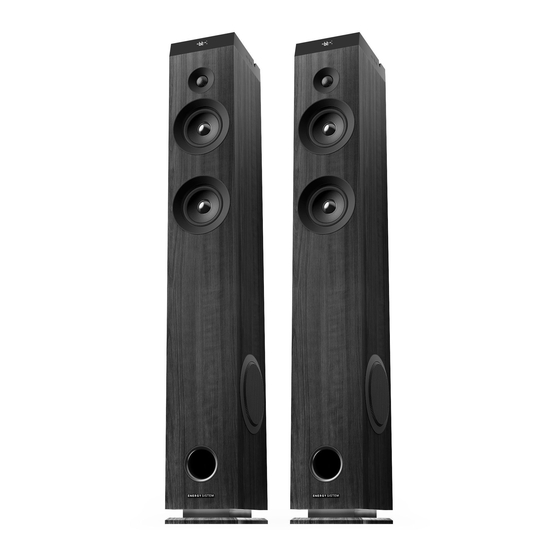

Introduction Thank you for your trust in our company and for buying the new Tower 7 True Wireless. We hope you enjoy it. This sound tower with 100 W power has been created to satisfy all musical needs that users may have at home. The product features Bluetooth 5.0 technology, FM radio, music playback from removable storage units (USB sticks and microSD cards) as well as 3.5 mm and RCA audio inputs. -
Page 4: Bluetooth Connectivity
Sound system: 2.1 stereo system Power: 100 W 1 x 1.5" silk dome tweeter with 10 W power 2 x 4" full range speakers with 20 W power each 1 x 5" subwoofer with 50 W power Bass reflex Frequency response: 20 Hz ~ 20 KHz Two-band analogue equalizer Wooden cabinet speakers BLUETOOTH CONNECTIVITY... -
Page 5: Connectivity And Commands
Audio cable Radio antenna Power cable Quick guide Connectivity and commands LED display Volume - Back Play/ Pause Next Volume + On/ Off Ambient Light Change function TWS connection RCA audio-out (AUX) 5/10 energysistem.com... -
Page 6: Switching On And Off The Device
RCA audio-in (AUX) USB charging port USB playback port MicroSD card slot 3.5 mm audio-in (AUX) FM radio antenna connector Treble equalizer Bass equalizer Power switch Power connector Change folder Mute Select repeat mode Switching on and off the device Once the power cable has been connected to the back of your Tower (21), connect the plug to the socket and move the power switch (20) to the ON position. -
Page 7: Playback Mode
If you turn off the device or remove any storage unit, the internal memory will save the moment when you paused playback. If you connect the same removable storage unit once again, playback will resume from the point at which it stopped. -
Page 8: Rca Audio-Out (Analogue Output)
You can use either the antenna provided with the product or connect the tower to the antenna outlet on the wall of your house using a RF coaxial IEC male to female cable. You will get better signal this way. RCA audio-out (analogue output) Your Tower 7 True Wireless features a RCA audio-out (AUX) (11) to connect other self-powered speakers featuring an analogue input and hear your music simultaneously through several speakers. -
Page 9: Usb Port To Charge External Devices
You can check the warranty terms here Declaration of conformity Issuer?s name: Energy Sistem Technology, S.A. - CIF: A53107488 Address: C/ Calpe, 1 - 03509 Finestrat, Alicante (Spain) Tel: +34 966 830 324 We declare under our own exclusive responsibility that the product... - Page 10 Brand: Energy Sistem Model: Tower 7 True Wireless Manufacturer: Energy Sistem Technology, S.A. Manufacturing country: China referred to in this declaration is in compliance with the essential norms and standards EN 50663:2017 EN 62479:2010 EN 62368-1:2020+A11:2020 EN 301 489-17 V3.2.2 (2019-12) EN 301 489-1 V2.2.3 (2019-11)
