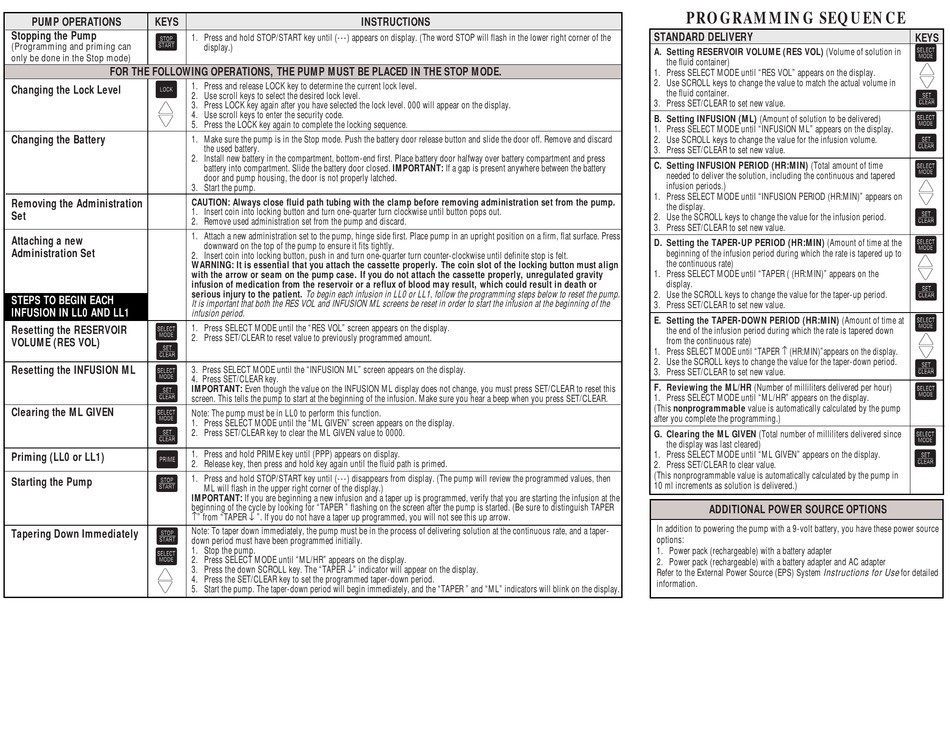

Deltec CADD-TPN 5700 Quick Reference

PUMP OPERATIONS KEYS
⁄
Stopping the Pump
(Programming and priming can
only be done in the Stop mode)
FOR THE FOLLOWING OPERATIONS, THE PUMP MUST BE PLACED IN THE STOP MODE.
Œ
Changing the Lock Level
´
Î
Changing the Battery
Removing the Administration
Set
Attaching a new
Administration Set
STEPS TO BEGIN EACH
INFUSION IN LL0 AND LL1
„
Resetting the RESERVOIR
VOLUME (RES VOL)
¤
„
Resetting the INFUSION ML
¤
„
Clearing the ML GIVEN
¤
‹
Priming (LL0 or LL1)
⁄
Starting the Pump
⁄
Tapering Down Immediately
„
´
Î
INSTRUCTIONS
1. Press and hold STOP/START key until (---) appears on display. (The word STOP will flash in the lower right corner of the
display.)
1. Press and release LOCK key to determine the current lock level.
2. Use scroll keys to select the desired lock level.
3. Press LOCK key again after you have selected the lock level. 000 will appear on the display.
4. Use scroll keys to enter the security code.
5. Press the LOCK key again to complete the locking sequence.
1. Make sure the pump is in the Stop mode. Push the battery door release button and slide the door off. Remove and discard
the used battery.
2. Install new battery in the compartment, bottom-end first. Place battery door halfway over battery compartment and press
battery into compartment. Slide the battery door closed. IMPORTANT: If a gap is present anywhere between the battery
door and pump housing, the door is not properly latched.
3. Start the pump.
CAUTION: Always close fluid path tubing with the clamp before removing administration set from the pump.
1. Insert coin into locking button and turn one-quarter turn clockwise until button pops out.
2. Remove used administration set from the pump and discard.
1. Attach a new administration set to the pump, hinge side first. Place pump in an upright position on a firm, flat surface. Press
downward on the top of the pump to ensure it fits tightly.
2. Insert coin into locking button, push in and turn one-quarter turn counter-clockwise until definite stop is felt.
WARNING: It is essential that you attach the cassette properly. The coin slot of the locking button must align
with the arrow or seam on the pump case. If you do not attach the cassette properly, unregulated gravity
infusion of medication from the reservoir or a reflux of blood may result, which could result in death or
serious injury to the patient. To begin each infusion in LL0 or LL1, follow the programming steps below to reset the pump.
It is important that both the RES VOL and INFUSION ML screens be reset in order to start the infusion at the beginning of the
infusion period.
1. Press SELECT MODE until the "RES VOL" screen appears on the display.
2. Press SET/CLEAR to reset value to previously programmed amount.
3. Press SELECT MODE until the "INFUSION ML" screen appears on the display.
4. Press SET/CLEAR key.
IMPORTANT: Even though the value on the INFUSION ML display does not change, you must press SET/CLEAR to reset this
screen. This tells the pump to start at the beginning of the infusion. Make sure you hear a beep when you press SET/CLEAR.
Note: The pump must be in LL0 to perform this function.
1. Press SELECT MODE until the "ML GIVEN" screen appears on the display.
2. Press SET/CLEAR key to clear the ML GIVEN value to 0000.
1. Press and hold PRIME key until (PPP) appears on display.
2. Release key, then press and hold key again until the fluid path is primed.
1. Press and hold STOP/START key until (---) disappears from display. (The pump will review the programmed values, then
ML will flash in the upper right corner of the display.)
IMPORTANT: If you are beginning a new infusion and a taper up is programmed, verify that you are starting the infusion at the
beginning of the cycle by looking for "TAPER " flashing on the screen after the pump is started. (Be sure to distinguish TAPER
↑" from "TAPER ↓ ". If you do not have a taper up programmed, you will not see this up arrow.
Note: To taper down immediately, the pump must be in the process of delivering solution at the continuous rate, and a taper-
down period must have been programmed initially.
1. Stop the pump.
2. Press SELECT MODE until "ML/HR" appears on the display.
3. Press the down SCROLL key. The "TAPER ↓" indicator will appear on the display.
4. Press the SET/CLEAR key to set the programmed taper-down period.
5. Start the pump. The taper-down period will begin immediately, and the "TAPER " and "ML" indicators will blink on the display.
PROGRAMMING SEQUENCE
STANDARD DELIVERY
A. Setting RESERVOIR VOLUME (RES VOL) (Volume of solution in
the fluid container)
1. Press SELECT MODE until "RES VOL" appears on the display.
2. Use SCROLL keys to change the value to match the actual volume in
the fluid container.
3. Press SET/CLEAR to set new value.
B. Setting INFUSION (ML) (Amount of solution to be delivered)
1. Press SELECT MODE until "INFUSION ML" appears on the display.
2. Use SCROLL keys to change the value for the infusion volume.
3. Press SET/CLEAR to set new value.
C. Setting INFUSION PERIOD (HR:MIN) (Total amount of time
needed to deliver the solution, including the continuous and tapered
infusion periods.)
1. Press SELECT MODE until "INFUSION PERIOD (HR:MIN)" appears on
the display.
2. Use the SCROLL keys to change the value for the infusion period.
3. Press SET/CLEAR to set new value.
D. Setting the TAPER-UP PERIOD (HR:MIN) (Amount of time at the
beginning of the infusion period during which the rate is tapered up to
the continuous rate)
1. Press SELECT MODE until "TAPER ( (HR:MIN)" appears on the
display.
2. Use the SCROLL keys to change the value for the taper-up period.
3. Press SET/CLEAR to set new value.
E. Setting the TAPER-DOWN PERIOD (HR:MIN) (Amount of time at
the end of the infusion period during which the rate is tapered down
from the continuous rate)
1. Press SELECT MODE until "TAPER ↑ (HR:MIN)"appears on the display.
2. Use the SCROLL keys to change the value for the taper-down period.
3. Press SET/CLEAR to set new value.
F. Reviewing the ML/HR (Number of milliliters delivered per hour)
1. Press SELECT MODE until "ML/HR" appears on the display.
(This nonprogrammable value is automatically calculated by the pump
after you complete the programming.)
G. Clearing the ML GIVEN (Total number of milliliters delivered since
the display was last cleared)
1. Press SELECT MODE until "ML GIVEN" appears on the display.
2. Press SET/CLEAR to clear value.
(This nonprogrammable value is automatically calculated by the pump in
10 ml increments as solution is delivered.)
ADDITIONAL POWER SOURCE OPTIONS
In addition to powering the pump with a 9-volt battery, you have these power source
options:
1. Power pack (rechargeable) with a battery adapter
2. Power pack (rechargeable) with a battery adapter and AC adapter
Refer to the External Power Source (EPS) System Instructions for Use for detailed
information.
