- Page 1 ASJ10-GQ Self-resetting over-voltage and under-voltage protector Installation and Operation Manual V1.1 Acrel CO., Ltd.
- Page 2 declare All rights reserved. Without the written permission of the company, the contents of any paragraphs and chapters in this manual shall not be excerpted, copied or copied or disseminated in any other form, otherwise all consequences shall be borne by the offender. The company reserves all legal rights.
-
Page 3: Table Of Contents
Contents ............................1 General ............................1 Features ........................1 Model and meaning ..........................2 main parameter .......................... 3 external structure .........................4 Installation wiring ..........................5 Operation guide ........................6 Application example ..........................7 Order example... -
Page 4: General

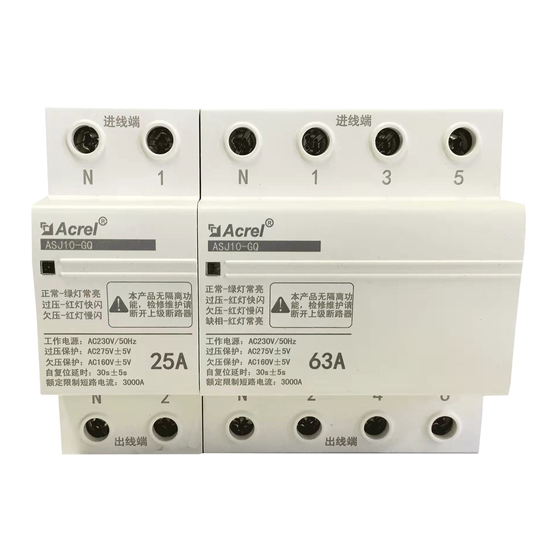

1 General ASJ10-GQ series Self-resetting over-voltage and under-voltage protector(referred to as ASJ) is suitable for single-phase AC voltage 230V or three-phase voltage 400V, frequency 45-65Hz,Users or loads with rated working current up to and including 63A. When the single-phase or three-phase line over-voltage or under voltage is caused by the neutral line fault, the protective device is opposite to the electrical equipment Protection. -
Page 5: Main Parameter
Table 1 Product selection instructions series：1P series：3P Frame current ASJ10-GQ-1P-25 ASJ10-GQ-3P-25 ASJ10-GQ-1P-32 ASJ10-GQ-3P-32 ASJ10-GQ-1P-40 ASJ10-GQ-3P-40 ASJ10-GQ-1P-50 ASJ10-GQ-3P-50 ASJ10-GQ-1P-63 ASJ10-GQ-3P-63 4 main parameters Table 2 Technical parameters technical parameter AC230V 50Hz working voltage AC400V 50Hz working frequency 50Hz Over voltage trip（L-N) 275VAC±5V... -
Page 6: External Structure
5 external structure The appearance structure and dimensions of single-phase self-resetting over-voltage and under-voltage protectors are shown in Figure 2. Figure 2 The appearance structure and dimensions of three-phase self-resetting over-voltage and under-voltage protectors are shown in Figure 3. Figure 3... -
Page 7: Installation Wiring
6 Installation wiring Installation Notes: ASJ adopts rail installation, directly installed on 35mmDIN rail, the installation and wiring diagram of single-phase self-resetting over-voltage and under-voltage protector products is shown in Figure 4 Figure 4 The installation and wiring diagram of the three-phase self-resetting over-voltage and under-voltage protector is shown in Figure 5. -
Page 8: Operation Guide
7 Operation Guide 7.1 Display operating instructions The ASJ display status description is shown in Table 3. Table 3 Indicator status Line status Steady green Voltage is normal Red light flashes quickly (2Hz) Over pressure Red light flashes slowly (0.5Hz) Unde rvoltage Red light is always on Phase failure/fault... -
Page 9: Application Example
8 Application example 8.1 Application example diagram of single-phase Self-resetting over-voltage and under-voltage protector 1）Example diagram of installation in a power distribution box on a residential level Figure 7 Note: in the figure above is Self-resetting over-voltage and under-voltage protector.The device shall not be installed in the household distribution box. -
Page 10: Order Example
8.2 Example diagram of three-phase self-resetting over-voltage and under-voltage protector over-voltage and under-voltage protector Self-resetting over-voltage and under-voltage protector Figure 9 9 Order example When ordering, indicate:product model, number of poles, rated current, and quantity. Example:Application:Single-phase line; Rated current: 63A; Quantity:100 units Ordering model:ASJ10-GQ-1P-63 Ordering quantity:100 units... - Page 11 Address: No.253 Yulv Road Jiading District, Shanghai，China TEL.: 0086-21-69158338 0086-21-69156052 0086-21-59156392 0086-21-69156971 Fax: 0086-21-69158303 Web-site: www.acrel-electric.com E-mail: ACREL008@vip.163.com Postcode: 201801 Manufacturer: Jiangsu Acrel Electrical Manufacturing Co., LTD. Address: No.5 Dongmeng Road,Dongmeng industrial Park, Nanzha Street,Jiangyin City,Jiangsu Province,China TEL./Fax: 0086-510-86179970 Web-site: www.jsacrel.com Postcode: 214405...
