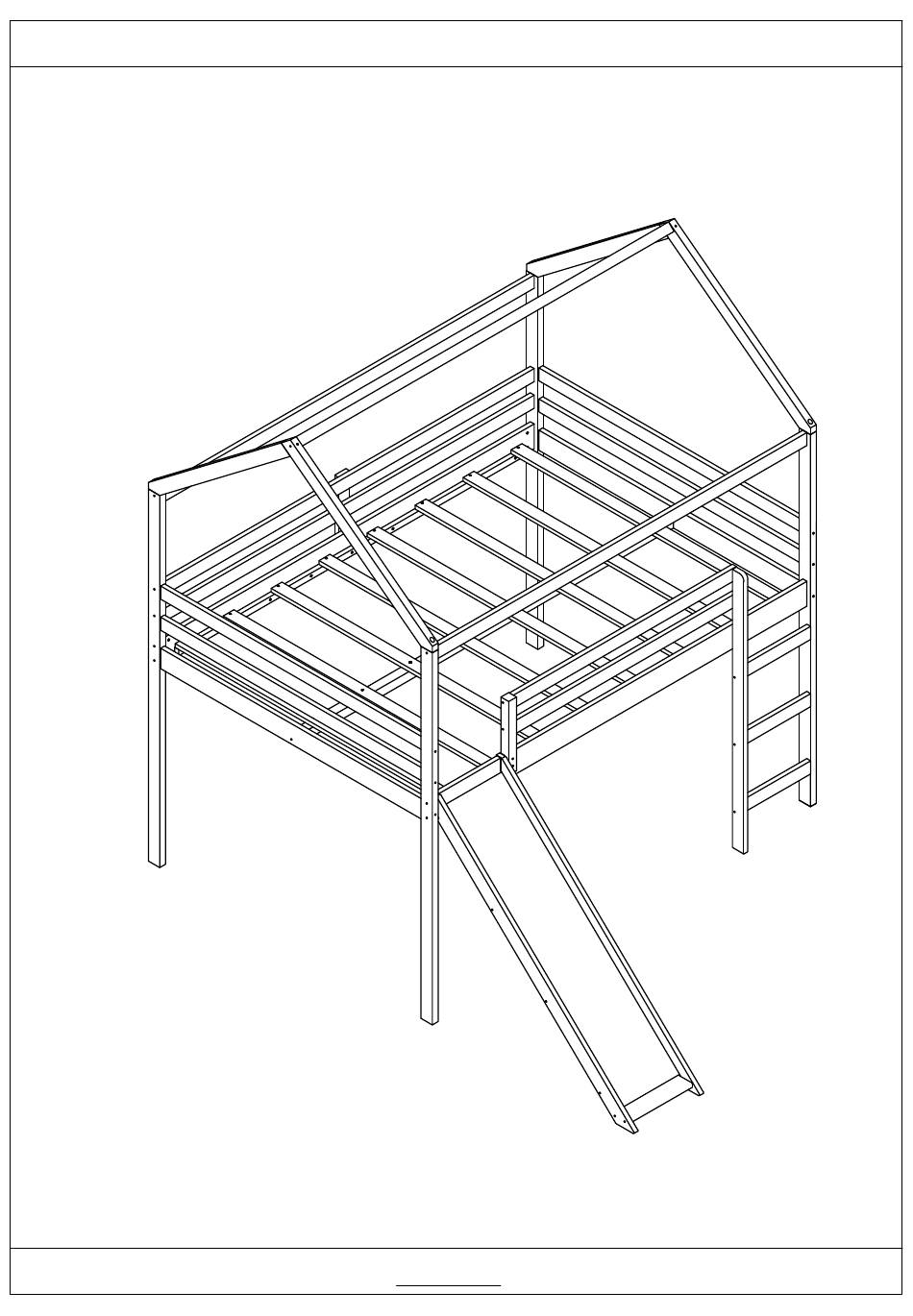

- Page 1 ASSEMBLY INSTRUCTIONS FULL LOFT BED WITH SLIDE BRIDGE WF281161 PAGE 1 OF 8...
- Page 2 ASSEMBLY INSTRUCTIONS SAFETY WARNINGS AND GENERAL NOTES ： - Follow the information on the warnings on the bunk bed end structure and on the carton. - Do not remove the warning label from the bed. - Always use the recommended size mattress on mattress support, or both, to help prevent the likelihood of entrapment or falls.
- Page 3 ASSEMBLY INSTRUCTIONS HARDWARE LIST WF281161 Ø4x30 27PCS 1/4x75 8PCS Ø4x15 6PCS 1/4x35 2PCS Ø10x40 6.5x100 12PCS 52PCS 70x18x2 6.5x90 2PCS 2PCS 6.5x80 15PCS 4x58 6.5x60 24PCS PAGE 3 OF 8...
-
Page 4: Parts List
ASSEMBLY INSTRUCTIONS PARTS LIST WF281161 2pcs Left front leg Head board panels Left back leg Slide left leg Right front leg Slide right leg Right back leg Slide panel Ladder left leg Slide support Left guard rails support Slide bottom panel... - Page 5 ASSEMBLY INSTRUCTIONS Step 1 12 x2 12 x2 13 x1 4 x1 2 x1 13 x1 19 x2 19 x1 3 x1 1 x1 5 x1 6.5x60 3PCS 4x58 6.5x80 3PCS Ø10x40 22PCS 6.5x100 12PCS Step 2 23 x2 4x58 6.5x90 2PCS 22 x2...
- Page 6 ASSEMBLY INSTRUCTIONS Step 3 Ø10x40 4PCS 4x58 6.5x60 4PCS Step 4 24 x1 8 x1 8 x2 20 x1 8 x1 11 x1 10 x1 4x58 1/4x75 8PCS 6.5x60 2PCS Ø10x40 12PCS 6.5x80 10PCS PAGE 6 OF 8...
- Page 7 ASSEMBLY INSTRUCTIONS Step 5 9 x2 6 x1 4x58 1/4x35 2PCS 6.5x60 3PCS Ø10x40 2PCS 6.5x80 2PCS Step 6 16 x1 17 x2 15 x1 17 x2 14 x1 18 x1 4PCS Ø4x15 70x26x18 2PCS 4x58 Ø10x40 10PCS 6.5x60 12PCS PAGE 7 OF 8...
- Page 8 ASSEMBLY INSTRUCTIONS First attach 2pcs part 21 to the front and end of the frame between headboard. Then attach the remaining part 21 equidistantly between headboard Step 7 21 x8 7 x1 Ø4x30 27PCS Step 8 2PCS Ø4x15 PAGE 8 OF 8...
