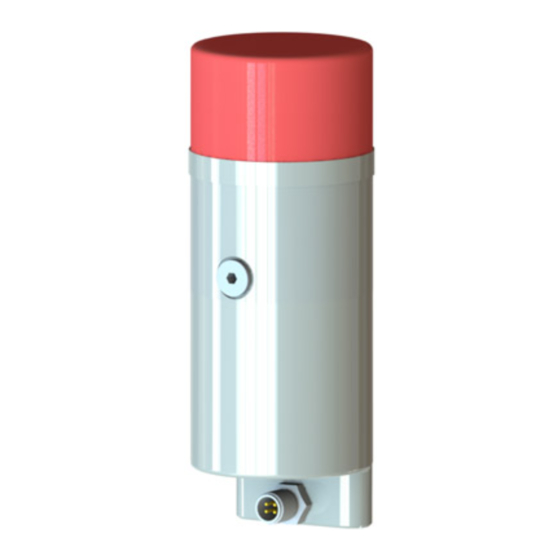

- Page 1 IMAGENEX TECHNOLOGY CORP. MODEL 852-GS GYRO STABILIZED ULTRA-MINIATURE IMAGING SONAR (WITH OPTIONAL ECHO SOUNDER) USER MANUAL Imagenex Technology Corp. 209-1875 Broadway Street Port Coquitlam, BC Canada V3C 4Z1 Telephone: (604) 944-8248 Fax: (604) 944-8249 info@imagenex.com www.imagenex.com...
- Page 2 Revision History Number 430-048 Revision Date Description 09-Feb-21 For internal review 20-Apr-22 1st Draft edits...
-
Page 3: Table Of Contents
Table of Contents Introduction ..............................9 Getting Started ............................10 2.1. Hardware Installation ..........................10 2.1.1. Sonar with Echo Sounder Option .....................10 2.1.2. Sonar without Echo Sounder Option ....................11 2.1.3. RS-232 Option ...........................11 2.1.4. Personal Computer ...........................12 2.2. Software Setup ............................12 2.3. Interface ..............................13 2.3.1. - Page 4 3.2.3. View => Clear Screen ........................22 3.2.4. View => Zoom Factor ........................23 3.2.5. View => Zoom In ..........................23 3.2.6. View => Zoom Out ..........................23 3.2.7. View => Grid .............................23 3.2.8. View => Range Marker ........................23 3.2.9. View => Colour Indicator ........................23 3.2.10.
- Page 5 3.6.4. Profile => Medium Mix ........................30 3.6.5. Profile => High Mix ...........................30 3.6.6. Profile => Point Size ..........................30 3.6.7. Profile => Zero Down ........................30 3.6.8. Profile => Profile Min Range ......................30 3.6.9. Profile => Auto Profile ........................31 3.6.10. Profile => ES Profile ..........................31 3.7.
- Page 6 Figures Figure 1 Sonar Connection ............................10 Figure 2 Software User Interface (File Playback) ..................... 13 Figure 3 Sonar Settings ............................15 Figure 4 Additional Information ..........................16 Figure 5 Acquiring Targets ............................18 Figure 6 Compass Heading and Mouse Cursor Location ..................18 Figure 7 Compass Tape Display ..........................
- Page 7 Tables Table 1 General Features ............................9 Table 2 Shortcut Buttons .............................14 Table 3 Playback Control ............................15 Table 4 Reference Table .............................17 Table 5 Colour Table ............................25 Doc No: 430-048-0B Page 7 of 34...
- Page 8 Acronyms and Abbreviations Acronym Definition ASCII American Standard Code for Information Interchange Bitmap Decibel Direct Current Gigabytes Global Positioning System Internet Protocol kbps Kilobits per second Kilohertz Meters per second NMEA National Marine Electronics Association Personal Computer Random Access Memory Remotely Operated Vehicle Request To Send Terabytes...
-
Page 9: Introduction
ROV information such as pitch, roll, and heading are available and the head can be operated using different ranges, gains, pulse lengths, etc. Note that although the 852-GS sonar may be ordered as an RS-232 option, the echo sounder may not be interfaced via the 2-wire multi-drop system in this configuration. -
Page 10: Getting Started
USB to RS-485 converter. The cable is then connected to either of the echo sounder ports, and the remaining echo sounder port is connected to the 852-GS scanning sonar by a 6-pin to 6-pin Impulse IE55 connector cable. -
Page 11: Sonar Without Echo Sounder Option
2.1.3. RS-232 Option While it is possible to order both the 852-GS scanning sonar and echo sounder with the RS-232 option, they cannot be used together with a multi-drop 2-wire communication system (as described above). Individual RS-232 cables will be required to communicate with each device individually and this configuration is beyond the scope of this manual. -
Page 12: Personal Computer
Note: The Win881AL_GS_vxxxx software is used for multiple types of Imagenex sonar systems, including the 852-GS. Ensure the correct sonar is selected by going to "System => Sonar Type” and selecting “852-GS/ES”. Doc No: 430-048-0B... -
Page 13: Interface
This Section will describe the various functions of the Win881AL_GS_vxxxx software. Note: The Win881AL_GS_vxxxx software is used for multiple types of Imagenex sonar systems, including the 852-GS. Ensure the correct sonar is selected by going to "System => Sonar Type” and selecting “852-GS/ES”. Doc No: 430-048-0B... -
Page 14: Shortcut Buttons
852-GS Ultra-Miniature Imaging Sonar 2.3.1. Shortcut Buttons Connect to a physical sonar head Open a file for playback session Start / Stop recording a .81R data file Places the sonar in to “polar mode” which causes the sonar to do continuous 360° rotations. The scan direction (clockwise / counter-clockwise) is toggled by clicking the “Rev”... -
Page 15: File Playback
852-GS Ultra-Miniature Imaging Sonar 2.3.2. File Playback Table 3 Playback Control The file playback bar is used during playback and allows the user to adjust the playback speed and file position. 2.3.3. Sonar Settings The sonar settings toolbar is used to control various sonar attributes. It is only available in RealTime mode: Figure 3 Sonar Settings •... -
Page 16: Main Sonar Display
852-GS Ultra-Miniature Imaging Sonar 2.3.4. Main Sonar Display Figure 4 Additional Information Doc No: 430-048-0B Page 16 of 34... -
Page 17: Table 4 Reference Table
852-GS Ultra-Miniature Imaging Sonar Description Indicates the current acoustic operating range and frequency of the sonar in yellow. It also indicates the grid scale and current gain in orange. The Gyro status (enabled / disabled) is shown in green The gyro mode is displayed only when a gyro stabilized image is enabled. The modes are: North Up, Heading Up, or Target Steering as described below Displays “Not Recording”... -
Page 18: Acquiring Targets
Acquiring Targets This function is only available during RealTime operation only. The 852-GS allows the operator to select a target of interest and automatically center the sector on and scan about that target on screen. The procedure is as follows: 1. -
Page 19: Mouse Cursor Heading, Range, Bearing
852-GS Ultra-Miniature Imaging Sonar 2.3.6. Mouse Cursor Heading, Range, Bearing The following data appears at the bottom left of the main display: Figure 6 Compass Heading and Mouse Cursor Location H: Sonar heading. R: Range of the mouse cursor from center. -
Page 20: Rov Overlay
852-GS Ultra-Miniature Imaging Sonar 2.3.8. ROV Overlay Displays the ROV overlay if “View => ROV Overlay” is selected. Figure 8 ROV Overlay Doc No: 430-048-0B Page 20 of 34... -
Page 21: Software Menus
852-GS Ultra-Miniature Imaging Sonar 3. SOFTWARE MENUS 3.1. FILE 3.1.1. File => Connect to Sonar Head Selects the data source to be from the sonar head and viewed in real-time. 3.1.2. File => Open File to Playback Data can be replayed from a previously recorded file from the “Open File” dialog box. -
Page 22: File => Auto File Size
852-GS Ultra-Miniature Imaging Sonar 3.1.7. File => Auto File Size RealTime only Select the file size to be limited to 1 – 4 GB. If enabled, the data file will be logged to the maximum file size and a new file will be created to continue logging. -
Page 23: View => Zoom Factor
852-GS Ultra-Miniature Imaging Sonar 3.2.4. View => Zoom Factor Changes the factor by which the display is zoomed in or out (50, 75, 100, 125, 150, 175, 200%). 3.2.5. View => Zoom In Shortcut button: Zooms in on the sonar display. -
Page 24: View => Main Toolbar
16 (sonar) and 17 (echo sounder). Care should be taken when changing these values as it may lead to loss of communication. Contact Imagenex if reprogramming of head id’s is required. Doc No: 430-048-0B... -
Page 25: Colour Table
Allows various colour combinations (background and scan) to be selected. Used to change the sonar data colour palettes for the sonar images. The 852-GS uses a colour table to represent echo data strength (amplitude). For example, the “Normal High” intensity colour table maps the echo data amplitude to 256 colours ranging from black (low strength level) through blue, green, orange, yellow, white, and red (highest strength level). -
Page 26: System
A GPS serial input port can also be configured here to read NMEA GPS information. The expected string format is $GPGGA. 3.4.2. System => IP Address Not used for the 852-GS sonar. 3.4.3. System => Diagnostics Displays a window showing various diagnostic information relating to the sonar. -
Page 27: System => Sonar Type
(in gyro auto mode) to remove the accumulated drift. Automatic Gyro Calibration Imagenex gyro enabled scanning sonars now incorporate an automatic gyro biasing feature. This mode continuously re-biases the gyro in real time accommodating for temperature fluctuations and internal drift. See Section 3.5.6 Options =>... -
Page 28: Options => Enable Gyro Auto Bias
852-GS Ultra-Miniature Imaging Sonar drift, the sonar image will be coherent, allowing the operator to continue to work. Note that the absolute heading will not be exact during this time as the sonar does not differentiate between induced drift and real movement. -
Page 29: Options => Calibrate Compass
852-GS Ultra-Miniature Imaging Sonar 3.5.7. Options => Calibrate Compass RealTime only Field calibrates the internal compass. To calibrate the compass, the sonar head must be rotated by 360° (direction is irrelevant). Check “Calibrate Compass”, rotate 360° slowly, then uncheck “Calibrate Compass” to store the settings. -
Page 30: Profile => Medium Mix
852-GS Ultra-Miniature Imaging Sonar 3.6.4. Profile => Medium Mix Image data is displayed at half intensity along with the generated profile points. 3.6.5. Profile => High Mix Image data is displayed at the normal intensity along with the generated profile points. -
Page 31: Profile => Auto Profile
852-GS Ultra-Miniature Imaging Sonar 3.6.9. Profile => Auto Profile RealTime only Used to generate the Z (depth) component of the XYZ files via an auto increment function. This allows the user to set the expected depth increment for successive scans and if the sonar is paid out at this rate, a realistic profile will be generated of the internal surface of the structure / bore. -
Page 32: Gps
852-GS Ultra-Miniature Imaging Sonar 3.7. 3.7.1. GPS => Enabled RealTime only If a GPS receiver is connected via a comm port, it may be enabled and disabled here. 3.7.2. GPS => Track Plotter RealTime only Displays a window showing the historical track of the sonar. -
Page 33: Video => Record Video Frames To File
852-GS Ultra-Miniature Imaging Sonar 3.8.2. Video => Record Video Frames to File RealTime only Enable / disable the recording of video to the data files. Once “File => Copy Start…” (Stop…) (see Section 3.1.4) is clicked, the video data will be included in the data file recording. -
Page 34: Appendix Ahot Keys
852-GS Ultra-Mini Scanning Sonar HOT KEYS APPENDIX A Doc No: 430-048-0B Page 34 of 34...
