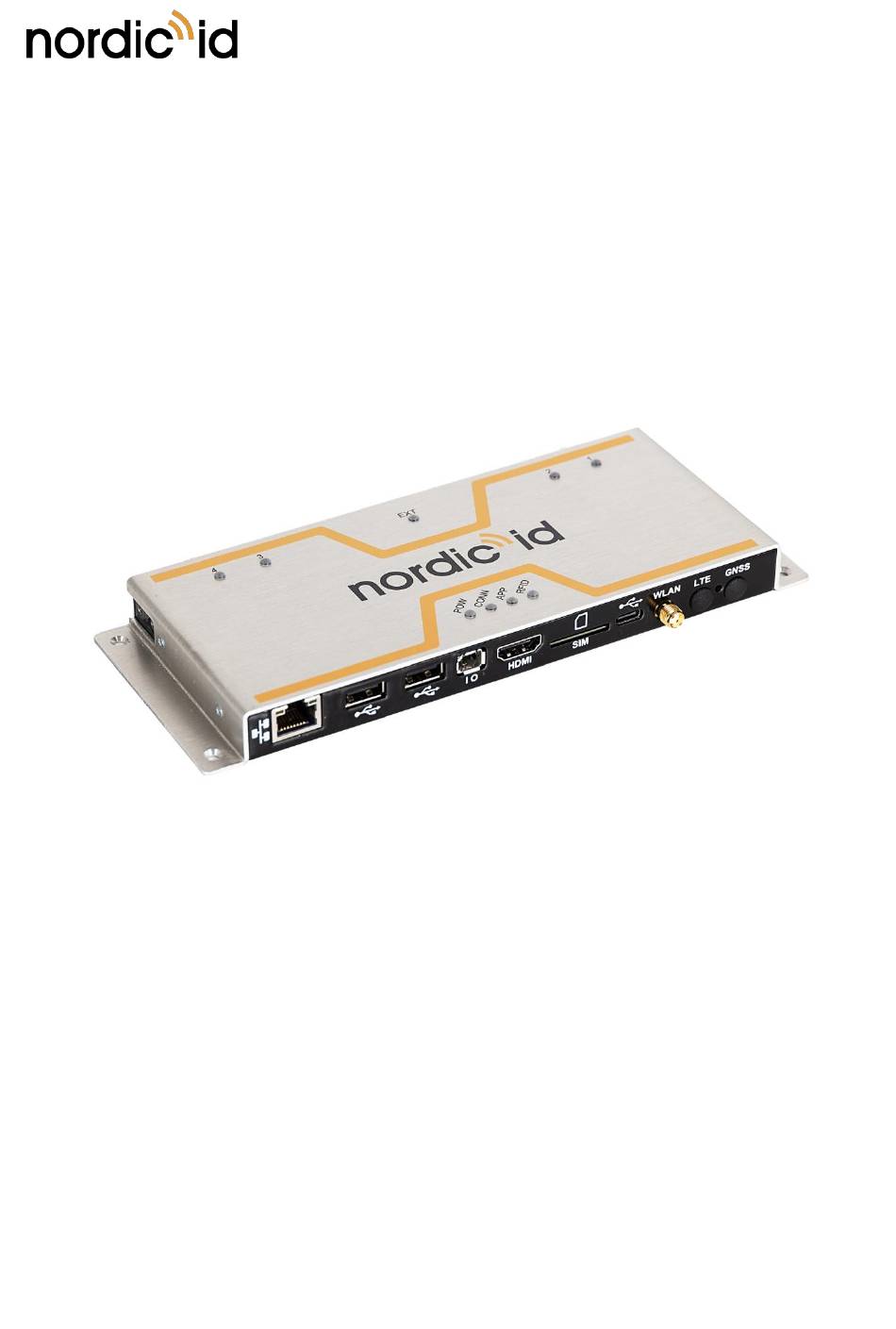

- Page 1 2022-04-04 Nordic ID FR22 User Guide Version 1.0 NORDIC ID FR22 RFID IOT EDGE GATEWAY USER GUIDE...
-
Page 2: Table Of Contents
RF PROFILES....................................17 THERMAL MANAGEMENT ..............................18 SOFTWARE ....................................18 5.1. NORDIC ID RFID APPLICATIONS FOR NORDIC ID FR22 ................ 18 NORDIC ID RFID DEMO ........................18 NORDIC ID RFID CONFIGURATOR ....................20 Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com... - Page 3 2022-04-04 Nordic ID FR22 User Guide Version 1.0 NORDIC ID FR APPLICATION SIGNING TOOL................20 NORDIC ID KEYBOARD WEDGE ....................... 21 WEB MANAGEMENT INTERFACE ............................22 6.1. LOG IN ..................................22 6.2. MAIN MENU ................................24 6.3. DASHBOARD ................................25 6.4.
-
Page 4: Getting Started
GETTING STARTED 1.1. GENERAL The Nordic ID FR22 is the core device of a new approach for RFID fixed systems with a modular design. It can enable different use cases for different segments depending which modules or accessories are attached to it. - Page 5 DESCRIPTION ACN00208* Nordic ID FR22 16 port multiplexer ACN00214 Power supply for Nordic ID FR22, POE 30W with power cord EU ACN00215 Power supply for Nordic ID FR22, POE 30W with power cord UK ACN00216 Power supply for Nordic ID FR22, POE 30W with power cord US...
-
Page 6: Available Kits
NPK00007 kit, which includes a Nordic ID FR22 reader with assembled 16-port multiplexer. Or if you need a wide area RFID reader (as our old Nordic ID AR85 was), you can order the NPK00004 kit, which includes a Nordic ID FR22 reader assembled on the back plate of a BFA antenna. -
Page 7: Package Content
2022-04-04 Nordic ID FR22 User Guide Version 1.0 Picture 4 Nordic ID FR22 assembled on Nordic ID BFA antenna (NPK00003-6) 1.5. PACKAGE CONTENT Nordic ID FR22 package contains following items • Nordic ID FR22 • WLAN/Bluetooth antenna • LTE antenna (only in LTE variant) •... -
Page 8: Using The Device
Nordic ID FR22 User Guide Version 1.0 USING THE DEVICE 2.1. FEATURES AND CONNECTORS OVERVIEW The Nordic ID FR22 includes external WLAN and WWAN (only the LTE variant) antennas that need to be fastened to the device before it’s taken into use. MINI-IO SIM-card... -
Page 9: Physical Connectors
The Nordic ID FR22 includes standard RJ-45 ethernet connector. The reader supports 10/100Mbps speed class and 802.3at PoE. There is no DC connector for an external power supply. The Nordic ID FR22 is powered via Ethernet, regardless of whether Ethernet is the communication interface in use or not. -
Page 10: Gpio Connector
SLOT FOR MINI SIM CARD (OPTIONAL) The LTE variant of Nordic ID FR22 includes a slot for mini-SIM card. Mini SIM card is to be inserted in the slot in a right orientation to be functional. The correct insertion orientation of mini-SIM card can be seen from the Error! Reference source not found.. -
Page 11: Dual Band Wlan And Bluetooth
HID Profile (classic Bluetooth) • HID Over GATT Profile (HOGP) (BLE) WWAN CELLULAR CONNECTIVITY (OPTIONAL) There is an LTE variant of Nordic ID FR22 that includes WWAN connectivity supporting 2G, 3G and 4G cellular networks. Supported bands: • GSM/EDGE Quad-band 850/900/1800/1900 MHz •... -
Page 12: Nordic Id Extension Port
Version 1.0 NORDIC ID EXTENSION PORT The Nordic ID FR22 is the first device including the exclusive Nordic ID Extension Port, that enables connection to exclusive Nordic ID accessories for Nordic ID FR22, such as RFID multiplexer or advanced antennas. -
Page 13: Mounting
Version 1.0 2.3. MOUNTING Nordic ID FR22 can be mounted using the four holes as seen in the picture. Picture 10 Mounting holes in Nordic ID FR22 Here a 1:1 size template that can be printed and used to drill holes before mounting the device in place:... -
Page 14: Powering The Reader
Version 1.0 2.4. POWERING THE READER Nordic ID FR22 can be powered via DC ethernet port if the network supports power over Ethernet (PoE) feature or using a PoE+ power supply (sold separately). Regardless of what powering method is used, the data communication can be handled via USB connection or Bluetooth, or if IP connectivity is required then via WWAN, WLAN or ethernet. -
Page 15: Power Led
When the Nordic ID FR22 is in “ready” status, the Power, Connection and Application LEDS are all green at the same time (App LED can be blinking green if the host application is not using the RFID module yet). -
Page 16: Rfid Led
Green: Antenna port enabled. EXTENSION LED The Extension LED is used to indicate whether the Nordic ID Extension Port is being used or not. Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com... -
Page 17: Reset Button
Nominal Nominal RF-profile is the default setting of readers containing Nordic ID NUR3-1W UHF RFID module, such as Nordic ID FR22. It uses link frequency of 300 kHz and Miller 4 coding providing read rates up to 300 tags/s. •... -
Page 18: Thermal Management
All documentation about software and application development can be found from GitHub. https://github.com/NordicID/fr22_samples 5.1. NORDIC ID RFID APPLICATIONS FOR NORDIC ID FR22 Nordic ID provides following Windows tools to test and configure the reader. The tools are available via Nordic ID Support pages: https://www.nordicid.com/support/devices-downloads/nordic-id-fr22/ NORDIC ID RFID DEMO The Nordic ID RFID Demo application is used to perform RFID reading and writing tests. - Page 19 2022-04-04 Nordic ID FR22 User Guide Version 1.0 Screenshot 1 Nordic ID Demo for Microsoft Windows Screenshot 2 Nordic ID Demo for Android Nordic ID Group | Joensuunkatu 7 | FI-24100 Salo |Finland Office +358 2 727 7700 | Fax + 358 2 727 7720 | info@nordicid.com...
-
Page 20: Nordic Id Rfid Configurator
ON power cycle. Note that the RFID reading parameters can be assigned to the reader by the host application (installed in Nordic ID FR22 or running in a host device such as a computer) after successfully connected to the device also. -
Page 21: Nordic Id Keyboard Wedge
Version 1.0 NORDIC ID KEYBOARD WEDGE The Nordic ID Keyboard Wedge software allows to read tags and feed the tag data into an active input field, emulating a keyboard input. This is extremely useful when you want to use 3rd party applications that support manual input or barcode scanners. -
Page 22: Web Management Interface
By default, all the network interfaces are set to DHCP mode, and the MAC address of each interface is indicated on the printed product label. This will help to find the Nordic ID FR22 in the DHCP table of the network router or modem. - Page 23 IP address. Once the IP address of the Nordic ID FR22 is known, typing it in the address bar of a web browser will open the log in screen of the web UI. Connection can also be established using device’s host name (depending on the network and used host device).
-
Page 24: Main Menu
Version 1.0 6.2. MAIN MENU The Nordic ID FR22 web UI displays a side navigation menu to access all the different available options to manage the device. The menu pane can also be hidden if wanted. Screenshot 6 Side menu in web UI There are also four icons always accessible on the top right corner of the screen, to: •... -
Page 25: Dashboard
• Log. It shows the logged events and allow to download them for debug purposes. Events can be filtered by severity and application/service (started by user, Nordic ID or system) that created the event. • Settings (only for Factory Reset) See section 6.4.1. -
Page 26: Factory Reset
See section 6.4.2. FACTORY RESET As the Nordic ID FR22 includes an operative system where you can install applications and plugins, sometimes you may want to reset the device to the state it was delivered to you to solve unknown issues after changing certain settings or to start from scratch after having installed several apps, mainly if these were applications under development. -
Page 27: Web User Interface
Version 1.0 WEB USER INTERFACE The web user interface is the tool to get most of the Nordic ID FR22. So, managing how it is accessed is a key to keep it secure without impacting the user experience. This page allows to change the password to access the administrator web UI. The default password is printed in the product label on the device and on its package, and the administrator username is always “admin”. -
Page 28: Web Browser
The Chromium web browser can be installed from the Nordic ID App Center (see section 6.9.3) and its settings page can be found on the Display section. -
Page 29: Hardware Settings
There are 3 USB ports in the Nordic ID FR22: 2 USB-A host ports that can be enabled or disabled. ▪ 1 USB-C port to connect the Nordic ID FR22 to a host. The available modes are: ▪ • “NUR serial”, to communicate with the device using the Nordic ID NUR API. -
Page 30: Network Settings
6.6. NETWORK SETTINGS The network settings are a very important section of the Nordic ID FR22 setup, as it will connected to a network most of the times. Even if it will be connected via USB, the network interfaces must be configured beforehand, as network is the only way to access the administrator web user interface. -
Page 31: Display
Nordic ID FR22 User Guide Version 1.0 6.7. DISPLAY The Nordic ID FR22 also includes an HDMI connector with video output to connect a display. Here you can enable/disable the HDMI port and configure the resolution and rotation (if any) of the display. -
Page 32: Rfid
2022-04-04 Nordic ID FR22 User Guide Version 1.0 6.8. RFID The RFID section on the web UI allows to change the connection settings to the internal RFID NUR module and all the RFID parameters of the reader: • Q: auto, 1, 2 ... 15 •... -
Page 33: Software
Version 1.0 6.9. SOFTWARE The software is as important part of the Nordic ID FR22 as an IoT Edge Gateway, not only as an RFID reader. In this section you can update the operative system of the device, but also manage applications and plugins. -
Page 34: Nordic Id App Center
Other applications do have an interface. For example, the web browser (see section 6.4.2), the SSH terminal or the remote desktop app (see section 0). If you want to develop your own embedded app in Nordic ID FR22, you can find the documentation from https://github.com/NordicID/fr22_samples... -
Page 35: Apps/Plugins Credentials
2022-04-04 Nordic ID FR22 User Guide Version 1.0 APPS/PLUGINS CREDENTIALS For applications or plugins that need credentials to work, you can create an application specific password from the System Plugins or Applications screen. Go to the application or plugin that needs credentials and click the “New Password” button. -
Page 36: Remote Tools
VNC is a remote desktop application that allows to see the output of the HDMI port. This means that, if a display is connected to the Nordic ID FR22, you can remotely see exactly what the user is seeing on the display in real time. There is no need to install 3rd party remote access applications such as TeamViewer or similar. -
Page 37: Regional Settings
RF parameters for the UHF RFID readers to comply local regional requirements. Nordic ID has created a set of regional settings in order to fulfil local regulations. Nordic ID is required to ensure that compliance of Nordic ID products will remain after production. Solution for this is that products including UHF RFID functionality are set and locked in production based on customer order e.g. -
Page 38: Rf Exposure
20mm is maintained between the antenna and user’s/nearby person’s body at all times. Nordic ID FR22 doit être installé et utilisé de manière à ce qu'une distance de séparation minimale de 20 mm soit maintenue à tout moment entre l'antenne et le corps de l'utilisateur / de la personne proche. -
Page 39: Warranty
Version 1.0 WARRANTY Nordic ID warrants that the Products are at the time of delivery free from defects in materials and workmanship, provided the Products remain unmodified and are operated under normal and proper conditions. Warranty period is the longer of twenty-four (24) months from the date of delivery in case the Customer is end-customer or twenty-seven (27) months from the date of manufacture in case the Customer is reseller. -
Page 40: Version History
2022-04-04 Nordic ID FR22 User Guide Version 1.0 VERSION HISTORY Version Date Modifications 21.06.2021 The first draft 20.08.2021 Updated pictures and list of accessories 05.01.2022 New SMA-RP cables, added pictures of accessories, kits and compliance statements 18.03.2022 Web user interface explained, updated LED behaviour, reset button and added mounting template 01.04.2022...
