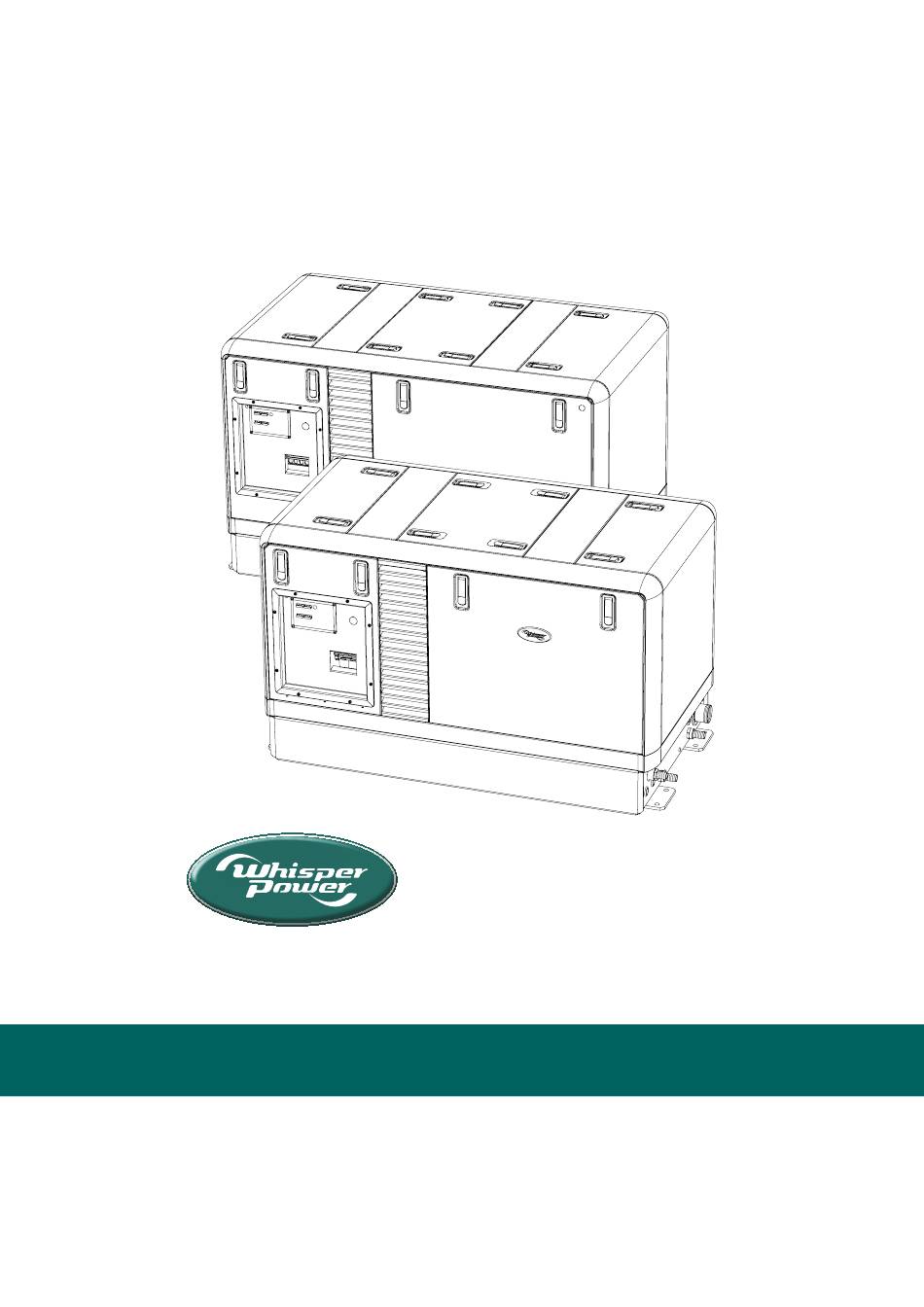

- Page 1 User Manual Marine Diesel Generator M-SQ Pro E n j o y G r e e n E n e r g y 15 kVA | 18 kVA | 1500 RPM | 230/400 V | 50Hz | 1phase / 3phase whisperpower.com...
-
Page 2: Table Of Contents
M-SQ PRO 15/18 kVA Marine Diesel Generator CONTENTS INTRODUCTION ....................5 General ........................5 Service and maintenance ..................5 Guarantee ......................5 Liability ........................6 1.5 Identification ......................6 1.5.1 General ........................6 1.5.2 Identification plate ....................6 INFORMATION ....................7 Safety ........................ - Page 3 M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.26 Lay out control wiring M-SQ PRO 18 3-Phase Kubota ........29 2.5.27 Lay out control wiring M-SQ PRO 18 3-Phase Kubota ........30 OPERATION ....................31 General ........................31 3.2 Operating Instructions ................... 31 3.2.1 Summarized operating instructions (daily use) ............. 31 3.2.2 Extended operating instructions ................31 MAINTENANCE ....................33 4.1 Alternator ....................... 33 4.2 Engine ........................33 4.2.1 Preliminary instructions ..................
-
Page 4: Introduction
M-SQ PRO 15/18 kVA Marine Diesel Generator 1 INTRODUCTION General Guarantee The M-SQ-Pro 15 and M-SQ-Pro 18 Marine Diesel Generating WhisperPower guarantees that this generating set has been sets are manufactured and marketed by WhisperPower. built according to good workmanship, according to the spec- ifications in this manual and according to European Commu- It is important to read this manual before installing and operating nity safety regulations. the generating set. Both safety and durability rely very much on the correct identification, installation and a good understanding During production and prior to delivery, all of our generating of ratings, features, design, maintenance and operation proce- sets are tested and inspected. dures. This generating set’s correct operation is subject to guar- The information, specifications, illustrations and statements con- antee. The period and conditions of this guarantee are laid tained within this publication are given with our best intentions down in the general conditions of delivery as registered with and are believed to be correct at the time of going to press. the Chamber of Commerce and Industries for the North of the Netherlands number 01120025. The guarantee period All of the specifications, provisions and instructions contained in is two years, limited to 1000 running hours. Some aspects of this manual apply solely to standard versions of the M-SQ-Pro 15 our guarantee scheme are given here in more detail: and M-SQ-Pro 18 generating set. Guarantee does not cover failures that are caused by misuse, This manual is valid for the following models: neglect or a faulty installation. -
Page 5: Liability
Manufacturer: WhisperPower b.v. Kelvinlaan 82, 9207 JB Drachten, The Netherlands Tel. +31 (0)512-571550 Automatic start/stop WhisperPower cannot be held responsible for damage caused by the unattended running generator using the auto-start/stop mode or interval mode. Fig. 2: Location identification plate Identification POWER 1.5.1 General... -
Page 6: Information
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.1.2 Elelctrical safety VOLTAGE. This shows the nominal voltage. This voltage should be within the specified tolerance at the nominal frequency. The M-SQ-Pro15/18 can be This warning sign indicates parts which could be live. connected for different voltages in single phase or tri The voltage of 230V or 230V/400V generated by this phase. The nameplate indicates the connection as made generating set is dangerous and if instructions and in the factory. procedures are not strictly observed may result in FREQUENCY. This is shown in Hz and is determined by electrical shock which will result in severe personal the speed of the engine (RPM). 50 Hz correlates with injury or loss of life. 1500 rpm. CURRENT. This shows the maximum current that is • Check all wiring at least once a year. Defects, such as acceptable at the specified frequency, voltage and pow- loose connections, burned cables etc. must be repaired er factor. When connected in tri phase the indicated immediately. current is the current between two phases that can be • Do not work on the electrical system if it is still connect- taken off three times. ed to a current source. Only allow changes in your elec- WEIGHT shows the net dry weight (approximately) in kg. trical system to be carried out by qualified electricians. This is without fuel, oil, packing and external installation •... -
Page 7: Installation
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.1.4 Installation • Avoid refilling the fuel tank while the engine is running. Whisper generating sets are not self-contained and have to be When oil or fuel is leaking do not use the generating properly installed in enclosed areas such as a machine room. set. • Do not run the engine close to explosives or gasses. Installation includes measures to be taken to outlet • Hydrogen gas generated by charging batteries is exhaust fumes which contain carbon monoxide and are explosive. Take measures for proper ventilation. Do extremely dangerous. not smoke or allow sparks, flames, or other sources of ignition around batteries. Carbon monoxide (CO) is an invisible odourless gas. Inhalation • Keep a fire extinguisher on hand. produces headache, nausea or death. Installation includes • Poor electrical connections or using wiring which is not suited for the rated currents can cause overheating and measures for proper ventilation, safe electric connections, safe installation of the starting battery, proper fitting of the cooling possibly fire. system and fuel pipes etc. See the installation manual. 2.1.7 Chemicals 2.1.5 Operation •... -
Page 8: M-Sq-Pro15 And M-Sq-Pro 18
M-SQ PRO 15/18 kVA Marine Diesel Generator M-SQ-Pro15 and M-SQ-PRO 18 2.3.1 Features This generating set includes a 4 cylinder diesel engine which is connected by close coupling to a one or tree phase synchronous alternator in a sound attenuated capsule. The set is mounted on a steel base frame and mounted securely on anti-vibration mounting pads to the capsule base. The complete set is again on rubber mountings. All cables and hoses are guided through the capsule’s sides. The set is not self-contained and is only operable after proper installation using additional accessories and installa- tion materials. Installation accessories are listed in the installation manual and are available through the supplier of the generating set. The full automatic Digital Control is based on microprocessor technology. Several automatic start/stop functions can be programmed and monitored (see Digital Diesel Control user manual). 2.3.2 Remote control The full automatic remote control panel including 15 mtr cable comes as standard with the Whisper generating M-SQ-Pro 15 / 18. 2.3.3 Documentation Included in the delivery are: • User manual generator •... -
Page 9: Components
M-SQ PRO 15/18 kVA Marine Diesel Generator Components 2.4.1 Main components to identify 19. Air filter Battery "black" 35mm² SQ- Pro 15 20. Oil fill Battery "red" 35mm² 21. Lifting eye Air inlet 22. V-belt Earth lug M10 23. Accelerator AC cable 3G 10mm²... - Page 10 M-SQ PRO 15/18 kVA Marine Diesel Generator Air filter Battery "black" 35mm SQ- Pro 18 Oil fill Battery "red" 35mm Accelerator Air inlet Waterpump Earth lug M10 13 (8x) V-belt AC cable 3G 10mm (1phase) Oil filter AC cable 4G 6mm (2phase)
-
Page 11: Remote Control Panel
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.4.2 Generator control panel Technical Information 2.5.1 AC alternator Start / Stop The synchronous alternator is directly coupled, one bearing, Internal fuel pump Digital Diesel Control brushless, rotating field design, 12 wire, four pole (1500 RPM) Fuse 3A Fuse 3A Remove fuse and regulated by an Automatic Voltage regulator (AVR). before maintenance The exciter stator has a residual magnetism, which guarantees self-exciting of the generator on start-up (that thereby generates Auxiliary External Fuel Pump a residual voltage of about 10% nominal voltage). -
Page 12: Battery Charger
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.9 Hour counter The microprocessor unit of the Digital Diesel Control is located next to the alternator. The remote control offers several timer functions that help to 2.5.4 Battery charger schedule maintenance. 2.5.10 Load indicator On the engine is an alternator generating 40 Amp 12V. This current is rectified to charge the battery. The voltage is regulated at approx. 14.4V. On the remote control the load will be indicated on the display and by the LED-bar. The load is measured by current transform- 2.5.5 Alarms and shut down ers on the alternator. All phases are monitored and overload of all phases or just one or two phases will provoke an alarm or In case of malfunctioning this will be indicated by the failure even shut down when the alarm is ignored. light, details will be shown on the display and the engine will be 2.5.11 Fuel specification shut down. There are three functions guarded: oil pressure, oil temperature and exhaust temperature. The engine must only be used with diesel fuel oil which conforms Exhaust temperature too high indicates the cooling water to be to the standards for use in modern diesel engines. Fuel free from blocked. -
Page 13: Cooling Liquid
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.13 Cooling liquid The engine is cooled by cooling liquid. The capacity is: 4,0 ltr. for SQ-Pro 15 / 8,1 ltr. for SQ-Pro 18 A lways use coolant which is compatible with alumini- um components of the cooling system. Do not mix coolants with different kinds of chemical compound, as this may cause congelation of the coolant. In case of doubt refresh the content of the entire cooling system. Use only long-life type G12+ cooling liquid in order to minimize maintenance. We recommend not using water but cooling liquid that is market- ed for the use in combustion engines. Cooling liquid protects the engine against frost to minus 25° C. Also it protects the engine block against corrosion. One can fill the engine via the filling cap on the exhaust manifold. Fill up till the fluid is leveled with the indicator in the manifold (see fig 11 ). When the engine is on temperature the liquid will expand and the redundant liquid will be pressed into the expansion tank. This tank has to be filled up till the mark. When cooling liquid is not available clean fresh water could be used with an additive of anti-freeze. When using water with anti- freeze the right mixture has to be calculated according to the information of the supplier of the anti-freeze. When the cooling is based on keel cooling or radiator cooling the capacity of these coolers and piping has to be taken into account calculating the right mixture. The cooling liquid in the engine is pressurised and has a boiling point above 100° C. The temperature switch in the ther- mostat housing switches at 110° C. When keel cooling is applied the cooling system is not pressurised. There should be a special cap on the manifold without valves leaving the connection to the expansion tank open. See the special manual on keel cooling and radiator cooling. -
Page 14: Technical Data
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.14 Technical data M-SQ Pro 15 M-SQ Pro 18 GENERAL 1500-1800 rpm 1500 Alternator 1 phase or 3 phase synchronous (air cooled) Engine Kubota diesel, model V1505 BG V2203 BG Number of cylinders Displacement 1498 cm3 2197 cm3 Bore X stroke 78,0 x 78,4 mm 87 x 92,4 mm Combustion air consumption 1,5 m³/min. 1,52 m³/min Continuous power 50 Hz 12 kW electric power 14 kW electric power Cooling system indirect cooling by raw water, 20-25 l/ 35 l/min. -
Page 15: Wiring Codes And Colors
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.15 WIRING CODES AND COLORS WIRING COLOURS W-SQ-PRO 15 1 & 3PHASE - MOBILE Description Cable Color Cross 3 phase number section only Starter motor > Alternator 10 mm² Battery > starter motor 35 mm² Starter motor > DDC 36 mm² Starter motor > LCP Black 1,5 mm² Generator EXC- > AVR M1 Black 1,5 mm²... - Page 16 M-SQ PRO 15/18 kVA Marine Diesel Generator Description Cable Color Cross 3 phase number section only Generator L1-1 > Circuit Breaker - 1 L1-1 Brown 16 mm² Generator L1-1 > DDC ac1 L1-1 Brown 1,5 mm² Generator N-1 > Contact-2 Blue 16 mm² DDC ac1 > Generator-N Blue 1,5 mm² Contact-2 > Circuit Breaker-3 Blue 16 mm² Contact-3 > Generator pe Pe-1 Green/Yellow 16 mm² Generator U > Circuit Breaker-1...
- Page 17 M-SQ PRO 15/18 kVA Marine Diesel Generator Description Cable Color Cross 3 phase number section only Alternator R > DDC hold White 1,5 mm² DDC hold > ECU V2203-15 White 1 mm² DDC hold > ECU V2203-16 White 1 mm² DDC ground > LCP j12 Black 1,5 mm² Ground > LCP j17 Black 4 mm² ECU V2203-1 > LCP j11 Black 1 mm² ECU V2203-19 > LCP j16 Black 1 mm² LCP > Temp Switch Exhaust Blue/Pink 1 mm²...
-
Page 18: Lay Out Control Wiring M-Sq Pro 15 1-Phase Kubota
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.16 Lay out control wiring M-SQ PRO 15 1-Phase Kubota... - Page 19 M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.17 Lay out control wiring M-SQ PRO 15 1-Phase Kubota...
-
Page 20: Lay Out Control Wiring M-Sq Pro 15 1-Phase Kubota
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.18 Lay out control wiring M-SQ PRO 15 1-Phase Kubota Fig. 14: Terminal modes... -
Page 21: Lay Out Control Wiring M-Sq Pro 15 3-Phase Kubota
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.19 Lay out control wiring M-SQ PRO 15 3-Phase Kubota... - Page 22 M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.20 Lay out control wiring M-SQ PRO 15 3-Phase Kubota Fig. 15: Generator diagram 3 phase with AVR 230V – 400V 50Hz with AVR...
-
Page 23: Lay Out Control Wiring M-Sq Pro 15 3-Phase Kubota
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.21 Lay out control wiring M-SQ PRO 15 3-Phase Kubota... -
Page 24: Lay Out Control Wiring M-Sq Pro 18 1-Phase Kubota
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.22 Lay out control wiring M-SQ PRO 18 1-Phase Kubota... - Page 25 M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.23 Lay out control wiring M-SQ PRO 18 1-Phase Kubota...
-
Page 26: Lay Out Control Wiring M-Sq Pro 18 1-Phase Kubota
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.24 Lay out control wiring M-SQ PRO 18 1-Phase Kubota... -
Page 27: Lay Out Control Wiring M-Sq Pro 18 3-Phase Kubota
M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.25 Lay out control wiring M-SQ PRO 18 3-Phase Kubota... - Page 28 M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.26 Lay out control wiring M-SQ PRO 18 3-Phase Kubota...
- Page 29 M-SQ PRO 15/18 kVA Marine Diesel Generator 2.5.27 Lay out control wiring M-SQ PRO 18 3-Phase Kubota...
-
Page 30: Operation
M-SQ PRO 15/18 kVA Marine Diesel Generator 3 OPERATION Stopping generator: Switch off all electrical devices (consumers). If the generat- General ing set has been running under full load for a longer period, do not shut it down abruptly. Reduce the electrical load The generating set is operational after full installation and filling to about 30% of the rated load and let it run for approx. 5 minutes. up with: fuel, engine lubricating oil and cooling liquid, filling the starter battery with acid (WhisperPower batteries do not need to Press the STOP button. be filled up and are sealed), connecting the remote control panel. Close the inlet sea water cock. Switch to another 230V/400V power source, if available. If a WhisperPower Switch is installed, this is done automatically. 3.2.2 Extended operating instructions Check when starting the first time or after a longer period of rest: If there is any damage caused by transport or installation. Check if installation conforms to the installation instruc- tions. Ensure the generating set is free to turn without obstruc- tion. Check all hoses and hose connections for leaks. Check all cables and cable end terminal connections. Check the engine and generator mounting bolts. - Page 31 M-SQ PRO 15/18 kVA Marine Diesel Generator In the event of starting problems (numerous attempts In order to prolong the generating set’s life expectancy, the are made), close the sea-water inlet cock while nominal electrical demand on the system should be about cranking to prevent the outlet system and engine to 70% or the rated generating set’s maximum load. Please fill up with water. note this when switching on your electrical devices! During the starting process, the cooling water pump is driven with the engine. The cooling water is discharged to the exhaust Nevertheless, the Whisper is designed so as not to overheat, outlet, because the engine does not run, the exhaust pressure is even under extreme conditions. not high enough to expel this water. Do not run the generator for very long periods at no load or Open the valve immediately when the engine starts in order to at very low load. When this is necessary do load the gener- prevent damaging the impeller. ator at least one hour in 10 hours for minimum 70%. Long term running at too low load will cause the exhaust to be Water in the cylinders will cause serious damage to the engine. choked by carbon. For instance; a bent piston rod or a cracked cylinder head. In fact water in the cylinder is the main cause for engine damage in N ever remove the battery while the engine is pleasure craft. running or any electrical cable while the battery is connected in the circuit. Only disconnect the Checks once the generator is in operation: battery with the engine stopped and all switches in “OFF” position. Check for abnormal noise or vibration.
-
Page 32: Maintenance
M-SQ PRO 15/18 kVA Marine Diesel Generator 4 MAINTENANCE Alternator The alternator does not require any maintenance. Periodic in- spection and cleaning is recommended, depending on environ- mental conditions.However when the alternator has been idle for a long period attention to winding condition is recommended. The condition of windings can be assessed by measurement of insulation resistance to earth. (See 5.3.5 Meggering) The alternator bearing is greased for life and is therefore not regreasable. Engine Injection pump air bleeding screw Hand operated fuel lift pump 4.2.1 Preliminary instructions UNLESS OTHERWISE SPECIFIED: Fig. 18: Bleeding fuel lines CHAMFER SHARP EDGES GENERAL TOLERANCE NEN ISO 2768-m... -
Page 33: Tensioning V-Belt
M-SQ PRO 15/18 kVA Marine Diesel Generator A smear of oil has to be put on the seal of the filter before fitting the filter. The filter should be fastened manually: when the rub- ber touches the metal turn 3/4 further. 4.2.6 Tensioning V-belt The alternator bracket allows for readjust of the V-belt. Deflec- tions should be 13 mm (see fig. 22) DETAIL A SCALE 1 : 3 Fig. 22: Tension V-belt Engine oil filter TOLERANCE PRINCIPE FINISH: UNLESS OTHERWISE SPECIFIED: DO NOT SCALE DRAWING ISO 8015 CHAMFER SHARP EDGES... -
Page 34: Maintenance Schedule
M-SQ PRO 15/18 kVA Marine Diesel Generator engine again and pause for a few minutes to let the oil The engine cooling liquid is indirectly cooled by gather in the crankcase. Check the level again and add raw water via a heat exchanger. The seawater is oil when necessary. pumped by the PTO driven impeller pump. All parts • Check and tighten nuts, bolts, and unions, paying partic- of the cooling system are of corrosion free and ular attention to the fuel system. seawater resistant materials such as naval brass and copper/nickel. In case of gathering of dirt in • Observe the exhaust at the normal full load. The ex- haust must be free from soot. Do not allow the engine the system it could be cleaned by compressed air. to run with a dirty exhaust without investigating the When overhauling the engine one could clean the cause as this may result in an expensive breakdown. parts thoroughly or replace. • Check air vent (siphon breaker valve) on a regular basis. When the air vent it not working properly, the When the generator set runs less than 150 hours a year the engine can fill up with water by siphoning. Water in the oil should be changed yearly. combustion chamber causes serious damage to the 4.3.1 Maintenance schedule engine. • Check and readjust V-belt. - Page 35 M-SQ PRO 15/18 kVA Marine Diesel Generator engine having the raw water inlet sucking anti-freeze from a can until the pump, heat exchanger and manifold are filled. The coolant can stay in the engine Disconnect the battery and store it in a place free of frost and dry and charge it regularly. Close inlet- and outlet openings with tape. Protect the generating set against the influences of bad weather conditions. This method of preservation will be sufficient for 6 months. Change oil before using the engine again.
-
Page 36: Troubleshooting
M-SQ PRO 15/18 kVA Marine Diesel Generator 5 TROUBLESHOOTING minutes before it stops. This offers you the possibility to carry out measurements to investigate the cause of the failure. Alternator/ electrical faults CAUTION Check if the engine is running correctly at 1500 RPM (50 Hz) ac- Remove 3 Amp. Fuse in the control panel while working cording to its settings and does as well under load. A RPM drop of on the generator to prevent the engine to start. 3% at full load is acceptable. Therefore a no load setting should be at 1545 RPM = 51.5 Hz. Under no circumstances should the RPM under full load be below 1485 RPM = 49.5 Hz. DANGER! When the problem is in the RPM refer to the engine fault finding Take care for parts which are live! paragraph. Digital Diesel Control system will help to indicate failures and 5.1.1 General display causes. If any problem should occur, check basic conditions and examine CAUTION all external wiring, switch gear and circuit breakers. Also check if measuring instruments give the correct value. If in doubt, If the voltage is set any higher than its maximum limit, measure directly on the alternator terminals with an indepen- the generator may be damaged. dent instrument. This should only be carried out by an expe- rienced electrician. If during these measurements the engine immediately stops after starting and an error code is displayed at the remote control panel ( “AC VOLTAGE”), one can start the... - Page 37 M-SQ PRO 15/18 kVA Marine Diesel Generator Tabel ECU signal pattern, these patterns can be read out on the red light of fig 24 & 25...
-
Page 38: Troubleshooting Table
M-SQ PRO 15/18 kVA Marine Diesel Generator 5.1.2 Troubleshooting table PROBLEM CAUSE SOLUTION • Circuit breaker “off” or faulty main Check switches and fuses and measure directly on the alternator to exclude external fuse causes. Check fuse of the AVR • Faulty fuse of the AVR • Loss of residual magnetism Check the residual magnetism, temporally increase RPM with 15%. Try to and flash the alternator (see special procedures) No output (Voltage) at all • Low engine RPM. Check the engine RPM and adjust (see special procedures). • Faulty RPM. Check by independent excitation if the problem is in the AVR or in the windings and replace if necessary (see special procedures). • Engine is not reaching the rated See special procedures to readjust RPM. RPM. -
Page 39: Engine Faults
M-SQ PRO 15/18 kVA Marine Diesel Generator Engine faults CAUTION! When the engine is cranking, well starting problems almost Remove 3 Amp. fuse in the control panel while working always originate from lack of fuel or air bubbles in the fuel pipes. on the generator to prevent the engine from starting. CAUTION! W hen the engine does not start instantly, prolonged 5.2.1 General cranking can fill up the exhaust system with cooling water because of the water injected exhaust. When Most electrical problems relating to Voltage or Frequency are the water enters the cylinder through the valves this will bring due to wrong engine speed. severe damage to the engine. When the engine does not start and repeated cranking is necessary shut off the seawater inlet. Note that RPM and Hz are basically the same. Open the valve immediately after the engine has started. Use the problem solving table to find the cause of a wrong A failure code is displayed when a hardware failure at the engine speed. When there is no obvious cause one can adjust the generator is detected. RPM (see special procedures). When the engine is not cranking well, starting problems almost always originate from battery problems or poor battery cable connections. Failure code Problem COMMUNICATION... -
Page 40: Troubleshooting Table
M-SQ PRO 15/18 kVA Marine Diesel Generator 5.2.2 Troubleshooting table PROBLEM CAUSE SOLUTION Check on water in the cylinder and further • Almost certainly this is an electrical damage by cranking. When there is water in problem. One other possibility is the cylinder, then deactivate the control sys- that the engine is locked by water tem, disconnect the battery, remove the glow in the cylinders or there is other plugs. Crank the engine to remove the water Diesel engine fails to crank, it severe damage. Display will indicate through the opening of the glow plugs. Check does not react at all, or the start- oil on the presence of water and change oil. “low battery voltage”. er makes clicking noises, or the Find out how the water did enter the cylinder engine cranks very slowly (check the air vent). Take precautions to pre- vent it from happening again. When there is no mechanical malfunction the problem must be an electric malfunction. • Starter battery switched “OFF”. Check position of the battery switch and switch “ON”. - Page 41 M-SQ PRO 15/18 kVA Marine Diesel Generator Fill up with fuel or replace by better quality. • Unsuitable contaminated fuel • Lack of fuel. Check fuel filter and fuel lift pump: clean or replace • Choked fuel filter. if necessary. Check if electrical load is fluctuating. • Disturbances on the electrical sys- tem/ user side. Try the pump by manual operation. Repair • Faulty fuel lift pump. when faulty or replace • Choked air cleaner. Check the air intake • Lack of air. Engine runs irregularly. • Choked exhaust system, exhaust Check the exhaust hose blocked, rubber exhaust hose kinked. • Air in the fuel pipes Bleed air from fuel system (see maintenance section).
- Page 42 M-SQ PRO 15/18 kVA Marine Diesel Generator • Overload or short circuit. Switch off the consumers and test for short circuit. • Lack of fuel. Check fuel supply system: fuel lines, pump, filter, valves, tank level, etc. • Oil pressure low. (oil pressure switch Check oil level. Check engine’s oil pressure and have it tripped). repaired by WhisperPower. • Excessive heat in cooling system Check cooling water system flow: water pump, (thermo-switch tripped). inlet water filter, coolant flow. • Lack of cooling water (exhaust switch Engine stops by itself tripped). (Digital Diesel Control will help to • Impeller broken. indicate failures) • Cooling water blocked. • Water strainer blocked. • Air or water in the fuel.
-
Page 43: Warnings
M-SQ PRO 15/18 kVA Marine Diesel Generator 5.2.3 Warnings CAUTION! Generator must be shut off immediately if: • Motor RPM suddenly rises or drops. • Unusual noise comes from generating set. • Exhaust gases suddenly colour dark. • Engine failure warning light is on. 5.2.4 Service address If you cannot correct a problem with the aid of the mal- func- tion table, contact your WhisperPower Service Centre or Whis- perPower Netherlands, tel: INT+31-512-571555. www.whisperpower.com. Fig 26: Automatic Voltage Regulator (AVR) Special procedures alternator Setting the bottom speed at 50 (60)Hz: start up rotation of the generating set adjusting it to obtain a frequency of 46 (56) Hz. 5.3.1 Automatic Voltage Regulator (AVR) Turn trimmer “Hz” until the voltage begins to drop. Restore nominal speed. The voltage regulator has a ±1% voltage precision in the machine working range with distortion free loads. -
Page 44: Testing Rotary Rectifier Diodes
M-SQ PRO 15/18 kVA Marine Diesel Generator When using the starter battery fuse it and limit the current with resistance should be checked as the fault must be in one of a 30 Ohm resistor. Flashing can be done while the engine is run- these windings. The respective leads must be disconnected ning and the wiring is connected. When a variac (variable power before taking the readings. supply) is available one should be able to control the voltage Resistance values should be within 10% of the values given in manually. the table below: Resistance M-SQ-Pro15/18 CAUTION Alternator Winding SQ-Pro 15 SQ-Pro 15 SQ-Pro 18 SQ-Pro 18 resistant 1phase 3phase 1phase 3phase If the starter set battery is used for exciting one must take care. A short circuit can cause heavy sparking, Stator Windings 0,12 0,325 0,08 0,224 Resistance Ω... -
Page 45: Adjusting Valve Clearance And Retightening The Cylinder Head Bolts
M-SQ PRO 15/18 kVA Marine Diesel Generator 5.4.2 Adjusting valve clearance and retightening the If the rocker arms move piston no.1 is on the T.D.C. of the intake cylinder head bolts or exhaust stroke. In such case turn the crankshaft 360° in the Both procedures have to be executed with a cold engine. When direction of engine rotation again. No. 1 piston is now at T.D.C. of both procedures are executed be sure to retighten the cylinder the compression stroke. head bolts before adjusting the valve clearance. When retight- ening the cylinder head bolts, drain the coolant by removing the coolant drain plug After adjusting the valves of cylinder 1 adjust the valve clearance Loosen the bolts slightly, remove the rocker assembly (the rocker of the remaining cylinders in firing order 1-3-4-2 Turn the crank- arms, shaft, and stays) and then retighten the bolts to the speci- shaft 180º clockwise from the T.D.C of cylinder 1 to the T.D.C of fied torque in the numerical order illustrated (ref. to fig. 28). cylinder 3. Adjusts the valves of cylinder 3 and turn the crank- shaft further clockwise to the T.D.C of cylinder 4 and finally to 2. V1505 5.4.3 Measuring exhaust backpressure Tightening torque cylinder head bolt: 65 ± 5 Nm Rocker stay tightening torque: 23 ± 2 Nm... -
Page 46: Disassembling Instructions
M-SQ PRO 15/18 kVA Marine Diesel Generator 5.4.4 Disassembling instructions It could be necessary for repair or checks to disassemble the generating set. Following instructions will help: The design of the M-SQ-Pro15/18 makes it possible to do most repairs on the spot. The heat exchanger is accessible and can be removed. The connections of the alternator are very accessible as well. The sound shield canopy can be disassembled according to exploded view below. Fig. 31: Exploded view soundshield Exploded view sound shield SQ Pro 15 / 18... - Page 47 M-SQ PRO 15/18 kVA Marine Diesel Generator To take the generating set out of the canopy all hose and cable connections have to be taken off. The set is fixed to its base by four rubber mountings and can be loosened by removing the four bolts of these mountings. The easiest way to get the generator out of its capsule is by lifting the set with the aid of the lifting eyes Taking the generator set from its mounting, or to replace a mounting can be done according to the drawing below Reassembling the generating set one should take care of alignment, cleaning the surfaces between engine and alter- nator and tighten the bolts crosswise and gradually. Test the generating set first outside its capsule and check very carefully for leakages before putting it back in its enclosure. DETAIL D SCALE 1 : 3 TOLERANCE PRINCIPE FINISH: UNLESS OTHERWISE SPECIFIED: DO NOT SCALE DRAWING ISO 8015 CHAMFER SHARP EDGES...
-
Page 48: Spare Parts
M-SQ PRO 15/18 kVA Marine Diesel Generator 6 SPARE PARTS A complete parts manual in English is available as an option number: number: 40200187 (***) A work shop manual in English is available as an option, number: 40200174 (***). We recommend the following spares for service and maintenance. Kit A: Article no. 40201560 Kit B: Article no. 42401461 42401460 Spare Parts Kit-A SQ-Pro 15 Article no. Description Quantity Quantity unit 40209030 Fuel Filter WP 40405121 Oil filter GV15 / GV3 PLUS / SQ15 - K 50212170 Plug fuse 10A 32V ROOD 50212154 Plug fuse 3A 32V VIOLET 40406120 V belt SQ-Pro 15 42401461 Spare Parts Kit-B SQ-Pro 15 Article no. -
Page 49: 40201670 Raw Water Pump Sq-Pro 15
M-SQ PRO 15/18 kVA Marine Diesel Generator 40201670 Raw Water Pump SQ-Pro 15... -
Page 50: 42401870 Raw Water Pump Sq-Pro 18
M-SQ PRO 15/18 kVA Marine Diesel Generator 42401870 Raw Water Pump SQ-Pro 18... -
Page 51: Maintenance Log
M-SQ PRO 15/18 kVA Marine Diesel Generator 7 MAINTENANCE LOG First Service After 50 Hours: Hour Counter: Remarks: Next Service (Every 150 Hours): Hour Counter: Remarks:... - Page 52 M-SQ PRO 15/18 kVA Marine Diesel Generator...
- Page 53 E n j o y G r e e n E n e r g y WhisperPower BV Kelvinlaan 82, 9207 JB Drachten The Netherlands www.whisperpower.com sales@whisperpower.com...
