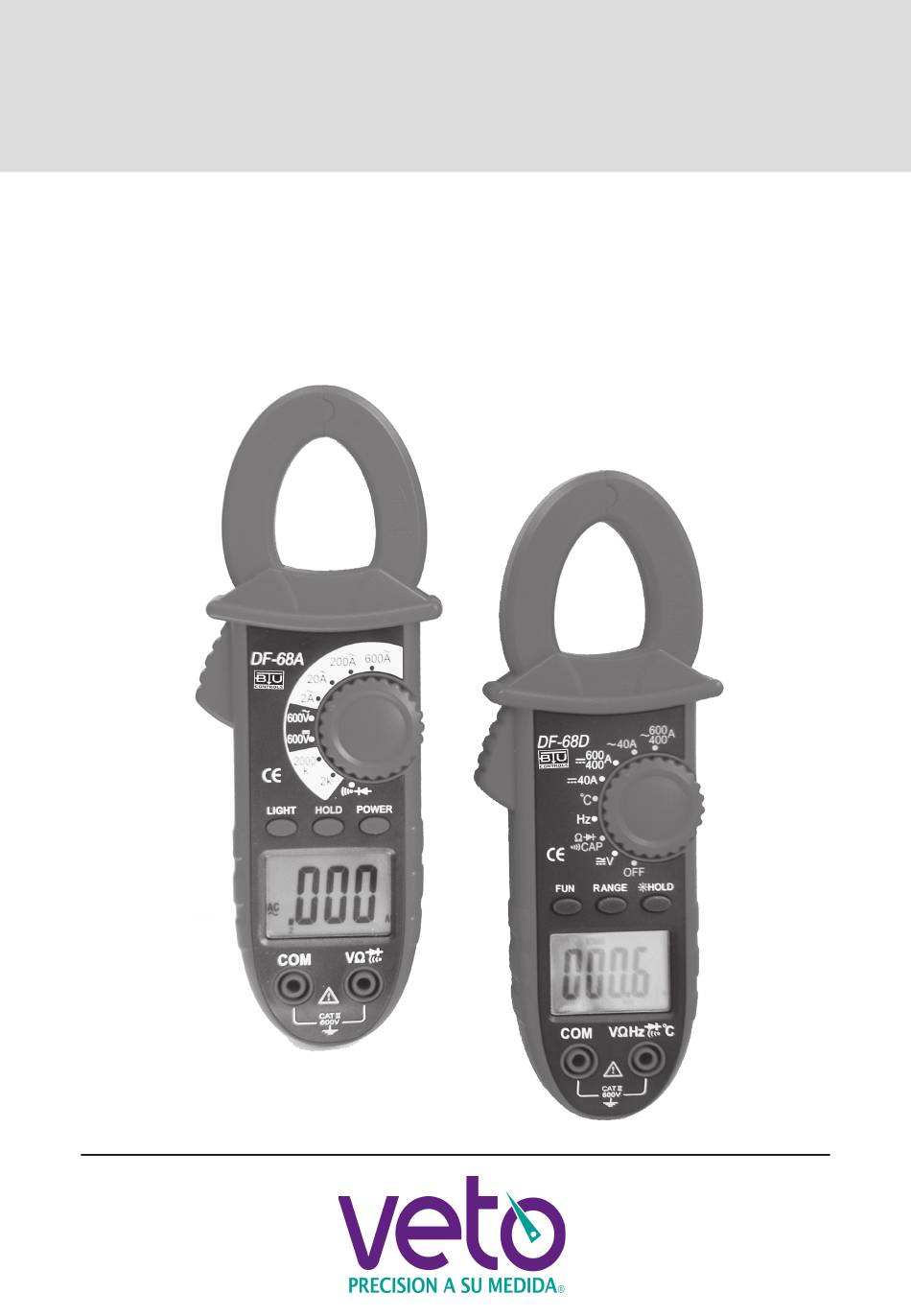

- Page 1 User's Guide Mini Clamp Multimeters...
- Page 2 Mini Clamp Multimeter DF68D...
-
Page 3: Table Of Contents
User's Guide of Mini Clamp Multimeters DF68A/DF68D Contents 1 Summary.................13 2 Safety instruction.............13 2-1. Safety signs.............13 2-2. Notes...............13 3 Feature................14 3-1. General feature............14 3-2. Technical feature.............15 4 Operating instruction............19 4-1. AC /DC measurement..........19 4-2. DCV measurement..........20 4-3. ACV measurement..........20 4-4. Resistance measurement........20 4-5. -
Page 4: Summary
User's Guide of Mini Clamp Multimeters DF68A/DF68D 1 sUMMAry DF68D is 3 3/4 handheld digital clamp multimeter, and has the ability to measure DC, AC, DCV/ACV, resistance, capacitance, temperature, frequency, Duty cycle, Diode and interrupted circuit. And it is suitable for lab, field measurement, household and large current measurement. -
Page 5: Feature
User's Guide of Mini Clamp Multimeters DF68A/DF68D 2-2-4. doesn’t exceed the limited value during measurement. 2-2-5. it is prohibited to connect the voltage in the resistance range terminals. 2-2-6. please removes the battery if keep the multimeter for a long time, in case the battery leakage damages the inner components. -
Page 6: Technical Feature
User's Guide of Mini Clamp Multimeters DF68A/DF68D 3-1-11. Power: 2X 1.5V AAA battery 3-1-12. Jaw opening size: 28mm, cable 26mm 3-1-13. Multimeter operating current: <2mA (no back light) 3-1-14. Operating environment: 0°C~40°C, Relative humidity: < 70% RH 3-1-15. Storage environment: -10°C~60°C, Relative humidity: <... - Page 7 User's Guide of Mini Clamp Multimeters DF68A/DF68D 3-2-4. AC Range Accuracy Resolution 10mA ±(3%+5) 400A 100mA 600A ±(3%+8) Caution: The current measurement should be done between 0°C and 40°C. At AC stall, it may be display 10 unstable words or ncorrect reading, and it will not effect the results.
- Page 8 User's Guide of Mini Clamp Multimeters DF68A/DF68D 3-2-6. ACV Range Accuracy Resolution 10mV ±(1.5%+5) 400V 100mV 600V Input impedance: 10MΩ Frequency response: 50Hz-400Hz Overload Protection: 600V DC/AC 3-2-7. DCV Range Accuracy Resolution 400mV 100μV ±(0.8%+3) 10mV 400V 100mV 600V ±(1.0%+3) Input impedance: 10MΩ...
- Page 9 User's Guide of Mini Clamp Multimeters DF68A/DF68D 3-2-9. Capacitance Range Accuracy Resolution 40.00nF ±(3%+18) 10pF 400.0nF 100pF 4.000μF ±(1.0%+3) 40.0μF 10nF 100μF 100nF Overload Protection: AC250V Caution: prohibit inputting voltage in this range!!! 3-2-10. Temperature Range Accuracy Resolution 0°C-400°C ±(1.0%+3) 1°C...
-
Page 10: Operating Instruction
User's Guide of Mini Clamp Multimeters DF68A/DF68D 1KHz 10KHz 10Hz ±(0.8%+3) 100KHz 100Hz 1MHz 1KHz 10MHz Only for reference 10KHz Sensitivity: ≤100KHz: ≥300mV rms >100KHz: ≥600mV rms ≤1MHz: ≥800mV rms Overload Protection: AC250V 3-2-13. Duty cycle (Duty%) Range Accuracy Resolution 0.1%-99.9%... -
Page 11: Dcv Measurement
User's Guide of Mini Clamp Multimeters DF68A/DF68D need to switch to other stall then switch back to the 400/600A stall. The multimeter is in the automatic range, and do not use the zeroing button to clear. ( on 600A stall, if need the accurate data, please subtract the base number). -
Page 12: Interrupted Circuit And Diode Measurement
User's Guide of Mini Clamp Multimeters DF68A/DF68D the “V/Ω” jack, and the black probe into the “COM” jack. 4-4-2. Connect the tested probe to the tested circuit and obtain the value from the LCD screen. Caution: 1. Please cut off all the power in the circuit and all capacitors exhausted residual charge before measuring the online resistance in order to ensure measurement correctly. -
Page 13: Frequency, Duty Cycle Measurement
User's Guide of Mini Clamp Multimeters DF68A/DF68D Caution: It is prohibited to input the voltage in the temperature range 4-7. Frequency, Duty cycle measurement 4-7-1. Put the red probe into the “Hz” jack, Put the red probe into the “V/Ω” jack,and the black probe into the “COM” jack. -
Page 14: Maintenance
User's Guide of Mini Clamp Multimeters DF68A/DF68D and the light will be extinguished after 3 seconds. 5. MAintenAnCe This multimeter is very precious and don’t change the circuit casually. 5-1. When the LCD display under voltage " " prompt, it should be to replace the built-in battery.
