ENDA ETM1411 Quick Start Manual

Please read this document carefully before using this product. The guarantee will be
invalidated if the device is damaged by not following instructions detailed in the
manual. The company shall not be responsible for any damage or losses however
caused, which may be experienced as a result of the installation or use of this product.

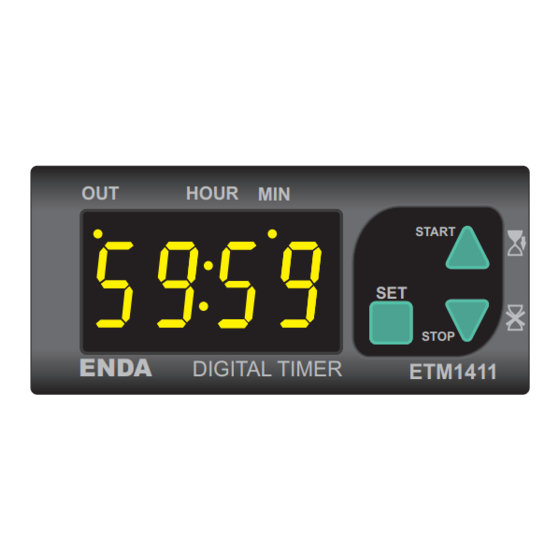

ENDA ETM1411 DIGITAL TIMER
Thank you for choosing ENDA ETM1411 digital timer.
* 35 x 77mm sized.
* Single contact output for timing control.
* External start input.
* Display can be adjusted to show min. or sec.
* Scale ;
0:01 .... 99:59 mins.
0:01 .... 99:59 hrs.
* Decrease and increace step of time can be adjusted.
* Start and stop possibility by front panel.
* 16 different warning tones.
* Upper and lower limits of the setpoint can be
adjusted.
* CE marked according to European Norms.
Order Code : ETM1411-
1

Connection Diagram

ENDA ETM1411 is intended for installation in control panels. Make sure that the device is
used only for intended purpose. The shielding must be grounded on the instrument side.
During an installation, all of the cables that are connected to the device must be free of
electrical power. The device must be protected against inadmissible humidity, vibrations,
severe soiling and make sure that the operation temperature is not exceeded. All input and
output lines that are not connected to the supply network must be laid out as shielded and
twisted cables. These cables should not be close to the power cables or components. The
installation and electrical connections must be carried out by a qualified staff and must be
according to the relevant locally applicable regulations.
ENDA ENDA
INDUSTRIAL ELECTRONICS INDUSTRIAL ELECTRONICS
SN: XXXXXXXXX
ETM1411-230VAC ETM1411-12
DIGITAL TIMER
DIGITAL TIMER
START
1 2 3 4 5 6 7 8 9 10 11 12 1 2 3
Equipment is protected throughout
by DOUBLE INSULATION.
NOTE :
Fuse
SUPPLY: F 100 mA
Switch
250V AC
7 Line
184-253V AC
50/60Hz 4VA
Neutral
8
Fuse should
Cable size: 1,5mm²
be connected.
OUT HOUR MIN
ENDA DIGITAL TIMER
1- Supply Voltage
230VAC...230V AC
24............24V AC/DC
12............12V AC/DC
ENDA
SN: XXXXXXXXX INDUSTRIAL ELECTRONICS
ETM1411-24
DIGITAL TIMER
START
4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7
Holding screw
0.4-0.5Nm
Note:
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
230V AC 2) In accordance with the safety regulations, the power
supply switch shall bring the identification of
Supply
the relevant instrument and it should be easily accessible
by the operator.

TECHNICAL SPECIFICATIONS

ENVIRONMENTAL CONDITIONS

Ambient/storage temperature
Max. Relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELEKTRÝKSEL ÖZELLÝKLER
Supply
Power consumption
Wiring
Scale
Sensitivity
Time Accuracy
START
Indicator
EMC
SET SET
Safety requirements
STOP
ETM1411
OUTPUT
OUT
Life expectancy for relay
START INPUT
Input type
On and Off times for input
pulses

HOUSING

Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
Dimensions
OUT HOUR
SN: XXXXXXXXX
ENDA DIGITAL TIMER
START
8 9 10 11 12
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20 34775 - ÜMRANÝYE/ÝSTANBUL/TÜRKÝYE
1/2 Tel : +90 216 499 46 64 Pbx.
url : www.enda.com.tr
0 ... +50°C/-25 ... +70°C (with no icing)
80% up to 31°C decreasing linearly 50% at 40°C.
According to EN 60529 Front panel :
Rear panel :
Max. 2000m
230V AC +10 % -20 , 50/60Hz or 24 % V AC/DC 10%, 50/60Hz or 12V AC/DC 10%, 50/60Hz
Max 4VA
2.5mm² screw-terminal connections
Selectable 99:59 min. or hour.
1 sec.
±1%
4 digits, 12.5mm, 7 segment yellow LED
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.
The device is designed to operate in controlled electromagnetic environment)
EN 61010-1: 2001 ( pollution degree 2, overvoltage category II
Relay: 250V AC, 8A ( for resistive load ), NO+NC
Mechanical 30.000.000 operation; Electrical 100.000 operation
Control with mechanical contact.
Min. = 100ms
Suitable for flush-panel mounting
W77xH35xD71mm
Approx. 198g (after packing)
Self extinguishing plastics
For removing mounting clamps:
77mm
Push the flush-mounting
MIN
clamp in direction 1 as shown
START
in the figure below. Then, pull
out the clamp in direction 2.
SET SET
STOP
ETM1411
Flush mounting
clamp
Panel cut-out
71mm
1
Fax : +90 216 365 74 01
IP65
IP20
± ±
)
Depth
71mm 5mm
Flush mounting
Panel
Rubber
clamp
2
packing
Note : 1) Panel thickness
should be maximum
7 mm.
2) If there is no 60mm
free space at the back
side of the device, it
would be difficult to
remove it from the
Panel.
ETM1411-E-05-R
