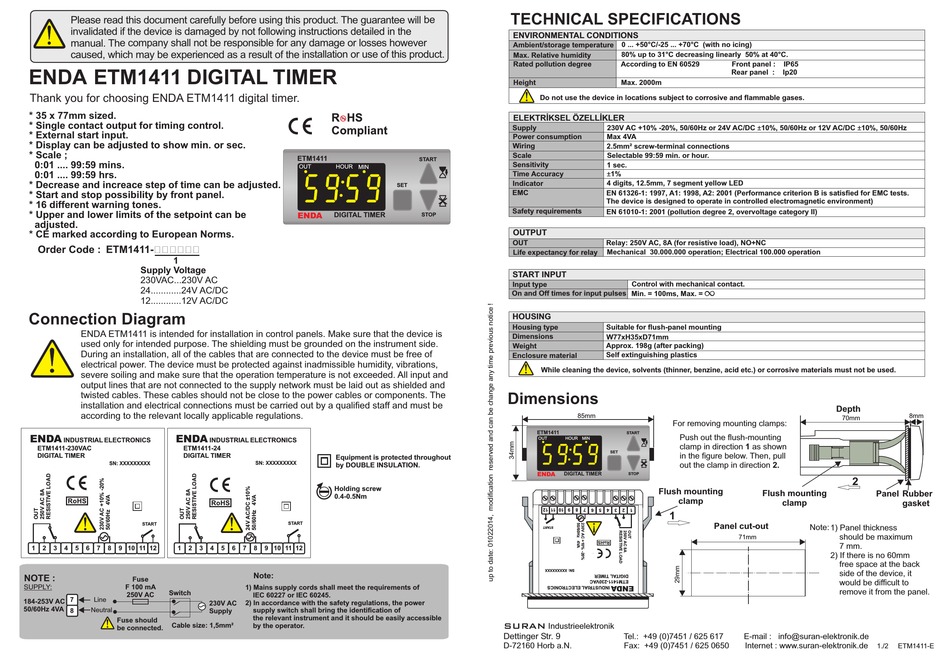

ENDA ETM1411 Series Manual

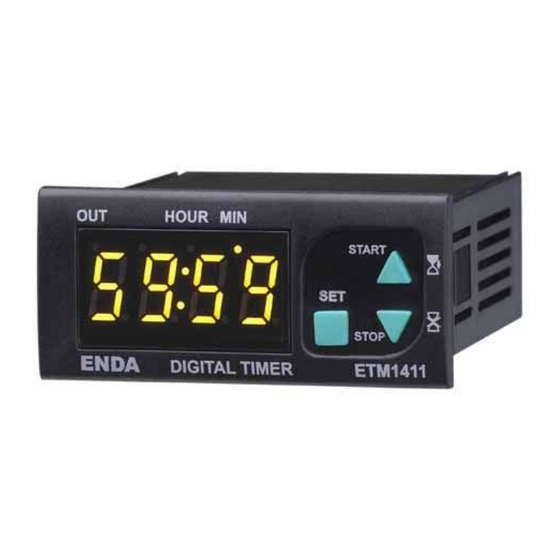

ENDA ETM1411 DIGITAL TIMER
Thank you for choosing ENDA ETM1411 digital timer.
* 35 x 77mm sized.
* Single contact output for timing control.
* External start input.
* Display can be adjusted to show min. or sec.
* Scale ;
0:01 .... 99:59 mins.
0:01 .... 99:59 hrs.
* Decrease and increace step of time can be adjusted.
* Start and stop possibility by front panel.
* 16 different warning tones.
* Upper and lower limits of the setpoint can be
adjusted.
* CE marked according to European Norms.
Order Code : ETM1411-
1
Supply Voltage
230VAC...230V AC
24............24V AC/DC
12............12V AC/DC
Connection Diagram
ENDA ETM 411 is intended for installation in control panels. Make sure that the device is 1
used only for intended purpose. The shielding must be grounded on the instrument side.
During an installation, all of the cables that are connected to the device must be free of
electrical power. The device must be protected against inadmissible humidity, vibrations,
severe soiling and make sure that the operation temperature is not exceeded. All input and
output lines that are not connected to the supply network must be laid out as shielded and
twisted cables. These cables should not be close to the power cables or components. The
installation and electrical connections must be carried out by a qualified staff and must be
according to the relevant locally applicable regulations.
ENDA ENDA
INDUSTRIAL ELECTRONICS
ETM1411-230VAC ETM1411-24
DIGITAL TIMER DIGITAL TIMER
SN: XXXXXXXXX
START
1 2 3 4 5 6
7 8 9 10 11 12 1 2 3
NOTE :
Fuse
F 100 mA
SUPPLY:
Switch
250V AC
7
Line
184-253V AC
50/60Hz 4VA
8
Neutral
Fuse should
Cable size: 1,5mm²
be connected.
ETM1411
OUT HOUR MIN
DIGITAL TIMER
ENDA
INDUSTRIAL ELECTRONICS
Equipment is protected throughout
SN: XXXXXXXXX
by DOUBLE INSULATION.
Holding screw
0.4-0.5Nm
START
4 5 6 7 8 9 10 11 12
Note:
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
2) In accordance with the safety regulations, the power
230V AC
supply switch shall bring the identification of
Supply
the relevant instrument and it should be easily accessible
by the operator.
TECHNICAL SPECIFICATIONS
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. Relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELEKTRÝKSEL ÖZELLÝKLER
Supply
Power consumption
Wiring
Scale
START
Sensitivity
Time Accuracy
Indicator
SET
EMC
Safety requirements
STOP
OUTPUT
OUT
Life expectancy for relay
START INPUT
Input type
On and Off times for input pulses
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or
Dimensions
ETM1411
OUT HOUR
DIGITAL TIMER
ENDA
Industrieelektronik
SURAN
Dettinger Str. 9
D-72160 Horb a.N.
0 ... +50°C/-25 ... +70°C (with no icing)
80% up to 31°C decreasing linearly 50% at 40°C.
According to EN 60529 Front panel :
Rear panel :
Max. 2000m
230V AC +10 % -20 , 50/60Hz or 24 % V AC/DC 10%, 50/60Hz or 12V AC/DC 10%, 50/60Hz
Max 4VA
2.5mm² screw-terminal connections
Selectable 99:59 min. or hour.
1 sec.
±1%
4 digits, 12.5mm, 7 segment yellow LED
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.
The device is designed to operate in controlled electromagnetic environment)
EN 61010-1: 2001 ( pollution degree 2, overvoltage category II
Relay: 250V AC, 8A ( for resistive load ), NO+NC
Mechanical 30.000.000 operation; Electrical 100.000 operation
Control with mechanical contact.
Min. = 100ms, Max. =
4
Suitable for flush-panel mounting
W77xH35xD71mm
Approx. 198g (after packing)
Self extinguishing plastics
85mm
For removing mounting clamps:
START
Push out the flush-mounting
MIN
1
clamp in direction as shown
SET
in the figure below. Then, pull
out the clamp in direction
STOP
Flush mounting
clamp
1
Panel cut-out
71mm
Tel.: +49 (0)7451 / 625 617 E-mail : info@suran-elektronik.de
Fax: +49 (0)7451 / 625 0650 Internet : www.suran-elektronik.de
IP6 5
Ip20
± ±
)
corrosive materials must not be used.
Depth
8mm
70mm
2.
2
Flush mounting
Panel Rubber
clamp
gasket
Note: 1) Panel thickness
should be maximum
7 mm.
2) If there is no 60mm
free space at the back
side of the device, it
would be difficult to
remove it from the panel.
1./2 ETM1411-E
