ENDA PTM232 Manual

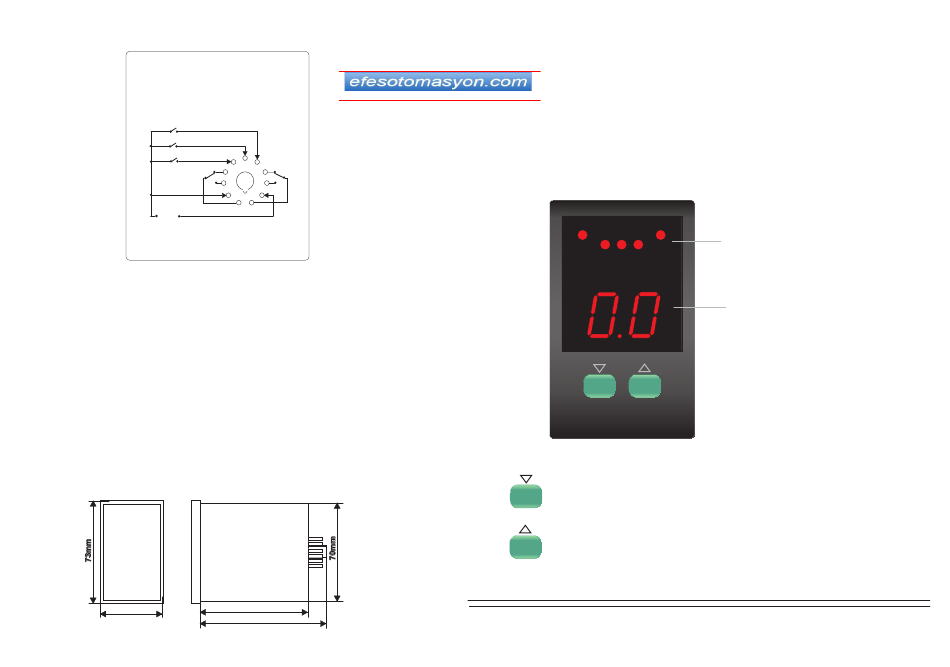

CONNECTION DIAGRAM
ENDA
INDUSTRIAL ELECTRONICS
PTM232 DIGITAL TIMER
RESET
START
GATE
5 6 7
4
OUT1
3
2
1 11
SUPPLY
230V AC +10% -20%
50/60Hz 7VA
SN: XXXXXXXXXX
TECHNICAL SPECIFICATIONS
Dimensions : W44xH73xD90mm
Display : 2 digits, 14.2mm, 7 segment red LED
Time ranges : It can be adjustable between 0-9.9 seconds and 0-99 hours.
Accuracy : ±%1
Start : By start input
Reset : By reset input
Gate : By gate input
Output function : 6 different timing functions can be selectable.
Control output : 2 relays. 230V AC, 2A (for resistive load), NO+NC.
Supply voltage : 230V AC +10% -20%, 50/60Hz or 24V AC ±10%, 50/60Hz
or optional 9-30V DC / 7-24V AC ±10% SMPS module.
Power consumption : 2VA
Ambient temperature
: 0-50 C º
Keypad : Micro switch
Data retention
: EEPROM (min. 10 years)
Wiring
: 11 pins round socket
Weight
: 215 g.
76mm
44mm
90mm
CONTACT
5A 250VAC
8
OUT2
9
10

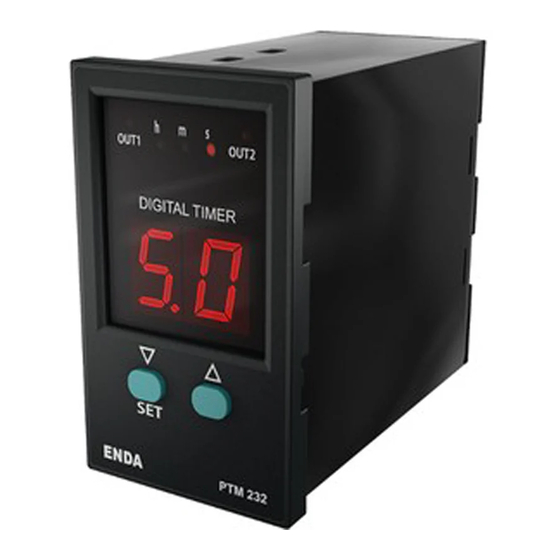

ENDA PTM232 DIGITAL TIMER
* Easy to operate.
* Relay output can be adjusted for set value.
* Start by start input.
* Down counting direction for time.
* Reset input.
* Gate input.
h
m s
OUT1 OUT2
DIGITAL TIMER
DIGITAL TIMER
SET
ENDA
PTM232
Keypad:
When first pressed, the time adjustment mode is entered. Used for decreasing
the numerical value in the time adjustment mode.
the change rate accelerates. When first pressed and held for 5 seconds, time unit
and output type adjustment mode is entered.
SET
When first pressed, the time adjustment mode is entered. Used for increasing
the numerical value in the time adjustment mode.
the change rate accelerates.
url: www.enda.com.tr
1/ 2
Main Properties :
* 6 different time ranges
0-9.9 S 0-99 S
0-9.9 m 0-99 m
0-9.9 h 0-99 h
Time unit
Displayed time unit.
Digital Display:
Displayed time value in the run mode,
adjusted time in programming mode.
When held down for 0.6 second
When held down for 0.6 second
PTM232-E-04
