ENDA ATM9321 User Manual

Technical Specifications
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
0 ... +50°C/-25 ... 70°C
Max. relative humidity 80%, up to 31°C decreasing linearly 50% at 40°C
According to EN 60529
Rated pollution degree
Height
Max. 2000m
Do not use the device in locations subject to corrosive and flammable gasses.
ELECTRICAL CHARACTERISTICS
230V AC +%10 -%20, 50/60Hz or
Supply voltage
Power consumption Max. 6VA
Wiring 2.5mm²'lik screw-terminal connections.
Scale 0 ... 9.99 or 0 ... 99.9 or 0 ... 999 minutes (selectable)
Sensitivity ±1 digit
Accuracy %4 for analog scale, %0,5 for timer display (of full scale)
±
Display 3 digits, 7.62mm, 7 segment red LED
Data Retention EEPROM (Min. 10 years)
EMC
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.
Safety requirements EN 61010-1: 2001 (Pollution degree 2, overvoltage category II)
INPUTS
Start input
Contact input (during min. 5ms.)
Reset input Contact input
OUTPUTS
Control output
Relay : 250V AC, 2A (for resistive load), NO+NC or 12V DC 20mA logic output
Life expectancy for relay Mechanical 30.000.000 operation; electrical 300.000 operation.
CONTROL
Mode A : Control output is energized after setting time is over
Output function
Mode B : Control output is energized during setting time.
10 bits
A/D converter
HOUSING
Housing type
Suitable for flush-panel mounting.
Dimensions W96xH96xD50mm
Approx. 250g (after packing the device)
Weight
Enclosure material Self extinguishing plastics
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
Dimensions
Depth
14mm
SET
OUT
min 50
40 60
1
30 70
80
20
90
10
100 %
0
ENDA
ATM9321
Rubber
packing
99mm
Panel
Push out the flush-mounting clamp in direction 1.
For removing mounting clamps:
Then, pull out the clamp in direction 2.
Front panel : IP60
Rear panel : IP20
24V AC %10, 50/60Hz or optinal 9-30V DC SMPS module.
±
±
.
Panel cut-out
50mm
105mm
90.5mm
Flush mounting
clamp
2
1) Panel thickness should be
max. 10mm.
2) If there is no 60mm free
57mm
space at the back side of the
device, it would be difficult to
remove it from the panel.
Read this document carefully before using this device. The guarantee will be
expired by damaging of the device if you don't attend to the directions in the user
manual. Also we don't accept any compensations for personal injury, material
damage or capital disadvantages.

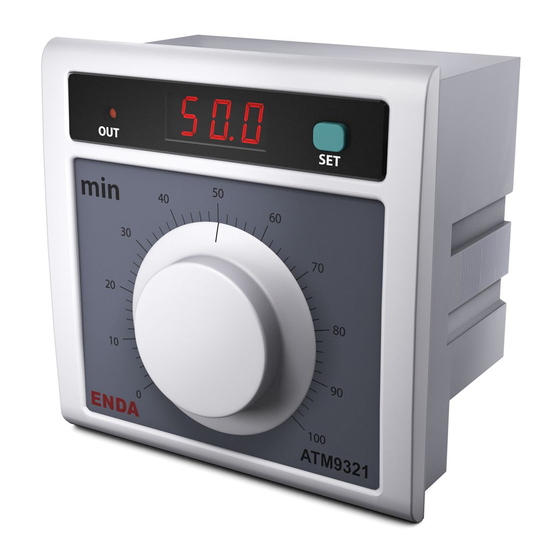

ANALOG TIMER with DIGITAL DISPLAY
Thank you for choosing ENDA ATM9321 analog timer.
Control output state LED
(Light is on when control output is energized)
* 96 x 96mm sized.
* Digital display for timer value.
* Selectable scale with 0 ... 9.99 or 0 ... 99.9 or 0 ... 999 minutes
* Selectable mode A (on-delay) and mode B
* Start by start input.
* Reset by reset input.
* Easy setting procedure.
* Having CE mark according to European Norms.
Application Areas
Note : Plastic injection presses, automatic bread making ovens, nylon bag machines,
shrink packing machines, furniture presses, industrial ovens, textile machines,
ironing presses and other time control applications.
ENDA ATM9321
OUT
50
min
40
60
30
20
10
0
ENDA
(off-delay) output functions.
english
Set key
SET
Timer display
(minute)
70
80
Timer setting knob
90
% Setting value is
100
percentage of
ATM9321
the full scale.
1. /2 ATM9321-E-09050219
