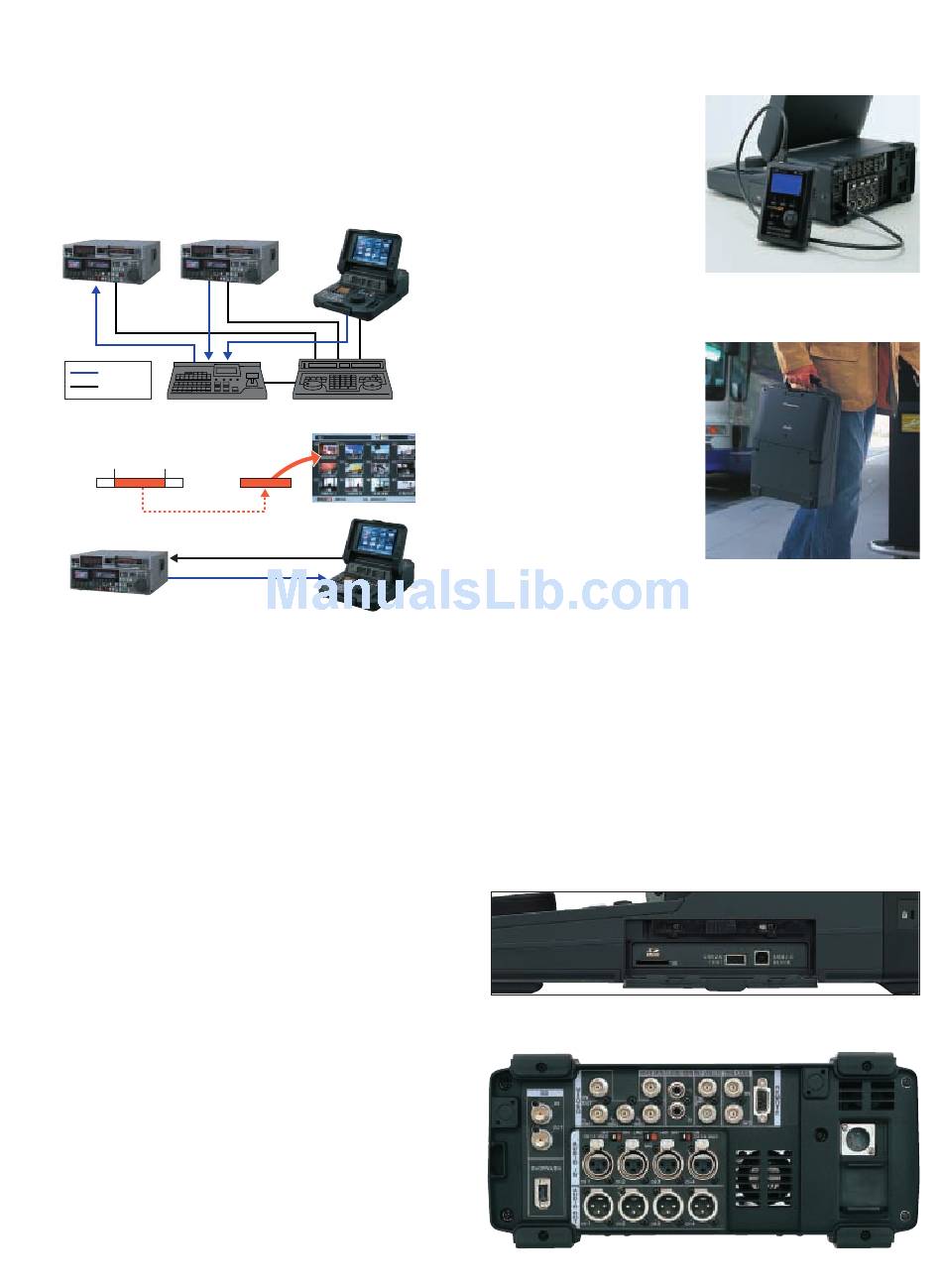

P R O F E S S I O N A L I N T E R F A C E S I N A R U G G E D M O B I L E U N I T
RS-422A Remote and Capture IN Function
The AJ-HPM110 is equipped with an RS-422A remote terminal to
interface with a broadcasting VTR. Using an external controller, this lets
you operate the AJ-HPM110 as an editor-player. The Capture IN function
provides control over an external VTR from the AJ-HPM110 control panel
for easy production of P2 clips from tape sources.
RS-422A A/B Roll Edit System
VTR (R)
HD-SDI
RS-422A
HD SW/DVE
Capture IN function
IN
OUT
Tape material
DVCPRO/
DVCPRO HD VTR
USB 2.0 Host Function
Allows Use of a Hard Disk Drive
The AJ-HPM110 is equipped with a USB 2.0 interface for host/device. In
host mode, you can connect a hard disk drive and read and write P2 files.
In device mode, you can connect a PC (or nonlinear editor) and use the
AJ-HPM110 as a P2 card drive for direct transfer of P2 clips into nonlinear
editing software.
HD/SD Serial Digital Interface
The AJ-HPM110 comes equipped with an SDI terminal, the standard
interface in broadcasting systems. It also has HD-SDI input/output and
SD-SDI input/output capabilities. This allows the AJ-HPM110 to handle a
variety of operations such as line recordings, studio production and on-air
broadcasting. The input system can be separately selected for video and
audio with the Input Select key on the front panel.

Analog Input/Output

The AJ-HPM110 is equipped with various analog I/Os: Composite In, HD
Component Out/Composite Out (shared), Composite Monitor Out, Audio
In/Out (4 channels), and Audio Monitor Out (2 channels).
Menu Setting and User File
Using the crosshair cursor buttons or jog dial, it's easy to select menu
items and make settings on the LCD monitor. A user file containing up to
five groups of settings can be saved or loaded. You can assign frequently
used menu items to the three PF keys, then select them instantly with the
touch of a finger.
SD Card Slot
The AJ-HPM110 has an SD/SDHC card slot. By using the P2 viewer
software, you can create a metadata upload file containing the names of
the camera operator and reporter, the shooting location and other text
information, and save it onto an SD/SDHC card. The AJ-HPM110 can then
read the information as metadata.
VTR (P1)
AJ-HPM110
Editing Controller
P2 Clip
RS-422A
SDI/HD-SDI
AJ-HPM110
IEEE 1394 Digital Interface
An IEEE 1394 digital interface
comes standard on the
AJ-HPM110. Connect a DVCPRO
HD camera-recorder/VTR or Focus
FireStore, and the AJ-HPM110 can
input or output a DVCPRO-
compressed stream with no image
degradation. This lets you extend
the AJ-HPM110's recording and
backup capabilities.
* Input/output is possible only when the
system frequency mode is set to 59.94/50 Hz.
Input/output is not possible in AVC-Intra mode.
Rugged Casing
With its rugged casing and
magnesium die-cast frame, the
AJ-HPM110 is tough enough for
go-anywhere field production.
The rear connector section is
protected by a cover. With the
editing panel closed,
the AJ-HPM110 is the size of a
large briefcase and comes
equipped with a metal handle for
easy carrying. You can take it
onboard an airplane as a carry-on.
AC/DC
The versatile AJ-HPM110 runs on either 100 to 240-V AC or 12-V DC.
Plug it in and you have an outstanding desktop recorder, or take
the AJ-HPM110 outside and mount it in an OB van or carry it right into
the field.
P2HD 5-year Warranty Repair Program
The P2HD five year warranty repair program further enhances the P2
card's outstanding reliability and durability, and helps to reduce running
costs. Once you purchase the AJ-HPM110, simply visit Panasonic's
Website and activate the five year warranty repair program.
*Please note that this program is not available in some countries and regions. The standard
warranty period may vary depending on the country or region. Not all repair work is covered by
this extended warranty.
The maximum warranty period may be adjusted depending on the hours of use. Details about
user registration and the program: http://panasonic.biz/sav/pass_e
Side Connector Panel
Rear Connector Panel
Connecting with Focus FS-100
