TIDI Zero-Gravity ZGM-6-5H Instructions Manual

Floor & ceiling mounted units
Hide thumbs Also See for Zero-Gravity ZGM-6-5H:
Table of Contents

Advertisement

Quick Links

Download this manual
Uncrating Instructions
ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66
Floor & Ceiling Mounted Units
Original Translation Source is in English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zero-Gravity ZGM-6-5H and is the answer not in the manual?

Questions and answers

Related Manuals for TIDI Zero-Gravity ZGM-6-5H

Summary of Contents for TIDI Zero-Gravity ZGM-6-5H

  • Page 1 Uncrating Instructions ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Floor & Ceiling Mounted Units Original Translation Source is in English...

  • Page 2: Table Of Contents

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Table of Contents Important Information ........................4 Read this Manual Before Starting to Work!..................4 Zero-Gravity Document List ........................ 4 System Identification ..........................5 Intended Use ............................6 Radiation Protection System ..................6 Zero-Gravity ®...
  • Page 3 Oversættelser kan findes på TIDI Products' websted: https://www.tidiproducts.com/ifu Vertalingen beschikbaar op de website van TIDI Products: https://www.tidiproducts.com/ifu Traductions disponibles sur le site Web de TIDI Products : https://www.tidiproducts.com/ifu Übersetzungen sind auf der Website von TIDI Products verfügbar: https://www.tidiproducts.com/ifu Traduzioni disponibili sul sito web di TIDI Products: https://www.tidiproducts.com/ifu...

  • Page 4: Important Information

    Within the bounds of the legal requirements, the manufacturer is only responsible for the technical safety characteristics of this apparatus if the maintenance, repairs, and modifications to this apparatus are performed by TIDI Products or an approved TIDI Products representative.

  • Page 5: System Identification

    ● Type designation: Floor Unit (ZGM-6-5H), Hinged Swing Arm (ZGHSA), Monorail Hinged Swing Arm (ZGCM- HSA), Monorail 48 (ZGCM-48) or 66 inches (ZGCM-66) ● Serial Number: See Identification Tag ● Sterile covers manufactured by: TIDI Products, LLC ● Authorized representatives: See Declarations of Conformity. ● Manufacture date: See Identification Tag ●...

  • Page 6: Intended Use

    ● Particularly helpful information is italicized. ● Personnel removing equipment from the crate should refer to TIDI Products document 82000 (Uncrating Instructions). ● Installers should refer to TIDI Products document 83000 (Installation Guide).

  • Page 7: System Description

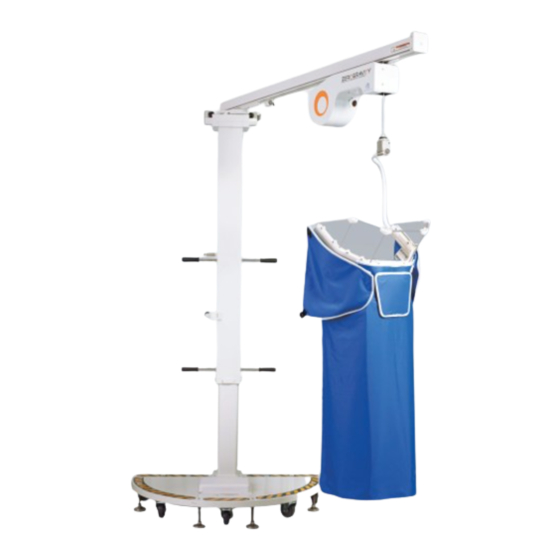

    Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 System Description Zero-Gravity Floor Unit (ZGM-6-5H) Features: Mobile unit with heavy base with casters and locks, variable-height mast, 48” pivoting boom. Zero-Gravity Hinged Swing Arm Unit (ZGHSA) Features: Ceiling mounted central pivot-plate, swinging rigid arm, 48”...

  • Page 8: Zero-Gravity Monorail Hinged Swing Arm (Zgcm-Hsa)

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Zero-Gravity Monorail Hinged Swing Arm (ZGCM-HSA) Features: Ceiling mounted upper track, central pivot on upper trolley with 48” lower track. Zero-Gravity Monorail Unit (ZGCM-48 or ZGCM-66) Features: Ceiling mounted upper track, (ZGCM-48) 48” lower track or (ZGCM-66) 66” lower track.

  • Page 9: Safety Symbols

    Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Safety Symbols Important information in this document is marked with symbols and keywords. Keywords such as WARNING, CAUTION, or ATTENTION indicate the level of risk involved. The symbols emphasize the message visually.

  • Page 10: Document Safety Symbols

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Document Safety Symbols Read and follow all safety instructions in the document and on the device. CAUTION! HEAVY EQUIPMENT • A second person is required for lifting and handling. • Use caution when unpacking and handling the Zero-Gravity System.
  • Page 11 If the body shield is damaged, it must be rechecked according to the Maintenance section of the User’s Guide (TIDI Products document 84000) CAUTION! PINCH POINT HAZARD Never push or pull a Zero-Gravity floor unit by placing hands on the large D-shape base.

  • Page 12: Verify Components

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Verify Components Follow the steps below to verify the system is not damaged and is ready for installation. Inspect each component of the system following the uncrating instructions. Make sure all items on the packing list are included. Inspect all components to make sure no damage occurred during shipping.

  • Page 13: Packing List - Floor Unit (Zgm-6-5H)

    Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Packing List – Floor Unit (ZGM-6-5H) Item Part Shipping Crate with Labels Boom Arm Assembly Balancer End Stop Cap and (2) screws, Spring Pin, Docking Station, (4) Black Plastic Hole Plugs Body and Face Shield with Right and Left Shoulder Shields Base Assembly (including Identification Tag)

  • Page 14: Packing List - Ceiling Mounted Unit (Zghsa)

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Packing List – Ceiling Mounted Unit (ZGHSA) Item Part Shipping Crate Foam Packaging Block Support Plate Assembly Drop Tube (including Identification Tag) Body and Face Shield and (1 Each) Right and Left Shoulder Shields Boom Arm Assembly Balancer Box Containing System Components: (1) Box Containing...

  • Page 15: Packing List - Ceiling Mounted Unit (Zgcm-48 | Zgcm-66)

    Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Packing List – Ceiling Mounted Unit (ZGCM-48 | ZGCM-66) Item Part Shipping Crate Boom Arm Assembly Rail Assembly Drop Tube Packing Foam Piece A Packing Foam Piece B Protective Foam Cover Body and Face Shield (1 Each) Right and Left Shoulder Shields...

  • Page 16: Packing List - Ceiling Mounted Unit (Zgcm-Hsa)

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Packing List – Ceiling Mounted Unit (ZGCM-HSA) Item Part Shipping Crate Boom Arm Assembly Swivel Boom Assembly Rail Assembly (including Identification Tag) Packing Foam Piece A Packing Foam Piece B Protective Foam Cover Body and Face Shield (1 Each) Right and Left Shoulder Shields Box Containing (1 each) Balancer, Carriage Cover, and...

  • Page 17: Uncrating The System - Floor Unit (Zgm-6-5H)

    Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Uncrating the System – Floor Unit (ZGM-6-5H) CAUTION! HEAVY EQUIPMENT Crate includes heavy interior ramp which must be lowered to the ground by two people. The body shield assembly weighs ~ 54 pounds (24.5 kilograms) and must also be removed and handled by two people.
  • Page 18 Zero-Gravity Radiation Protection System Uncrating Instructions ® With your right hand pressed firmly against the door, release the clasps, releasing the door. The ramp is now visible (Figure 6). Figure 6 Ramp Sections (folded) With the door open, remove the steel bolt on the right side, releasing the ramp’s two sections (Figure 7).

  • Page 19: Unpack The Contents

    If the body shield is damaged, it must be rechecked according to the Maintenance section of the User’s Guide (TIDI Products document 84000). Leaving the protective foam cover intact, carefully remove the body shield assembly and place them on a clean, flat surface.
  • Page 20 Zero-Gravity Radiation Protection System Uncrating Instructions ® CAUTION! HEAVY EQUIPMENT Use care when handling the base. The base weighs~ 660 pounds (300 kilograms) and is not intended to be lifted. Find the spring pin in Foam Block 1 from Figure 9. Place the spring pin into the hole on the far side of the column.
  • Page 21 Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Figure 10 Zero-Gravity® Radiation Protection System Uncrating Instructions...
  • Page 22 Zero-Gravity Radiation Protection System Uncrating Instructions ® Figure 11 Leveling Pad Down 11. Remove the wood blocks (Figure 12). Figure 12 D-Shaped Base Caster Wood Block Floor & Ceiling Mounted Units (82000)
  • Page 23 Confirm uncrated items with packing list. If all items are present, proceed to Installation Manual. If any item is missing, or appears to be damaged, contact your local sales representative or TIDI service before proceeding further. Zero-Gravity® Radiation Protection System Uncrating Instructions...

  • Page 24: Uncrating The System - Ceiling Mounted Unit (Zghsa)

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Uncrating the System – Ceiling Mounted Unit (ZGHSA) CAUTION: HEAVY EQUIPMENT Use care when handling the crate lid. The crate lid weighs ~ 50 pounds (23 kilograms). Open the Crate Remove the screws in the Crate Lid using a T25 torque bit as shown on the right.
  • Page 25 Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 CAUTION: HEAVY EQUIPMENT Use care when handling the crate side panel. The side panel weighs ~ 65 pounds (30 kilograms). Two people are required for handling. Remove the screws in the crate side using a T25 torque bit as shown on the right.

  • Page 26: Unpack The Boom Arm Assembly

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Unpack the Boom Arm Assembly CAUTION: HEAVY EQUIPMENT Use care when handling the Boom Arm. The Boom Arm weighs ~ 40 pounds (18 kilograms). Remove the screws holding the Boom Arm Straps (shown in red, 1 on each end) to the Crate Supports.

  • Page 27: Unpack The Drop Tube

    Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Unpack the Drop Tube CAUTION: HEAVY EQUIPMENT Use care when handling the drop tube. The drop tube weighs ~ 140 pounds (63.5 kilograms). Two people are required for handling. Remove the screws holding the Drop Tube Straps (shown in red, 1 on each end) to the Boom Arm Crate Supports.

  • Page 28: Unpack The Support Plate

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Unpack the Support Plate CAUTION: HEAVY EQUIPMENT Use care when handling the Support Plate. The Support Plate weighs ~ 200 pounds (91 kilograms). (Forklift Required.) Remove the screws (locations marked below in red) that secure the Support Plate to the crate floor.

  • Page 29: Unpack The Body Shield Assembly

    Shield protective lead material. If the Body Shield is damaged, it must be inspected according to the Body and Face Shield Fluoroscopy Inspection section of the User’s Guide (TIDI Products document 84000). Remove the screws that secure the Straps (shown in red) to the Body Shield.

  • Page 30: Remove Balancer From Foam Cradle

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Remove the right and left shoulder shields (located under the body shield) (Figure 20). Figure 20 Right and Left Shoulder Shields Remove Balancer from Foam Cradle Figure 21 Balancer Foam Cradle Floor & Ceiling Mounted Units (82000)

  • Page 31: Remove Boxes From Crate

    Confirm uncrated items with packing list. If all items are present, proceed to Installation Manual. If any item is missing, or appears to be damaged, contact your local sales representative or TIDI service before proceeding further. Zero-Gravity® Radiation Protection System Uncrating Instructions...

  • Page 32: Uncrating The System - Ceiling Mounted Unit (Zgcm-48 | Zgcm-66 | Zgcm-Hsa)

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Uncrating the System – Ceiling Mounted Unit (ZGCM-48 | ZGCM-66 | ZGCM-HSA) CAUTION: HEAVY EQUIPMENT Use care when handling the Crate Lid. The Crate Lid weighs ~ 90 pounds (41 kilograms). Two people are required for handling. Open the Crate Remove the screws in the Crate Lid using a T25 torque bit as shown on the right.

  • Page 33: Unpack Drop Tube (Zgcm-48 | Zgcm-66)

    Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Unpack Drop Tube (ZGCM-48 | ZGCM-66) 1. Remove the screws (locations marked below in red) securing the Drop Tube to the crate floor, and then remove the Drop Tube. Figure 24 Screw (2) Drop Tube...

  • Page 34: Unpack Body Shield

    If the Body Shield is damaged, it must be inspected according to the Body Shield and Face Shield Fluoroscopy section of the User’s Guide (TIDI Products Document 84000). Remove Foam Piece A and place on a flat surface (Figure 3 & 4).
  • Page 35 Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Leaving the Protective Foam Cover intact (Figure 25), remove the Body Shield from the crate. ● One person must lift the Body Shield Tubular Frame at the top. The other person must lift by the Outside Edges of the Body Shield (Figure 26).
  • Page 36 Zero-Gravity Radiation Protection System Uncrating Instructions ® DAMAGE CAN OCCUR IF THE BODY SHIELD IS ALLOWED TO ATTENTION! DRAG ACROSS THE SIDE OF THE CRATE. Figure 27 Side of Crate ● Two people lift the Body Shield (Figure 27). ● The two people lay the Body Shield flat on Foam Piece A from step 1 (Figure 28). Figure 28 Protective Foam Foam Piece A...
  • Page 37 Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Remove the Right and Left Shoulder Shields (located under the Body Shield) (Figure 29). Remove Foam Piece B from crate to expose the screws securing the Pallet Frame.

  • Page 38: Unpack Boom Arm Assembly

    Zero-Gravity Radiation Protection System Uncrating Instructions ® Unpack Boom Arm Assembly CAUTION: HEAVY EQUIPMENT Use care when handling the Boom Arm assembly. The Boom Arm assembly weighs ~ 40 pounds (18 kilograms) for the ZGM-6-5H, ZGHSA, ZGCM-HSA and ZGCM-48, and the ZGCM-66 weighs ~ 50 pounds (23 kilograms).
  • Page 39 Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Figure 32 (ZGCM-48 | ZGCM-66) Wood Block with Screw Crate Floor Rail Assembly Figure 33 (ZGCM-HSA) Straps with Screws Swivel Boom Assembly Rail Assembly Crate Floor Wood Block with Screws Remove the Rail Assembly with the aid of another person, using the Lifting Straps located on each end of the Rail Assembly (Figure 34).
  • Page 40 Confirm uncrated items with packing list. If all items are present, proceed to Installation Manual. If any item is missing, or appears to be damaged, contact your local sales representative or TIDI service before proceeding further. Floor & Ceiling Mounted Units (82000)

  • Page 41: Limited Warranty

    Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 Limited Warranty TIDI Products warrants to Customer that this product, manufactured for TIDI Products and sold to customer, will be free from defects in materials and workmanship for a period of one (1) year after delivery to Customer.
  • Page 42 Zero-Gravity Radiation Protection System Uncrating Instructions ® THIS PAGE IS INTENTIONALLY LEFT BLANK Floor & Ceiling Mounted Units (82000)
  • Page 43 Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66 THIS PAGE IS INTENTIONALLY LEFT BLANK Zero-Gravity® Radiation Protection System Uncrating Instructions...
  • Page 44 Zero-Gravity Radiation Protection System Uncrating Instructions ® THIS PAGE IS INTENTIONALLY LEFT BLANK Floor & Ceiling Mounted Units (82000)
  • Page 45 Manufactured for: Made in the United States of America CONTACT INFORMATION Phone: 1.800.521.1314 +1.920.751.4300 United States Patents 7,973,299; 8,207,516; 8,558,204; 8,598,554 B2; 8,925,553; 8,933,426 For U.S. and Foreign Patent information, see //go.tidiproducts.com/patents Additional Patents Pending 82000 Rev 02...
