Clas Ohlson ZP3102EU Manual

Motion Detector with
Temperature Sensor
Art.no 36-5750 Model ZP3102EU
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for any
errors in text or images and any necessary changes made to
technical data. In the event of technical problems or other queries,
please contact our Customer Services.
Things to consider:
• Other wireless equipment using the same frequency band
can reduce the transmission range.
• The range of all wireless equipment depends on the type of
obstacles located between the transmitter and the receiver
(e.g. a concrete wall will interfere with the signal more than
a plasterboard wall).
If you experience problems, try the following:
• Turn off any other existing wireless equipment to check
whether this is the cause of the problem.
• Reposition the wireless equipment, shorten the distance
between the transmitter and the receiver or reduce
the number of obstacles (walls, furniture, etc.) between them.
Safety
• Never subject the motion detector to high temperature,
dust, heavy vibration, impacts, humidity or moisture.
• Never attempt to dismantle or modify the sensor as it
contains no user-serviceable parts.
Care and maintenance
• Always remove the battery if the product is not to be used
for a long time.
• Clean the product by wiping it with a damp cloth. Use only
mild cleaning agents, never solvents or corrosive chemicals.
Disposal
This product should be disposed of in accordance with local
regulations. If you are unsure how to proceed, contact your
local council.
GREAT BRITAIN • customer service tel: 0845 300 9799 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.com/uk
Product description
• Battery powered, wireless PIR (passive infrared receiver)
motion detector with built-in temperature sensor for use
with Zipabox Duo and other Z-Wave-system products.
• Depending on how it is configured, the information sent
to a controller from this detector can be used in a variety
of applications. It could, for example, switch a light
on or trigger an alarm when motion is detected inside
the detection zone.
• The temperature sensor not only reports the ambient
temperature at the detector but can also be used to
control devices by programming in commands actuated by
the attainment of set temperature limits. The applications
depend entirely on how the system is configured.

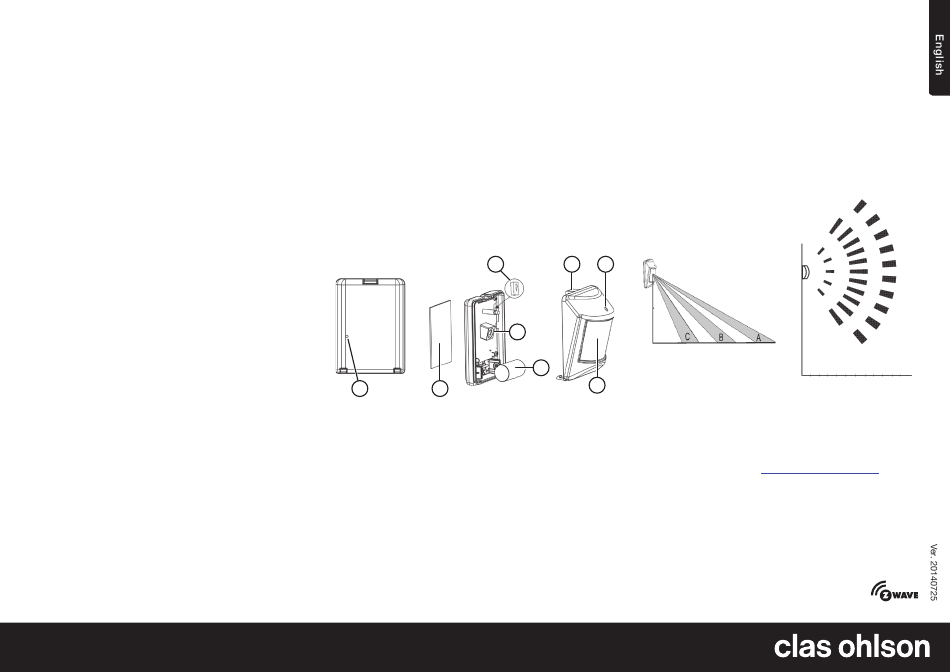

3
4
1 2
1. [ Programming ] button 5. Battery
2. Double-sided adhesive tape 6. Release catch
3. Tamper switch 7. LED indicator
4. Sensor 8. Lens
Installation
1. Open the motion detector by lifting the release catch (6)
and removing the front cover.
2. Insert a CR123A battery. Note the polarity markings in
the battery holder to ensure correct battery insertion.
The LED will start flashing slowly to indicate that
the detector is not yet installed in a Z-Wave network.
3. Set your Z-Wave control device to learning mode and
place the motion detector not further than 1 metre from
the control device.
4. Press [ Programming ] button (1). The LED will stop flashing.
This indicates that the detector is now installed in a Z-Wave
network. If the motion detector needs to be reconfigured
later, you can open it by lifting the release catch (6) and
removing the front cover. The LED indicator will flash to
indicate that you can reconfigure the motion detector.
5. Use the double-sided adhesive tape to mount the detector
(ideally about 2 m off the ground) in the desired location.
6 7
2m
1m
0 1 2 3 4 5 6 7 8 9 10 11m
5
8
Uninstallation
Set your Z-Wave control device to device removal mode and
press the programming button.
For further information, visit
a complete instruction manual.
Specifications
Frequency
Battery
Range
Operating temperature
60°
50°
40°
30°
20°
10°
C B A 0°
10°
20°
30°
40°
50°
60°
0 1 2 3 4 5 6 7 8 9 10 11m
www.visionsecurity.com.tw for
868.42 MHz
1 × CR123A
30 m (under optimum conditions)
–15 to 40 ºC (5–104 ºF)
