J. Reverse unit control lever. Before engaging the reverse lever, always engage the clutch lever.
K. Differential locking lever.

IMPLEMENT ASSEMBLY

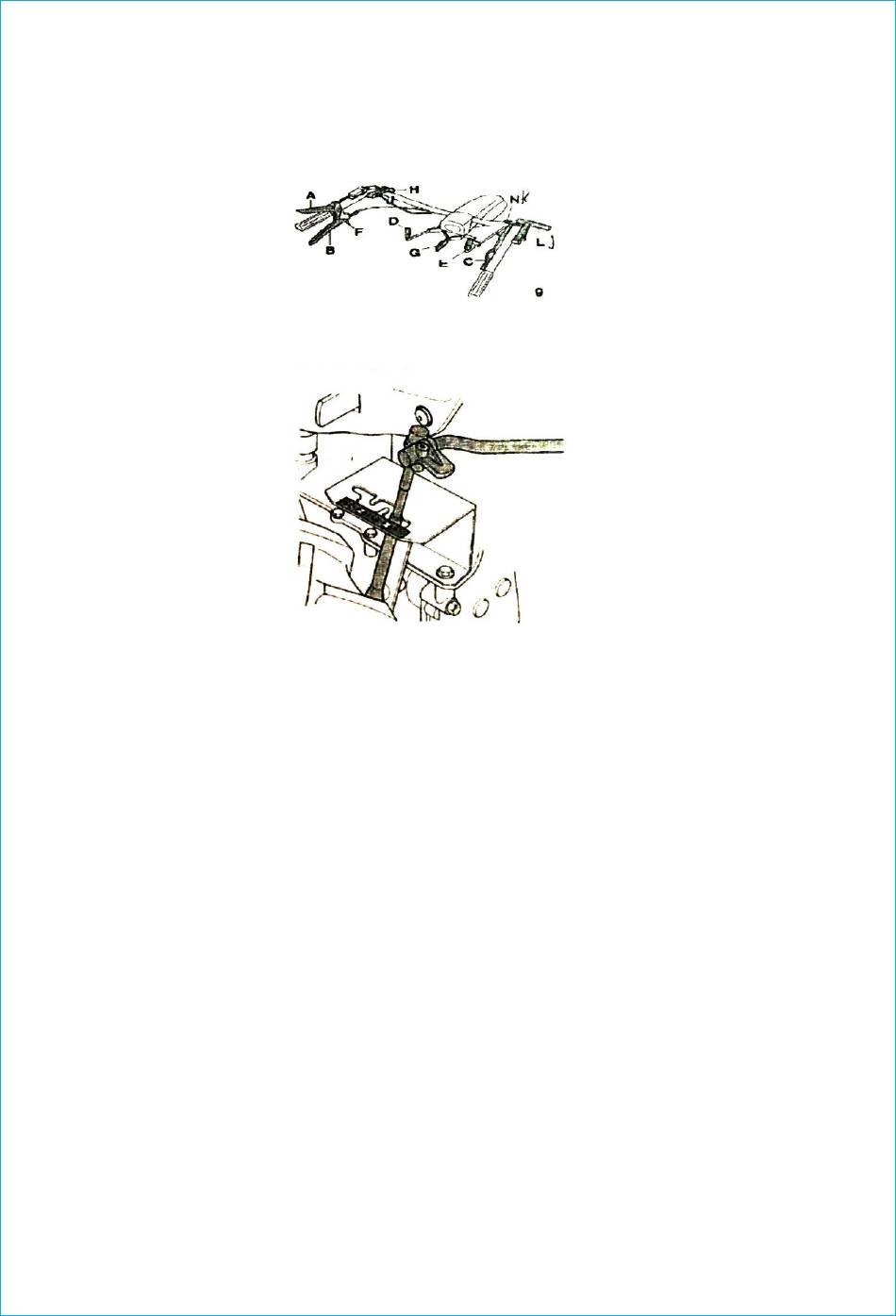

Implements are mounted directly to the flange A (fig 12) or fitting between the attachment the quick hitch
C (fig 13).
It is necessary that nuts D (fig 13) which fasten the implement to the machine are well tightened. To mount
to the two-wheel tractors the cutter bar, the lawnmower, the snow thrower, etc. It is necessary to turn the
handle bar of 180 degree. Before this, it is necessary to release the speed F and P.T.O. control rods G from
supports H, pull the handlebar steering column position lever L and turn it 180 degree (fig 14-15).
Insert it again after choosing the ideal position of the handlebar. After turning the handlebar, rods must be
inserted again into the supports.
