Haag-Streit BX 900 Instructions For Use Manual
Photo slit lamp
Hide thumbs
Also See for BX 900:
- Instructions for use manual (26 pages) ,
- Instructions for use manual (22 pages)
Table of Contents
Related Manuals for Haag-Streit BX 900
Summary of Contents for Haag-Streit BX 900

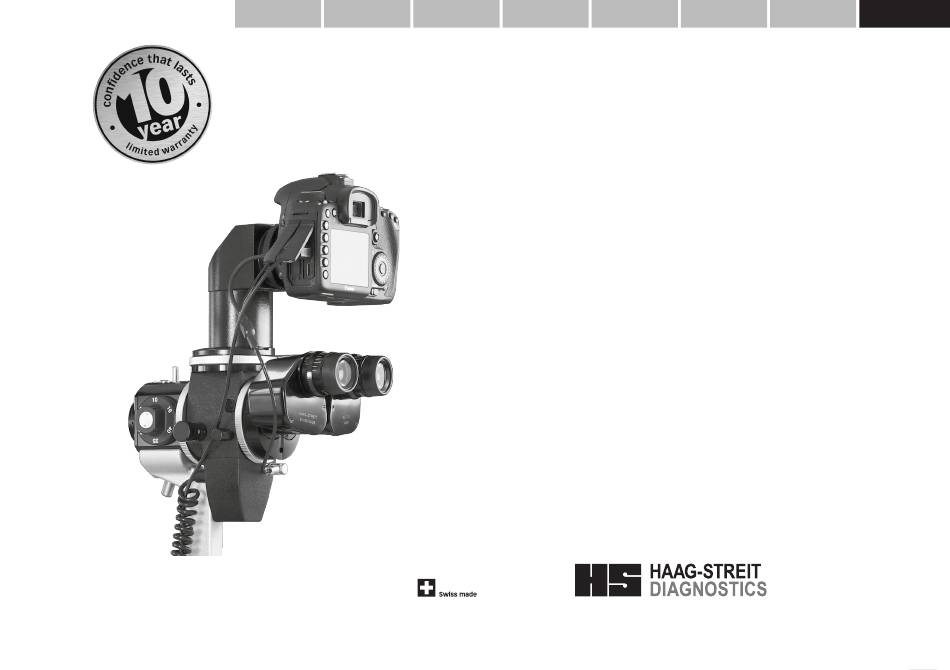

- Page 1 SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANÇAIS DEUTSCH ENGLISH PORTUGUÊS INSTRUCTIONS FOR USE Photo slit lamp BX 900 ® 9. Edition / 2021 – 08 © HAAG‑STREIT AG, 3098 Koeniz, Switzerland ‑ HS‑Doc. no. 1500.7220449‑04090 – 2021 – 08...
- Page 2 PORTUGUÊS INSTRUCTIONS FOR USE Preface Photo slit lamp Thank you for choosing a Haag-Streit device. Provided you comply carefully with the regulations in these instructions for use, we can guarantee reliable and trouble-free BX 900 ® use of our product.
-
Page 3: Table Of Contents
SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANÇAIS DEUTSCH ENGLISH PORTUGUÊS Contents • 1 Safety ◦ 6.5 Photo diaphragm pre-selection....................15 ..............................4 ◦ 6.6 Setting the filters & diaphragms....................15 ◦ 1.1 Comments on these instructions for use..................4 ◦ 6.7 Fixation star ..........................16 ◦... -
Page 4: Safety
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA PORTUGUÊS 1 Safety 1.3 Shipment and unpacking • Before unpacking the device, check whether the packaging shows traces of DANGER! improper handling or damage. If this is the case, notify the transport company Failure to comply with these instructions may result in material damage that delivered the goods to you. -
Page 5: Operation, Environment
60601-1 standard. • This device may only be used in accordance with the instructions in • Only original Haag-Streit spare parts may be used. the 'Intended purpose / intended use' chapter. • Use of this device adjacent to or stacked with other equipment should be avoided because it could result in improper operation. -
Page 6: Disinfection
Children, aphakes and people suffering from eye conditions are most at risk. • Haag-Streit products must be used only for the purposes and in the manner • An increased risk may also occur if the retina is exposed to the described in the documents distributed with the product. -
Page 7: Intended Purpose / Intended Use
Date of manufacture Manufacturer • Stereo biomicroscope • Slit illumination • Instrument base Haag-Streit reference number Serial number • Headrest and chin rest The illumination system and a biomicroscope are mounted to an instrument base Trademark of the manufacturer Notes on disposal, see the operated by joystick. -
Page 8: Clinical Benefit
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA PORTUGUÊS 2.2.1 Indications 2.3.1 Operating environment The use of the slit lamp is indicated for the following medical conditions: The slit lamp is intended to be used in professional health care facilities such as hospitals, physician's, optometrist's and optician's practices. -
Page 9: Introduction
SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANÇAIS DEUTSCH ENGLISH PORTUGUÊS 3 Introduction The slit lamp consists of an illumination and a binocular microscope. The instrument base can be used to move the entire device in front of the eyes. The illumination offers a large number of setting options to make the practically invisible areas in the eye visible. - Page 10 ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA PORTUGUÊS 3.2 Photo components 29. Flash cable (with tube and flash 36. Flash tube housing tube connection) 37. Flash tube 30. Optical light guide for background 38. Lens barrel illumination 39. Camera housing 31.
-
Page 11: Overview Of The Led Illumination Unit Upper Part
3.4 Camera housing 51. LED illumination LI 01-plus with background illumination 52. Flash tube connection Not every camera housing (39) can be connected. Haag-Streit selects suitable 53. Flash tube camera models and makes the necessary adjustments. The photo slit lamp is only 54. -
Page 12: Device Assembly / Installation
3.10 Background illumination 58. Background illumination (swiveling) 3.11 Power supply NOTE! • Observe the respective Haag-Streit instructions for use. For further information, please contact your Haag-Streit representative. 59. Medically approved isolating 69. Optional power input (also • This device may only be operated with PS-LED and PS-LED HSM... -
Page 13: Setting The Weight Compensation Facility
NOTE! 4.5 Regulating the clearance of the slit width controls Consult your Haag-Streit representative for information on the supported cameras and their connection rings. The small screw in the centre of the right control knob (A) allows you to regulate the friction of the turning movement 5 Commissioning of these adjusting knobs. -
Page 14: Operation
Insert the 12.5 × eyepiece with double crosshair into the right eyepiece mounting in • The slit lamp BX 900 may only be operated with the Haag-Streit the binocular tube. The depth of the double crosshair on the reticle corresponds to Flash Unit FU 01. -
Page 15: Photo Diaphragm Pre-Selection
SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANÇAIS DEUTSCH ENGLISH PORTUGUÊS • The slit image can be set vertically, horizontally or as diagonal as required by 6.5 Photo diaphragm pre-selection turning the illumination facility on the handle (15) (locking points at 45°, 90° and 135°;... -
Page 16: Fixation Star
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA PORTUGUÊS 6.7 Fixation star 6.9 Operating the Flash unit FU 01 • Turning the diaphragm disc as far as it will go to the left switches Capture frequency ‘normal’ on the fixation star and the symbol "S" appears in the window. In Captures 1 to 10 in a 1-second cycle some examinations of the fundus, this star is projected onto the Captures 11 to 20 in a 2-second cycle... -
Page 17: Decommissioning
Filters Blue, red removal (green), grey (10%). GENERAL ALARM All red LEDs are flashing (electronic defect) • Contact your Haag-Streit NOTE! representative. (Further information available in the LED illumination LI 900 instructions for use) 7 Decommissioning Throw the rocker switch on the PS-LED power supply and the main switch on the FU 01 flash unit 01 I = ’OFF’. -
Page 18: Stereo Microscope
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA PORTUGUÊS 8.2 Stereo microscope Flash capacitor capacity 'normal' 200 Ws 'high' 400 Ws Stereo angle: 13° Flash frequency See chapter 'Operating the Flash unit FU 01' Magnification changer: 6.3 × / 10 × / 16 × / 25 × / 40 × Mains connection a) 115 V, 60 Hz Ocular magnification:... -
Page 19: Lens Barrel
Installation and repairs may only be performed by trained specialists. 16 × 1.6 × 9.3 × 13.8 mm • Contact your Haag-Streit representative for installation, repairs and 25 × 2.5 × 5.8 × 8.7 mm modification work on the system. The contact details are available at www.haag-streit.com. -
Page 20: Changing The Flash Tube
• Slide the coupling slide back downward until it stops in place. NOTE! Only original Haag-Streit flash tubes may be used. 9.3 Servicing To guarantee a long service life, the device must be cleaned weekly as described and protected with the dust cover when not in use. We recommend having the device inspected once a year by an authorized service technician. -
Page 21: Cleaning And Disinfection
9.5 Cleaning and disinfection 9.7 Dust cover The Haag-Streit slit lamps and their accessories can, if required, be carefully wiped We recommend protecting the slit lamp with a dust cover when down with ready-for-use disposable 70% ethanol disinfectant wipes. Surface-friendly not in use. -
Page 22: Legal Regulations
Haag-Streit at any time. not exceeded in case of normal operation, the device can be regarded as safe for the patient’s eye • Statutory accident regulations are to be observed. when operated within the limits specified by Haag-Streit. 10.3 Classification Standard EN 60601-1... - Page 23 • Use of accessories, transducers and cables other than those This device fulfills the requirements on electromagnetic compatibility according to specified or provided by Haag-Streit could result in increased IEC 60601-1-2:2014 (4th Edition). The device is built so that the generation and...
- Page 24 ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA PORTUGUÊS 10.6.3 Electromagnetic immunity environment tested (part 1) This product is intended for use in the electromagnetic environment specified below. The customer or the user of this product should assure that it is used in such an environment.
- Page 25 SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANÇAIS DEUTSCH ENGLISH PORTUGUÊS 10.6.4 Electromagnetic immunity environment tested (part 2) Portable and mobile RF communications equipment should be used no closer to any part of this product, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. These guidelines may not apply in all situations.
- Page 26 ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA PORTUGUÊS 28 V/m 28 V/m CDMA 850: max 2 W 1700 – 1990 MHz 1700 – 1990 MHz LTE Band 5: max 2 W 50% PM 217 Hz 50% PM 217 Hz GSM 1800/1900: max 2 W CDMA 1900: max 2 W 28 V/m 28 V/m...
- Page 27 SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANÇAIS DEUTSCH ENGLISH PORTUGUÊS 10.6.5 Recommended separation distances between portable and mobile RF communications equipment and this product This product is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of this product can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and this product as recommended below, according to the maximum output power of the communication equipment.
- Page 28 ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA PORTUGUÊS Should you have any further questions, please contact your Haag-Streit representative at: Wiki Revision ID: 114023 © HAAG‑STREIT AG, 3098 Koeniz, Switzerland ‑ HS‑Doc. no. 1500.7220449‑04090 – 2021 – 08...
