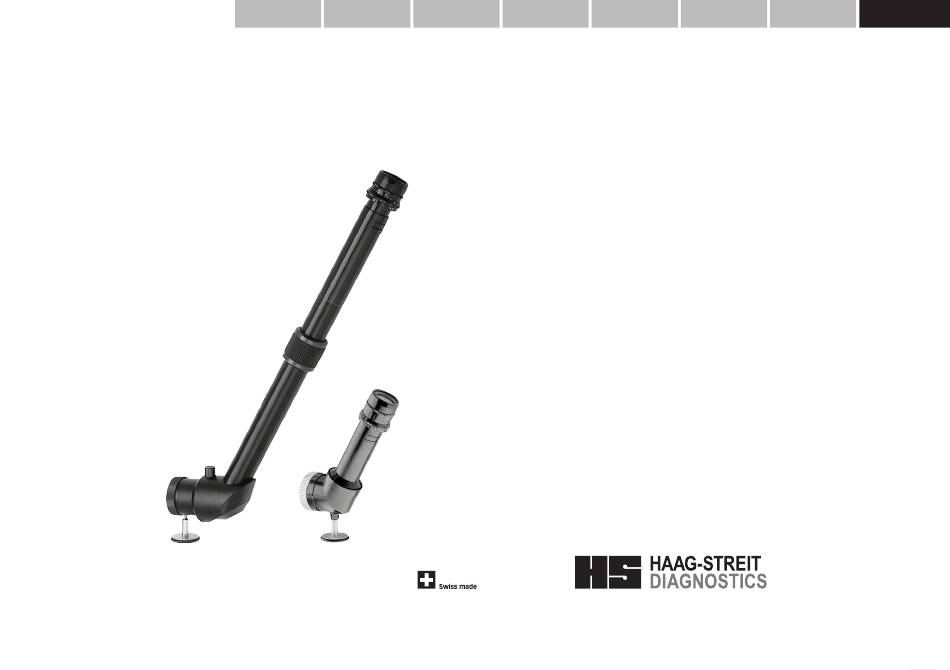

- Page 1 SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANÇAIS DEUTSCH ENGLISH PORTUGUÊS INSTRUCTIONS FOR USE Second observer tube 4. Edition / 2021 – 08 © HAAG‑STREIT AG, 3098 Koeniz, Switzerland ‑ HS‑Doc. no. 1500.7220394‑04040 – 2021 – 08...
-
Page 2: Table Of Contents
PORTUGUÊS INSTRUCTIONS FOR USE Preface Second observer tube Thank you for choosing a Haag-Streit device. Provided you comply carefully with the regulations in these instructions for use, we can guarantee reliable and trouble-free use of our product. WARNING! 4. Edition / 2021 – 08 Read the instruction manual carefully before commissioning this product. -
Page 3: Comments On These Instructions For Use
Air pressure 700 hPa ... 1060 hPa • The second observer tube must be mounted where its contours Relative humidity 10 % ... 95 % which protrude over the table top will not impede passing persons. -
Page 4: Disinfection
1.7 Warranty and product liability BQ 900. It enables additional persons to take part in the examination. • Haag-Streit products must be used only for the purposes and in the manner described in the documents distributed with the product. • The product must be treated as described in the ‘Safety’ chapter. Improper handling can damage the product. -
Page 5: Overview
PORTUGUÊS 3 Introduction 4 Device assembly / installation The observation in the second observer tube is monocular and takes place in the NOTE! right or left-hand side of the beam path of the stereo-microscope depending on the • If the tube is mounted on the same side as the tonometer, the slit lamp connection. -
Page 6: Setting The Viewing Height (Second Observer Tube Long)
6.1 Setting the viewing height (Second observer tube long) The second observer tube can be turned around the horizontal axis coming laterally out of the beam splitter. This enables the viewing height in the eyepiece to be varied so that the second observer can look into the eyepiece at a freely adjustable inclination angle. -
Page 7: Adjusting The Image Upright Position (Second Observer Tube Long)
The image is uprighted by adjusting the Installation and repairs may only be performed by trained twist grip (8). specialists. • Contact your Haag-Streit representative for installation, repairs and 7 Decommissioning modification work on the system. The contact details are available at www.haag-streit.com. -
Page 8: Cleaning And Disinfection
SVENSKA PORTUGUÊS 10 Appendix 9.3 Cleaning and disinfection The Haag-Streit slit lamps and their accessories can, if required, be carefully wiped 10.1 Accessories / functionals parts / detachable parts / down with ready-for-use disposable 70% ethanol disinfectant wipes. Surface-friendly consumables disinfectants (containing aldehyde or aldehyde-free) are also permitted, such as Kohrsolin FF. - Page 9 SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANÇAIS DEUTSCH ENGLISH PORTUGUÊS Should you have any further questions, please contact your Haag-Streit representative at: Wiki Revision ID: 117729 © HAAG‑STREIT AG, 3098 Koeniz, Switzerland ‑ HS‑Doc. no. 1500.7220394‑04040 – 2021 – 08...
