Quantum ELMRW LP220L SGL Manual

ELMRW
EMERGENCY REMOTE UNIT
Installation and Mounting............................................................................Page 2-3
Wiring Diagram ....................... ....................................................................Page 3
Lamp Aiming ..............................................................................................Page 4

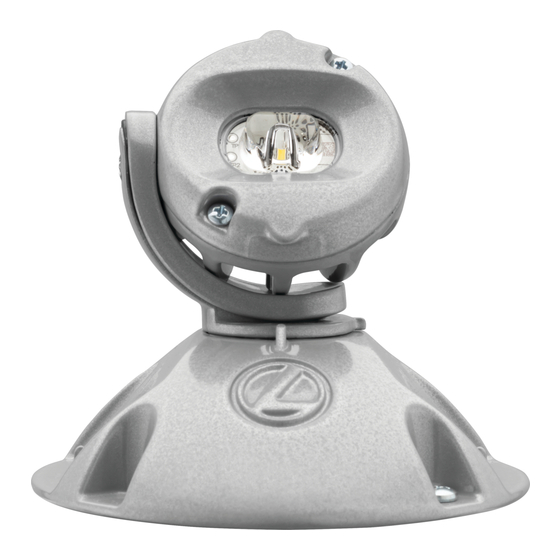

LP220L
SINGLE
!
WARNING:
FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS MAY RESULT IN DEATH, SERIOUS INJURY OR
SIGNIFICANT PROPERTY DAMAGE
maintaining this equipment. These instructions do not attempt to cover all installation and maintenance situations. If you do not understand
these instructions or additional information is required, contact Lithonia Lighting or your local Lithonia Lighting distributor.
!
WARNING: RISK OF ELECTRIC SHOCK – NEVER CONNECT TO, DISCONNECT FROM OR SERVICE WHILE EQUIPMENT IS
ENERGIZED
.
!
WARNING:
DO NOT USE ABRASIVE MATERIALS OR SOLVENTS. USE OF THESE SUBSTANCES MAY DAMAGE FIXTURE,
WHICH MAY RESULT IN PERSONAL INJURY.
!
WARNING
: RISK OF PERSONAL INJURY – This product may have sharp edges. Wear gloves to prevent cuts or abrasions when removing
! from carton, handling, installing and maintaining this product.
WARNING:
Do not exceed fixtures ambient temperature -40°F-131°F (-40°C- 55°C). Use of unauthorized input voltage voids warranty and UL
listing of this product and may present a risk of fire or explosion.
• Disconnect A.C. power before servicing.
• All servicing should be performed by qualified personnel.
• Consult your local building code for approved wiring and installation.
• Do not mount near gas or electric heater.
• For use Outdoors. Failure to ensure connections are properly protected against water ingress during installation may void
warranty.
• Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized
personnel.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
• Do not use this equipment for other than intended use.
AND DELIVER TO OWNER AFTER INSTALLATION
LP220L
TWIN
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
- For your protection, read and follow these warnings and instructions carefully before installing or
SAVE THESE INSTRUCTIONS
SP640L
SINGLE
SP640L
TWIN
