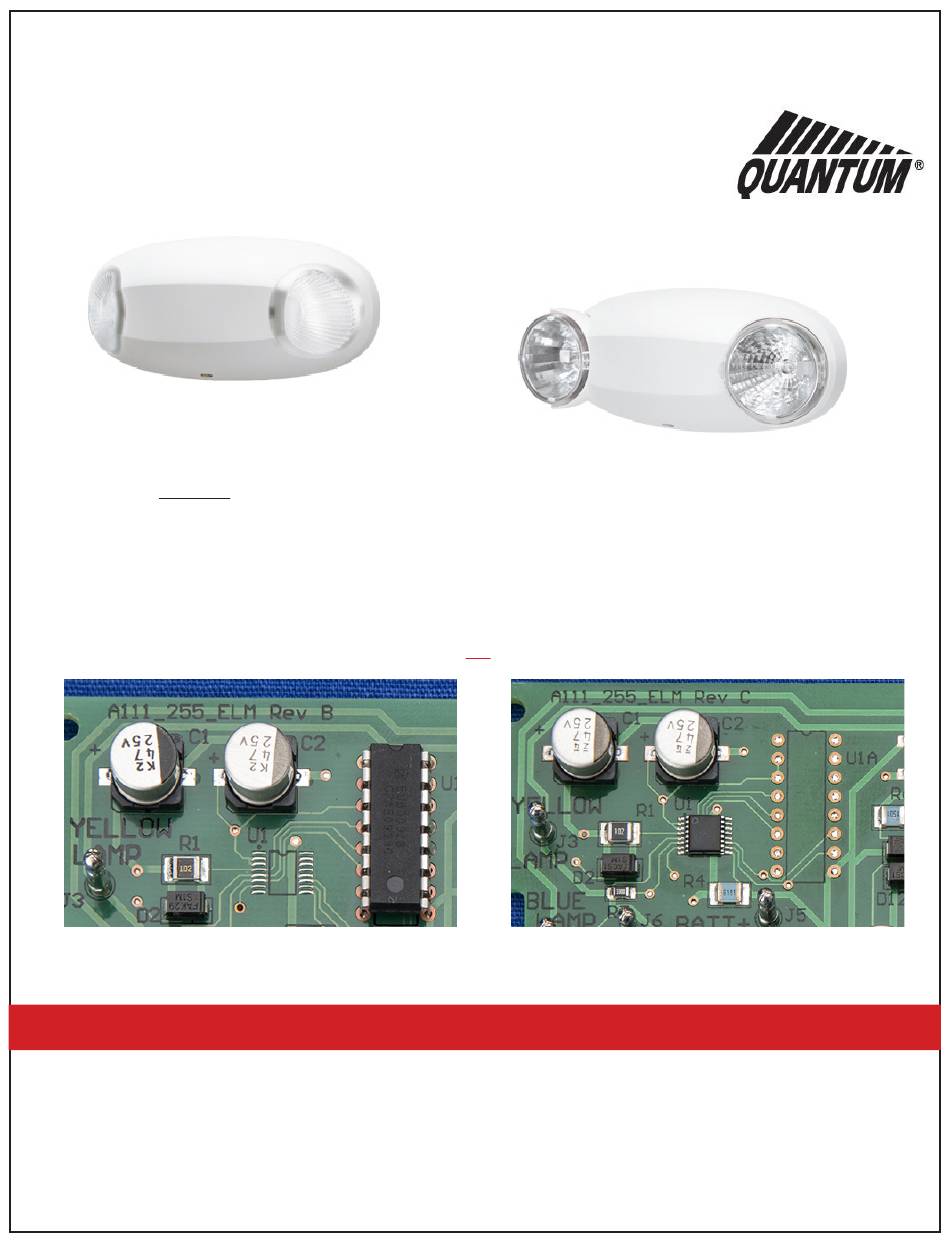

ELM & ELM2 EMERGENCY LIGHTING RECALL
INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS
CAUTION:
Read and follow Important Safeguards carefully before proceeding.
ELM —
with stationary, fixed-optic lamps
This recall does not include the following light unit models:
• ELM2 SD
• ELM2 LED
• ELM2 WRS
Check the label inside your unit to verify the model number.
Call Acuity Brands Lighting with any questions: 888.615.4501
The two circuit board revisions that are covered by this recall look like this:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Turn off electricity at fuse or circuit breaker before proceeding.
3. All work should be performed by qualified personnel.
4. For installation and maintenance instructions please go to www.lithonia.com.
Rev. B
IMPORTANT SAFEGUARDS
Patent # US D473,672
Patents pending
ELM2 —
with adjustable lamps
Rev. C
US D483,511
US D484,272
Advertisement
Related Manuals for Quantum ELM
Summary of Contents for Quantum ELM
- Page 1 ELM & ELM2 EMERGENCY LIGHTING RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS CAUTION: Read and follow Important Safeguards carefully before proceeding. Patent # US D473,672 US D483,511 US D484,272 Patents pending ELM — with stationary, fixed-optic lamps ELM2 — with adjustable lamps This recall does not include the following light unit models: •...
- Page 2 1B above, then the unit IS included in the recall. Proceed to the next step. ELM & ELM2 EMERGENCY LIGHTING UNIT RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS | 2...
- Page 3 Note the location of any units with circuit boards missing one or both of the rectangular chips in the upper right corner of the circuit board, and set aside those units. ELM & ELM2 EMERGENCY LIGHTING UNIT RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS | 3...
- Page 4 Acuity Brands Lighting at 800.334.8694 for a replacement mounting plate. If there is no damage, please proceed to the next step. Connector Contacts ELM & ELM2 EMERGENCY LIGHTING UNIT RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS | 4...
- Page 5 Both lampheads should illuminate. lampheads to the desired position. If one or more lamps do not illuminate, contact Acuity Brands Lighting at 800.334.8694 to discuss an appropriate solution. ELM & ELM2 EMERGENCY LIGHTING UNIT RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS | 5...
- Page 6 ELM units only: These units do NOT have the black connectors, so you will not perform this step yet. Proceed to the step 6D. ELM & ELM2 EMERGENCY LIGHTING UNIT RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS | 6...
- Page 7 Leave the other wire(s) attached to the circuit board in place. ELM Units only: Now, using needle-nosed pliers disconnect the blue and yellow lamp leads on each side of the circuit board. ELM & ELM2 EMERGENCY LIGHTING UNIT RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS | 7...
- Page 8 ELM units only: Disconnect the blue and yellow lamp leads on each side of the new, blue circuit board and discard them. ELM & ELM2 EMERGENCY LIGHTING UNIT RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS | 8...
- Page 9 Wire management should match the photo to the right. Battery should be secured firmly by velcro strap. All wires should be positioned in the area of the battery and electronics as shown. ELM & ELM2 EMERGENCY LIGHTING UNIT RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS | 9...
- Page 10 Acuity Brands Lighting at 800.334.8694 to discuss an appropriate solution. If your light unit is an ELM2 model, aim lampheads to the desired position. ELM & ELM2 EMERGENCY LIGHTING UNIT RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS | 10...
- Page 11 Wiring Diagram, for reference: Part # EMCSA00852, rev. A ELM & ELM2 EMERGENCY LIGHTING UNIT RECALL INSPECTION & CIRCUIT BOARD REPLACEMENT INSTRUCTIONS | 11...
